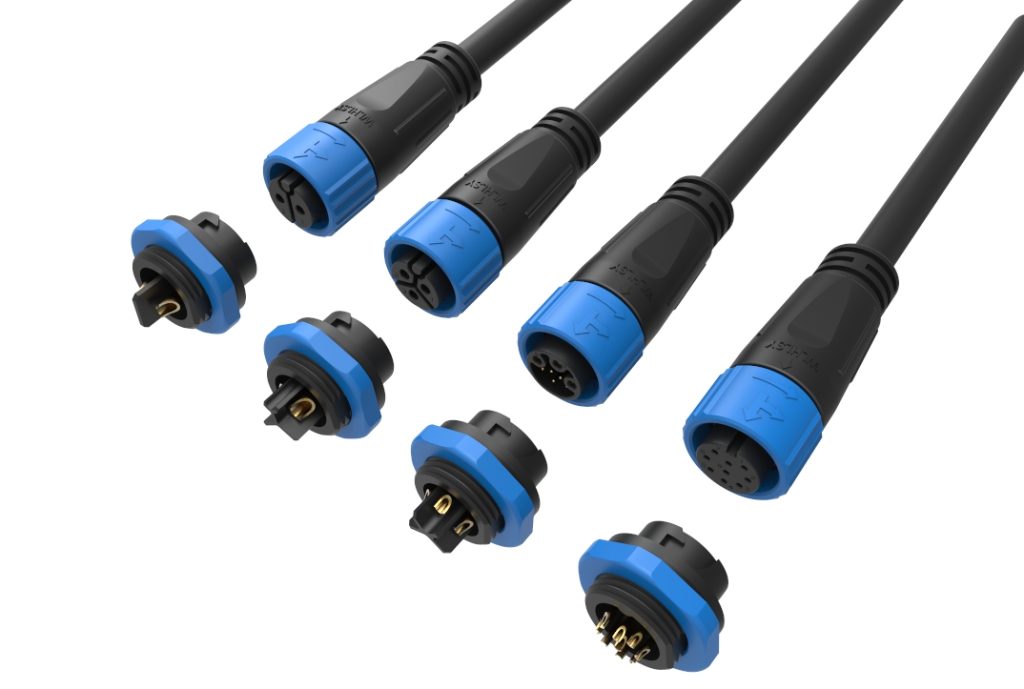

    M19 Self-locking Rear-mounted Waterproof Connector
    M19 Self-locking Rear-mounted Waterproof Connector

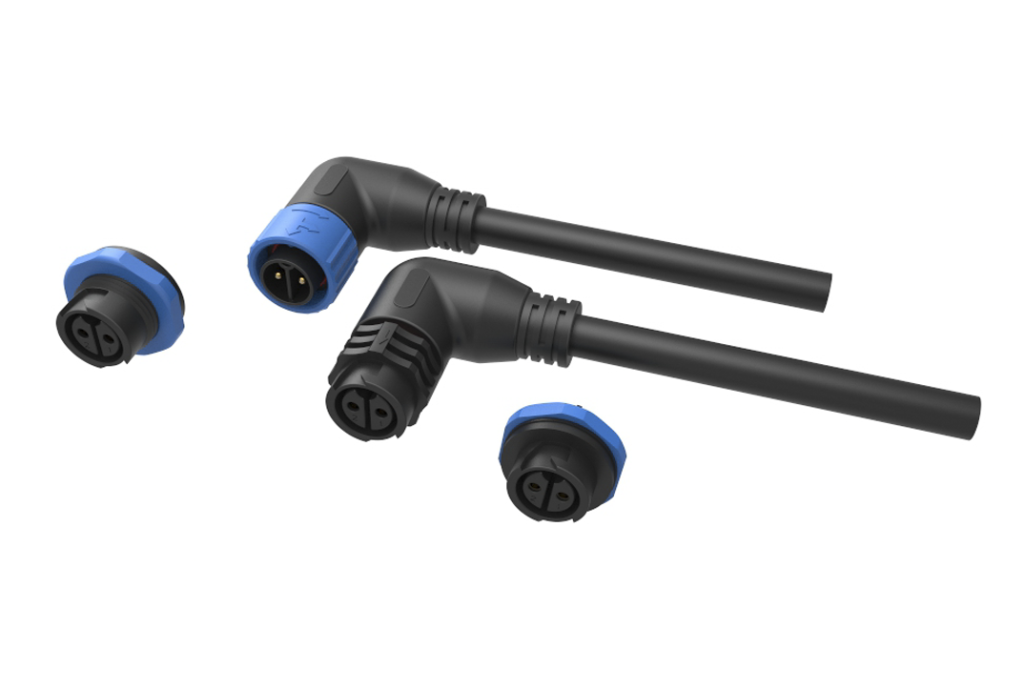

    М19 Self-locking Right Angle Waterproof Connector
    М19 Self-locking Right Angle Waterproof Connector
    М19 Waterproof Threaded Connector
    М19 Waterproof Threaded Connector
    M19 Self-locking Waterproof Connector
    M19 Self-locking Waterproof Connector

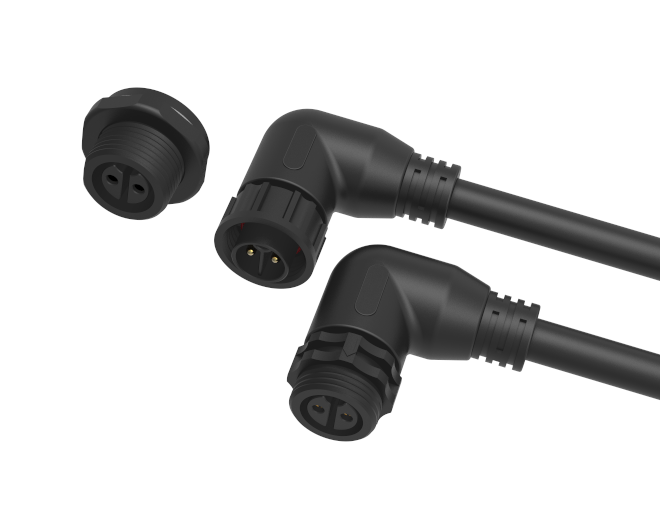

    M19 Thread Right Angle Waterproof Connector
    M19 Thread Right Angle Waterproof Connector

    Features:

    • Waterproof Protection: IP67~IP68 Waterproof Connector
    • Installation Type: Self locking,Screw locking,Panel Mount,Butt Joint,Field Assembly
    • Temperature Range: -40℃~+105℃
    • Durability: ≥500 Times

    Applications:

    • Outdoor Displays and Billboards
    • AV/Entertainment Systems
    • Outdoor signs/Lighting/PV Solar
    • Marine solutions
    • Outdoor AP/Repeater/Bridges,Antennas,Base stations and Industrial Automa-tions
    ImageSKUNameConnector typeNumber of positionsOrientationRated voltageRated currntContact diameterWire gaugeCompatible wire rangeProtection gradeTemperature rangeInstallation type

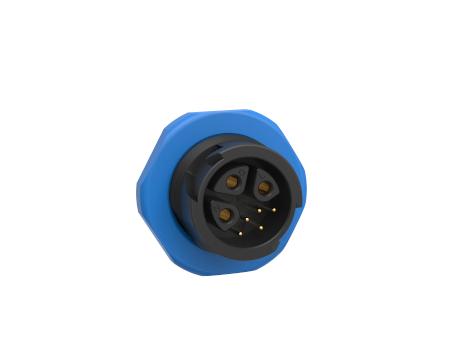

    M19 Waterproof Connector 3+5 Pin Female Socket 125V/30V 15A/2A Self-Locking Front-Mounted Socket 29-2351053-01-F M19 Waterproof Connector 3+5 Pin Female Socket 125V/30V 15A/2A Self-Locking Front-Mounted Socket Socket 3+5 Pin Straight 125V/30V 15A/2A φ2.0/φ0.8 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

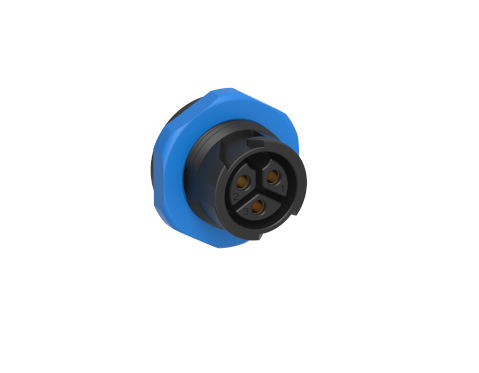

    M19 Waterproof Connector 3 Pin Female Socket 600V 20A Self-Locking Front-Mounted Socket 29-2351003-01-F M19 Waterproof Connector 3 Pin Female Socket 600V 20A Self-Locking Front-Mounted Socket Socket 3 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

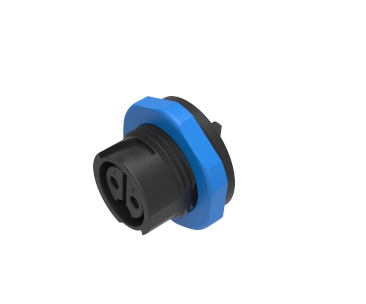

    M19 Waterproof Connector 2 Pin Female Socket 600V 20A Self-Locking Front-Mounted Socket 29-2351002-01-F M19 Waterproof Connector 2 Pin Female Socket 600V 20A Self-Locking Front-Mounted Socket Socket 2 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

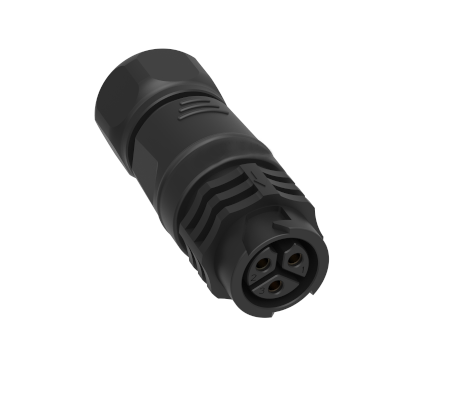

    M19 Waterproof Connector 3 Pin Jack Female Plug 600V 20A Self-Locking Assembly 29-2331003-01 M19 Waterproof Connector 3 Pin Jack Female Plug 600V 20A Self-Locking Assembly Plug 3 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

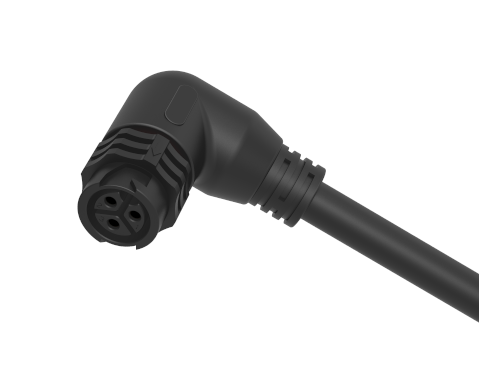

    M19 Waterproof Connector 3 Pin Jack Female Plug 600V 20A Self-Locking Right Angle Rubber 29-2331003-01-00001-E M19 Waterproof Connector 3 Pin Jack Female Plug 600V 20A Self-Locking Right Angle Rubber Plug 3 Pin Right Angle 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

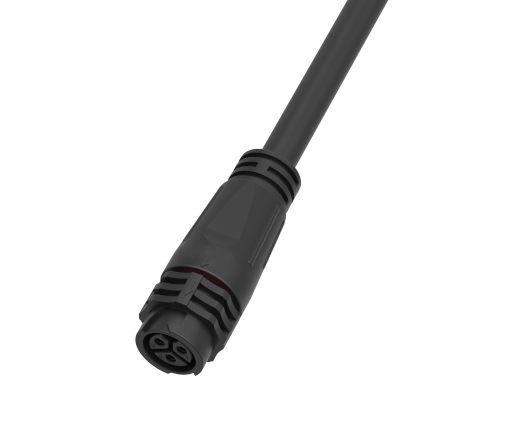

    M19 Waterproof Connector 3 Pin Jack Female Plug 600V 20A Self-Locking Rubber 29-2331003-01-00001-C M19 Waterproof Connector 3 Pin Jack Female Plug 600V 20A Self-Locking Rubber Plug 3 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

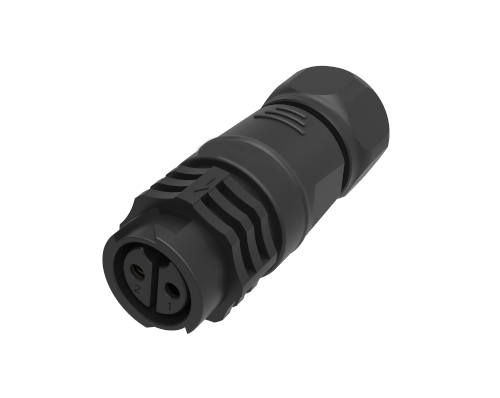

    M19 Waterproof Connector 2 Pin Jack Female Plug 600V 20A Self-Locking Assembly 29-2331002-01 M19 Waterproof Connector 2 Pin Jack Female Plug 600V 20A Self-Locking Assembly Plug 2 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

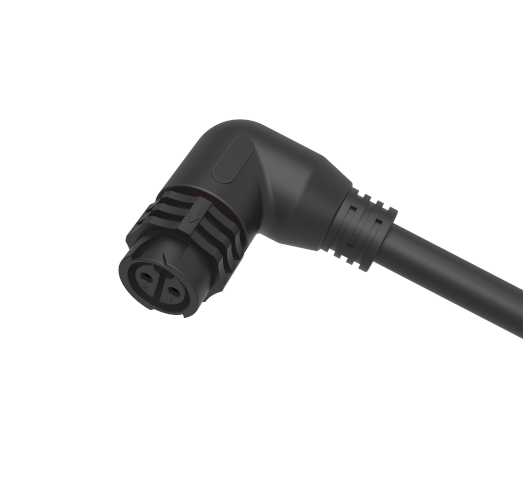

    M19 Waterproof Connector 2 Pin Jack Female Plug 600V 20A Self-Locking Right Angle Rubber 29-2331002-01-00001-E M19 Waterproof Connector 2 Pin Jack Female Plug 600V 20A Self-Locking Right Angle Rubber Plug 2 Pin Right Angle 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

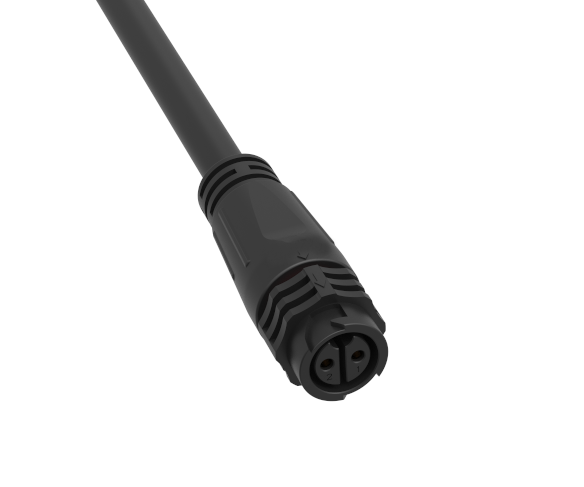

    M19 Waterproof Connector 2 Pin Jack Female Plug 600V 20A Self-Locking Rubber 29-2331002-01-00001-C M19 Waterproof Connector 2 Pin Jack Female Plug 600V 20A Self-Locking Rubber Plug 2 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

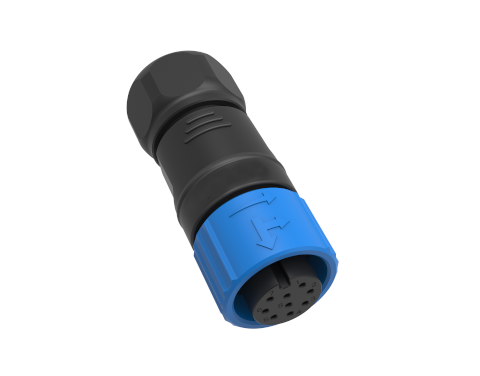

    M19 Waterproof Connector 9 Pin Jack Male Plug 60V 5A Self-Locking Assembly 29-2311009-01 M19 Waterproof Connector 9 Pin Jack Male Plug 60V 5A Self-Locking Assembly Plug 9 Pin Straight 60V 5A φ1 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

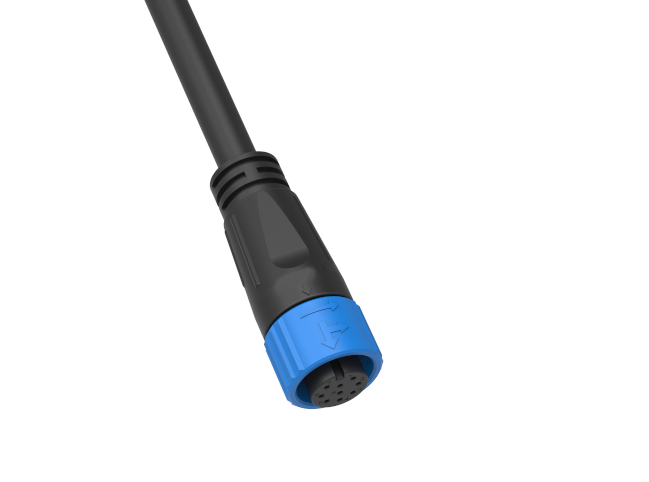

    M19 Waterproof Connector 9 Pin Jack Male Plug 60V 5A Self-Locking Rubber 29-2311009-01-00001-C M19 Waterproof Connector 9 Pin Jack Male Plug 60V 5A Self-Locking Rubber Plug 9 Pin Straight 60V 5A φ1 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

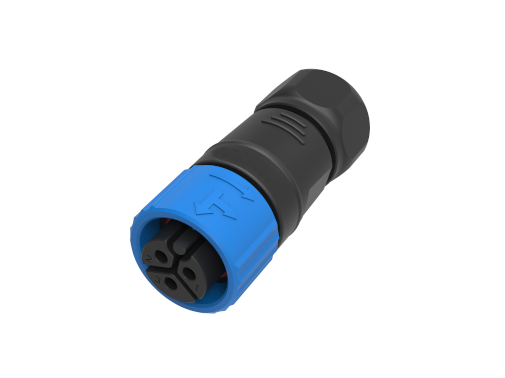

    M19 Waterproof Connector 3 Pin Jack Male Plug 600V 20A Self-Locking Assembly 29-2311003-01 M19 Waterproof Connector 3 Pin Jack Male Plug 600V 20A Self-Locking Assembly Plug 3 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

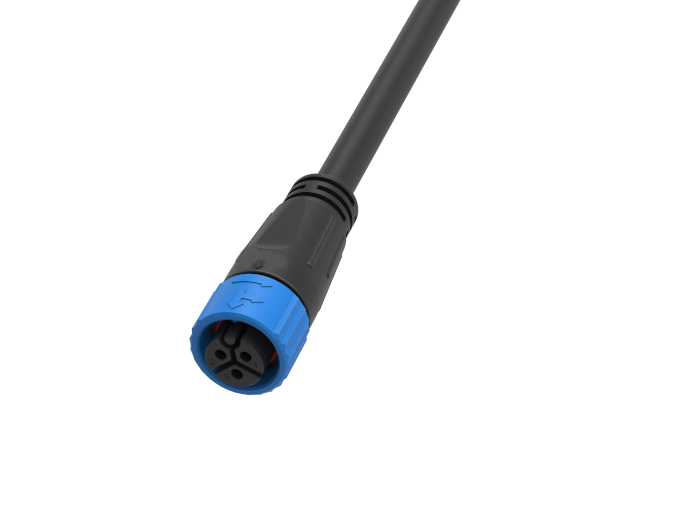

    M19 Waterproof Connector 3 Pin Jack Male Plug 600V 20A Self-Locking Rubber 29-2311003-01-00001-C M19 Waterproof Connector 3 Pin Jack Male Plug 600V 20A Self-Locking Rubber Plug 3 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

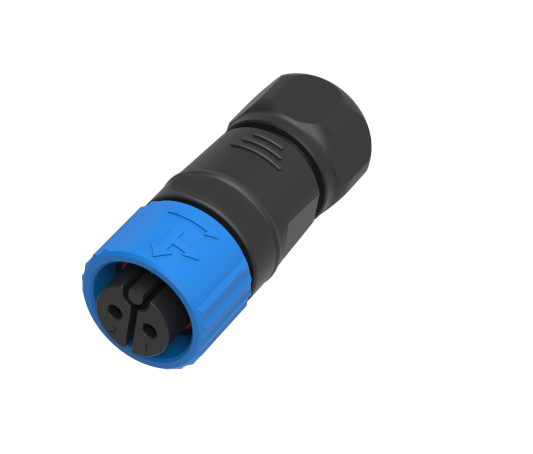

    M19 Waterproof Connector 2 Pin Jack Male Plug 600V 20A Self-Locking Assembly 29-2311002-01 M19 Waterproof Connector 2 Pin Jack Male Plug 600V 20A Self-Locking Assembly Plug 2 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

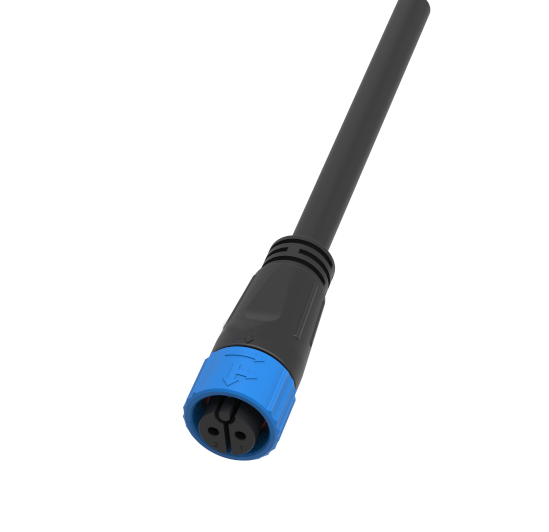

    M19 Waterproof Connector 2 Pin Jack Male Plug 600V 20A Self-Locking Rubber 29-2311002-01-00001-C M19 Waterproof Connector 2 Pin Jack Male Plug 600V 20A Self-Locking Rubber Plug 2 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

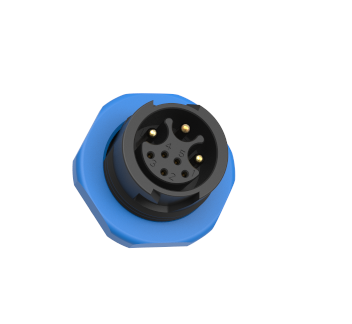

    M19 Waterproof Connector 3+5 Pin Male Socket 125V/30V 15A/2A Self-Locking Front-Mounted Socket 29-2151009-01-F M19 Waterproof Connector 3+5 Pin Male Socket 125V/30V 15A/2A Self-Locking Front-Mounted Socket Socket 3+5 Pin Straight 125V/30V 15A/2A φ2.0/φ0.8 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

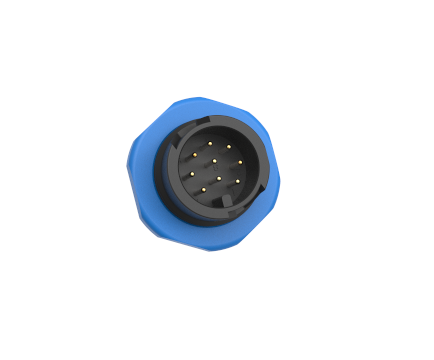

    M19 Waterproof Connector 9 Pin Male Socket 60V 5A Self-Locking Front-Mounted Socket 29-2151008-01-F M19 Waterproof Connector 9 Pin Male Socket 60V 5A Self-Locking Front-Mounted Socket Socket 9 Pin Straight 60V 5A φ1 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

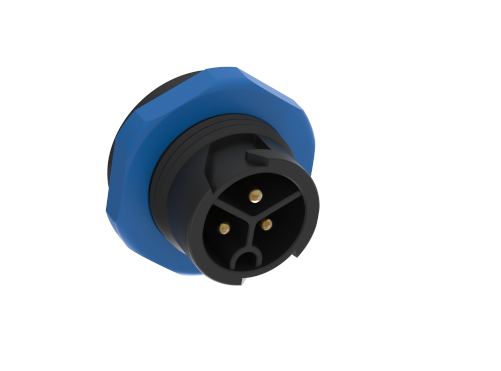

    M19 Waterproof Connector 3 Pin Male Socket 600V 20A Self-Locking Front-Mounted Socket 29-2151003-01-F M19 Waterproof Connector 3 Pin Male Socket 600V 20A Self-Locking Front-Mounted Socket Socket 3 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

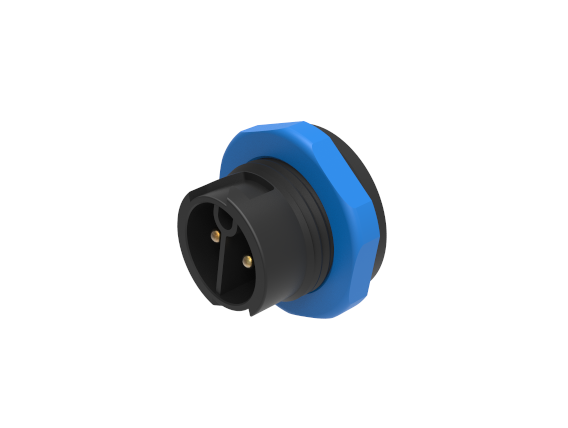

    M19 Waterproof Connector 2 Pin Male Socket 600V 20A Self-Locking Front-Mounted Socket 29-2151002-01-F M19 Waterproof Connector 2 Pin Male Socket 600V 20A Self-Locking Front-Mounted Socket Socket 2 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

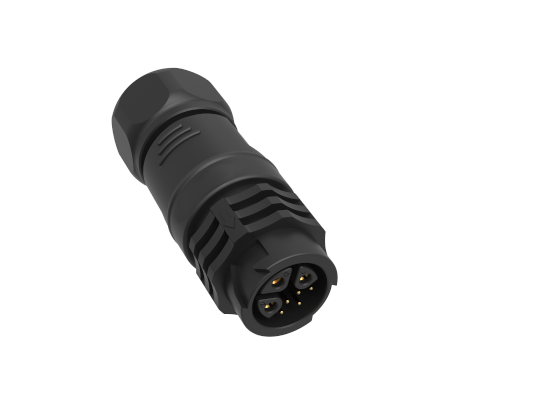

    M19 Waterproof Connector 3+5 Pin Female Plug 125V/30V 15A/2A Self-Locking Assembly 29-2131053-01 M19 Waterproof Connector 3+5 Pin Female Plug 125V/30V 15A/2A Self-Locking Assembly Plug 3+5 Pin Straight 125V/30V 15A/2A φ2.0/φ0.8 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

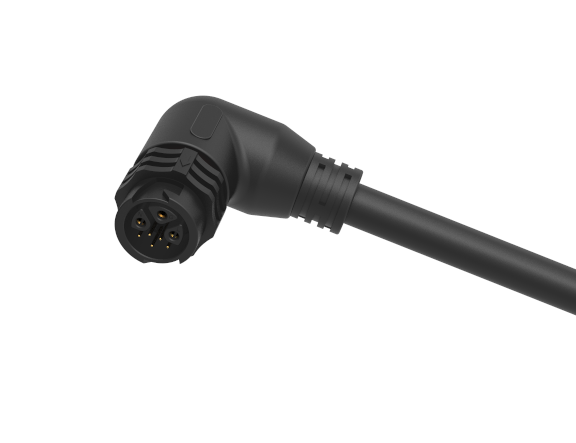

    M19 Waterproof Connector 3+5 Pin Female Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber 29-2131053-01-00001-E M19 Waterproof Connector 3+5 Pin Female Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber Plug 3+5 Pin Right Angle 125V/30V 15A/2A φ2.0/φ0.8 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

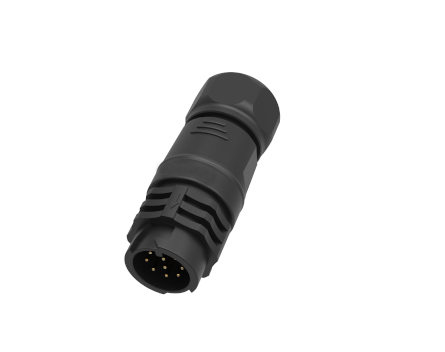

    M19 Waterproof Connector 9 Pin Female Plug 60V 5A Self-Locking Assembly 29-2131009-01 M19 Waterproof Connector 9 Pin Female Plug 60V 5A Self-Locking Assembly Plug 9 Pin Straight 60V 5A φ1 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

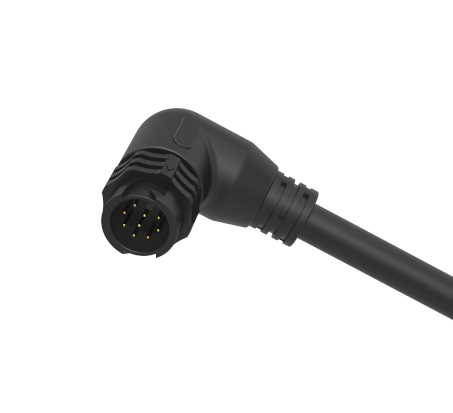

    M19 Waterproof Connector 9 Pin Female Plug 60V 5A Self-Locking Right Angle Rubber 29-2131009-01-00001-E M19 Waterproof Connector 9 Pin Female Plug 60V 5A Self-Locking Right Angle Rubber Plug 9 Pin Right Angle 60V 5A φ1 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

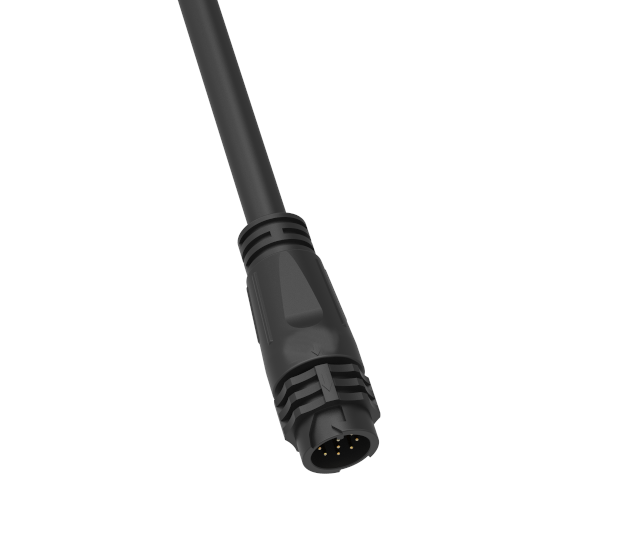

    M19 Waterproof Connector 9 Pin Female Plug 60V 5A Self-Locking Rubber 29-2131009-01-00001-C M19 Waterproof Connector 9 Pin Female Plug 60V 5A Self-Locking Rubber Plug 9 Pin Straight 60V 5A φ1 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

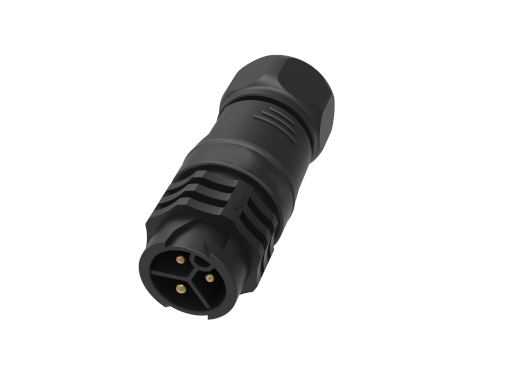

    M19 Waterproof Connector 3 Pin Female Plug 600V 20A Self-Locking Assembly 29-2131003-01 M19 Waterproof Connector 3 Pin Female Plug 600V 20A Self-Locking Assembly Plug 3 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

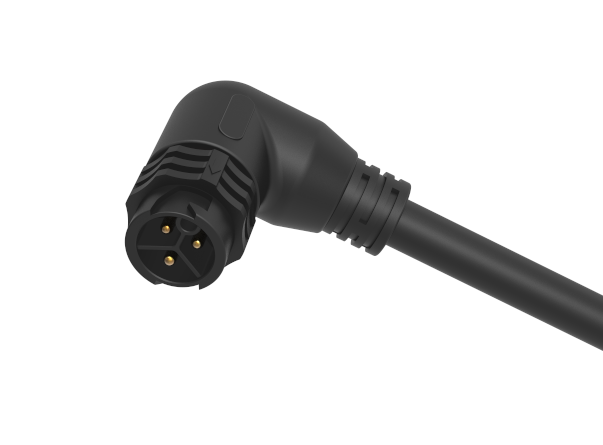

    M19 Waterproof Connector 3 Pin Female Plug 600V 20A Self-Locking Right Angle Rubber 29-2131003-01-00001-E M19 Waterproof Connector 3 Pin Female Plug 600V 20A Self-Locking Right Angle Rubber Plug 3 Pin Right Angle 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

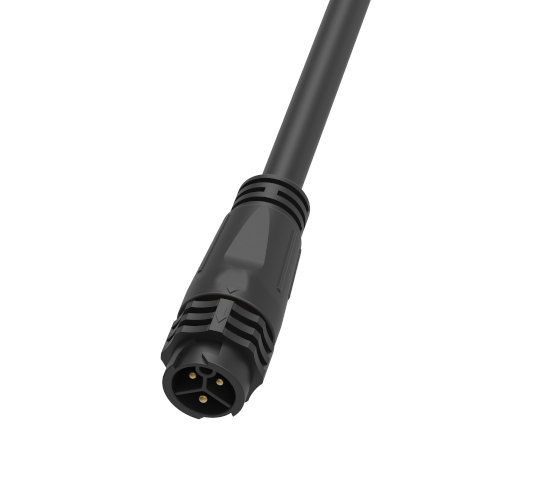

    M19 Waterproof Connector 3 Pin Female Plug 600V 20A Self-Locking Rubber 29-2131003-01-00001-C M19 Waterproof Connector 3 Pin Female Plug 600V 20A Self-Locking Rubber Plug 3 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

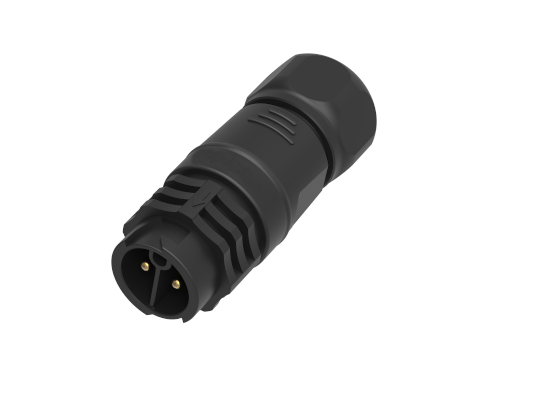

    M19 Waterproof Connector 2 Pin Female Plug 600V 20A Self-Locking Assembly 29-2131002-01 M19 Waterproof Connector 2 Pin Female Plug 600V 20A Self-Locking Assembly Plug 2 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

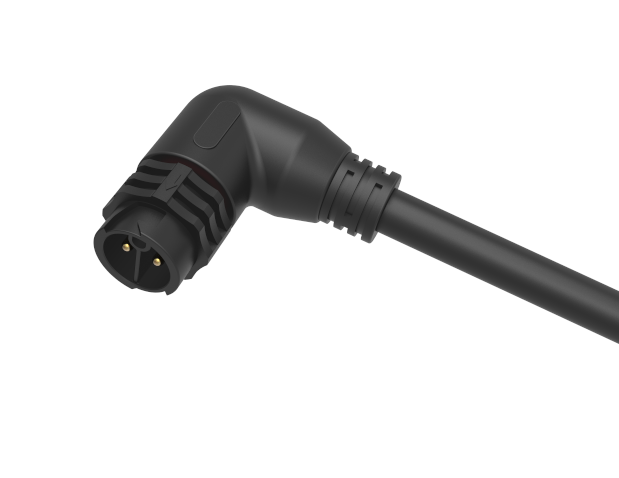

    M19 Waterproof Connector 2 Pin Female Plug 600V 20A Self-Locking Right Angle Rubber 29-2131002-01-00001-E M19 Waterproof Connector 2 Pin Female Plug 600V 20A Self-Locking Right Angle Rubber Plug 2 Pin Right Angle 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

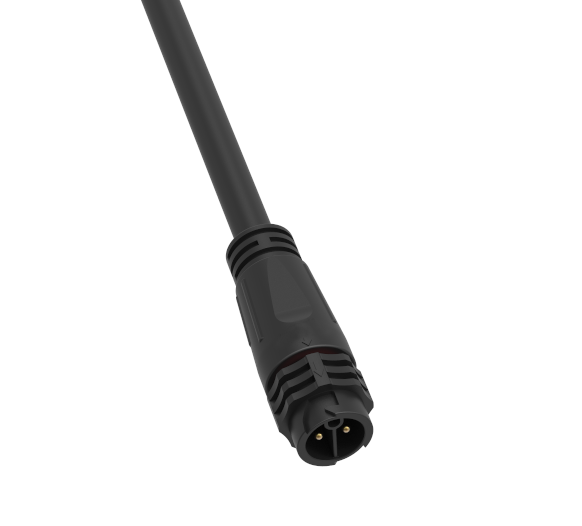

    M19 Waterproof Connector 2 Pin Female Plug 600V 20A Self-Locking Rubber 29-2131002-01-00001-C M19 Waterproof Connector 2 Pin Female Plug 600V 20A Self-Locking Rubber Plug 2 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

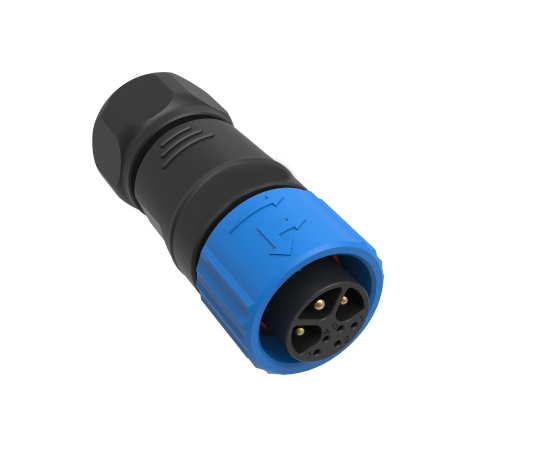

    M19 Waterproof Connector 3+5 Pin Male Plug 125V/30V 15A/2A Self-Locking Assembly 29-2111053-01 M19 Waterproof Connector 3+5 Pin Male Plug 125V/30V 15A/2A Self-Locking Assembly Plug 3+5 Pin Straight 125V/30V 15A/2A φ2.0/φ0.8 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

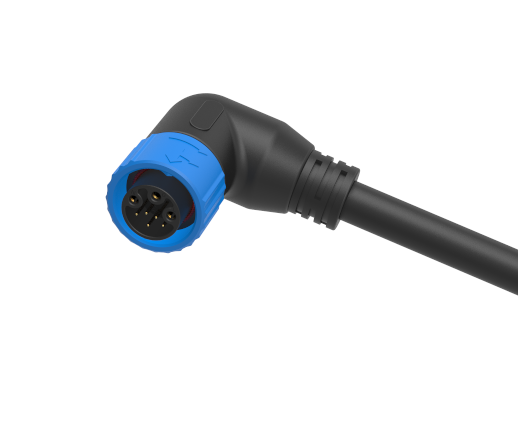

    M19 Waterproof Connector 3+5 Pin Male Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber 29-2111053-01-00001-E M19 Waterproof Connector 3+5 Pin Male Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber Plug 3+5 Pin Right Angle 125V/30V 15A/2A φ2.0/φ0.8 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

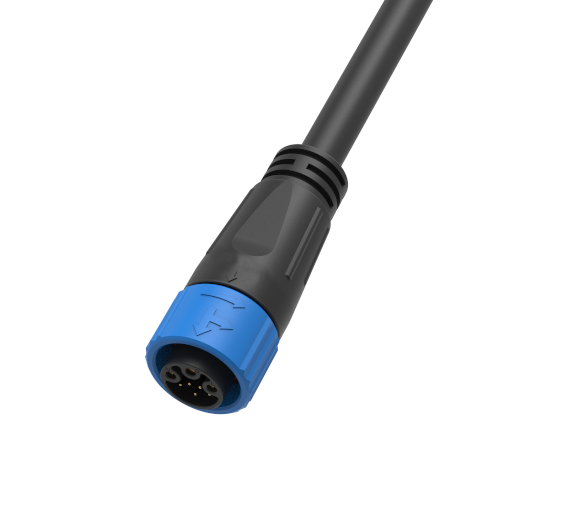

    M19 Waterproof Connector 3+5 Pin Male Plug 125V/30V 15A/2A Self-Locking Rubber 29-2111053-01-00001-C M19 Waterproof Connector 3+5 Pin Male Plug 125V/30V 15A/2A Self-Locking Rubber Plug 3+5 Pin Straight 125V/30V 15A/2A φ2.0/φ0.8 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

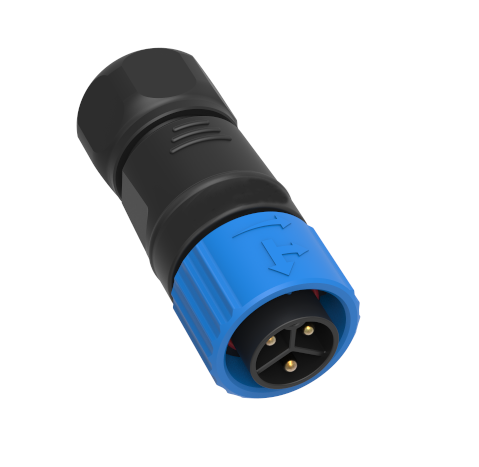

    M19 Waterproof Connector 3 Pin Male Plug 600V 20A Self-Locking Assembly 29-2111003-01 M19 Waterproof Connector 3 Pin Male Plug 600V 20A Self-Locking Assembly Plug 3 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

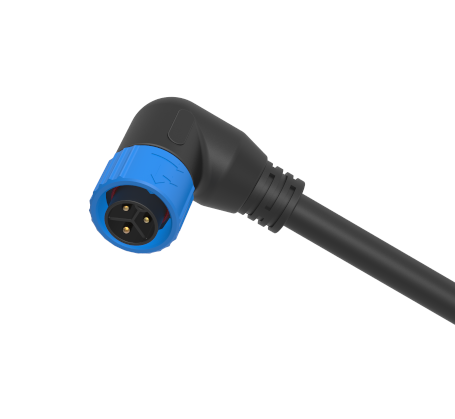

    M19 Waterproof Connector 3 Pin Male Plug 600V 20A Self-Locking Right Angle Rubber 29-2111003-01-00001-E M19 Waterproof Connector 3 Pin Male Plug 600V 20A Self-Locking Right Angle Rubber Plug 3 Pin Right Angle 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

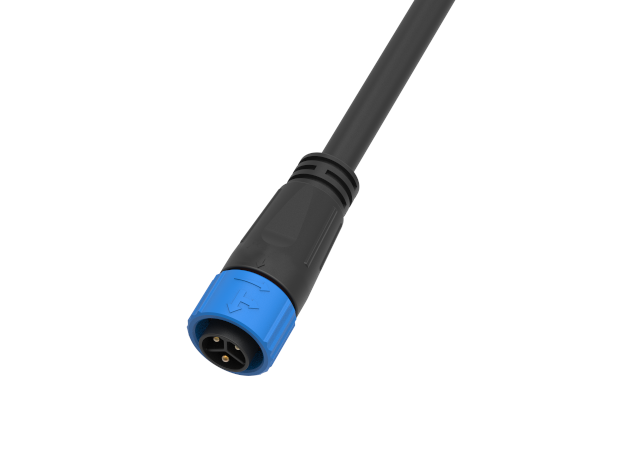

    M19 Waterproof Connector 3 Pin Male Plug 600V 20A Self-Locking Rubber 29-2111003-01-00001-C M19 Waterproof Connector 3 Pin Male Plug 600V 20A Self-Locking Rubber Plug 3 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

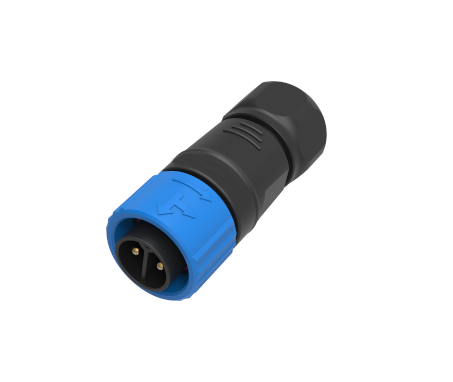

    M19 Waterproof Connector 2 Pin Male Plug 600V 20A Self-Locking Assembly 29-2111002-01 M19 Waterproof Connector 2 Pin Male Plug 600V 20A Self-Locking Assembly Plug 2 Pin Straight 600V 20A φ2.4 MAX φ11.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

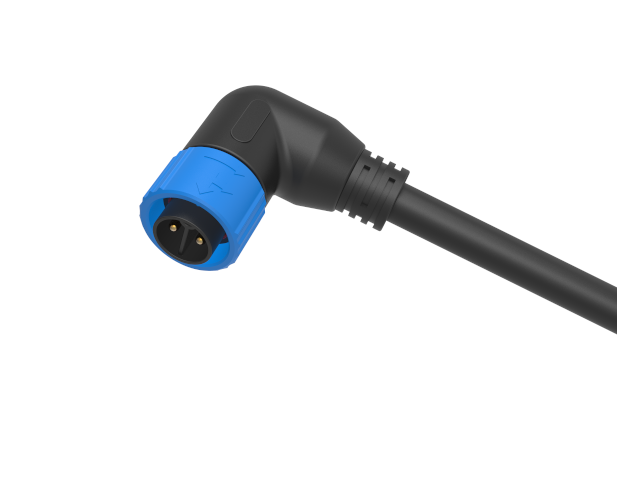

    M19 Waterproof Connector 2 Pin Male Plug 600V 20A Self-Locking Right Angle Rubber 29-2111002-01-00001-E M19 Waterproof Connector 2 Pin Male Plug 600V 20A Self-Locking Right Angle Rubber Plug 2 Pin Right Angle 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking

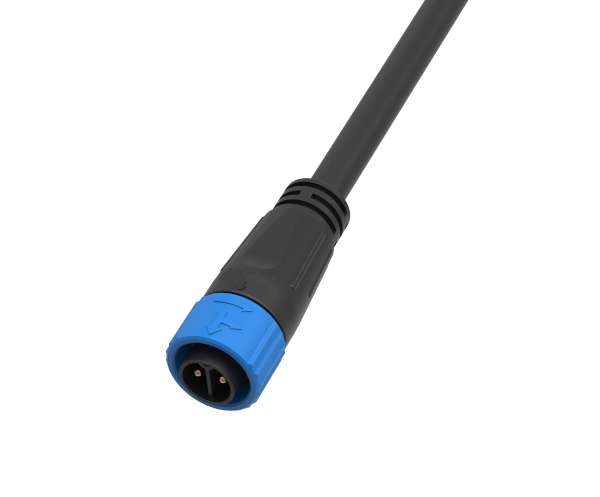

    M19 Waterproof Connector 2 Pin Male Plug 600V 20A Self-Locking Rubber 29-2111002-01-00001-C M19 Waterproof Connector 2 Pin Male Plug 600V 20A Self-Locking Rubber Plug 2 Pin Straight 600V 20A φ2.4 MAX φ13.5 0.3mm2-2.5mm2/24AWG-12AWG IP67 ﹣40℃﹣105℃ Self locking
    M19 Waterproof Circular Connector 3 Pin Female Socket 600V 20A Thread Socket 29-1351003-01 M19 Waterproof Circular Connector 3 Pin Female Socket 600V 20A Thread Socket Socket 3 Pin Straight 600V 20A φ2.4 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 2 Pin Female Socket 600V 20A Thread Socket 29-1351002-01 M19 Waterproof Circular Connector 2 Pin Female Socket 600V 20A Thread Socket Socket 2 Pin Straight 600V 20A φ2.4 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly 29-1331003-01 M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly Plug 3 Pin Straight 600V 20A φ2.4 MAX φ10.6 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 3 Pin Male Plug 600V 20A Thread Over Molding 29-1331003-01-C M19 Waterproof Circular Connector 3 Pin Male Plug 600V 20A Thread Over Molding Plug 3 Pin Straight 600V 20A φ2.4 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly 29-1331002-01 M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly Plug 2 Pin Straight 600V 20A φ2.4 MAX φ10.6 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Over Molding 29-1331002-01-C M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Over Molding Plug 2 Pin Straight 600V 20A φ2.4 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking

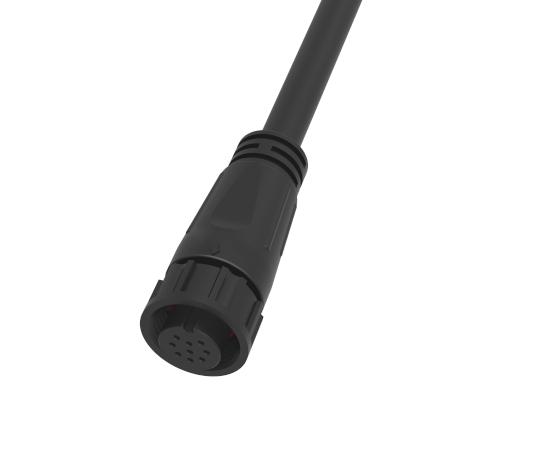

    M19 Waterproof Circular Connector 9 Pin Female Plug 60V 5A Thread Over Molding 29-1311009-01-C M19 Waterproof Circular Connector 9 Pin Female Plug 60V 5A Thread Over Molding Plug 9 Pin Straight 60V 5A φ1 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly Connector 29-1311003-01 M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly Connector Plug 3 Pin Straight 600V 20A φ2.4 MAX φ10.6 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking

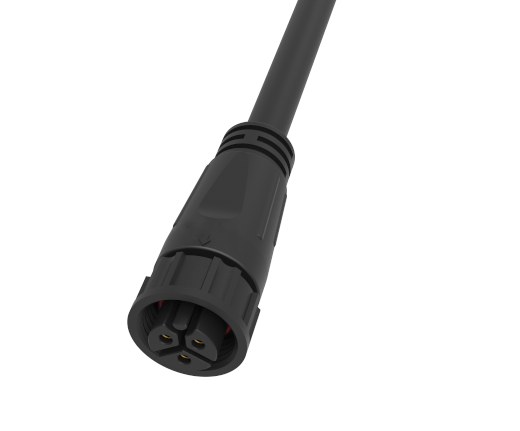

    M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Over Molding Connector 29-1311003-01-C M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Over Molding Connector Plug 3 Pin Straight 600V 20A φ2.4 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
    M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly Connector 29-1311002-01 M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly Connector Plug 2 Pin Straight 600V 20A φ2.4 MAX φ10.6 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking

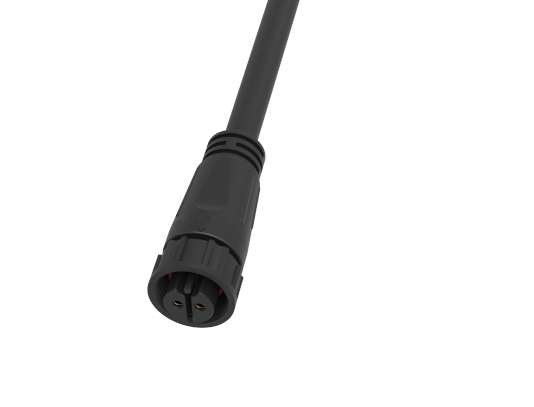

    M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Over Molding Connector 29-1311002-01-C M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Over Molding Connector Plug 2 Pin Straight 600V 20A φ2.4 MAX φ13 0.3mm2-2.5mm2/24AWG-12AWG IP68 ﹣40℃﹣105℃ Screw locking
