    M19 Self-locking Rear-mounted Waterproof Connector
    M19 Self-locking Rear-mounted Waterproof Connector
    М19 Self-locking Right Angle Waterproof Connector
    М19 Self-locking Right Angle Waterproof Connector
    М19 Waterproof Threaded Connector
    М19 Waterproof Threaded Connector
    M19 Self-locking Waterproof Connector
    M19 Self-locking Waterproof Connector
    M19 Thread Right Angle Waterproof Connector
    M19 Thread Right Angle Waterproof Connector

    Features

    🌊  Waterproof Excellence : IP67-IP68 rated – Dust-tight and waterproof.

    🔧  Flexible Installation : Self locking,Screw locking,Panel Mount,Butt Joint,Field Assembly.

    ❄️ Wide Temperature Range : Operates reliably from -40°C to +105°C, perfect for harsh environments.

    💪  Exceptional Durability : Withstands over 500 mating cycles, ensuring long-term reliability.

    Get a Quotation

    Inquiry Form for Bulk Order?

    Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




      Applications:

      • Outdoor Displays and Billboards: Reliable, weather-resistant power for LED signage.
      • AV/Entertainment Systems: Durable,waterproof electrical connectors for outdoor stages.
      • Outdoor Lighting and PV Solar: Stable power for LED lights and solar panels.
      • Marine Solutions: Corrosion-resistant, waterproof links for boats and docks.
      • Wireless and Industrial Use:Network Devices (AP, Antennas, Base Stations),Factory equipment.
      •
      ImageSKUNameConnector typeNumber of positionsOrientationRated voltageRated currntCompatible wire rangeProtection gradeInstallation typeContact diameterWire gaugeTemperature range

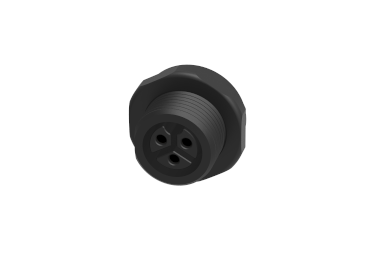

      M19 Waterproof Circular Connector 3 Pin Female Socket 600V 20A Thread Socket 29-1351003-01 M19 Waterproof Circular Connector 3 Pin Female Socket 600V 20A Thread Socket Socket 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ13 ﹣40℃﹣105℃

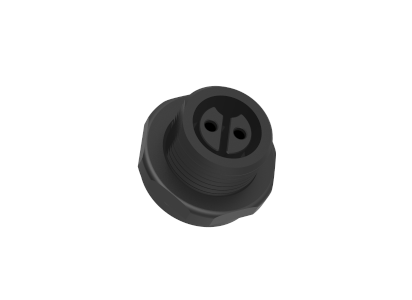

      M19 Waterproof Circular Connector 2 Pin Female Socket 600V 20A Thread Socket 29-1351002-01 M19 Waterproof Circular Connector 2 Pin Female Socket 600V 20A Thread Socket Socket 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ13 ﹣40℃﹣105℃

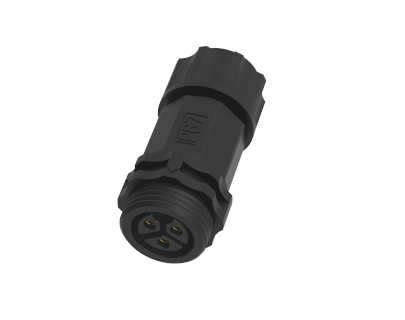

      M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly 29-1331003-01 M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly Plug 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃
      M19 Waterproof Circular Connector 3 Pin Male Plug 600V 20A Thread Over Molding 29-1331003-01-C M19 Waterproof Circular Connector 3 Pin Male Plug 600V 20A Thread Over Molding Plug 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ13 ﹣40℃﹣105℃

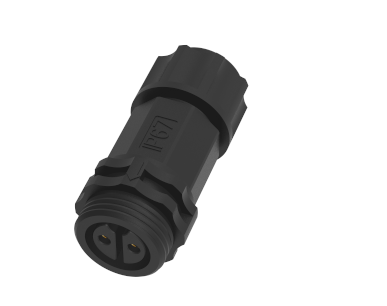

      M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly 29-1331002-01 M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly Plug 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃
      M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Over Molding 29-1331002-01-C M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Over Molding Plug 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ13 ﹣40℃﹣105℃

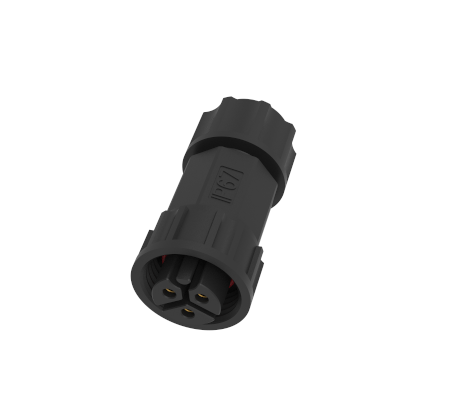

      M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly Connector 29-1311003-01 M19 Waterproof Circular Connector 3 Pin Female Plug 600V 20A Thread Assembly Connector Plug 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃
      M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly Connector 29-1311002-01 M19 Waterproof Circular Connector 2 Pin Female Plug 600V 20A Thread Assembly Connector Plug 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃

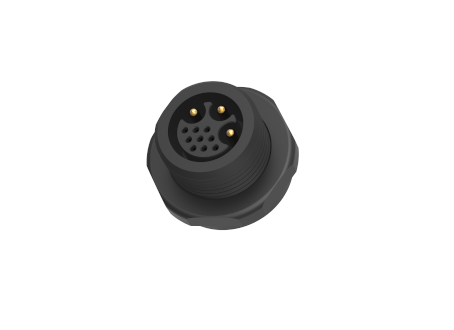

      M19 Waterproof Circular Connector 3+9 Pin Male Socket 125V/30V 15A/2A Thread Socket 29-1151093-01 M19 Waterproof Circular Connector 3+9 Pin Male Socket 125V/30V 15A/2A Thread Socket Socket 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.0/φ0.8 MAX φ13 ﹣40℃﹣105℃

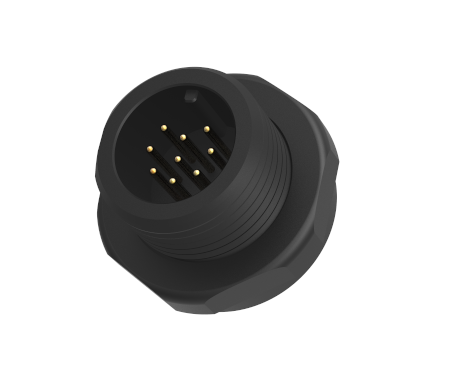

      M19 Waterproof Circular Connector 9 Pin Male Socket 60V 5A Thread Socket 29-1151009-01 M19 Waterproof Circular Connector 9 Pin Male Socket 60V 5A Thread Socket Socket 9 Pin Straight 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ1 MAX φ13 ﹣40℃﹣105℃

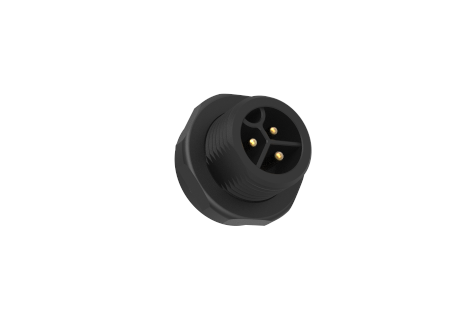

      M19 Waterproof Circular Connector 3 Pin Male Socket 600V 20A Thread Socket 29-1151003-01 M19 Waterproof Circular Connector 3 Pin Male Socket 600V 20A Thread Socket Socket 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ13 ﹣40℃﹣105℃

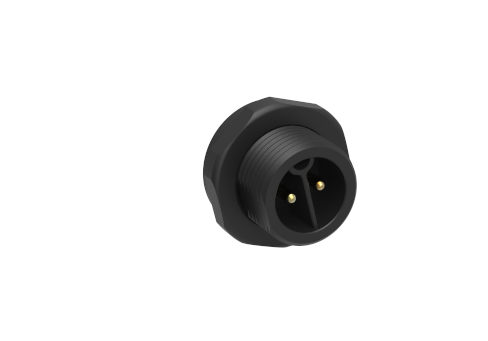

      M19 Waterproof Circular Connector 2 Pin Male Socket 600V 20A Thread Socket 29-1151002-01 M19 Waterproof Circular Connector 2 Pin Male Socket 600V 20A Thread Socket Socket 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ13 ﹣40℃﹣105℃

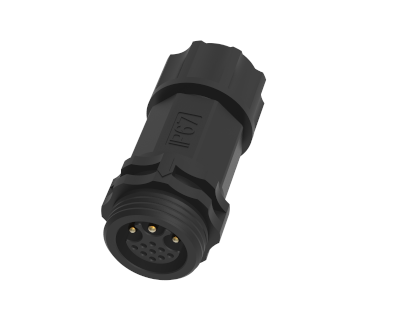

      M19 Waterproof Circular Connector 3+9 Pin Male Plug 125V/30V 15A/2A Thread Assembly Connector 29-1131093-01 M19 Waterproof Circular Connector 3+9 Pin Male Plug 125V/30V 15A/2A Thread Assembly Connector Plug 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.0/φ0.8 MAX φ10.6 ﹣40℃﹣105℃

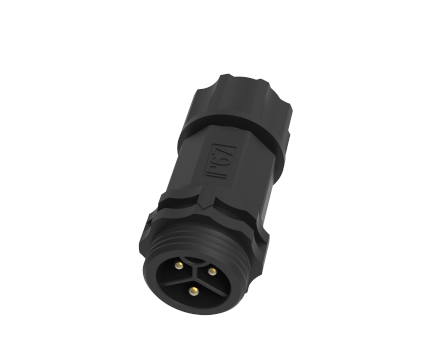

      M19 Waterproof Circular Connector 3 Pin Male Plug 600V 20A Thread Assembly Connector 29-1131003-01 M19 Waterproof Circular Connector 3 Pin Male Plug 600V 20A Thread Assembly Connector Plug 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃

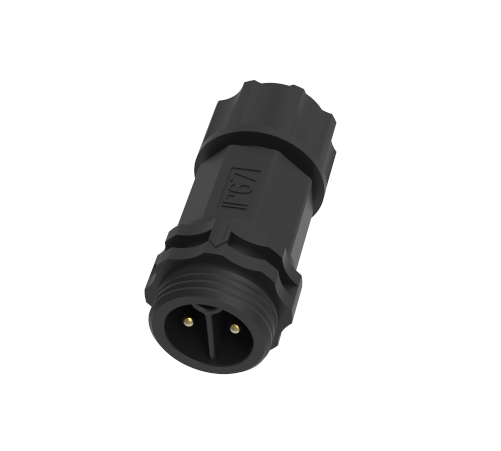

      M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Assembly Connector 29-1131002-01 M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Assembly Connector Plug 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃

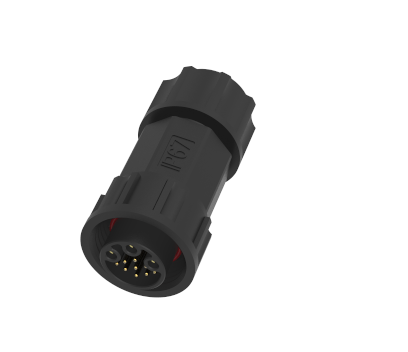

      M19 Waterproof Circular Connector 3+9 Pin Male Plug 125V/30V 15A/2A Thread Assembly 29-1111093-01 M19 Waterproof Circular Connector 3+9 Pin Male Plug 125V/30V 15A/2A Thread Assembly Plug 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.0/φ0.8 MAX φ10.6 ﹣40℃﹣105℃

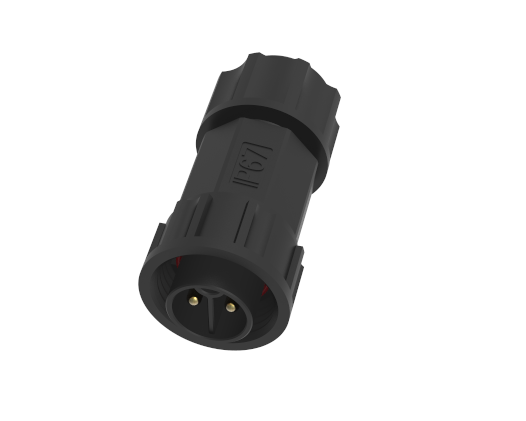

      M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Assembly 29-1111002-01 M19 Waterproof Circular Connector 2 Pin Male Plug 600V 20A Thread Assembly Plug 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP68 Screw locking φ2.4 MAX φ10.6 ﹣40℃﹣105℃
      No Image 29-2351093-01-R M19 Waterproof Connector 3+9 Pin Female Socket 125V/30V 15A/2A Self-Locking Rear-Mounted Socket Socket 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351093-01-F M19 Waterproof Connector 3+9 Pin Female Socket 125V/30V 15A/2A Self-Locking Front-Mounted Socket Socket 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351053-01-R M19 Waterproof Connector 3+5 Pin Female Socket 125V/30V 15A/2A Self-Locking Rear-Mounted Socket Socket 3+5 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351005-01-R M19 Waterproof Connector 5 Pin Female Socket 300V 10A Self-Locking Rear-Mounted Socket Socket 5 Pin Straight 300V 10A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1.5 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351005-01-F M19 Waterproof Connector 5 Pin Female Socket 300V 10A Self-Locking Front-Mounted Socket Socket 5 Pin Straight 300V 10A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1.5 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351004-01-R M19 Waterproof Connector 4 Pin Female Socket 300V 15A Self-Locking Rear-Mounted Socket Socket 4 Pin Straight 300V 15A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351004-01-F M19 Waterproof Connector 4 Pin Female Socket 300V 15A Self-Locking Front-Mounted Socket Socket 4 Pin Straight 300V 15A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351003-01-R M19 Waterproof Connector 3 Pin Female Socket 600V 20A Self-Locking Rear-Mounted Socket Socket 3 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.4 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2351002-01-R M19 Waterproof Connector 2 Pin Female Socket 600V 20A Self-Locking Rear-Mounted Socket Socket 2 Pin Straight 600V 20A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.4 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2331093-01-00001-E M19 Waterproof Connector 3+9 Pin Jack Female Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber Plug 3+9 Pin Right Angle 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331093-01-00001-C M19 Waterproof Connector 3+9 Pin Jack Female Plug 125V/30V 15A/2A Self-Locking Rubber Plug 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331093-01 M19 Waterproof Connector 3+9 Pin Jack Female Plug 125V/30V 15A/2A Self-Locking Assembly Plug 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2331053-01-00001-E M19 Waterproof Connector 3+5 Pin Jack Female Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber Plug 3+5 Pin Right Angle 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331053-01-00001-C M19 Waterproof Connector 3+5 Pin Jack Female Plug 125V/30V 15A/2A Self-Locking Rubber Plug 3+5 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331053-01 M19 Waterproof Connector 3+5 Pin Jack Female Plug 125V/30V 15A/2A Self-Locking Assembly Plug 3+5 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2331005-01-00001-E M19 Waterproof Connector 5 Pin Jack Female Plug 300V 10A Self-Locking Right Angle Rubber Plug 5 Pin Right Angle 300V 10A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1.5 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331005-01-00001-C M19 Waterproof Connector 5 Pin Jack Female Plug 300V 10A Self-Locking Rubber Plug 5 Pin Straight 300V 10A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1.5 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331005-01 M19 Waterproof Connector 5 Pin Jack Female Plug 300V 10A Self-Locking Assembly Plug 5 Pin Straight 300V 10A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1.5 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2331004-01-00001-E M19 Waterproof Connector 4 Pin Jack Female Plug 300V 15A Self-Locking Right Angle Rubber Plug 4 Pin Right Angle 300V 15A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331004-01-00001-C M19 Waterproof Connector 4 Pin Jack Female Plug 300V 15A Self-Locking Rubber Plug 4 Pin Straight 300V 15A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2331004-01 M19 Waterproof Connector 4 Pin Jack Female Plug 300V 15A Self-Locking Assembly Plug 4 Pin Straight 300V 15A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2311093-01-00001-E M19 Waterproof Connector 3+9 Pin Jack Male Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber Plug 3+9 Pin Right Angle 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311093-01-00001-C M19 Waterproof Connector 3+9 Pin Jack Male Plug 125V/30V 15A/2A Self-Locking Rubber Plug 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311093-01 M19 Waterproof Connector 3+9 Pin Jack Male Plug 125V/30V 15A/2A Self-Locking Assembly Plug 3+9 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2311053-01-00001-E M19 Waterproof Connector 3+5 Pin Jack Male Plug 125V/30V 15A/2A Self-Locking Right Angle Rubber Plug 3+5 Pin Right Angle 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311053-01-00001-C M19 Waterproof Connector 3+5 Pin Jack Male Plug 125V/30V 15A/2A Self-Locking Rubber Plug 3+5 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311053-01 M19 Waterproof Connector 3+5 Pin Jack Male Plug 125V/30V 15A/2A Self-Locking Assembly Plug 3+5 Pin Straight 125V/30V 15A/2A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ2.0/φ0.8 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2311016-01-00001-E M19 Waterproof Connector 16 Pin Jack Male Plug 60V 5A Self-Locking Right Angle Rubber Plug 16 Pin Right Angle 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311016-01-00001-C M19 Waterproof Connector 16 Pin Jack Male Plug 60V 5A Self-Locking Rubber Plug 16 Pin Straight 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311016-01 M19 Waterproof Connector 16 Pin Jack Male Plug 60V 5A Self-Locking Assembly Plug 16 Pin Straight 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1 MAX φ11.5 ﹣40℃﹣105℃
      No Image 29-2311009-01-00001-E M19 Waterproof Connector 9 Pin Jack Male Plug 60V 5A Self-Locking Right Angle Rubber Plug 9 Pin Right Angle 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311008-01-00001-E M19 Waterproof Connector 8 Pin Jack Male Plug 60V 5A Self-Locking Right Angle Rubber Plug 8 Pin Right Angle 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1 MAX φ13.5 ﹣40℃﹣105℃
      No Image 29-2311008-01-00001-C M19 Waterproof Connector 8 Pin Jack Male Plug 60V 5A Self-Locking Rubber Plug 8 Pin Straight 60V 5A 0.3mm2-2.5mm2/24AWG-12AWG IP67 Self locking φ1 MAX φ13.5 ﹣40℃﹣105℃
