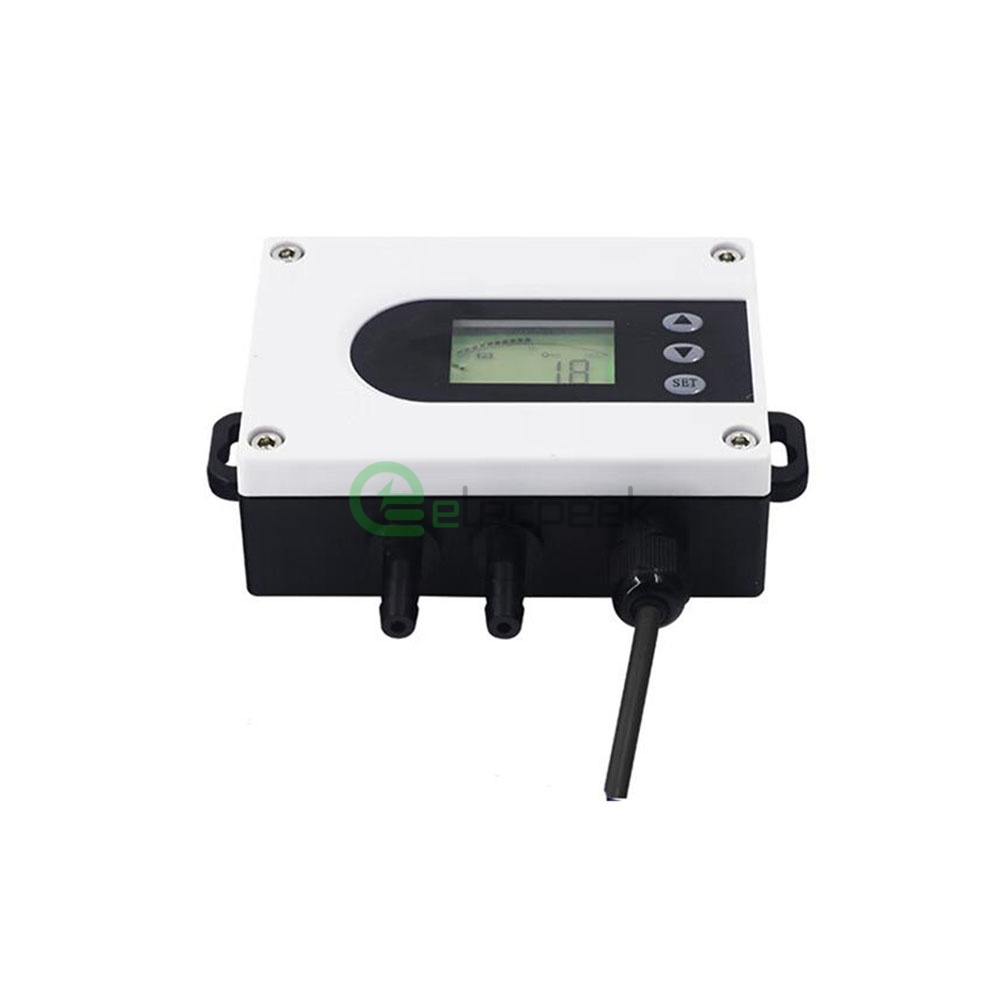

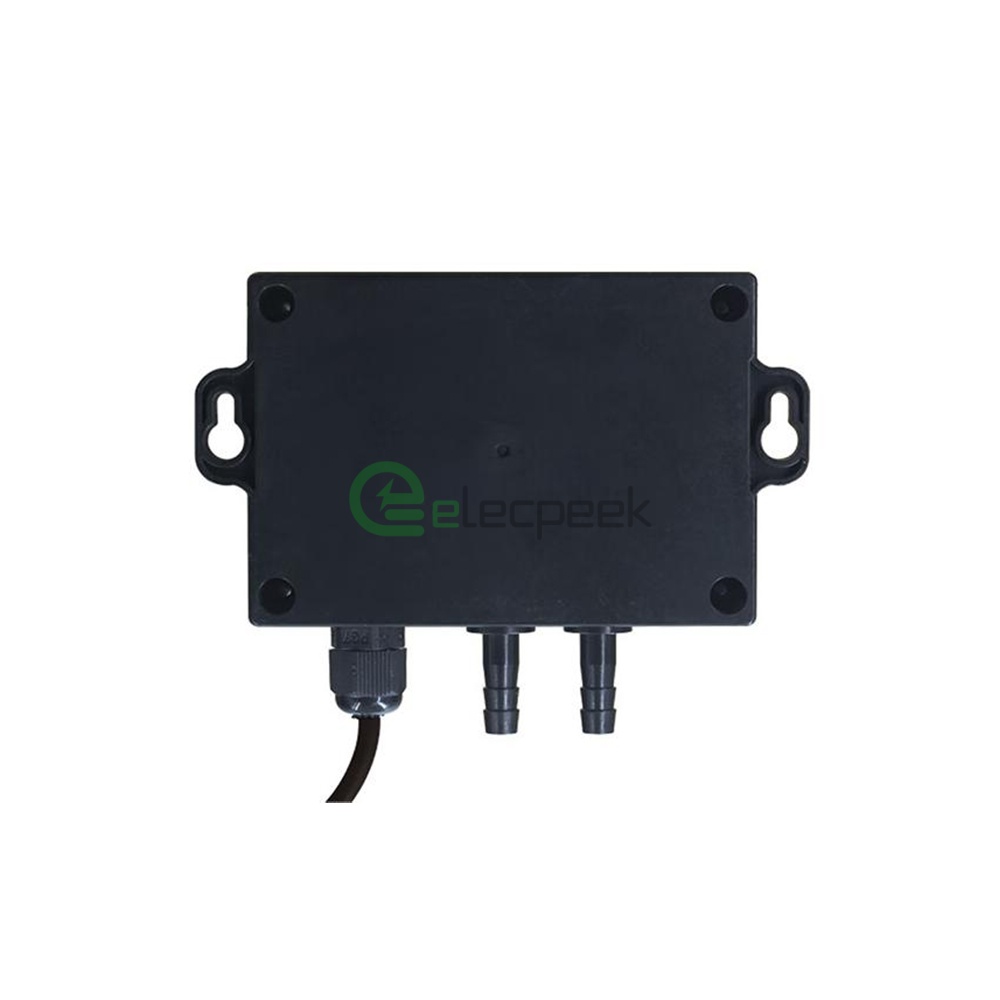

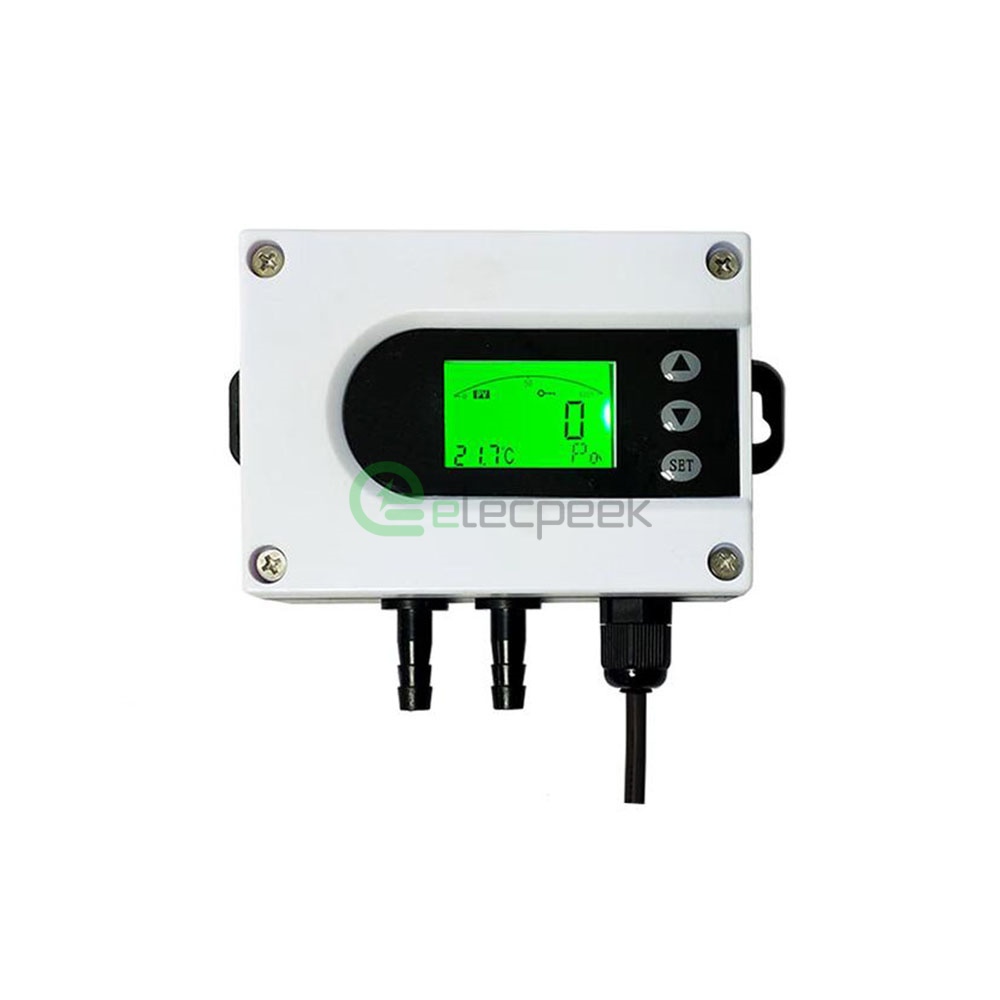

0kpa～10kpa Diffused Silicon Micro Differential Pressure Transmitter LCD Display

SKU: EP-JYB-DW

Precise and compact, the 0kpa-10kpa Diffused Silicon Micro Differential Pressure Transmitter offers an LCD display for easy reading. Ideal for monitoring low-range pressure differences in various applications.

Get a Quotation

Description
Technical Data

Measuring Range	0MPa~100Mpa(minimum 5kPa)
Level of Accuracy	Above 1kPa: Level 0.5, Below 1kPa: Level 1
Medium Temperature	-10℃~60℃
Ambient Temperature	'0℃~50℃
Supply Voltage	DC 24V (12V~32V)
Output Form	4mA~20mA 0V~5V RS-485, 4mA~20mA RS-485, 4mA~20mA+HART with display
Process Interface	M20x1.5 or flange mounting
Display	LCD or LED display
Load Capacity	Current output type: ≤500Ω (without display); ≤250Ω (with display), Voltage output type: ≥3kΩ
Nonlinear	±0.2%F·S
Hysteresis and Repeatability	±0.1%F·S
Years of Long-term Stability	±0.1%F·S
Thermal Zero Point Drifts	±0.02%F·S
Response Time	±0.02%F·S
Overload Pressure	2 times range
Electrical Connections	Terminals
Process Connection	M20x1.5 external thread/DN25 flange connection/others
Process Connection Materials	Ordinary 304 stainless steel/316 stainless steel
Housing Material	Cast aluminum housing
Measuring Medium	gas and other media compatible with 316 stainless steel, Oil, water
EMC Level	Level 3 (limited to A/AH output)
Measuring Range	0MPa~100Mpa(minimum 5kPa)	Level of Accuracy	Above 1kPa: Level 0.5, Below 1kPa: Level 1
Medium Temperature	-10℃~60℃	Ambient Temperature	'0℃~50℃
Supply Voltage	DC 24V (12V~32V)	Output Form	4mA~20mA 0V~5V RS-485, 4mA~20mA RS-485, 4mA~20mA+HART with display
Process Interface	M20x1.5 or flange mounting	Display	LCD or LED display
Load Capacity	Current output type: ≤500Ω (without display); ≤250Ω (with display), Voltage output type: ≥3kΩ	Nonlinear	±0.2%F·S
Hysteresis and Repeatability	±0.1%F·S	Years of Long-term Stability	±0.1%F·S
Thermal Zero Point Drifts	±0.02%F·S	Response Time	±0.02%F·S
Overload Pressure	2 times range	Electrical Connections	Terminals
Process Connection	M20x1.5 external thread/DN25 flange connection/others	Process Connection Materials	Ordinary 304 stainless steel/316 stainless steel
Housing Material	Cast aluminum housing	Measuring Medium	gas and other media compatible with 316 stainless steel, Oil, water
EMC Level	Level 3 (limited to A/AH output)
