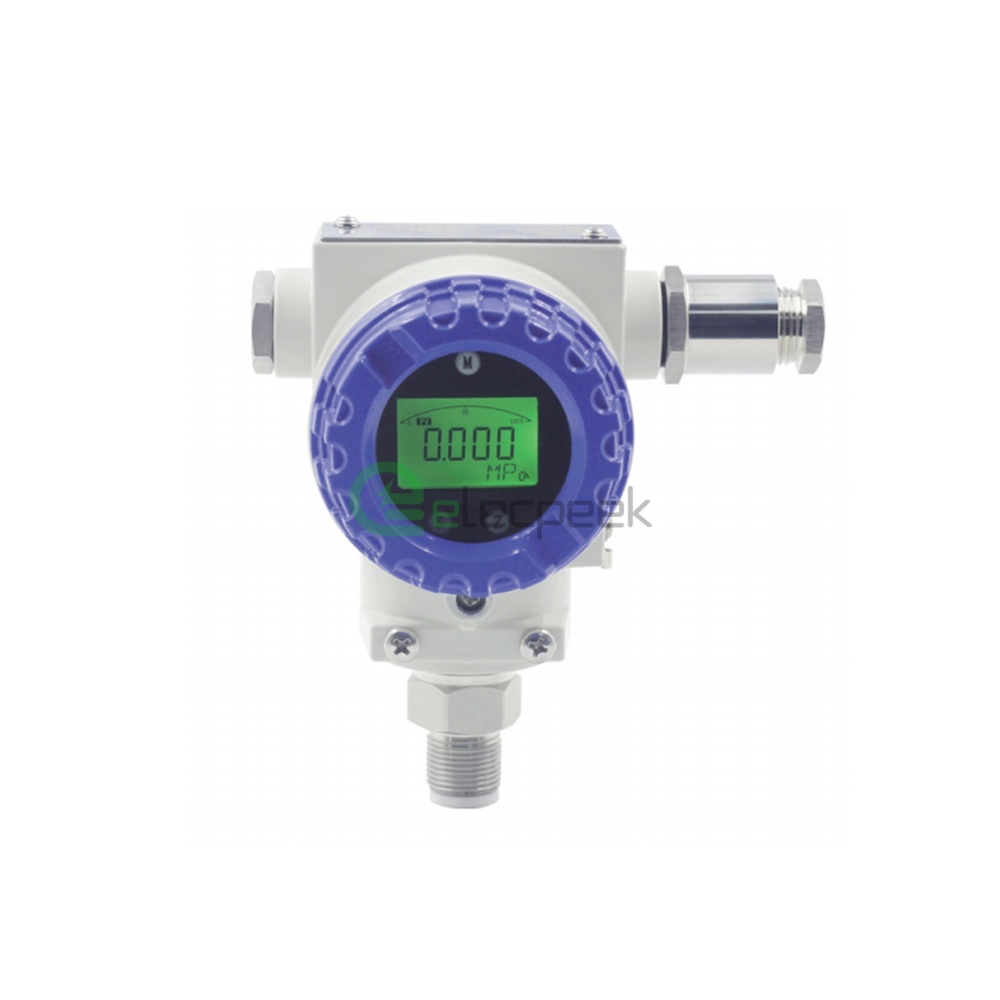

0mpa～60mpa Protective Explosion-Proof Pressure Transmitter Ip67 Lcd Or Led Display

SKU: EP-JYB-KG-P Datasheet

Our 0mpa-60mpa Protective Explosion-Proof Pressure Transmitter is designed with an IP67 LCD or LED display. It ensures accurate pressure measurement in hazardous environments. Ideal for industrial applications.

Get a Quotation

Description
Technical Data

Measuring Range	0MPa~60MPa(minimum 5kPa)
Level of Accuracy	Level 0.2 (0MPa~5MPa minimum 70kPa), Level 0.5 (0MPa~60MPa minimum 5kPa)
Output Form	4mA ~ 20mA & RS-485, 4mA ~ 20mA 0V ~ 5V RS-485, 4mA~20mA+HART with display
Process Interface	M20x1.5 or other thread
Display	LCD or LED display
Supply Voltage	DC 24V(12V~32V)
Load Capacity	Current output type: ≤500Ω (without display); ≤250Ω (with display)
Nonlinear	±0.2%F·S
Repeatability	±0.1%F·S
Years of Long-term Stability	±0.1%F·S
Thermal Zero Point Drifts	±0.02%F·S
Response Time	≤50ms
Overload Pressure	2 times range
Electrical Connections	Terminals
Process Connection Materials	Ordinary 304 stainless steel/316L stainless steel
Housing Material	Cast aluminum housing
Measuring Medium	gas and other media are compatible with 316 stainless steel., Oil, water
Applied Area	Category IIC, explosive gas environment of groups T1 to T6
