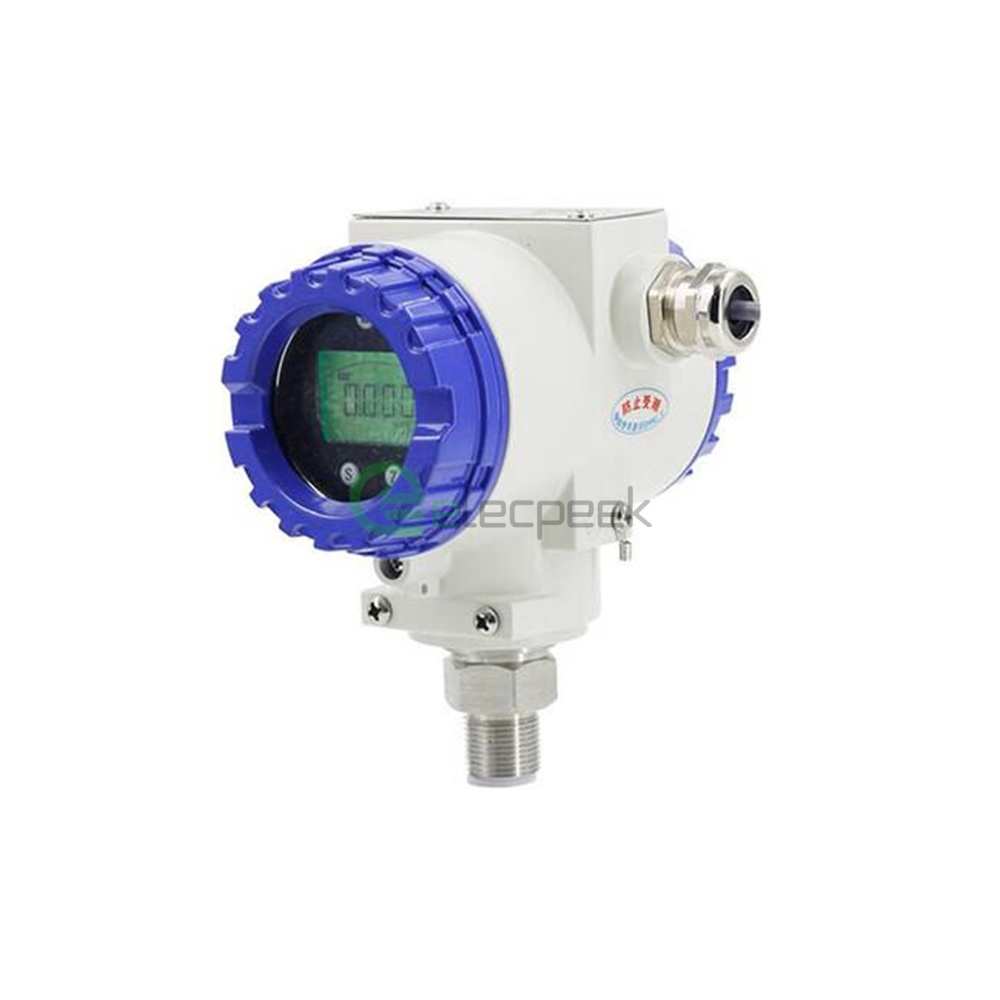

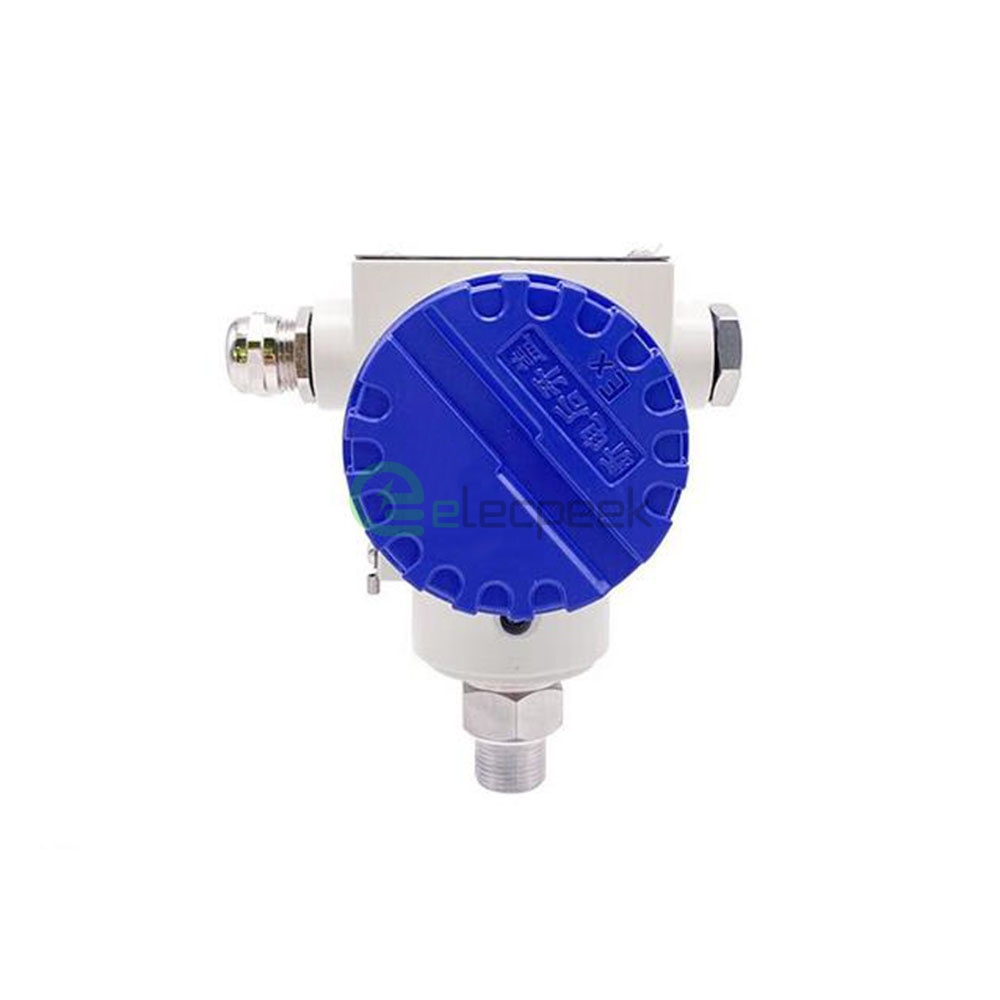

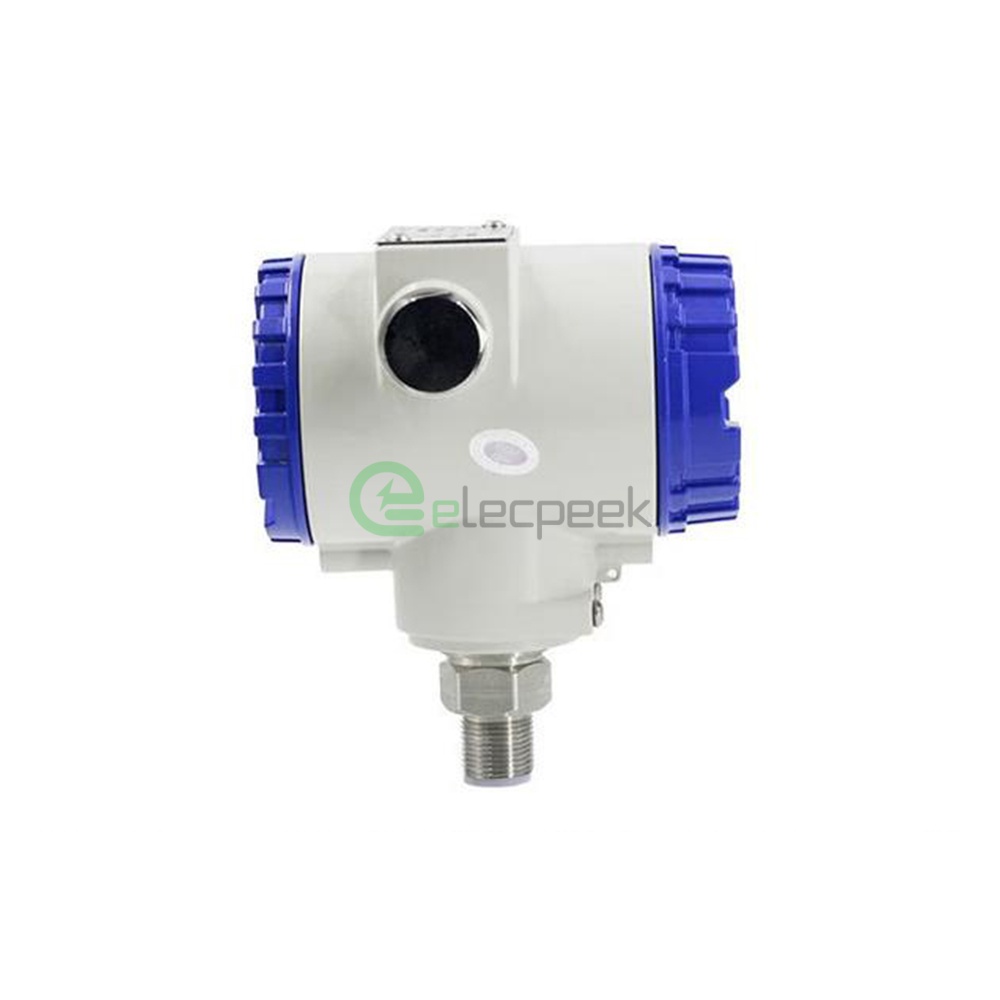

0MPa~100Mpa M20×1.5 or Flange Mounting Protective Pressure Transmitter LCD or LED Display

SKU: EP-JYB-KO-P

High-precision 0MPa-100Mpa pressure transmitter with M20x1.5 flange mounting and LCD/LED display. Protective design for reliable performance.

Get a Quotation

Description
Technical Data

Measuring Range	0MPa~100Mpa(minimum 5kPa)
Level of Accuracy	Level 0.1 (100kPa~5MPa), Level 0.2 (70kPa~35MPa), Level 0.3 (35MPa)
Medium Temperature	-35℃~85℃
Ambient Temperature	-25℃~85℃
Supply Voltage	DC 24V (12V~32V)
Output Form	4mA~20mA 0V~5V RS-485 4mA~20mA+HART with display 4mA~20mA RS-485

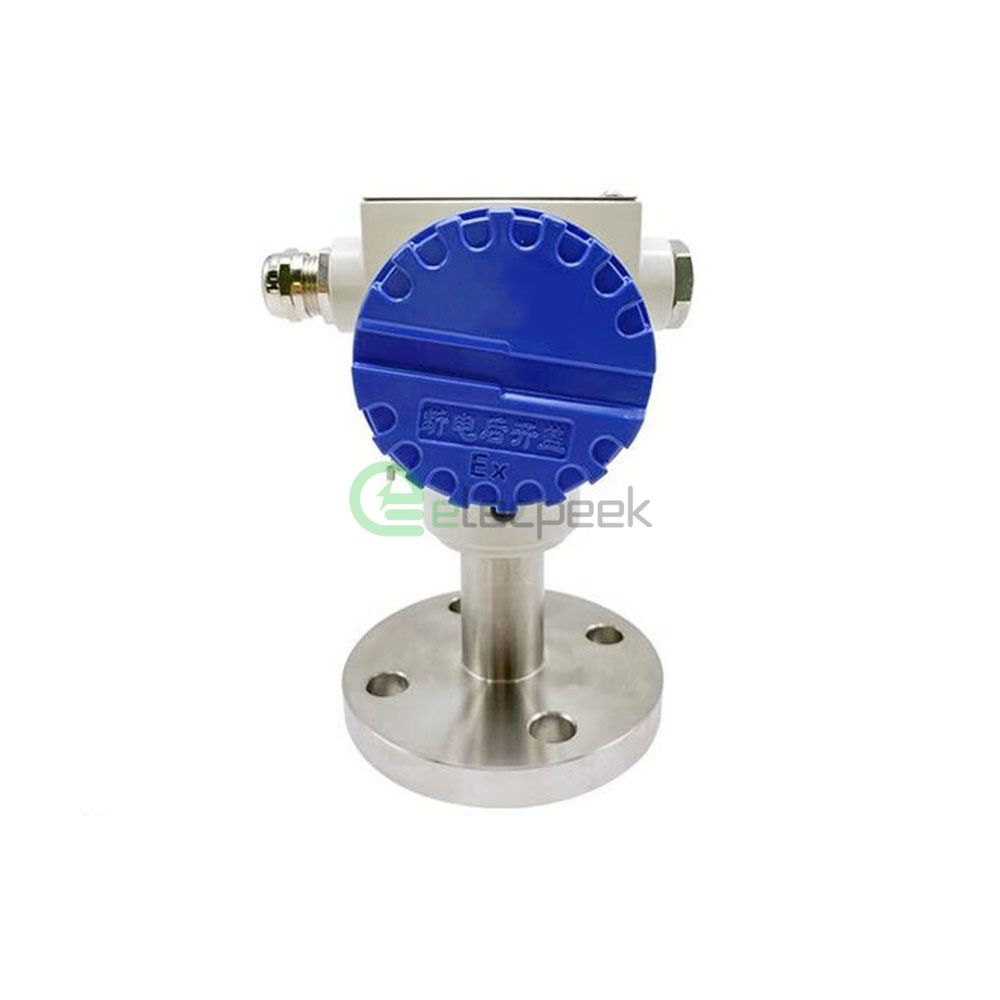

Process Interface	M20x1.5 or flange mounting

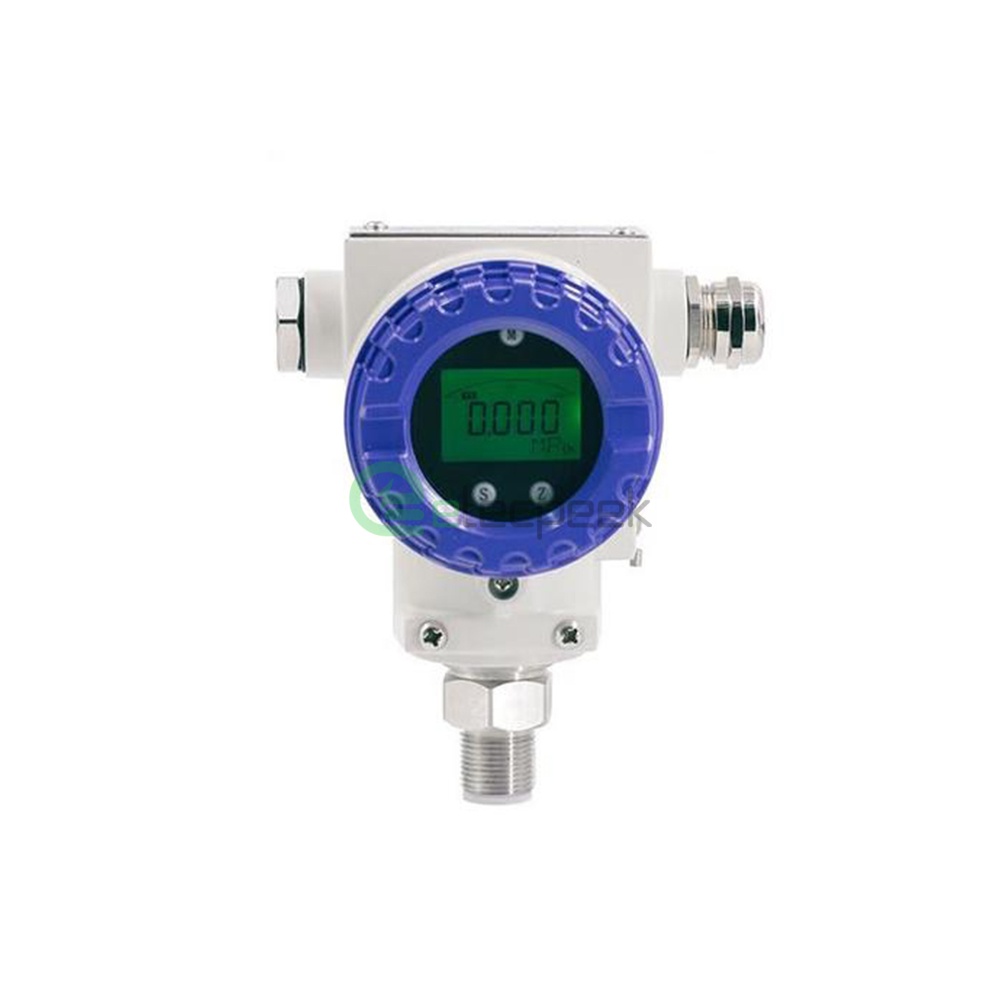

Display	LCD or LED display
Load Capacity	Current output type: ≤500Ω (without display); ≤250Ω (with display), Voltage output type: ≥3kΩ
Nonlinear	±0.2%F·S
Hysteresis and Repeatability	±0.1%F·S
Years of Long-term Stability	±0.1%F·S
Thermal Zero Point Drifts	±0.02%F·S
Response Time	±0.02%F·S
Overload Pressure	2 times range
Electrical Connections	Terminals
Process Connection	M20x1.5 external thread/DN25 flange connection/others
Process Connection Materials	Ordinary 304 stainless steel/316 stainless steel
Housing Material	Cast aluminum housing
Measuring Medium	gas and other media compatible with 316 stainless steel, Oil, water
EMC Level	Level 3 (limited to A/AH output)
Protection Level	IP67
