1000W DC to AC 220V Pure Sine Wave Inverter

SKU: RHT-BEP-1000W-220V

1000W DC to AC 220V Pure Sine Wave Inverter, 12V/24V/48V input, 220V output, designed for lead-acid battery and lithium battery, with CE certification and 1-year warranty

Get a Quotation

?Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.






    This 1000W Inverter can reeverse the DC power from the battery into 220V AC power. Through a full-bridge circuit, usually using an SPWM processor through modulation, filtering, boosting, etc., sinusoidal AC power matching the frequency and rated voltage of the lighting load is obtained for use by the system end-user. With the inverter, a DC battery can be used to provide AC power to the appliances.

    How to use the inverter

    • Connect the inverter to a battery or car cigarette lighter power source
    • Turn on the inverter to check the device status
    • Connect the electronic device to the inverter

    ⚠️ Make sure the power consumption is lower than the rated power of the inverter.

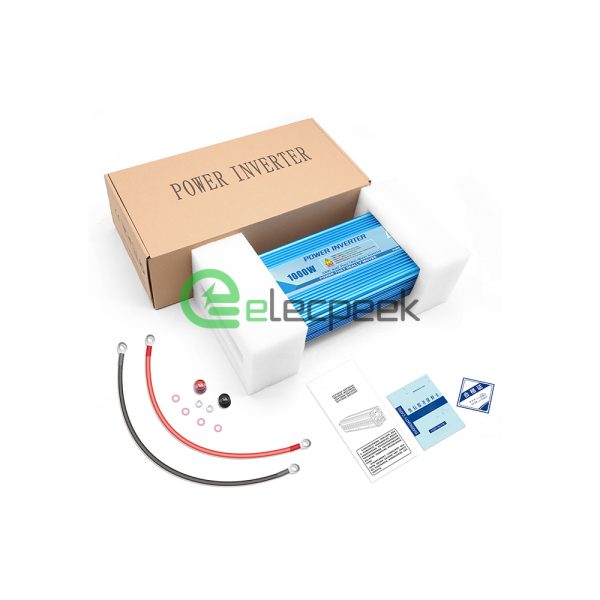

    Package Include

    • Inverter Device

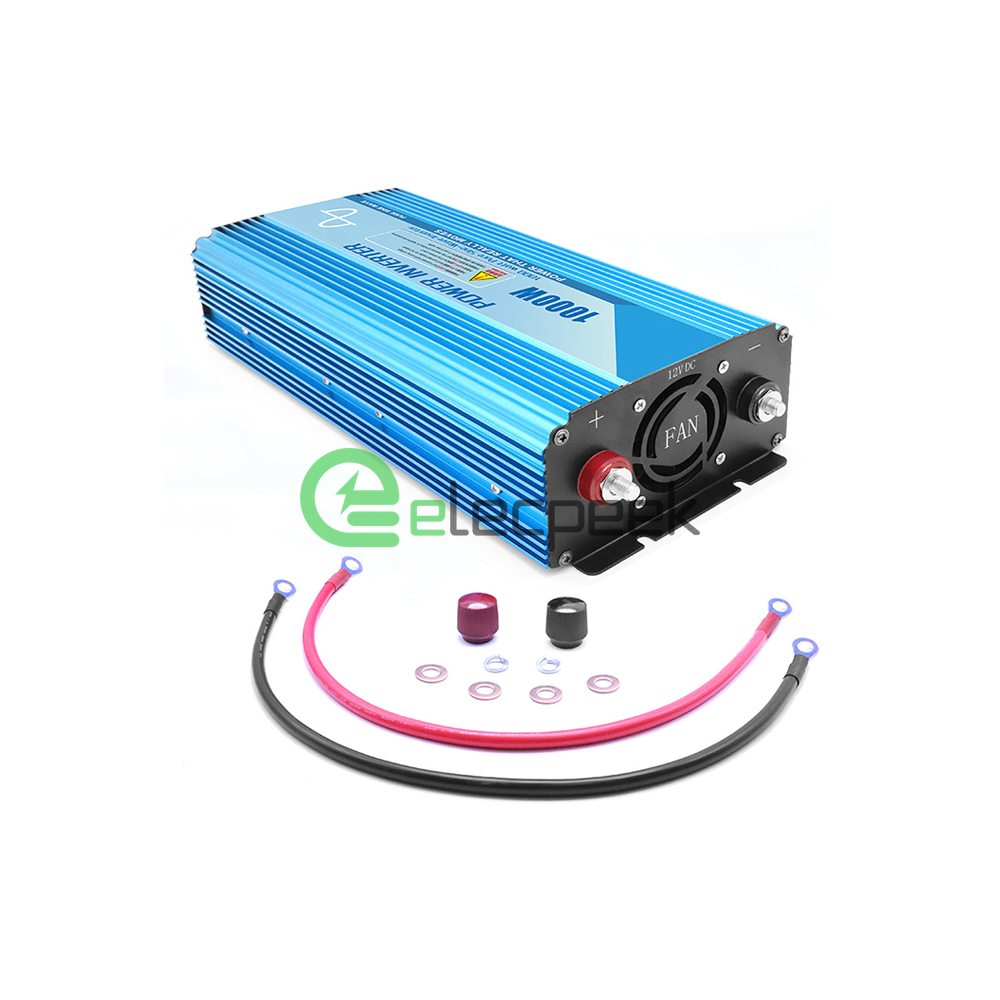

    • Cable with terminal

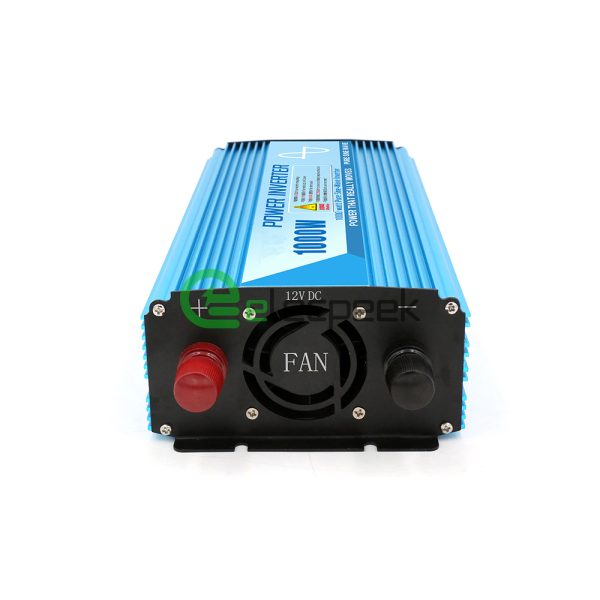

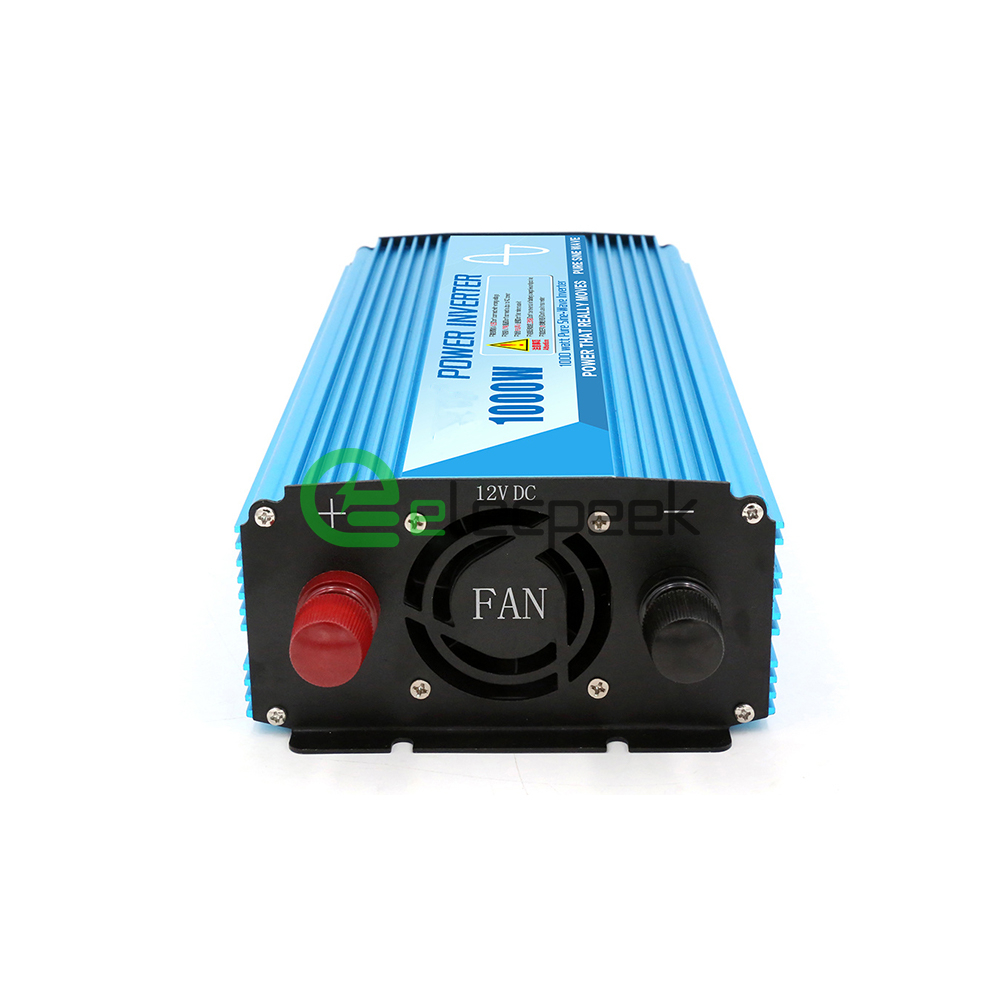

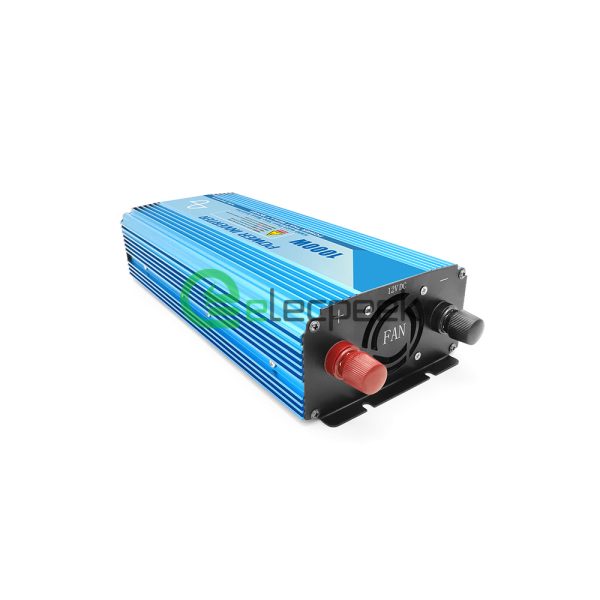

    Front Panel

    • Positive Termianl
    • Negative Terminal
    • Cooling Fan

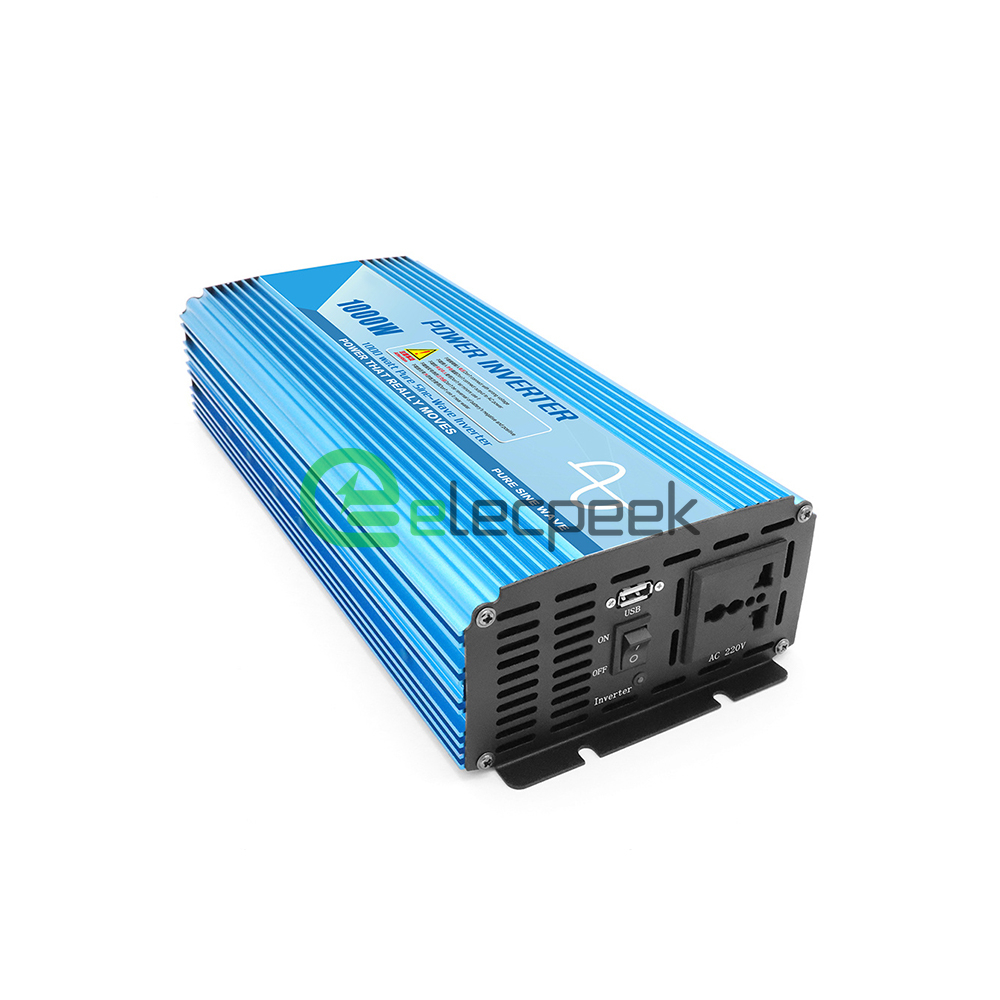

    Back Panel

    • Power Switch
    • Inverter Indicator
    • Universer Power Socker
    • USB Socket

    Applications

    Golf Cart

    Passenger Car

    Electric Motorbikes

    ATVs and UTVs

    AGVs

    Electrical

    Rated Power

    Battery Voltage

    12V, 24V, 48V
    Rated Voltage

    220V
    Input voltage range

    10V-15.5V, 20V-31V, 40V-62V
    Maximum efficiency

    92%
    Battery Type

    Lead-acid Battery, lithium
    Waveform

    Pure sine wave
    Accessory

    Wire with Terminal
    Certification

    CE
    Input Voltage

    12V/24V/48V
    Current

    93A/46A/23A
    Inverter Type

    DC to AC
    Rated Power

    		Battery Voltage

    12V, 24V, 48V
    Rated Voltage

    220V

    		 Input voltage range

    10V-15.5V, 20V-31V, 40V-62V
    Maximum efficiency

    92%

    		 Battery Type

    Lead-acid Battery, lithium
    Waveform

    Pure sine wave

    		 Accessory

    Wire with Terminal
    Certification

    CE

    		 Input Voltage

    12V/24V/48V
    Current

    93A/46A/23A

    		 Inverter Type

    DC to AC

    Service

    Warranty

    1 Year
    Warranty

    1 Year
    Weight 3.5 g
    Rated Power

    Battery Voltage

    12V, 24V, 48V
    Rated Voltage

    220V
    Input voltage range

    10V-15.5V, 20V-31V, 40V-62V
    Maximum efficiency

    92%
    Battery Type

    Lead-acid Battery, lithium
    Waveform

    Pure sine wave
    Accessory

    Wire with Terminal
    Certification

    CE
    Warranty

    1 Year
    Input Voltage

    12V/24V/48V
    Current

    93A/46A/23A
    Inverter Type

    DC to AC
