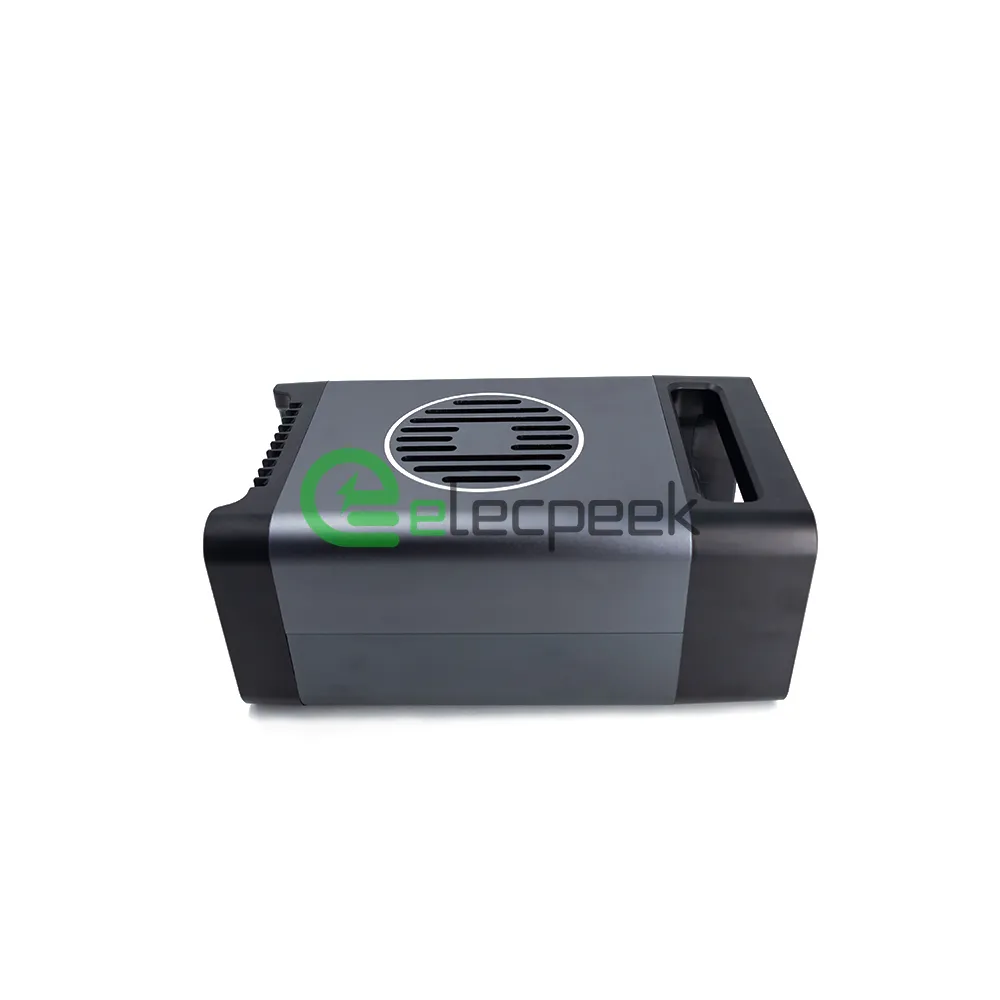

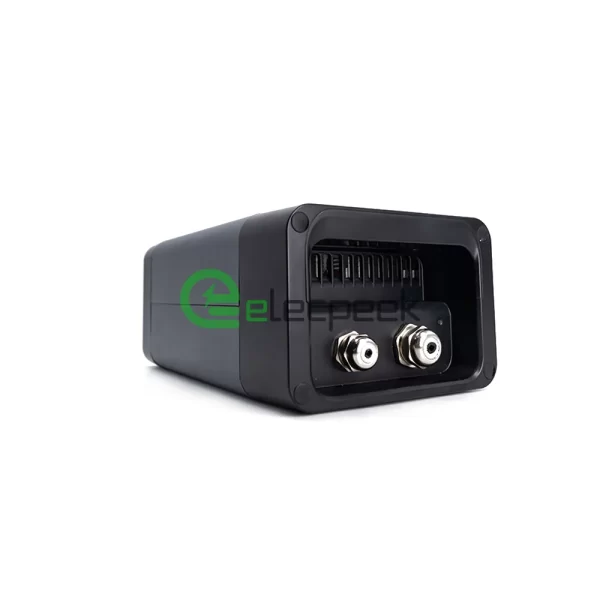

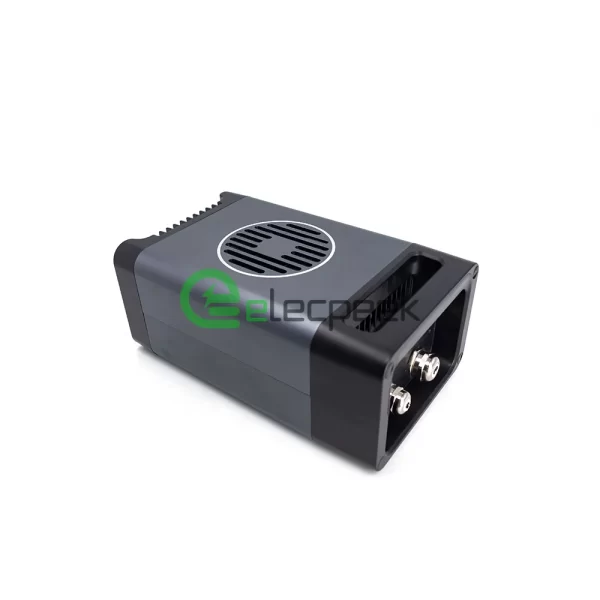

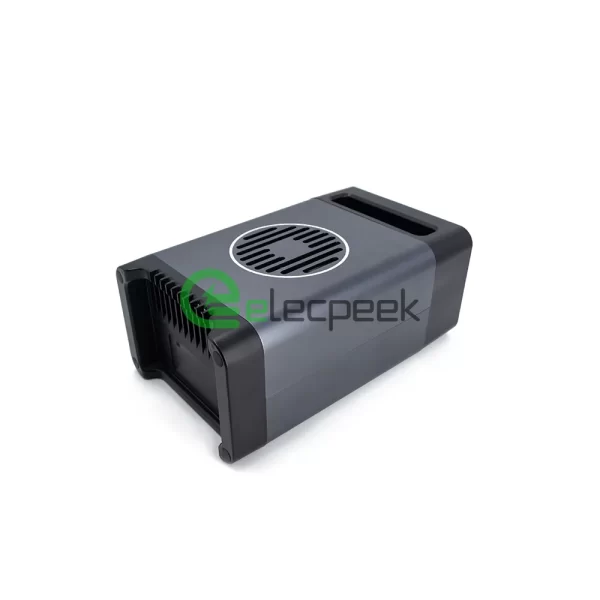

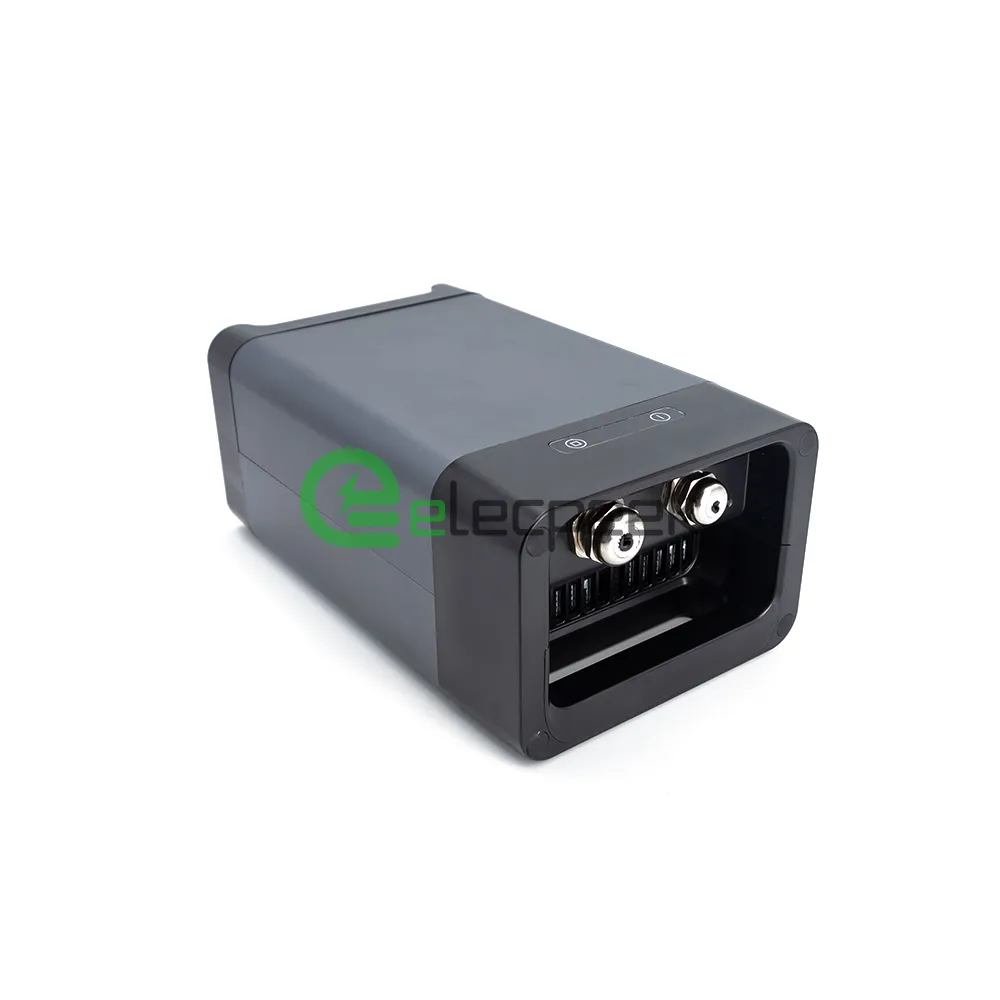

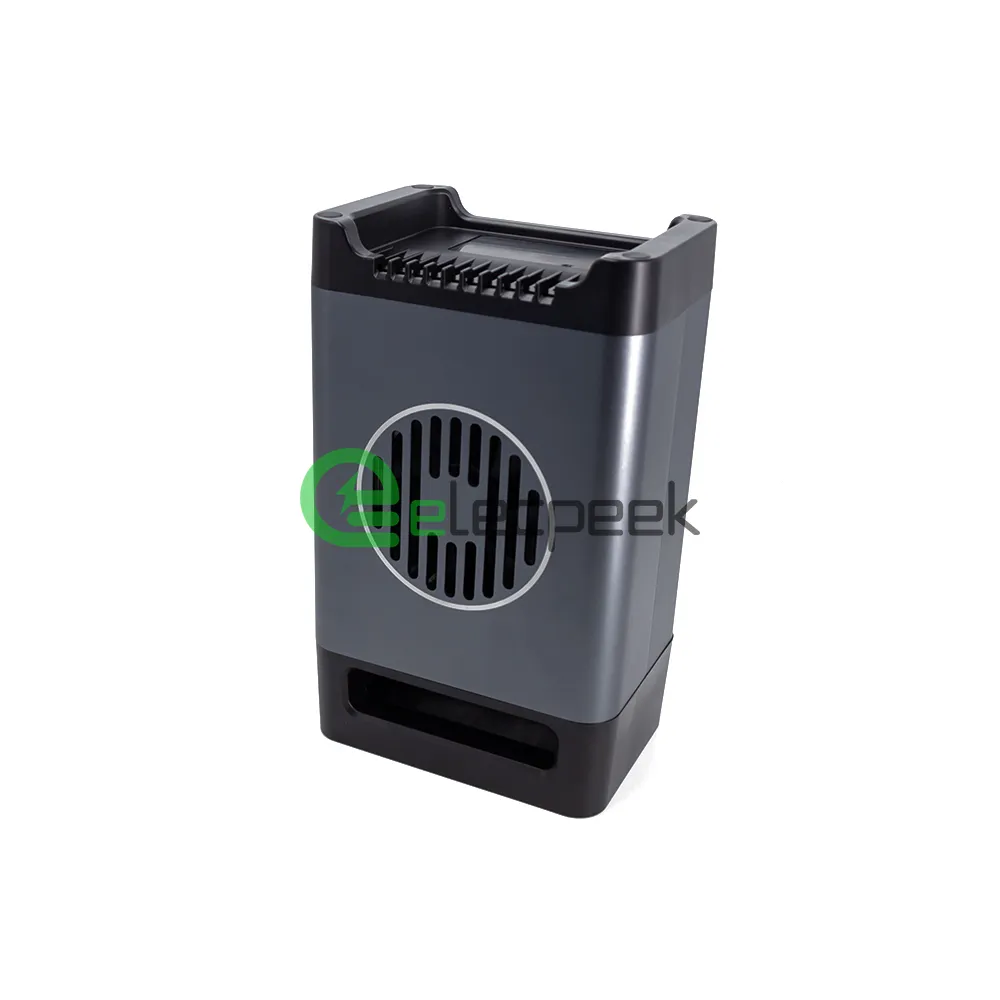

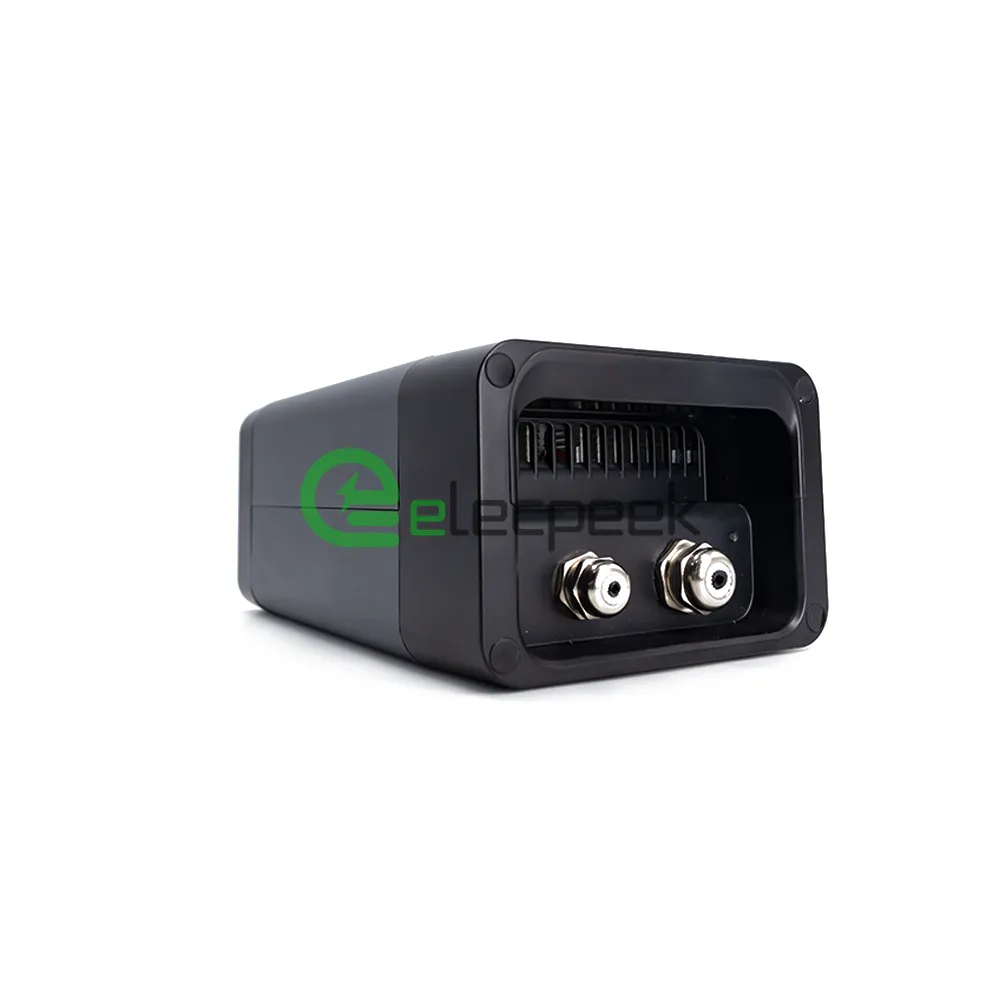

1500W Portable lithium battery Charger charger

SKU: RHT-P-OBC-1.5KW Tag: Datasheet

Stay powered on-the-go with our 1500W portable lithium battery charger, designed for heavy-duty applications. Contact us for a quote.

  • 1500W high-power output for fast charging
  • Compatible with lithium-ion batteries
  • Portable and compact design for easy transportation
  • Contact us for a custom quote for your business needs

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    This portable charger is designed to deliver high-efficiency charging for a wide range of lithium battery voltages, ensuring rapid and safe power replenishment on the go. Its compact and lightweight design makes it an ideal companion for outdoor adventures, emergency power backup, or as a reliable charging station for your electric vehicles and devices.

    Application

    On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

    Weight 2350 g
    Input Voltage Frequency

    50Hz
    Output Current

    0~13A, 0~20A, 0~30A
    Output Response Time

    ≤5S
    Operation Temperature

    -20℃~55℃
    Protection Grade

    IP67
    Cooling Method

    Air Cooling
    Dimension

    135*95*222
    Product Weight

    2.35KGS
    Certificate

    CE LVD EMC ROHS
    Weight 2350 g Input Voltage Frequency

    50Hz
    Output Current

    0~13A, 0~20A, 0~30A

    		 Output Response Time

    ≤5S
    Operation Temperature

    -20℃~55℃

    		 Protection Grade

    IP67
    Cooling Method

    Air Cooling

    		 Dimension

    135*95*222
    Product Weight

    2.35KGS

    		 Certificate

    CE LVD EMC ROHS

    Electrical

    Input Voltage Range

    90~265VAC
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤8A
    Power Factor

    ≥0.99
    Rated Output Power

    1.5KW
    Output Voltage

    15~32V, 20~67V, 30~90V, 50~130V
    Typical Efficiency

    ≥94%
    Ripple Coefficient

    ≤1%
    Voltage Stabilization

    ≤5%
    Humidity

    5%~95%
    Communication

    CAN BUS
    Input Voltage Range

    90~265VAC

    		 Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤8A

    		 Power Factor

    ≥0.99
    Rated Output Power

    1.5KW

    		 Output Voltage

    15~32V, 20~67V, 30~90V, 50~130V
    Typical Efficiency

    ≥94%

    		 Ripple Coefficient

    ≤1%
    Voltage Stabilization

    ≤5%

    		 Humidity

    5%~95%
    Communication

    CAN BUS

    Environmental

    Storage Temperature

    -40℃～95℃
    Storage Temperature

    -40℃～95℃

    Service

    Warranty

    2 Years
    Warranty

    2 Years
    Weight 2350 g
    Dimensions 13.5 × 9.5 × 22.2 cm
    Input Voltage Range

    90~265VAC
    Input Voltage Frequency

    50Hz
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤8A
    Power Factor

    ≥0.99
    Rated Output Power

    1.5KW
    Output Current

    0~13A, 0~20A, 0~30A
    Output Voltage

    15~32V, 20~67V, 30~90V, 50~130V
    Typical Efficiency

    ≥94%
    Ripple Coefficient

    ≤1%
    Voltage Stabilization

    ≤5%
    Output Response Time

    ≤5S
    Operation Temperature

    -20℃~55℃
    Storage Temperature

    -40℃～95℃
    Humidity

    5%~95%
    Protection Grade

    IP67
    Cooling Method

    Air Cooling
    Communication

    CAN BUS
    Dimension

    135*95*222
    Product Weight

    2.35KGS
    Certificate

    CE LVD EMC ROHS
    Warranty

    2 Years
