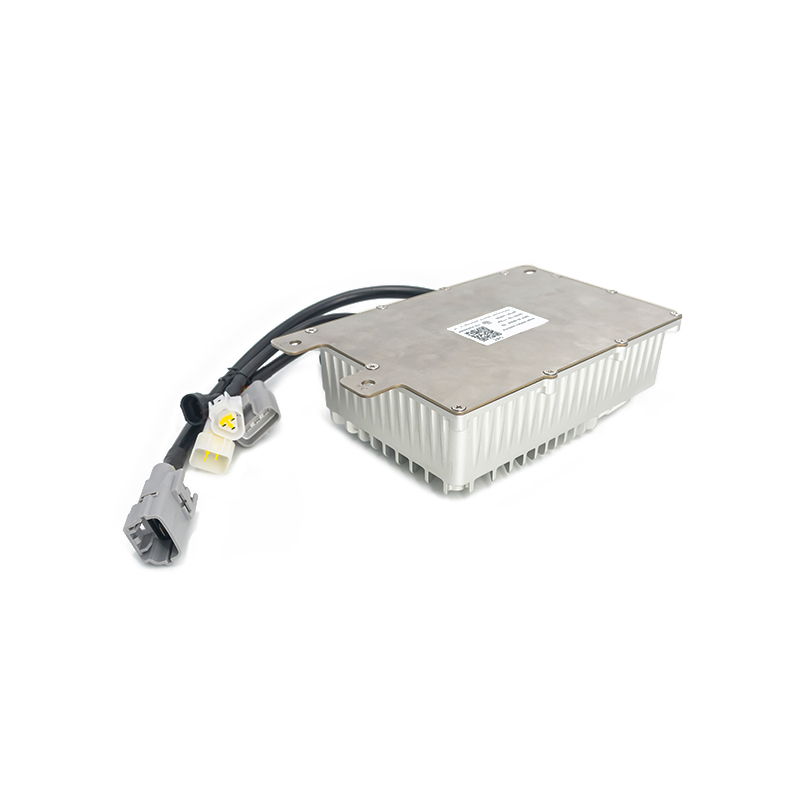

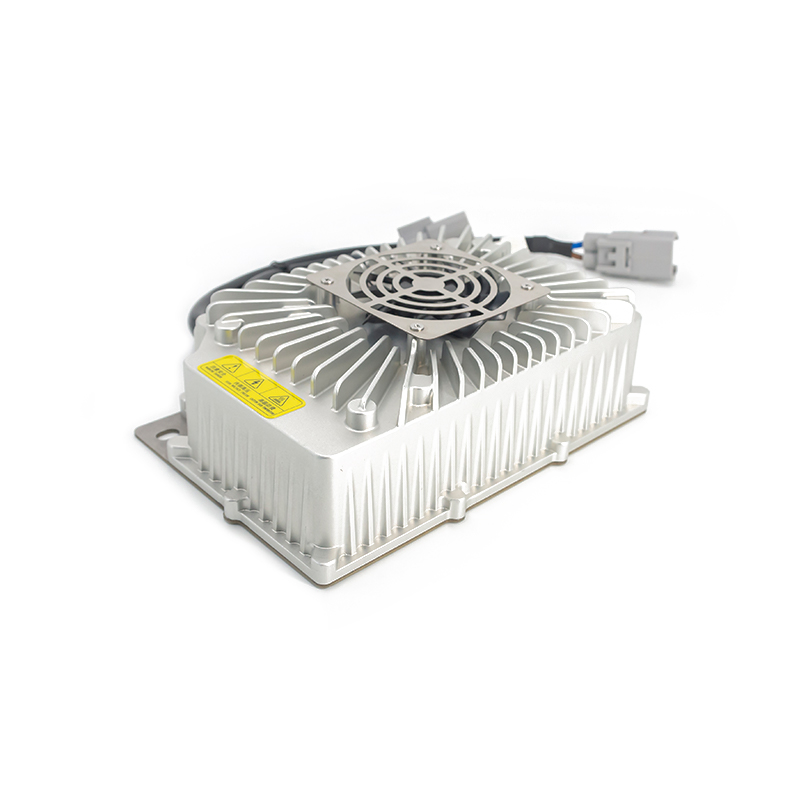

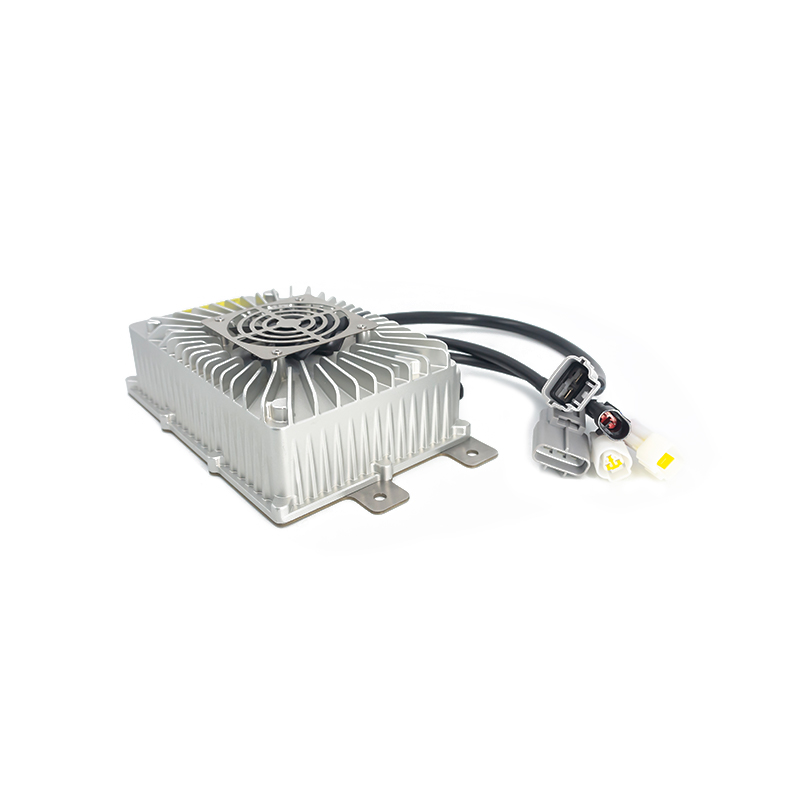

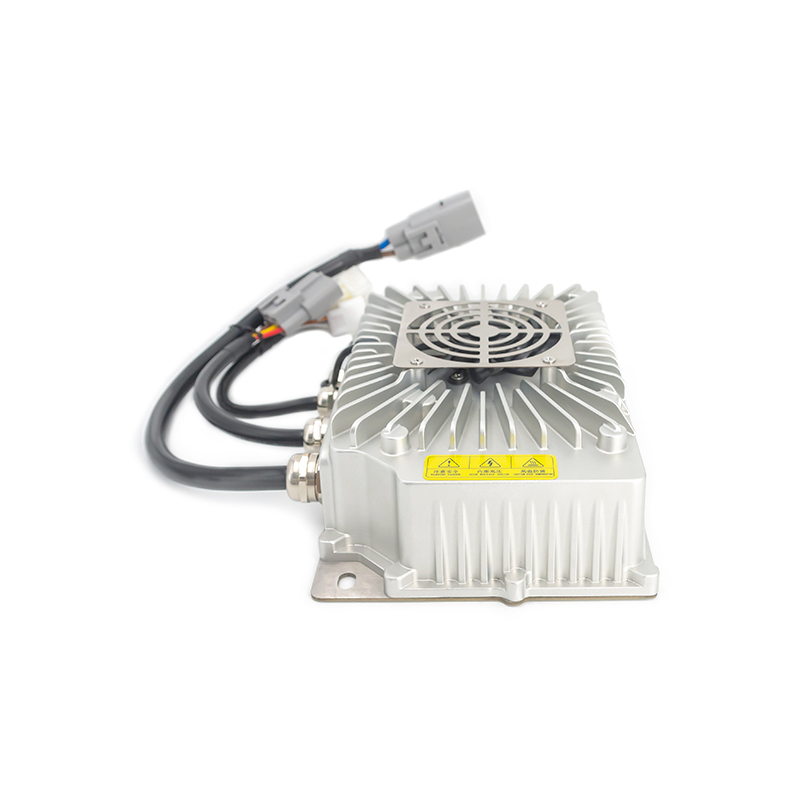

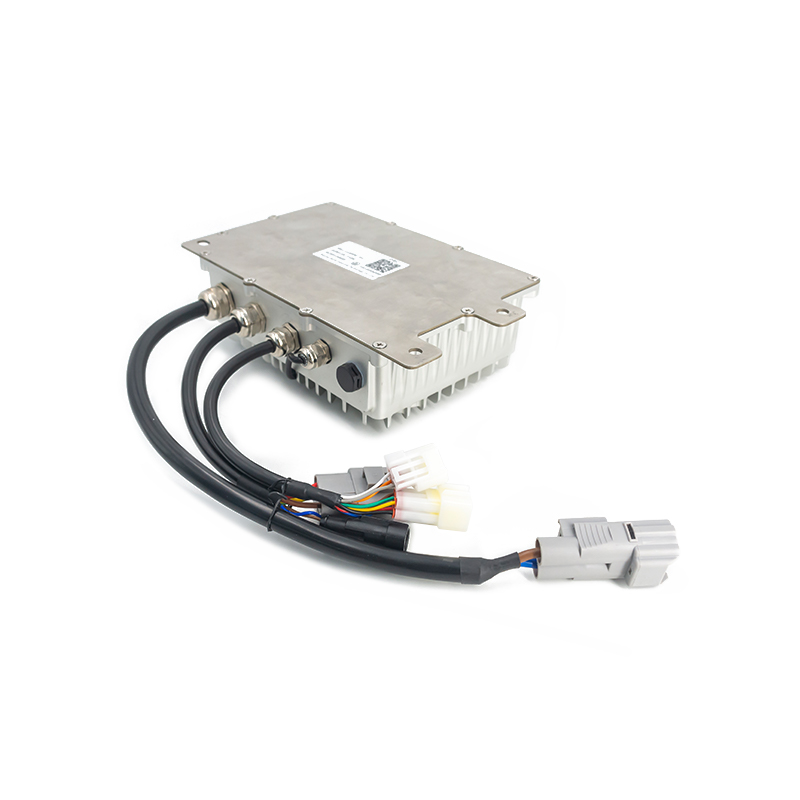

2.0KW On-board Charger

SKU: RHT-OBC-2.0KW Tag: Alibaba Authorized Datasheet

Experience efficient charging with the 2.0KW On-board Charger. Suitable for a variety of voltage levels including 24V, 60V, 72V, 108V, 144V, and 360V. Perfect for all your charging needs.

Voltage Level	24V	60V	72V	108V	144V	360V
Output Voltage	15~32V	20~80V	30~90V	50~130V	110~180V	200~440V
Output Current	0~60A	0~35A	0~25A	0~18A	0~13A	0~6A

Get a Quotation

The 2.0KW car charger is a charging equipment specially designed for electric vehicles. It mounts directly inside the vehicle and allows owners to charge their electric vehicle battery pack using standard household power or public AC chargers.

2.0KW On-board Charger Specification

2.0KW On-board Charger
Input	Voltage	24V	60V	72V	108V	144V	360V
	Output voltage(V)	15-32V	20-80V	30-90V	50-130V	110-180V	200-440V
	Output current(A)	0-60A	0-35A	0-25A	0-18A	0-18A	0-6A
	Rated input Voltage	220VAC
	input voltage range	90-265VAC
	Rated Input Voltage Frequency	50Hz
	Input Frequency Range	45-65Hz
	Starting Impulse Current	≤10A
	Input Power Factor	≥0.99@220Vin,Pomax
Output	Rated Output Power	2.0KW
	Voltage Stabilization Accuracy	≤1%
	Ripple Coefficient of Voltage	≤1%
	Voltage Stabilization Accuracy	≤5%
	Output Response Time	≤5S

2.0KW On-board Charger Series

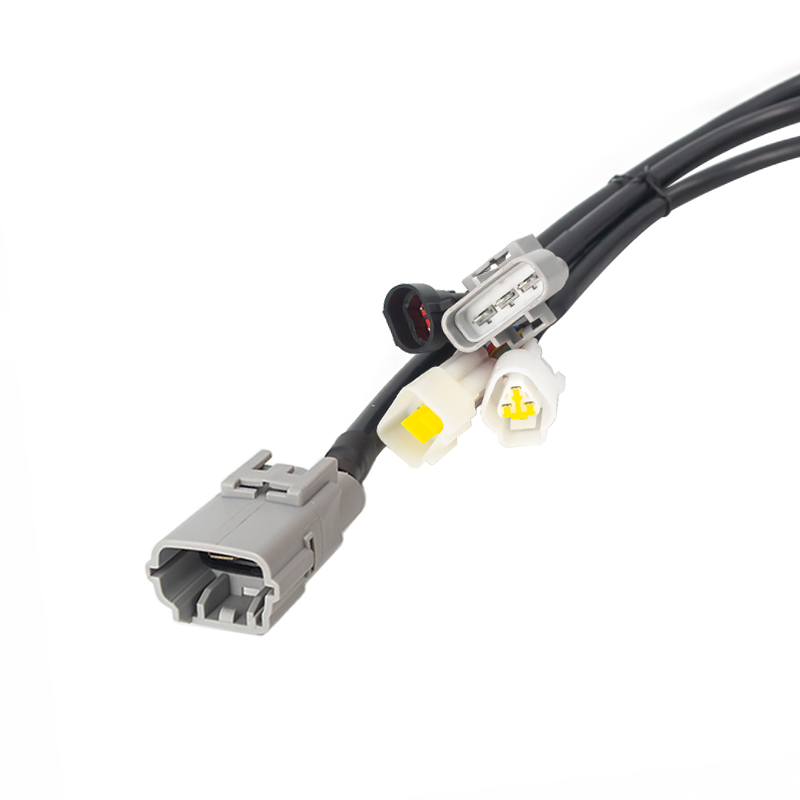

Plug and Socket Definition

Image	Plug Type	Pin	Instruction	Wire Diameter
	Docking Plug Model:Nominated	1	Output Positive	4
		1	Output Positive	4
		2	Output Negative	4
		2	Output Negative	4
	Docking Plug Model:Nominated	1	CANH	Reserve
		2	CANL	Reserve
		3	12V_IN+	Reserve
		4	12V_IN-	Reserve
	Docking Plug Model:Nominated	1	Input/L	2.5
		2	PE	2.5
		3	Input/N	2.5
	Docking Plug Model:Nominated	1	CC	Reserve
	Docking Plug Model:Nominated	2	CP	Reserve

Output Plug Options

Input Plug Options

Successful Projects

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY:1200PCS
Item:20KW On-board Charger
Location:Russelsheim,Germany

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Application

On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

Weight	6100 g
Input Voltage Frequency	50Hz
Output Response Time	≤5S
Cooling Method	Forced air cooling
Weight	6100 g	Input Voltage Frequency	50Hz
Output Response Time	≤5S	Cooling Method	Forced air cooling

Electrical

Rated Input Voltage	220VAC
Input Voltage	90~265VAC
Input Frequency Range	45~65Hz
Starting Impulse Current	≤10A
Input Power Factor	≥0.99(@220Vin, Pomax)
Voltage Stabilization	≤1%
Ripple Coefficient	≤1%
Current Stabilization	≤5%
Typical Efficiency	≥93%
Humidity	5%~95%
Ip Grade	lp67
Communication	CAN bus control
Rated Input Voltage	220VAC	Input Voltage	90~265VAC
Input Frequency Range	45~65Hz	Starting Impulse Current	≤10A
Input Power Factor	≥0.99(@220Vin, Pomax)	Voltage Stabilization	≤1%
Ripple Coefficient	≤1%	Current Stabilization	≤5%
Typical Efficiency	≥93%	Humidity	5%~95%
Ip Grade	lp67	Communication	CAN bus control

Environmental

Operating Temperature	-40℃~55℃
Storage Temperature	-40℃~100℃
Operating Temperature	-40℃~55℃	Storage Temperature	-40℃~100℃

Weight	6100 g
Dimensions	21 × 14.2 × 7.1 cm
Rated Input Voltage	220VAC
Input Voltage	90~265VAC
Input Voltage Frequency	50Hz
Input Frequency Range	45~65Hz
Starting Impulse Current	≤10A
Input Power Factor	≥0.99(@220Vin, Pomax)
Voltage Stabilization	≤1%
Ripple Coefficient	≤1%
Current Stabilization	≤5%
Output Response Time	≤5S
Typical Efficiency	≥93%
Operating Temperature	-40℃~55℃
Storage Temperature	-40℃~100℃
Humidity	5%~95%
Ip Grade	lp67
Cooling Method	Forced air cooling
Communication	CAN bus control

Elecpeek On Board Charger Product CatalogDownload
