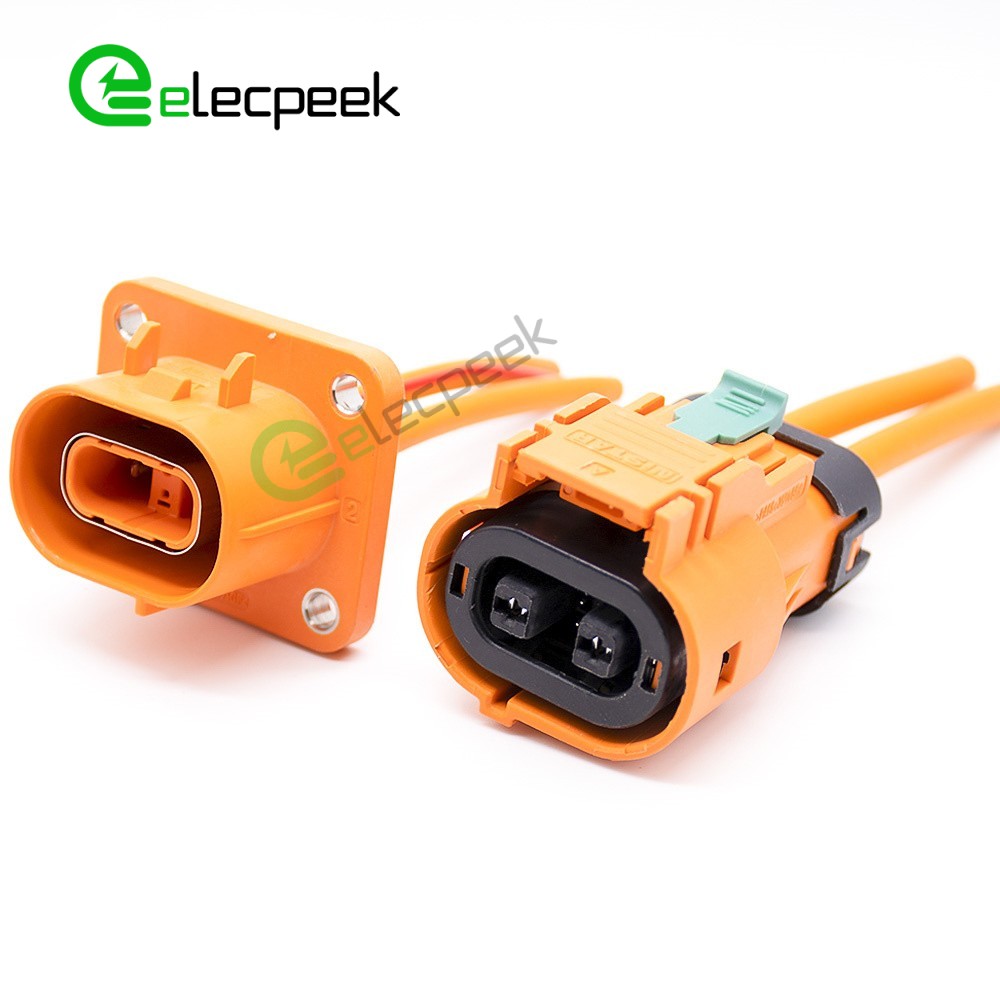

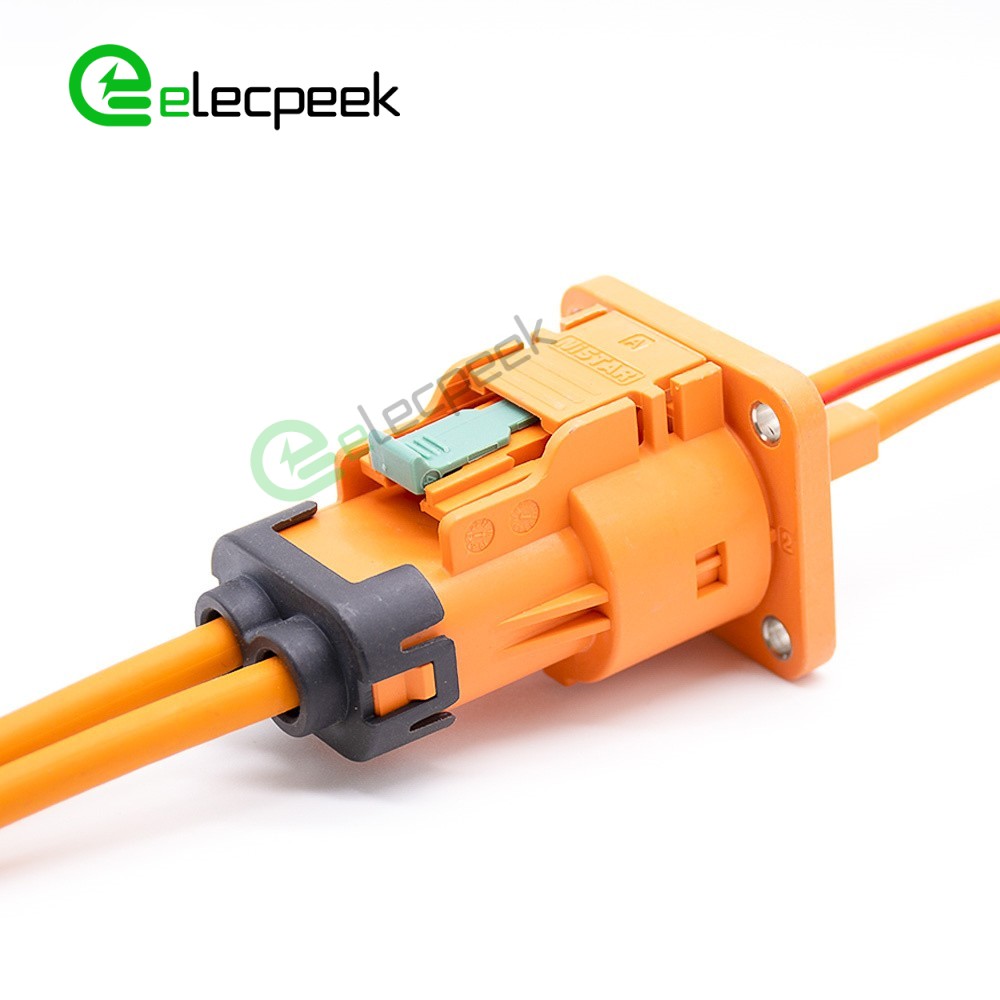

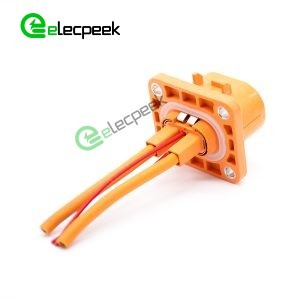

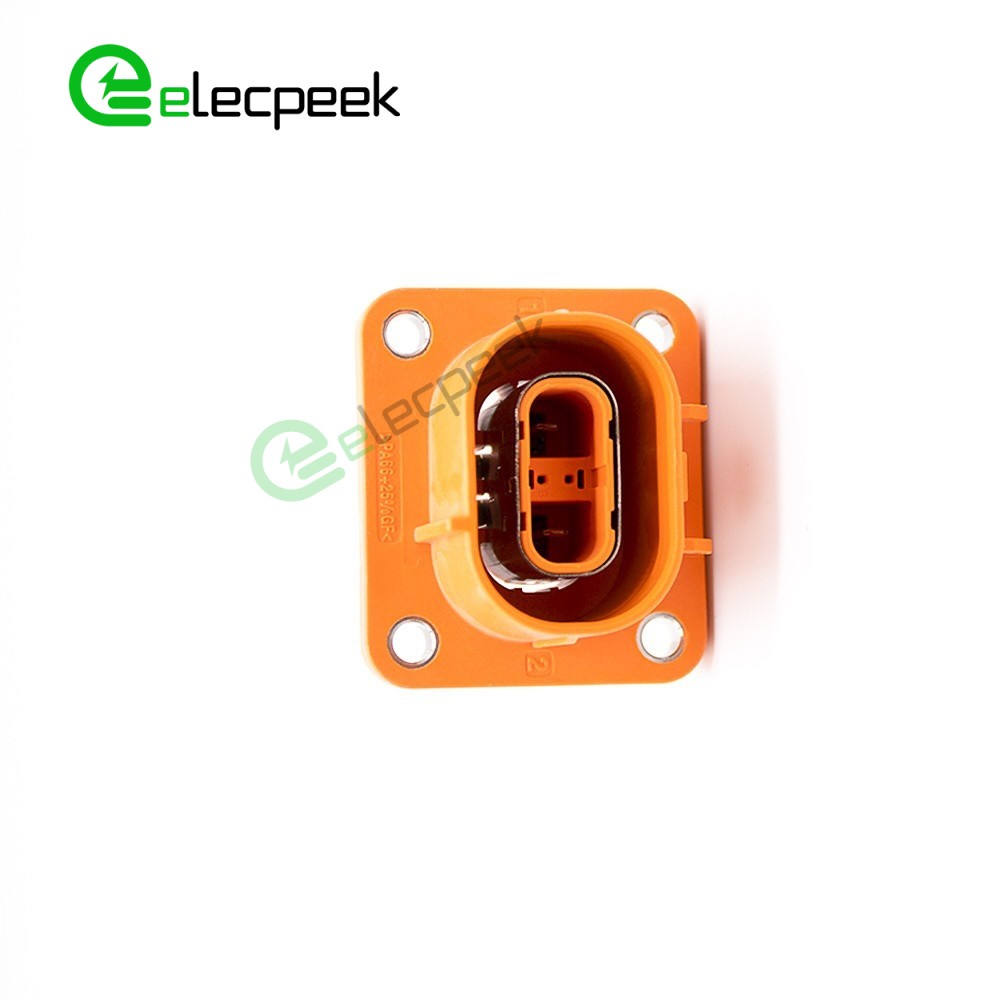

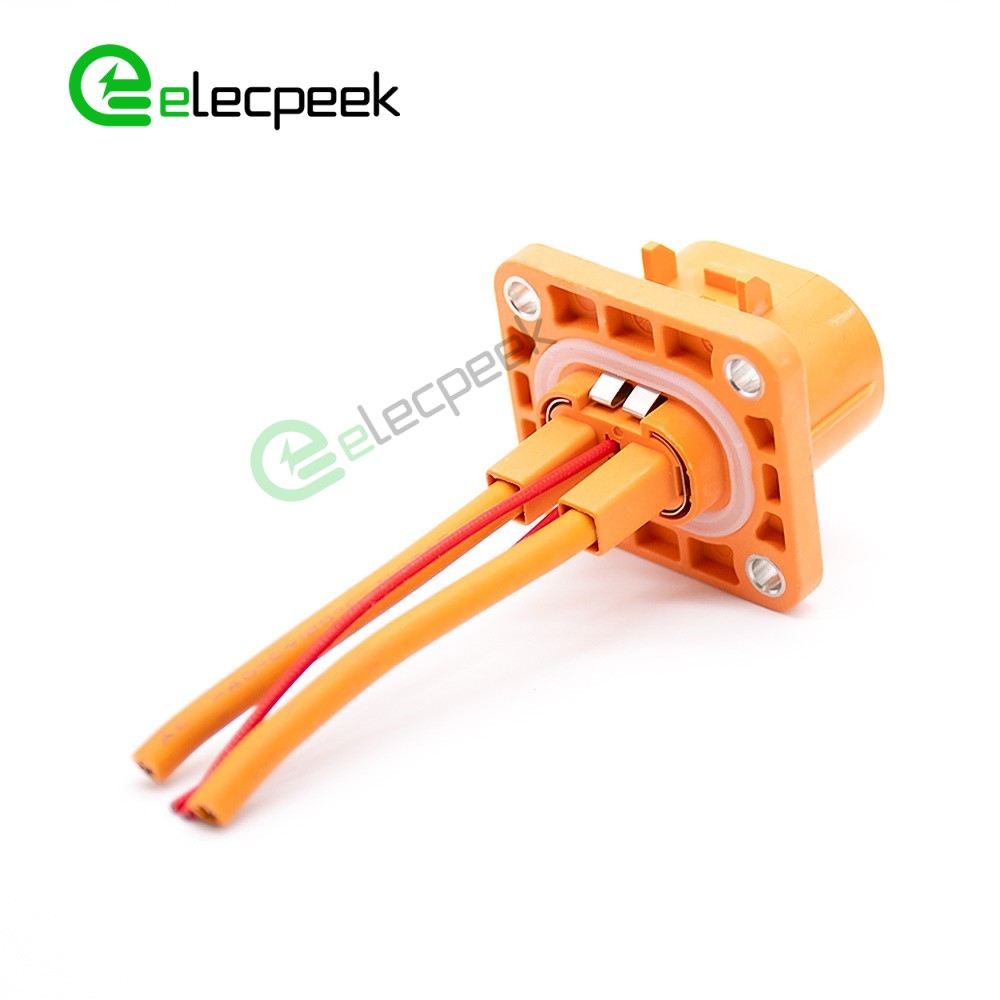

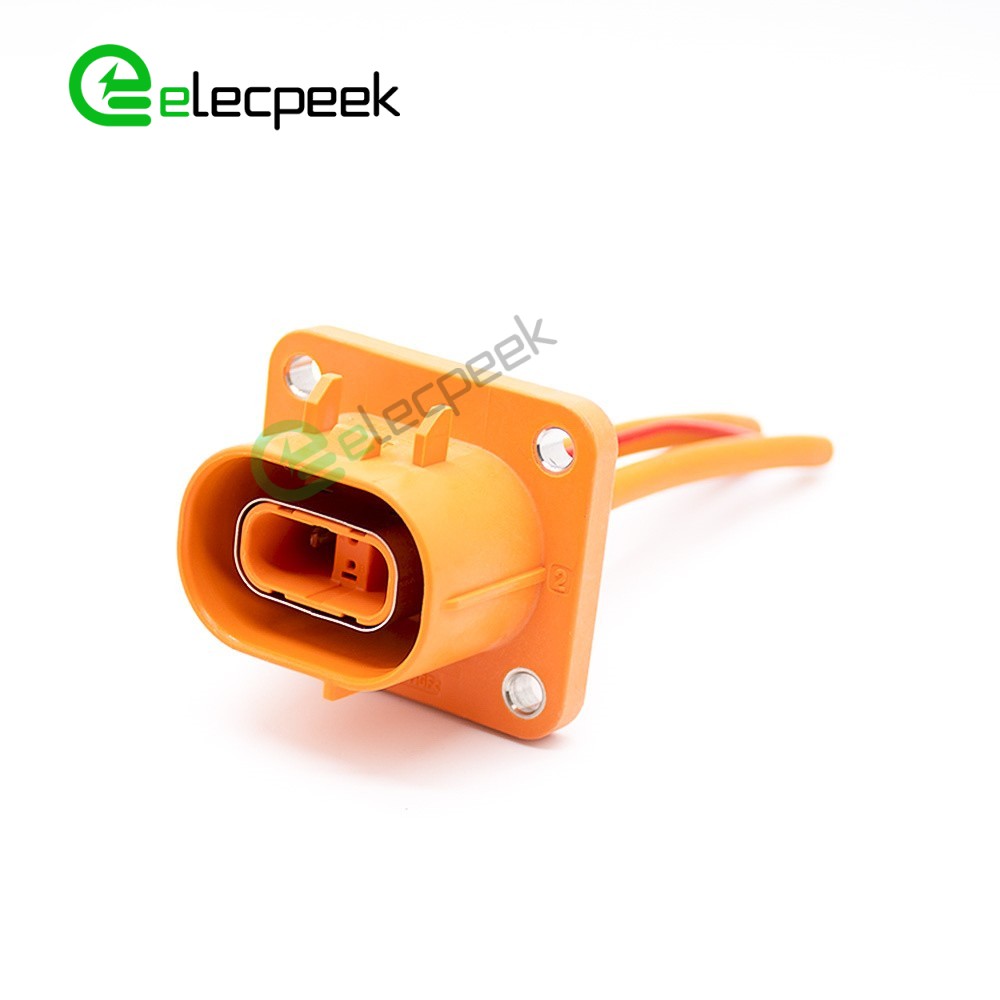

2.8mm 2 Pin HVIL Connector High Voltage Interlock 23A Straight Socket Plastic Shell

Description

HVIL connectors consist of a plug wrench with a slot, a secondary lock with a guide slot and a high voltage interlock microswitch to form the interlocking mechanism.
HV interlocking connectors include high voltage, high current and signal connection solutions for hybrid and electric vehicle high voltage power harnesses and signal connections.
The high voltage interlocking connectors are available in a wide range of product options, 1-pole to 3-pole, rated from 23a to 250a, touch-proof, and available with single or multi-core shielded cable.

Key Features

These Industrial connectors feature a compact plastic shell structure that is lightweight with a small footprint. Designed for hybrid and electric vehicle applications, ePower-Lite connectors provide weight and space savings in vehicle architecture.

• Lightweight & Compact Design：Durable plastic shell for reduced weight and a smaller footprint.Optimized for hybrid and electric vehicle applications, ensuring space and weight savings.

• High Efficiency：Compact design for space considerations with electric vehicles；

• User-Friendly Operation：Low mating and unmating force for easy handling.

• Superior Performance：Supports up to 70A continuous current and 800V AC operating voltage.

• Flexible Configurations：Available in 2-, 3-, and 4-pole options to meet diverse needs.

• Exceptional Durability：100 mating cycles minimum durability；Operates reliably in extreme temperatures from -40°C to 125°C.

• Robust Waterproofing：IP67-rated, providing excellent protection against water and dust.

• Environmental Compliance：Fully RoHS compliant, aligning with eco-friendly standards.

High Voltage Interlocking Connectors (HVIL Connectors)
