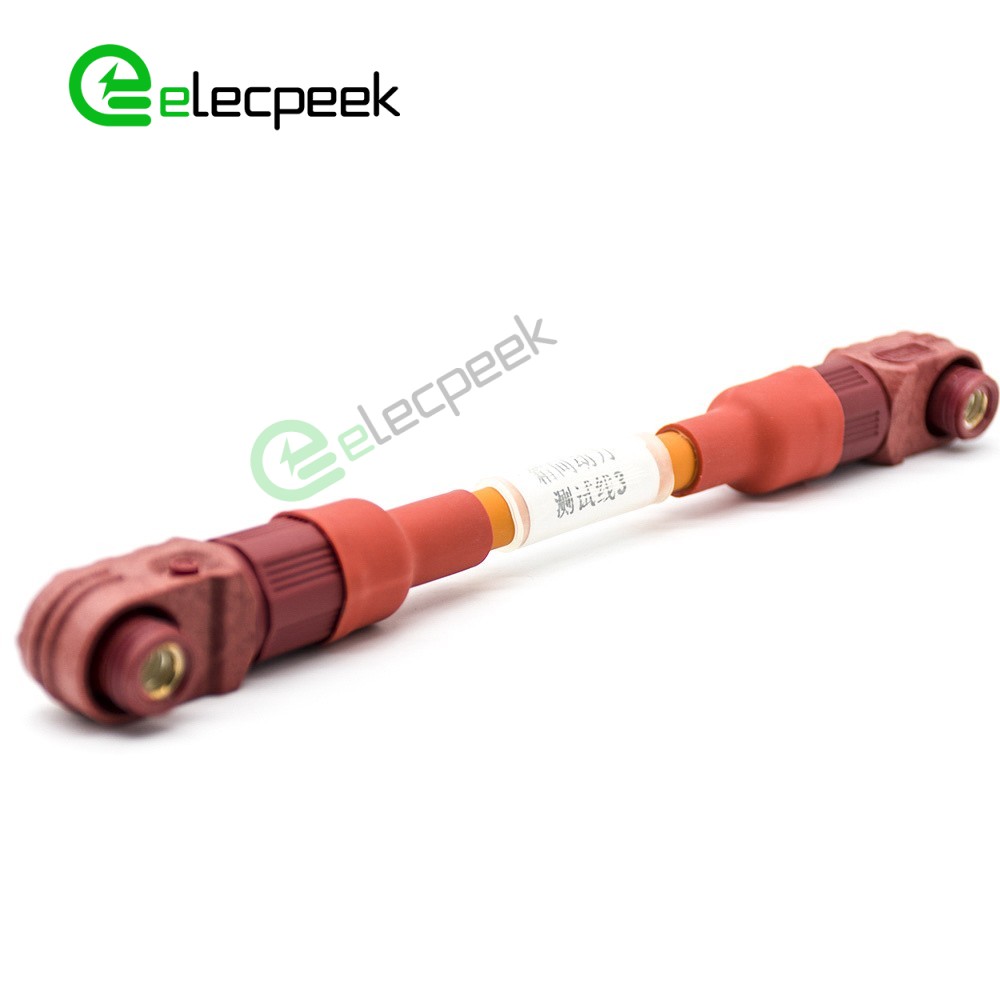

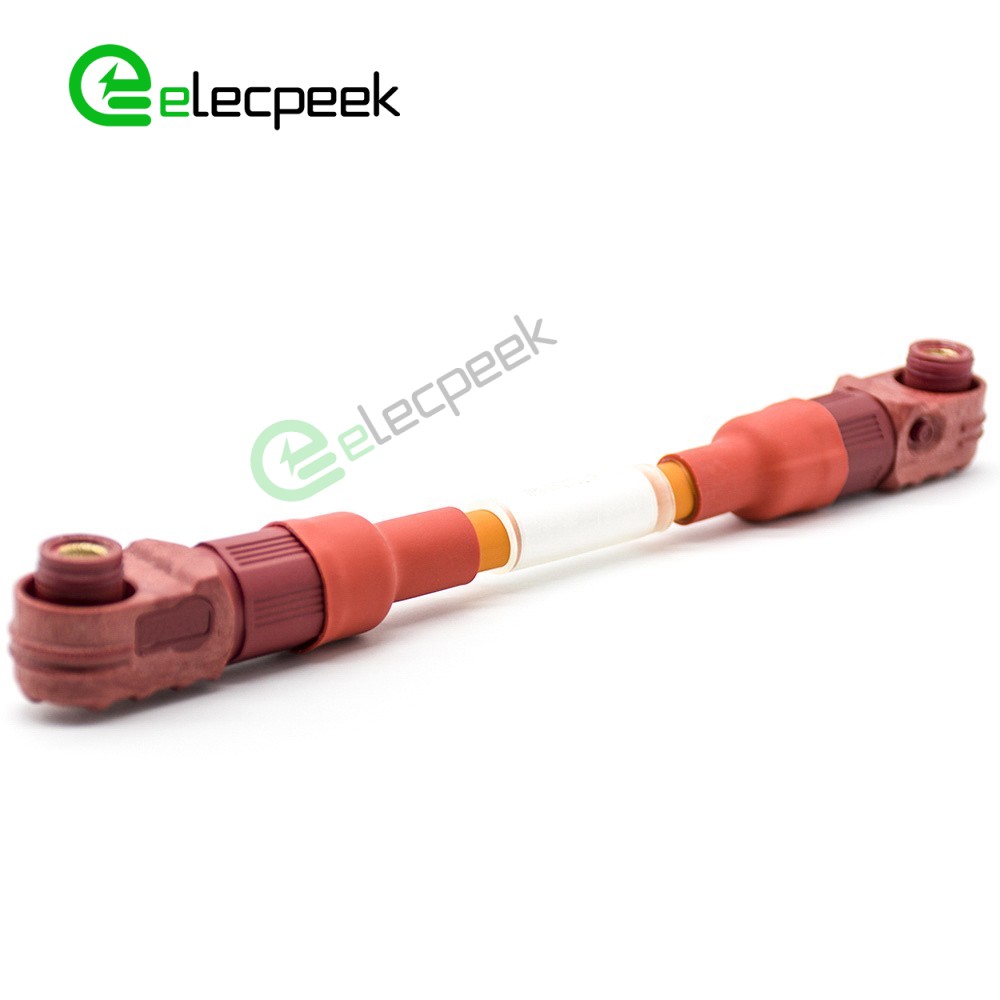

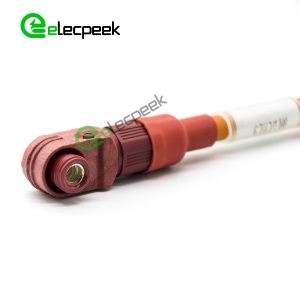

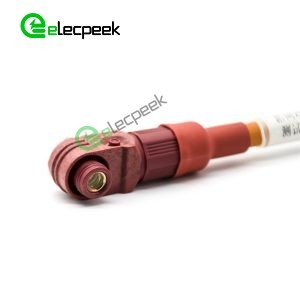

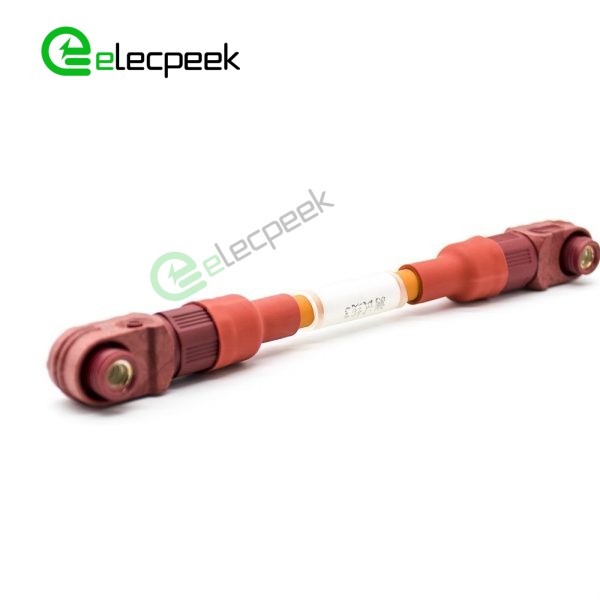

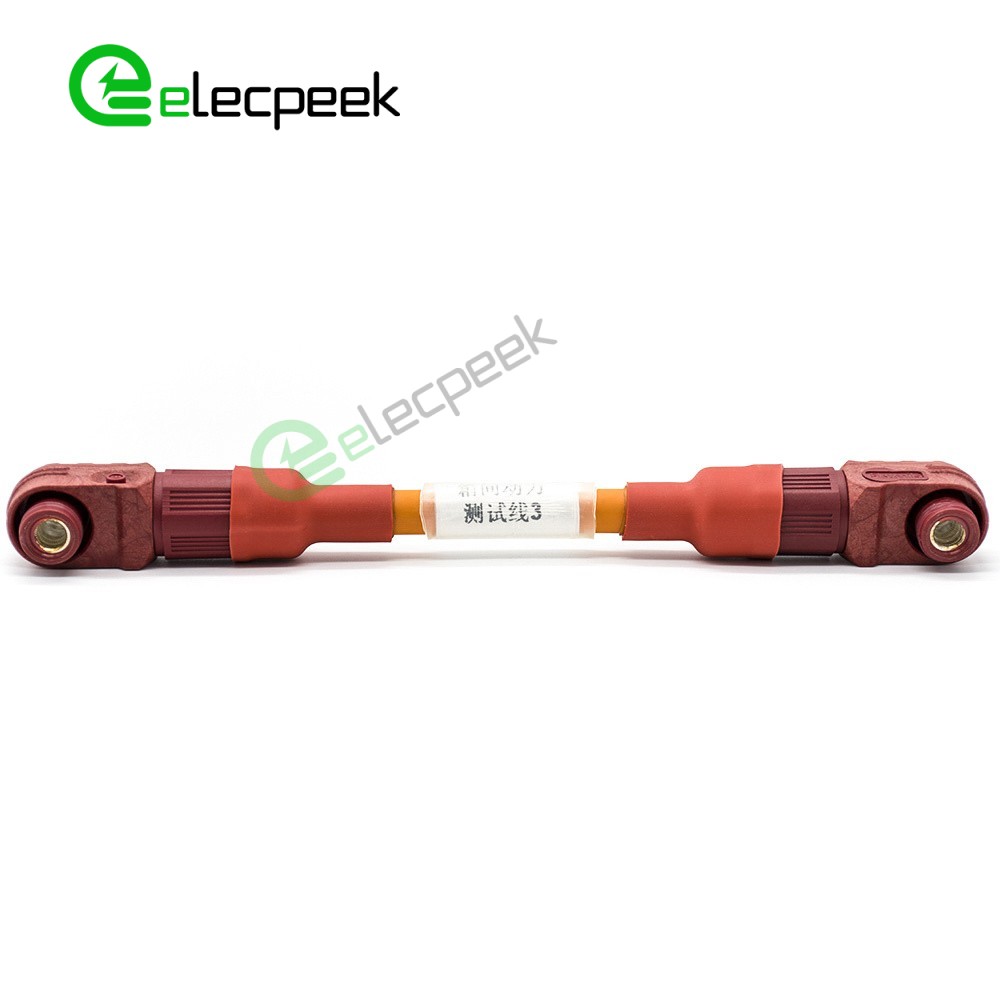

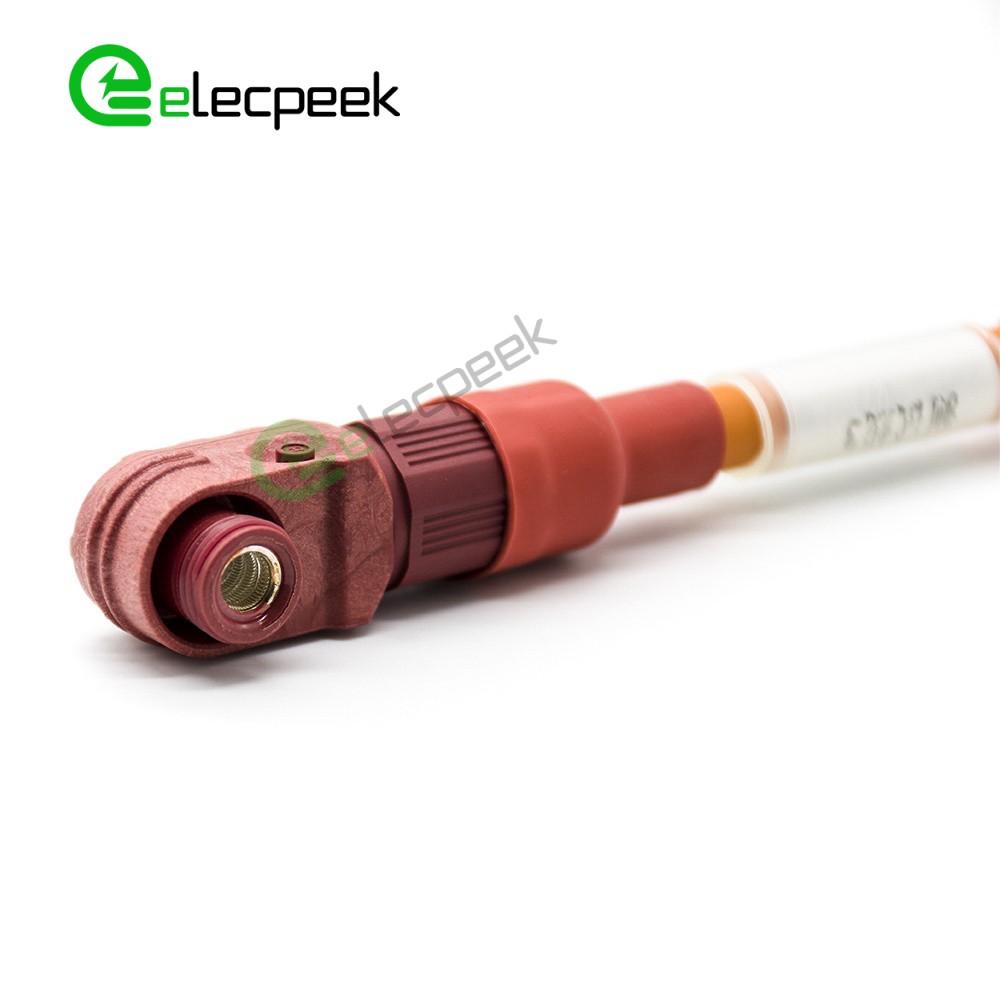

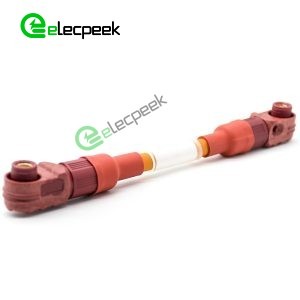

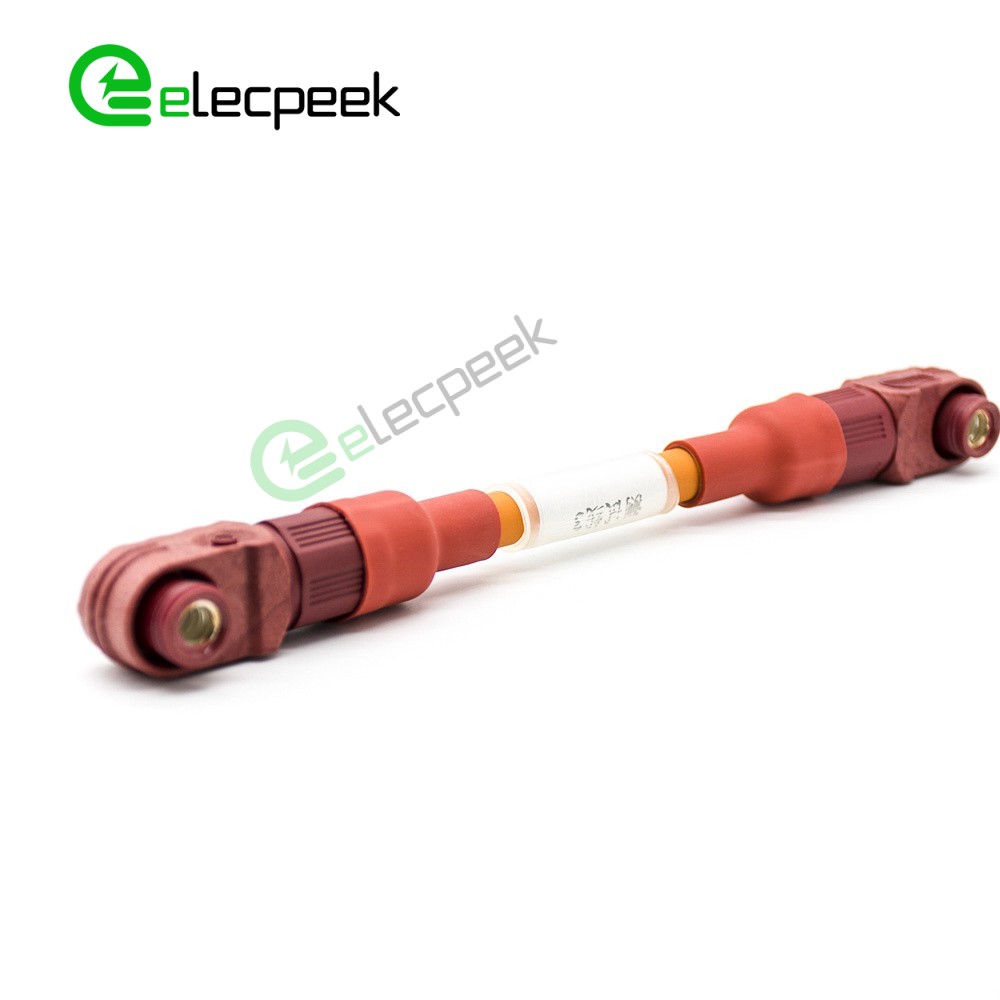

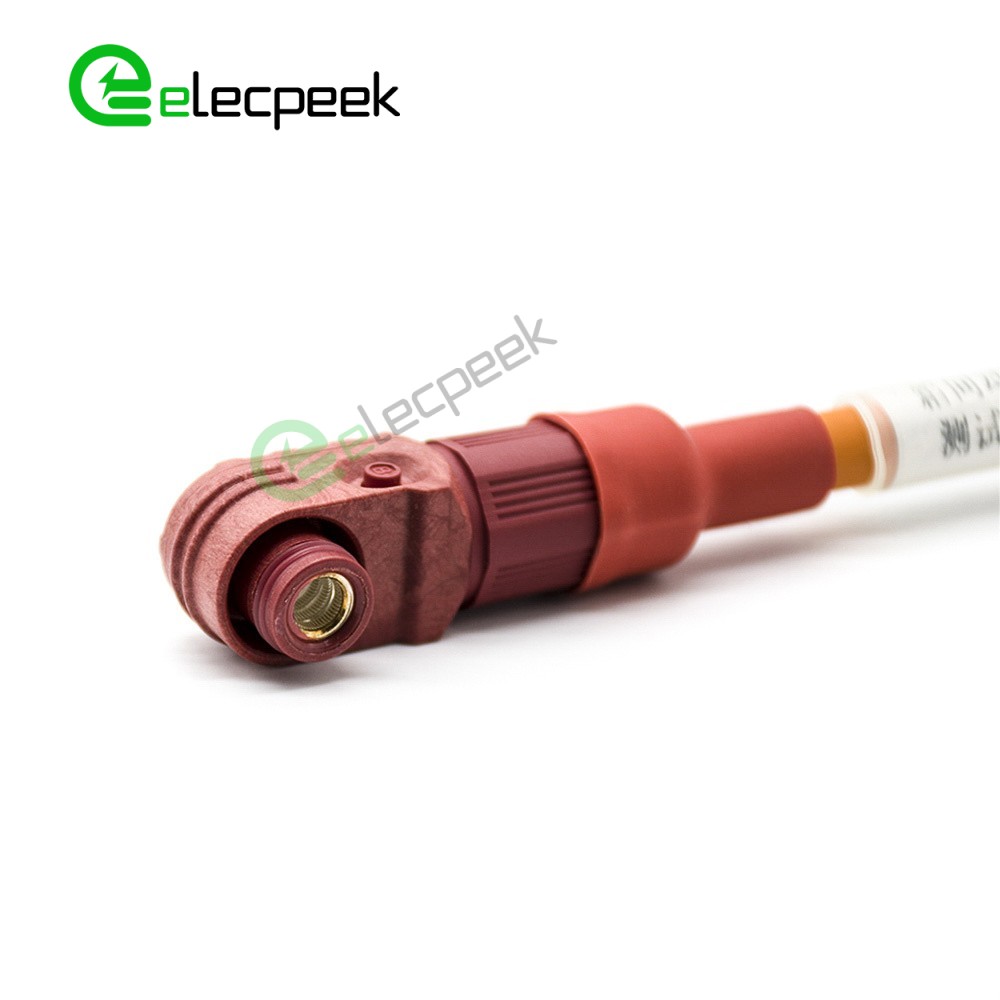

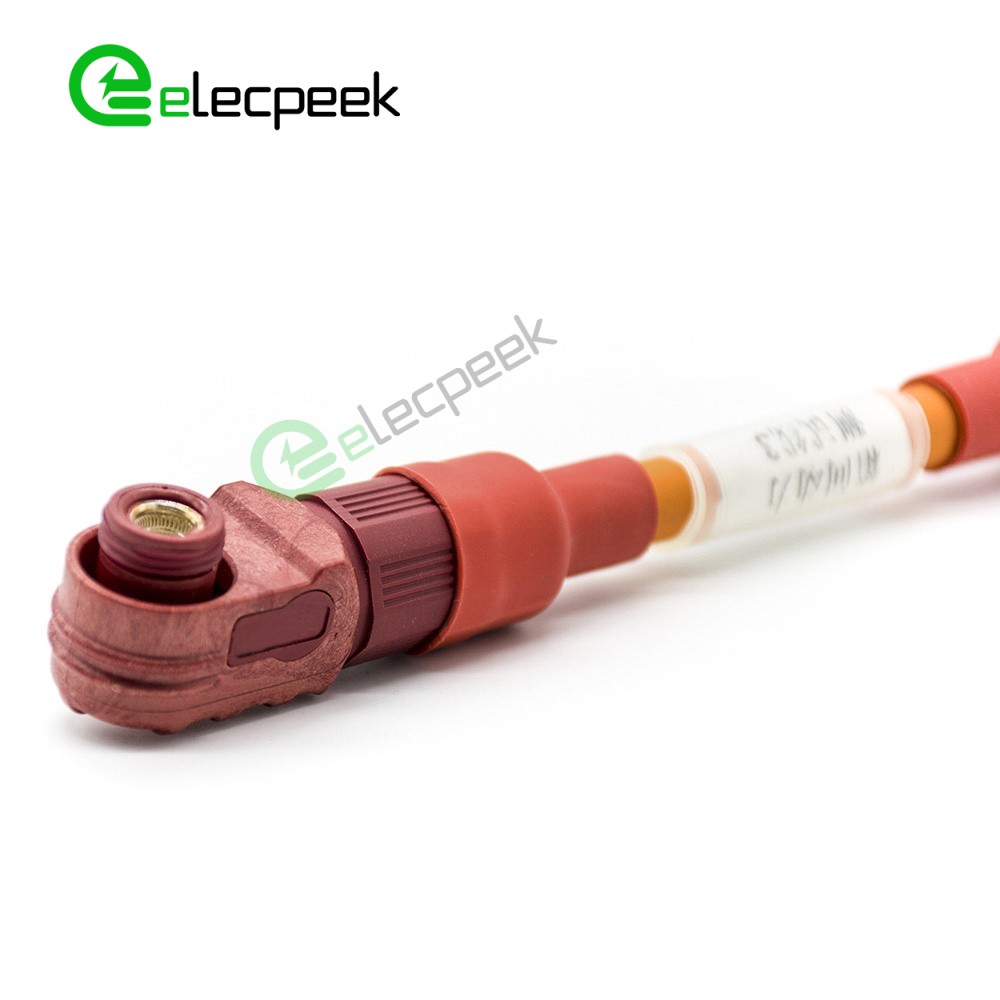

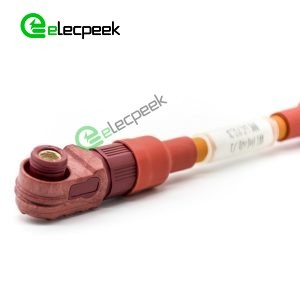

200A IP67 Waterproof Energy Battery Storage Connector Cable Female Right Angle Plug 8mm 1 Pin Plastic Red

SKU: RHT-1P-8R-C50-R30 Tags: Datasheet
  • Touch Proof .
  • 360°rotating Plug.
  • Compact Robust Design.
  • Various Termination Options.
  • Three Color Are Available.
  • Quick Lock And Press-to- Release Design.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    Energy storage connector compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools.

    This connector available in smaller sizes, and features a quick lock and press-to-release design.

    Incorporating the latest flexcoil finger connecting technology, our energy storage connector is a compact, quick mating, and robust product line.

    Battery Storage Connector Cable

    Material
    Shell PA66
    Contact Copper Alloy, Silver Plating
    Electrical Performance
    Rated Voltage 1000V/DC
    Rated Current From 60A to 500A MAX
    Withstand Voltage 2500V AC
    Insulation Resistance ≥1000MΩ
    Mechanical Performance
    Terminal 6-12mm
    Cable Range 10~95m㎡
    Connection Type Terminal Machine
    Mating Cycles >500
    Shielding 360°
    Environmental Performance
    IP Degree IP67
    Operating Temperature -40℃~125℃
    Flammability Rating UL94 V-0
    Application
    BMS / Energy Storage EV / HEV
    Rail Mass Transit Process Control / Automation
    Heavy Equipment





    Weight 78 g
    Weight 78 g
    Weight 78 g
    Cable Type

    Double Ended Cable
    Gender

    Male to Male
    Connector Type

    Plug
    Current Rating

    200A
    Wire Gauge

    50m㎡
    Terminal

    8mm
    Color

    Red
