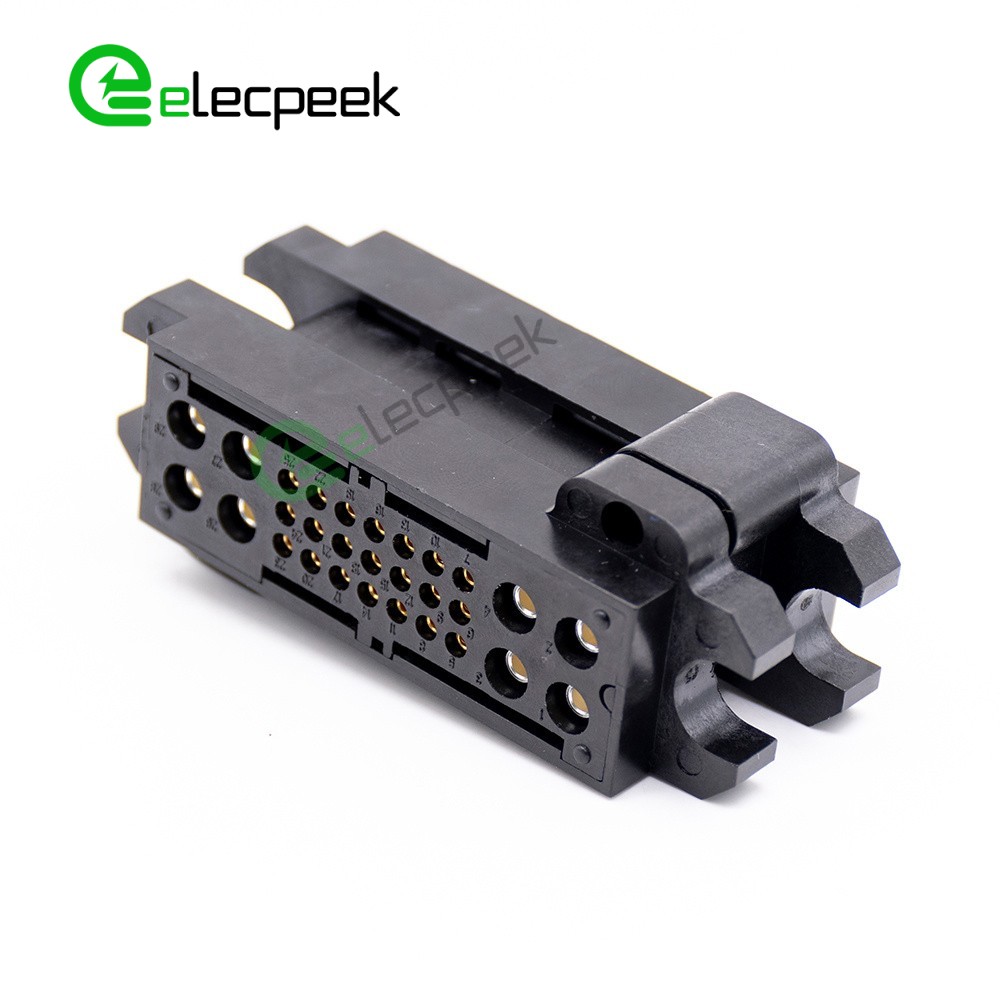

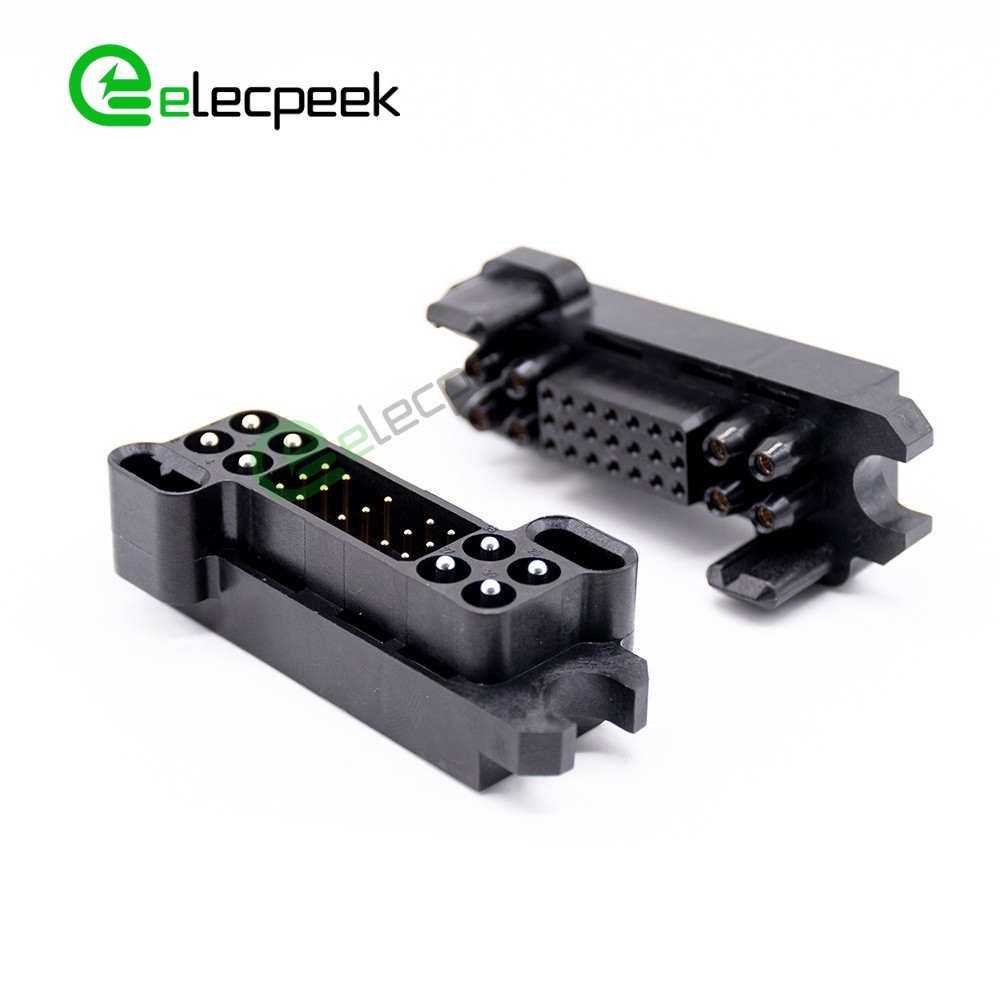

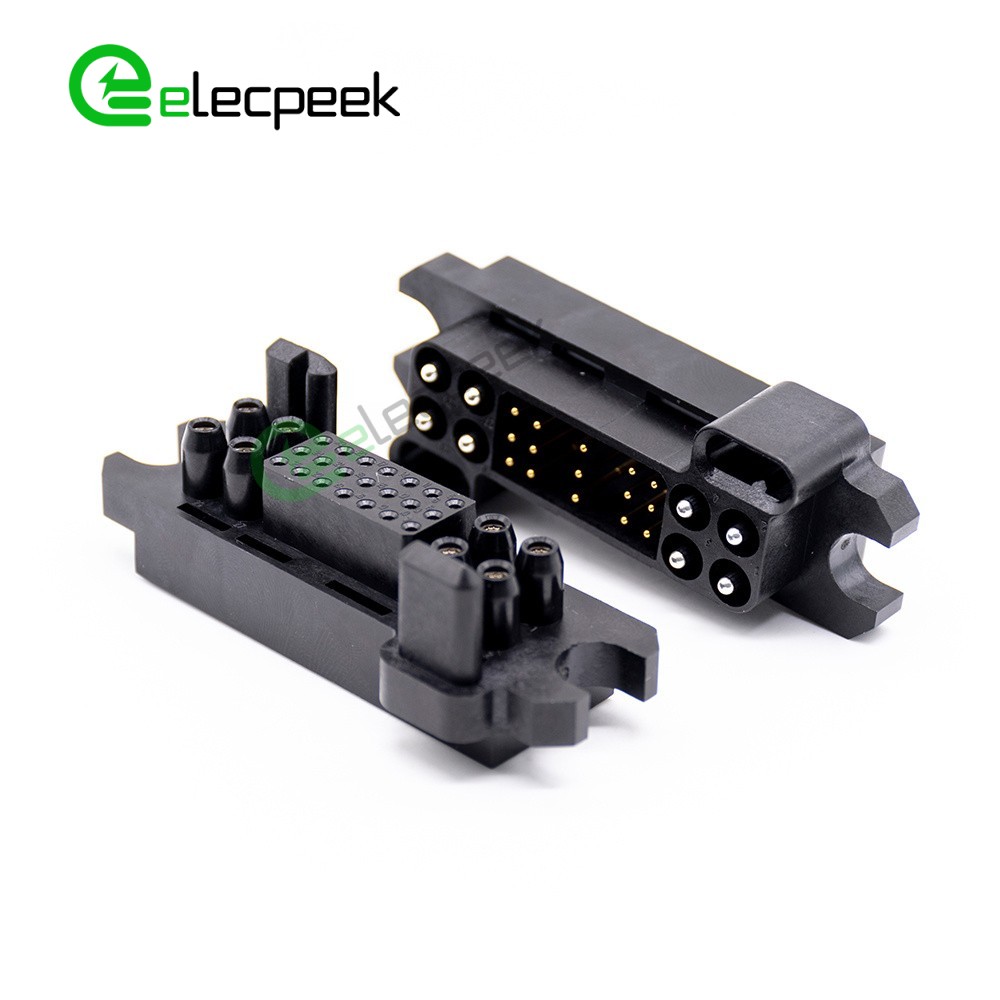

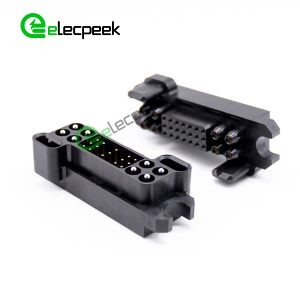

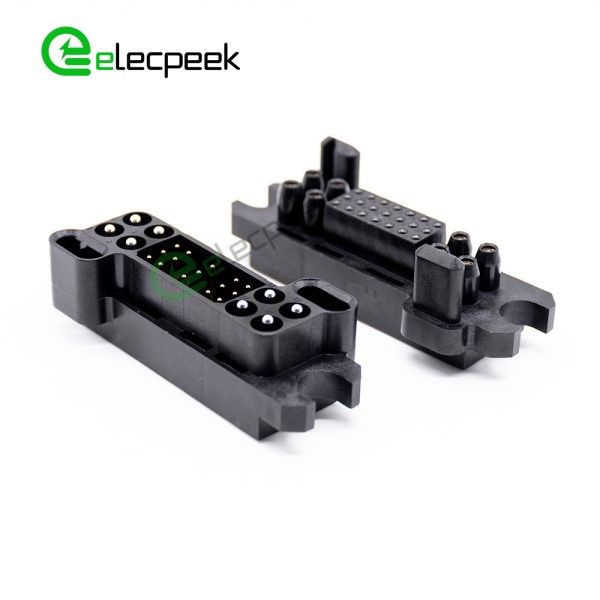

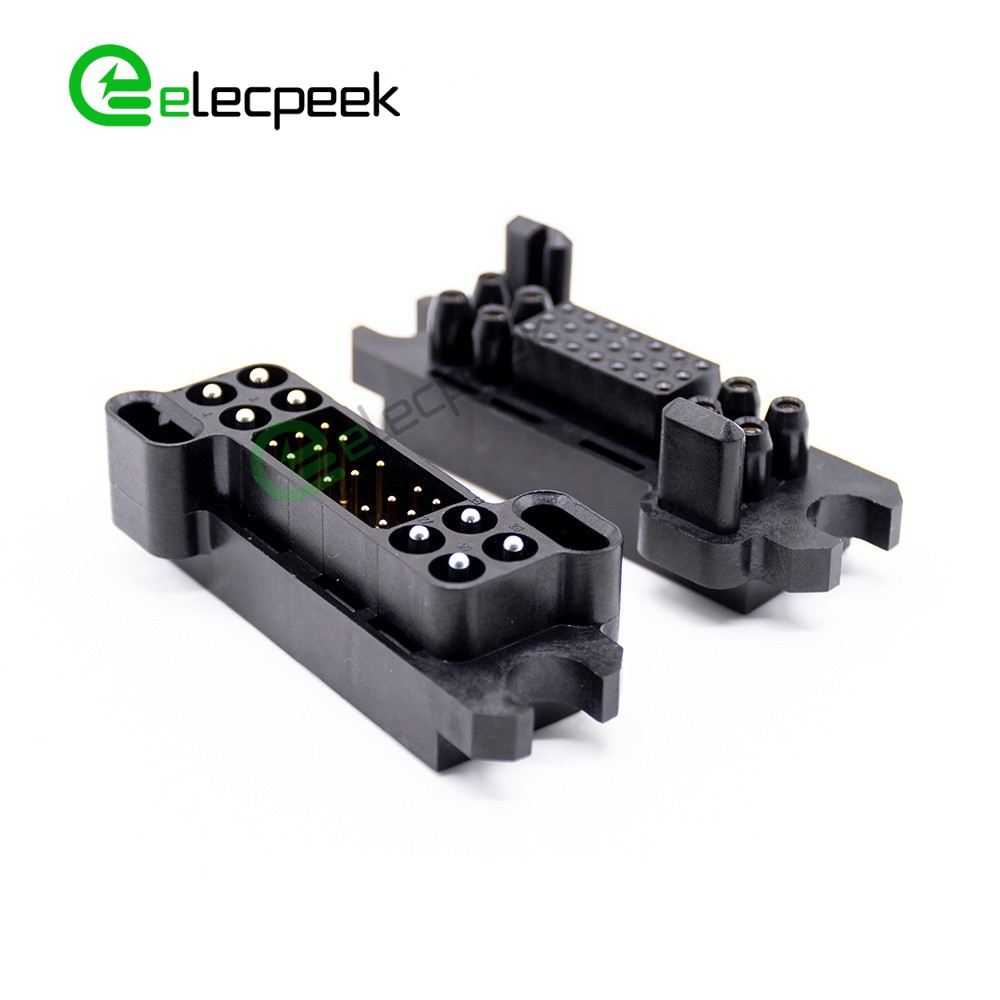

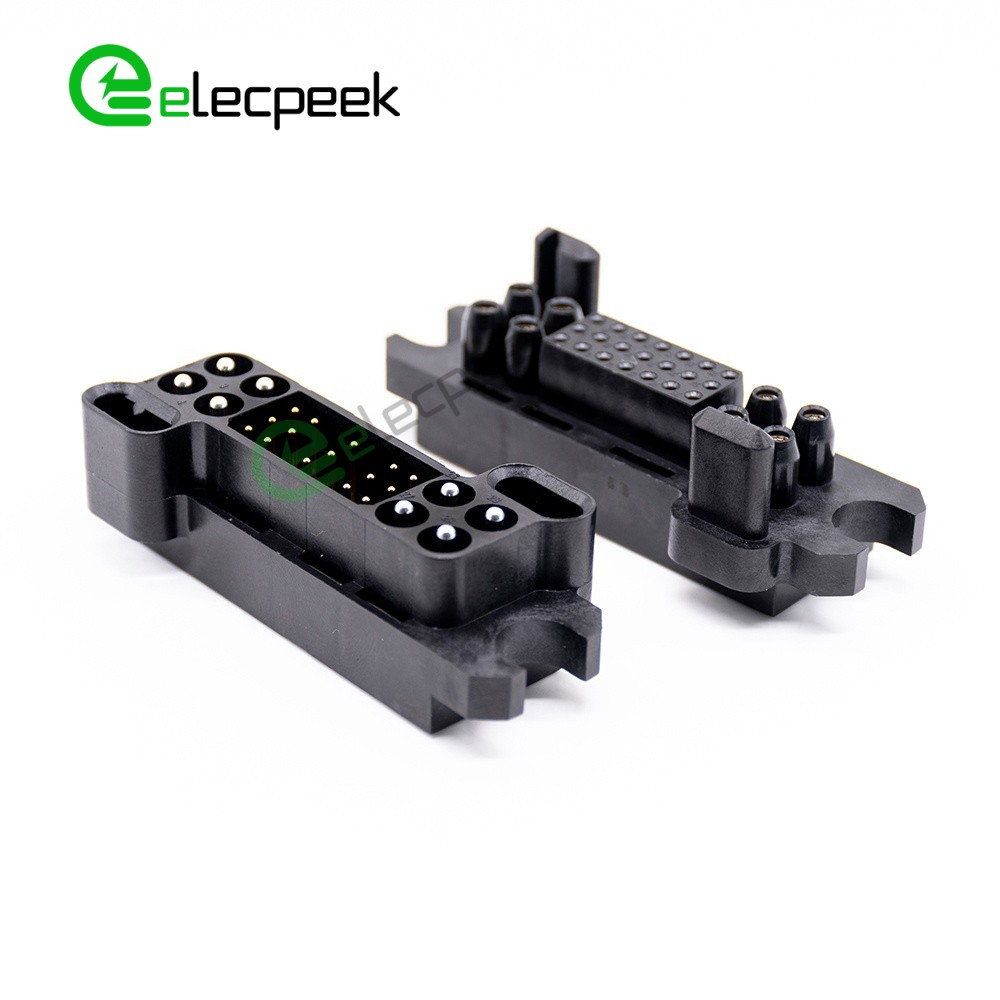

29 Pin 35A Power Drawer Connector 1500V High Current Heavy Load Straight

SKU: RHT-29 Tags: Datasheet
  • Reliable Connection, Soft Insertion.
  • Removal, Low Insertion Force.
  • Low Contact Resistance.
  • High Load Current.
  • Excellent Performance.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    Power Drawer Connector Connectors Adopt Advanced Crown Spring Socket and Silver Plating or Silver Plating to Ensure Product Contact Reliability.

    Drawer Connector

    Material
    Housing Material: High-performance Thermoplastic PBT G6 UL94V-0, Black
    Contact Material: Cooper or Copper Alloy
    Electrical Performance
    Rated Current: 15A/35A/65A/75A/85A/125A/150/180A
    Withstand Voltage: 1500V/2500V/3000V
    Insultation Resistance ≧1000 mΩ
    Mechanical Performance
    Mechanical Life: ≥1000
    Environmental Performance
    Operating Temperature: –55~+125 oC
    Application
    Charging Piles UPS Power Supply
    Railway Signal Power Supply Communication Power Supply
    Power Supply Power Quality
    Photov Oltaic



    Weight 113 g
    Weight 113 g
    Weight 113 g
    Number of Positions

    29 Pin
    Contact Quantity

    8Pin Power (12#:35A)+21Pin Signal (20#:5A)
    Mount Style

    PCB Tail(B)
    Current Rating

    35A
    Orientation

    Right Angle
