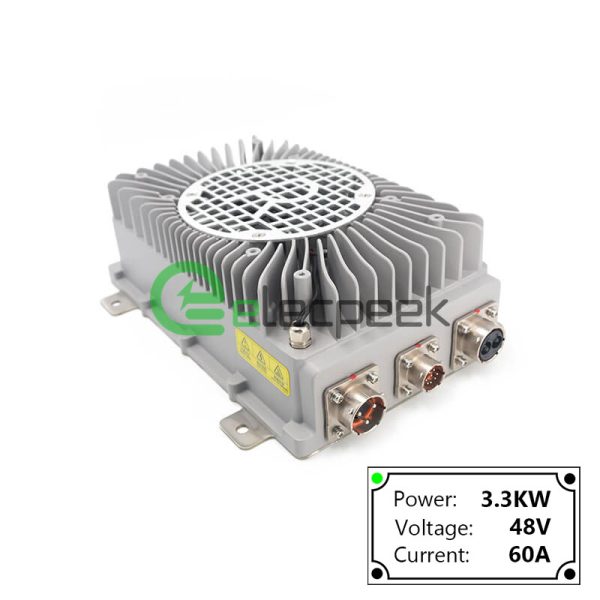

3.3KW 48V 60A High Power Electric Vehicle On-board Charger

SKU: RHT-OBC-3.3KW-48V60A Tag: Datasheet

The RHT-OBC-3.3KW-48V60A is a high power 3.3KW 48V 60A on-board charger for electric vehicles, designed for original equipment manufacturer (OEM) use. This charger boasts a compact and lightweight design, making it an ideal solution for electric vehicle (EV) charging. It features advanced safety protections, such as overvoltage, overcurrent, and leakage protection, ensuring safe and reliable charging. This on-board charger is built to last, with high-quality components and a robust design for long-term use. Get the perfect charging solution for your electric vehicle with the RHT-OBC-3.3KW-48V60A.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    The 3.3KW chargers from Elecpeek are available in a variety of voltages, providing a flexible output based on the specific needs of the connected battery system.

    3.3KW On Board Charger Specification

    3.3KW On Board Charger
    Input Voltage 24V 48V 72V 108V 144V 360V
    Output voltage(V) 15-32V 20-67V 30-90V 50-130V 110-180V 200-440V
    Output current(A) 0-100A 0-60A 0-45A 0-30A 0-22A 0-9A
    Rated input Voltage 220VAC
    input voltage range 90-265VAC
    Rated Input Voltage Frequency 50Hz
    Input Frequency Range 45-65Hz
    Starting Impulse Current ≤10A
    Input Power Factor ≥0.99@220Vin,Pomax
    Output Rated Output Power 3.3KW
    Voltage Stabilization Accuracy ≤1%
    Ripple Coefficient of Voltage ≤1%
    Voltage Stabilization Accuracy ≤5%
    Output Response Time ≤5S

    3.3KW Charger Series

    Plug and Socket Definition

    Image Plug Type Pin Instruction Wire Diameter
    Image Docking Plug
    Model:Nominated    		 A Output Positive 6
    B Output Negative 6
    Image Docking Plug
    Model:Nominated    		 A CANH 0.3
    B CANL 0.3
    C 12V+(200mA) 0.3
    D 12V-(200mA) 0.3
    E CC 0.3
    F CP 0.3
    G BAT+ 0.3
    H BAT- 0.3
    Image Docking Plug
    Model:Nominated    		 F Input/L 2.5
    B Input/N 2.5
    D PE 2.5

    Output Plug Options

    Input Plug Options

    Successful Projects

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY:1200PCS
    Item:20KW On-board Charger
    Location:Russelsheim,Germany



    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Application

    On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

    Electrical

    Rated Input Voltage

    220VAC
    Input Voltage

    90~456VAC
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤16A
    Input Power Factor

    ≥0.99(@220Vin, Pomax)
    Voltage Stabilization

    ≤1%
    Ripple Coefficient

    ≤1%
    Current Stabilization

    ≤5%
    Typical Efficiency

    ≥93%
    Humidity

    5%~95%
    Ip Grade

    lp67
    Communication

    CAN bus control
    Rated Input Voltage

    220VAC

    		 Input Voltage

    90~456VAC
    Input Frequency Range

    45~65Hz

    		 Starting Impulse Current

    ≤16A
    Input Power Factor

    ≥0.99(@220Vin, Pomax)

    		 Voltage Stabilization

    ≤1%
    Ripple Coefficient

    ≤1%

    		 Current Stabilization

    ≤5%
    Typical Efficiency

    ≥93%

    		 Humidity

    5%~95%
    Ip Grade

    lp67

    		 Communication

    CAN bus control

    Input Voltage Frequency

    50Hz
    Output Response Time

    ≤5S
    Cooling Method

    Forced air cooling
    Input Voltage Frequency

    50Hz

    		 Output Response Time

    ≤5S
    Cooling Method

    Forced air cooling

    Environmental

    Operating Temperature

    -40℃~55℃
    Storage Temperature

    -40℃~100℃
    Operating Temperature

    -40℃~55℃

    		 Storage Temperature

    -40℃~100℃
    Dimensions 27.7 × 20.7 × 9 cm
    Rated Input Voltage

    220VAC
    Input Voltage

    90~456VAC
    Input Voltage Frequency

    50Hz
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤16A
    Input Power Factor

    ≥0.99(@220Vin, Pomax)
    Voltage Stabilization

    ≤1%
    Ripple Coefficient

    ≤1%
    Current Stabilization

    ≤5%
    Output Response Time

    ≤5S
    Typical Efficiency

    ≥93%
    Operating Temperature

    -40℃~55℃
    Storage Temperature

    -40℃~100℃
    Humidity

    5%~95%
    Ip Grade

    lp67
    Cooling Method

    Forced air cooling
    Communication

    CAN bus control
