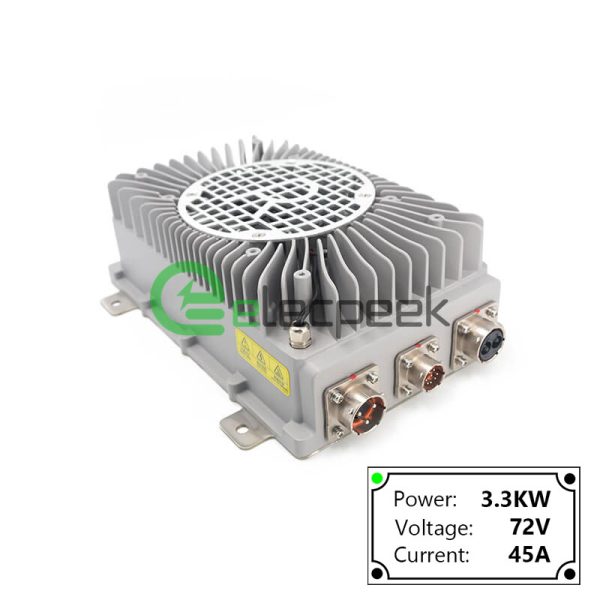

3.3KW 72V 45A Electric Vehicle On-board Charger for High Voltage Systems

SKU: RHT-OBC-3.3KW-72V45A Tag: Alibaba Authorized Datasheet

The RHT-OBC-3.3KW-72V45A is a 3.3KW 72V 45A Electric Vehicle On-board Charger designed for high voltage systems. This original factory charger is seo friendly and features advanced technology for reliable and efficient charging. Upgrade your electric vehicle with this high-quality on-board charger.

Get a Quotation

The 3.3KW chargers from Elecpeek are available in a variety of voltages, providing a flexible output based on the specific needs of the connected battery system.

3.3KW On Board Charger Specification

3.3KW On Board Charger
Input	Voltage	24V	48V	72V	108V	144V	360V
	Output voltage(V)	15-32V	20-67V	30-90V	50-130V	110-180V	200-440V
	Output current(A)	0-100A	0-60A	0-45A	0-30A	0-22A	0-9A
	Rated input Voltage	220VAC
	input voltage range	90-265VAC
	Rated Input Voltage Frequency	50Hz
	Input Frequency Range	45-65Hz
	Starting Impulse Current	≤10A
	Input Power Factor	≥0.99@220Vin,Pomax
Output	Rated Output Power	3.3KW
	Voltage Stabilization Accuracy	≤1%
	Ripple Coefficient of Voltage	≤1%
	Voltage Stabilization Accuracy	≤5%
	Output Response Time	≤5S

3.3KW Charger Series

Plug and Socket Definition

Image	Plug Type	Pin	Instruction	Wire Diameter
	Docking Plug Model:Nominated	A	Output Positive	6
		A	Output Positive	6	B	Output Negative	6
			Docking Plug Model:Nominated	A	B	Output Negative	6	CANH	0.3
				B	CANL	0.3
C	12V+(200mA)			0.3
D	12V-(200mA)			0.3
E	CC			0.3
F	CP			0.3
G	BAT+			0.3
H	BAT-			0.3
	Docking Plug Model:Nominated	F	Input/L	2.5
		B	Input/N	2.5
		D	PE	2.5

Output Plug Options

Input Plug Options

Successful Projects

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY:1200PCS
Item:20KW On-board Charger
Location:Russelsheim,Germany

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Application

On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

Electrical

Rated Input Voltage	220VAC
Input Voltage	90~456VAC
Input Frequency Range	45~65Hz
Starting Impulse Current	≤16A
Input Power Factor	≥0.99(@220Vin, Pomax)
Voltage Stabilization	≤1%
Ripple Coefficient	≤1%
Current Stabilization	≤5%
Typical Efficiency	≥93%
Humidity	5%~95%
Ip Grade	lp67
Communication	CAN bus control
Rated Input Voltage	220VAC	Input Voltage	90~456VAC
Input Frequency Range	45~65Hz	Starting Impulse Current	≤16A
Input Power Factor	≥0.99(@220Vin, Pomax)	Voltage Stabilization	≤1%
Ripple Coefficient	≤1%	Current Stabilization	≤5%
Typical Efficiency	≥93%	Humidity	5%~95%
Ip Grade	lp67	Communication	CAN bus control

Input Voltage Frequency	50Hz
Output Response Time	≤5S
Cooling Method	Forced air cooling
Input Voltage Frequency	50Hz	Output Response Time	≤5S
Cooling Method	Forced air cooling

Environmental

Operating Temperature	-40℃~55℃
Storage Temperature	-40℃~100℃
Operating Temperature	-40℃~55℃	Storage Temperature	-40℃~100℃

Dimensions	27.7 × 20.7 × 9 cm
Rated Input Voltage	220VAC
Input Voltage	90~456VAC
Input Voltage Frequency	50Hz
Input Frequency Range	45~65Hz
Starting Impulse Current	≤16A
Input Power Factor	≥0.99(@220Vin, Pomax)
Voltage Stabilization	≤1%
Ripple Coefficient	≤1%
Current Stabilization	≤5%
Output Response Time	≤5S
Typical Efficiency	≥93%
Operating Temperature	-40℃~55℃
Storage Temperature	-40℃~100℃
Humidity	5%~95%
Ip Grade	lp67
Cooling Method	Forced air cooling
Communication	CAN bus control

Elecpeek On Board Charger Product CatalogDownload
