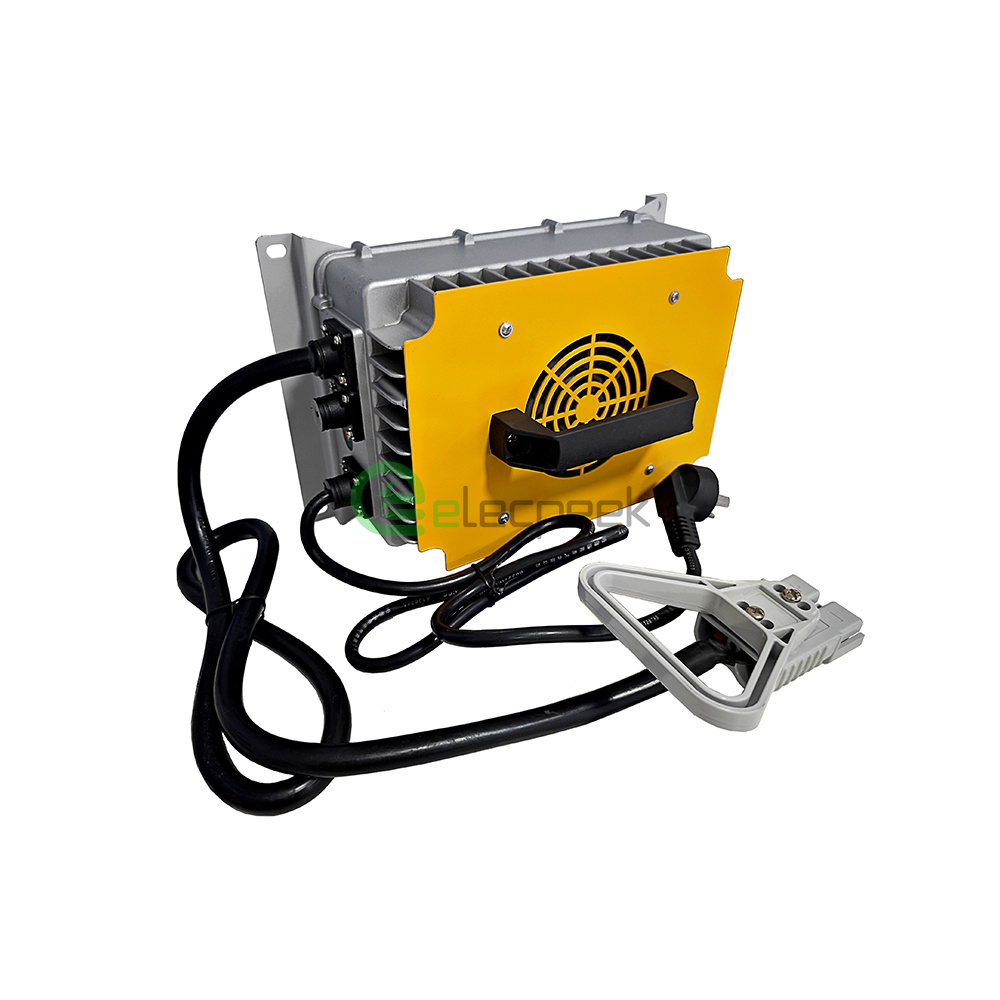

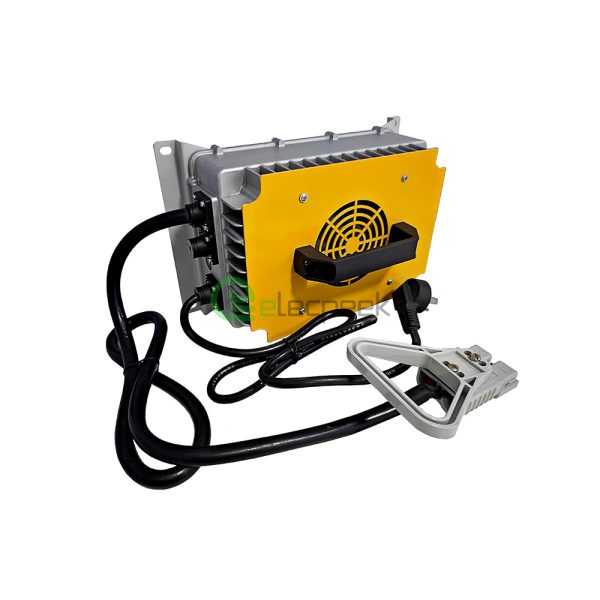

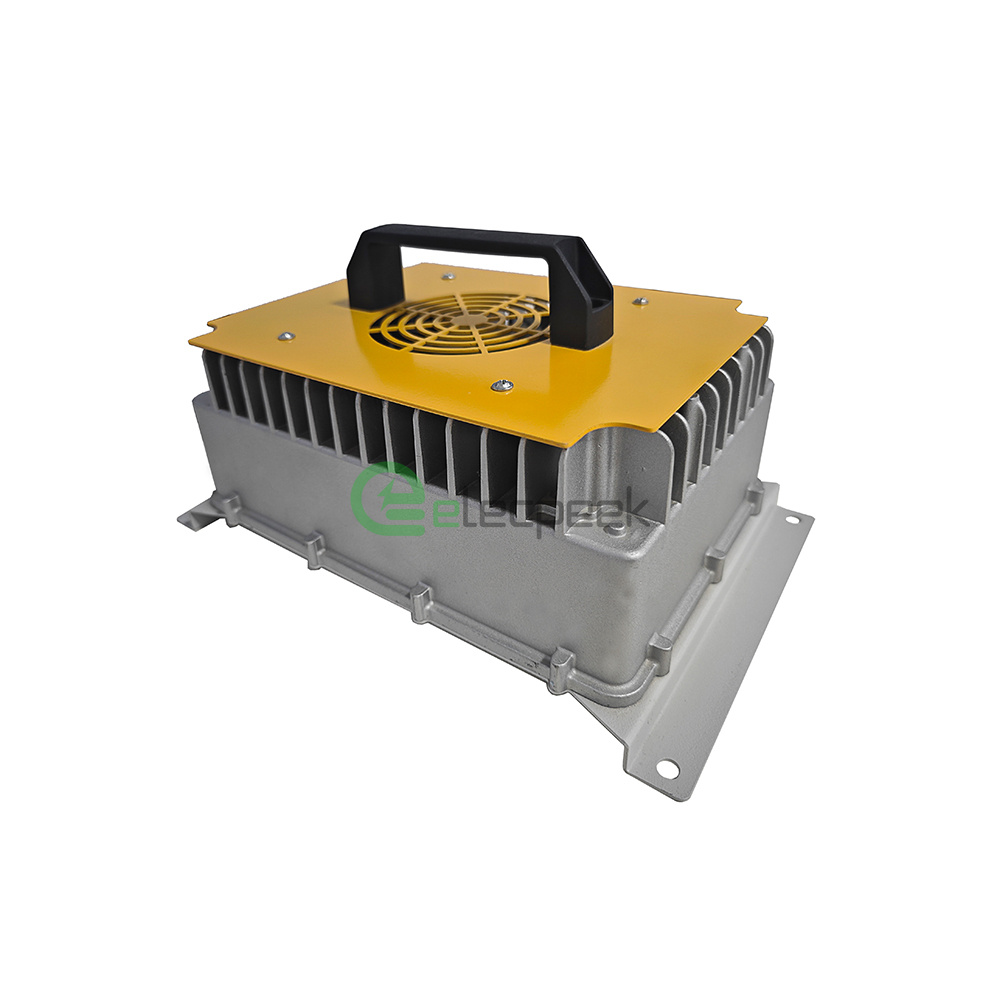

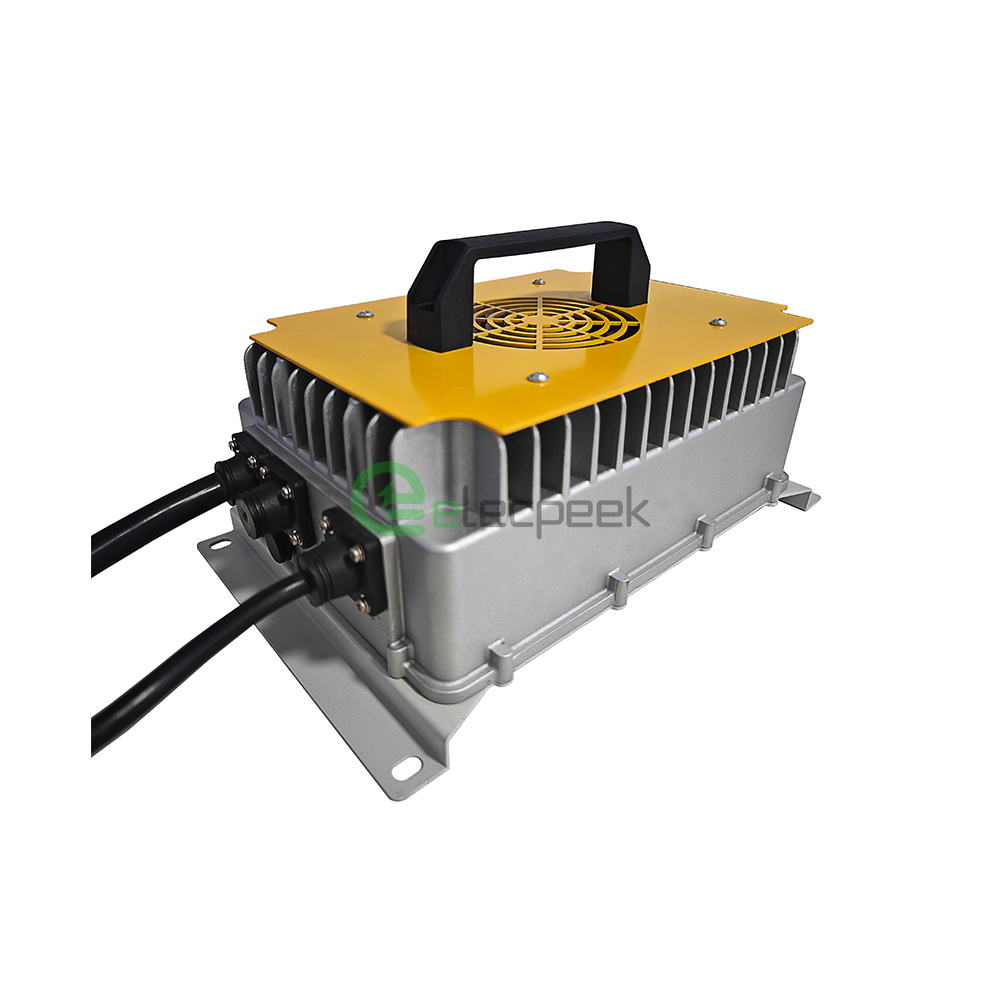

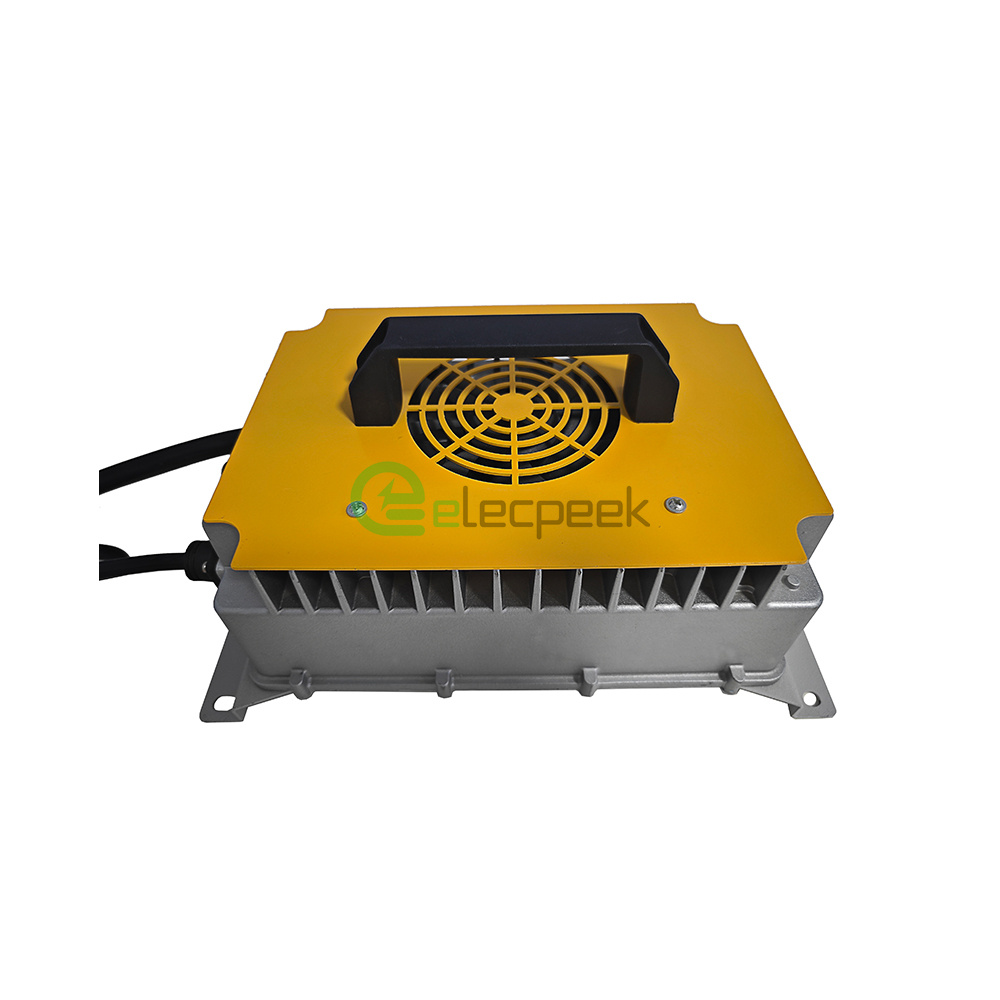

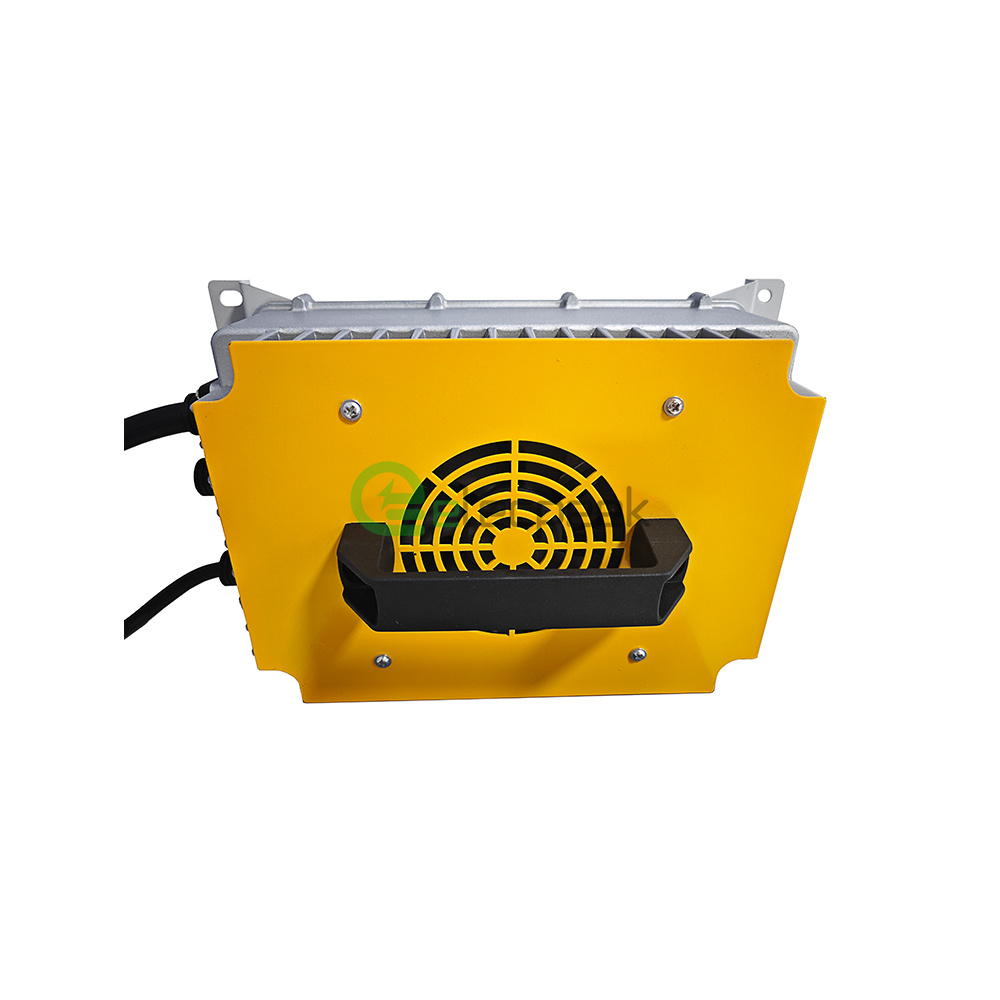

3000W 48V 60V 72V Portable lithium battery Charger charger

SKU: RHT-POBC-3000A Tag: Datasheet

Looking for a reliable and efficient lithium battery charger? Our 3000W 48V 60V 72V Portable Lithium Battery Charger is the perfect solution for your needs. Contact us for a quote.

  • High-power output: 3000W for fast charging
  • Multi-voltage compatibility: 48V, 60V, and 72V
  • Portable design for easy transportation

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    This portable charger is designed to deliver high-efficiency charging for a wide range of lithium battery voltages, ensuring rapid and safe power replenishment on the go. Its compact and lightweight design makes it an ideal companion for outdoor adventures, emergency power backup, or as a reliable charging station for your electric vehicles and devices.

    Application

    On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

    Max Power

    3000W
    Nominal Voltage

    48V, 60V, 72V
    Cooling Method

    Air Cooling
    Protection Grade

    IP65
    Operation Temperature

    -30℃～65℃
    Certificate

    CE
    Max Power

    3000W

    		 Nominal Voltage

    48V, 60V, 72V
    Cooling Method

    Air Cooling

    		 Protection Grade

    IP65
    Operation Temperature

    -30℃～65℃

    		 Certificate

    CE

    Electrical

    Input Voltage Range

    AC 185~270V
    Input Current

    ≤16A
    Frequency

    45~65Hz
    Power Factor

    ≥0.99
    Input Voltage Range

    AC 185~270V

    		 Input Current

    ≤16A
    Frequency

    45~65Hz

    		 Power Factor

    ≥0.99

    Environmental

    Storage Temperature

    -40℃～95℃
    Storage Temperature

    -40℃～95℃

    Protection

    Output Over Voltage

    Supported
    Over Current

    Supported
    Short Circuit

    Supported
    Polarity Reverse

    Supported
    Input Low Voltage

    Supported
    Input Over Voltage

    Supported
    Over Temperature

    Supported
    Output Over Voltage

    Supported

    		 Over Current

    Supported
    Short Circuit

    Supported

    		 Polarity Reverse

    Supported
    Input Low Voltage

    Supported

    		 Input Over Voltage

    Supported
    Over Temperature

    Supported

    Specifications

    Charging Control

    CAN or Enable
    Charging Control

    CAN or Enable

    Service

    Warranty

    1Year
    Warranty

    1Year
    Dimensions 31.5 × 19.9 × 12.6 cm
    Max Power

    3000W
    Input Voltage Range

    AC 185~270V
    Input Current

    ≤16A
    Frequency

    45~65Hz
    Power Factor

    ≥0.99
    Nominal Voltage

    48V, 60V, 72V
    Cooling Method

    Air Cooling
    Protection Grade

    IP65
    Operation Temperature

    -30℃～65℃
    Storage Temperature

    -40℃～95℃
    Output Over Voltage

    Supported
    Over Current

    Supported
    Short Circuit

    Supported
    Polarity Reverse

    Supported
    Input Low Voltage

    Supported
    Input Over Voltage

    Supported
    Over Temperature

    Supported
    Charging Control

    CAN or Enable
    Certificate

    CE
    Warranty

    1Year

      Do you need customisation of this product?

      Submit your request and receive quality service from Elecpeek as soon as possible.
