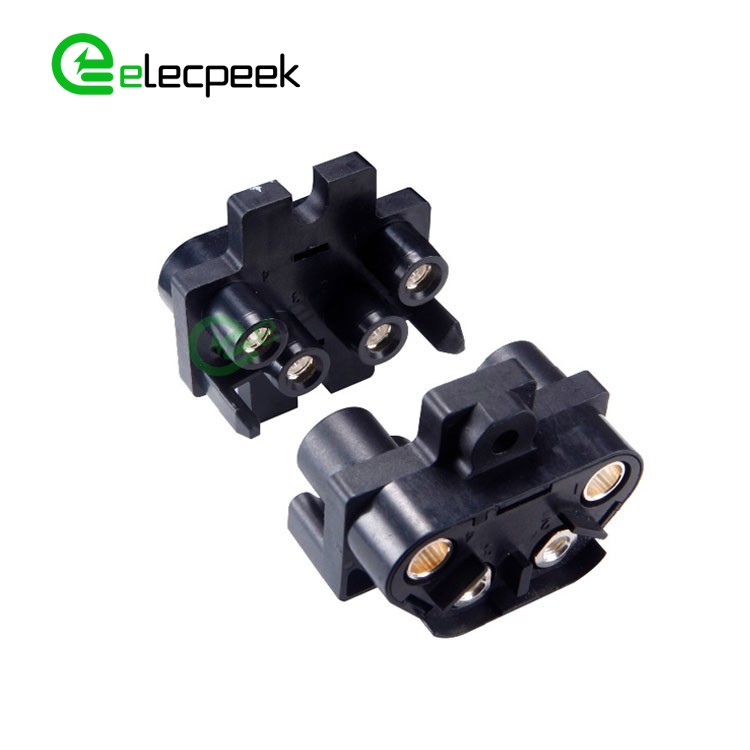

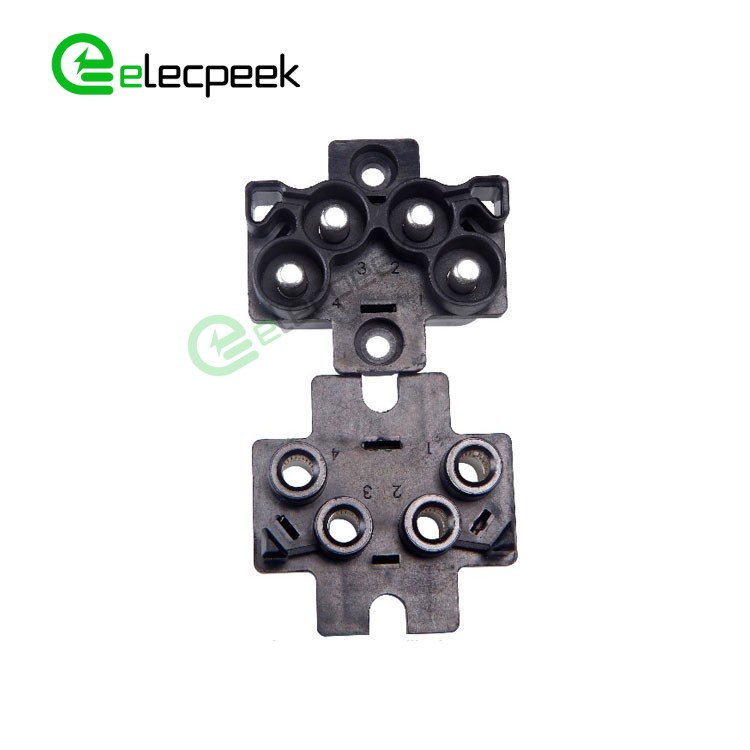

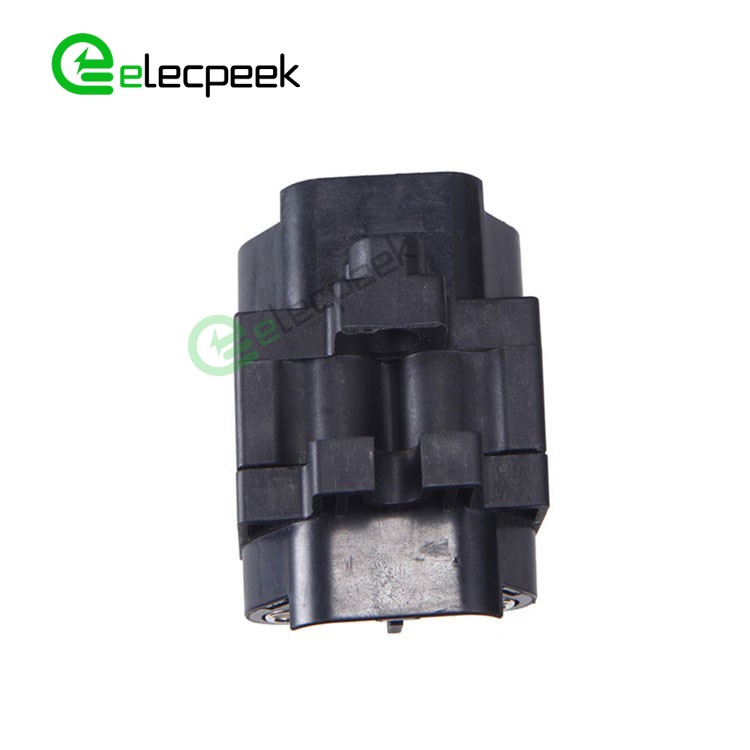

4 Pin 125A Power High Current Heavy Load Drawer Connector PCB tail(B)
- Reliable Connection, Soft Insertion.
- Removal, Low Insertion Force.
- Low Contact Resistance.
- High Load Current.
- Excellent Performance.
- Custom design flexibility.
- Options for power contact spacing.
- High strength housings
Inquiry Form for Bulk Order?
Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.
The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength.
4 Pin 125A Power High Current Heavy Load Drawer Connector PCB tail(B) Feature
Product Type | |
Gender: | Female, Male |
Orientation: | Straight |
Number Of Positions: | 4 Pin |
Mounting Type: | Panel Mount |
Contact Termination: | Crimp |
Shell Material: | PBT |
Contact Material: | Copper, Copper Alloy |
Contact Finish: | Gold Plating, Silver Plating |
Electrical | |
Rated Current: | 125A |
Withstand Voltage: | 1500V |
Insulation Resistance: | ≥1000MΩ |
Contact Resistance: | ≤1.0MΩ |
Mechanical | |
Mating Cycles: | > 1000 |
Mating Cycles | |
Operating Temperature: | -55℃~+125℃ |

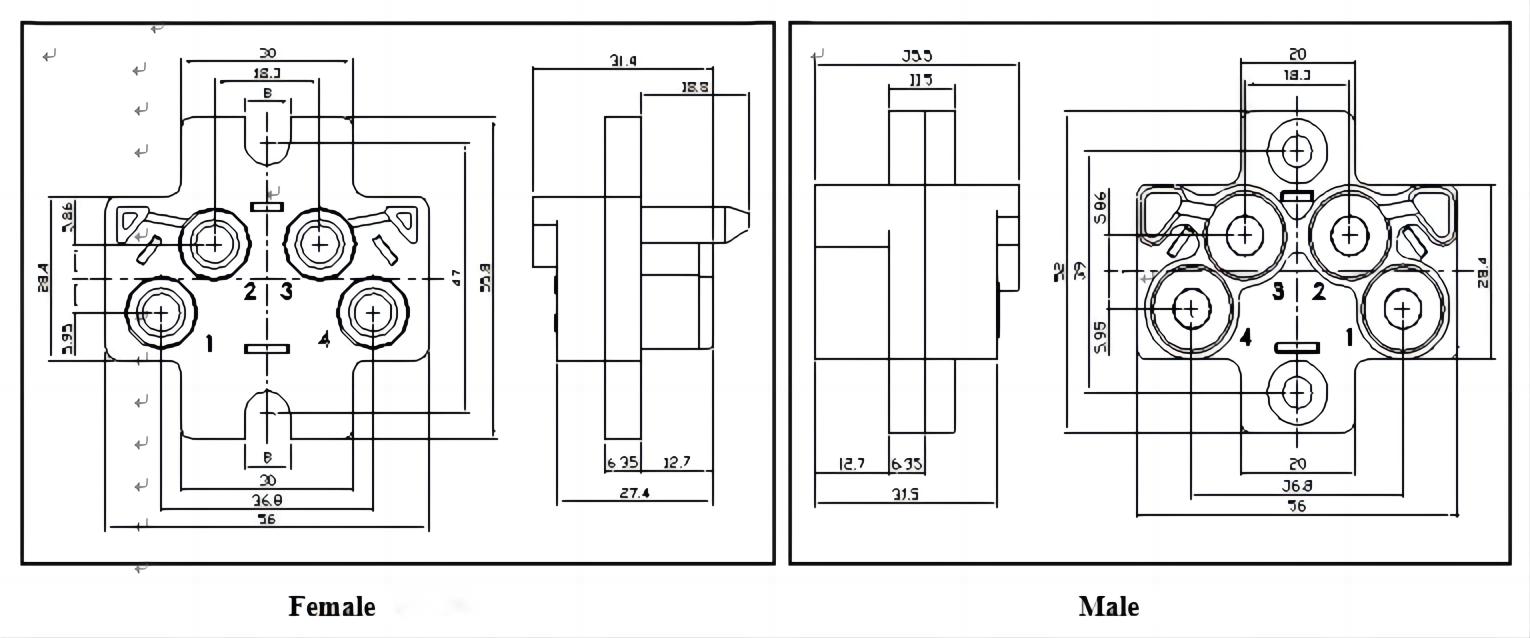

4 Pin 125A Power High Current Heavy Load Drawer Connector PCB tail(B) Drawing
Weight | 146 g |
---|---|
Weight | 146 g |
Weight | 146 g |
---|---|
Number of Positions | 4 Pin |
Mount Style | PCB Tail(B) |
Current Rating | 125A |
Orientation | Right Angle |
Gender | Male, Female |
