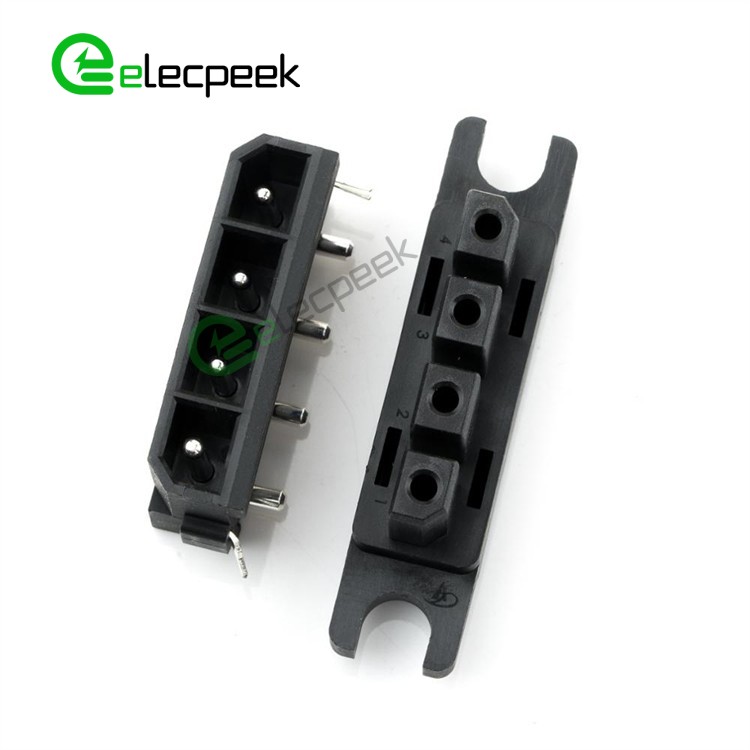

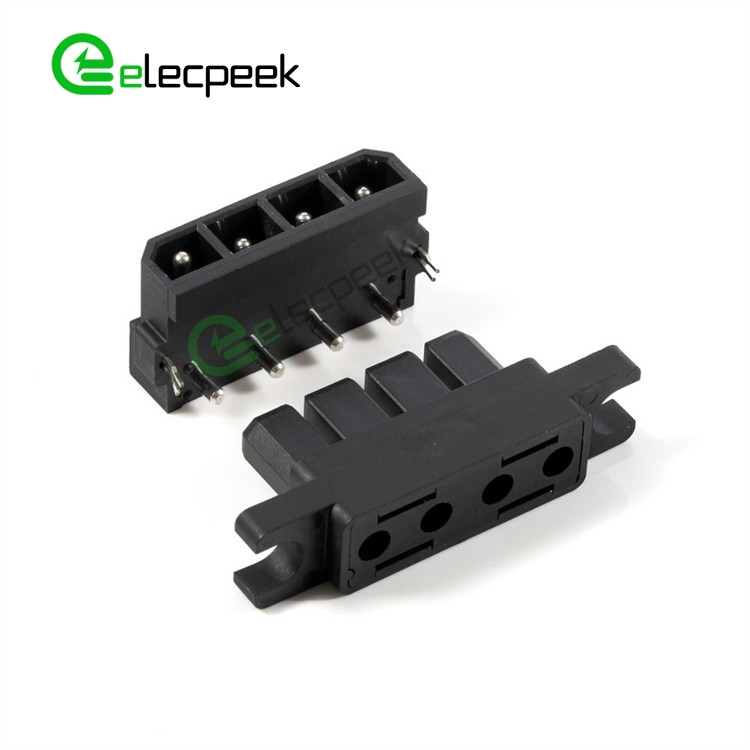

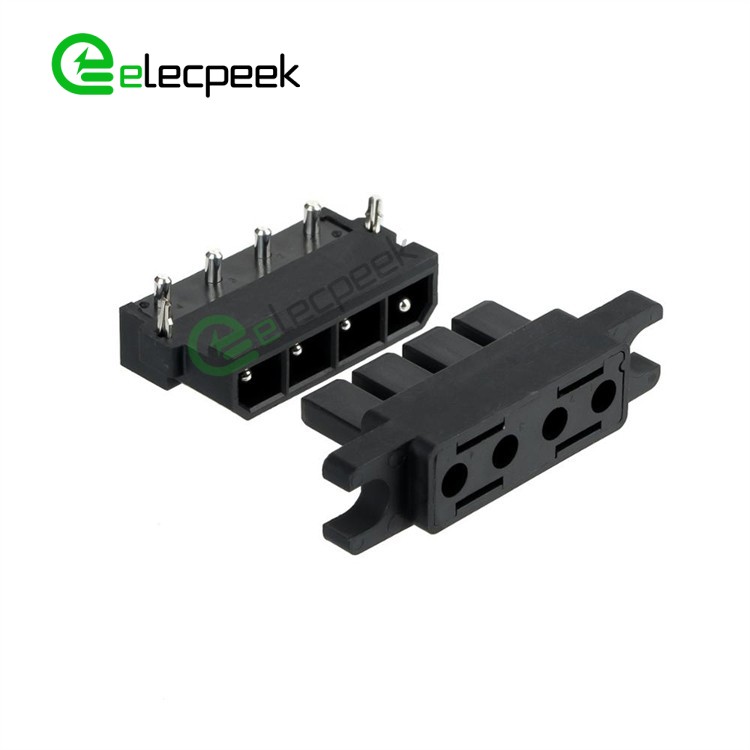

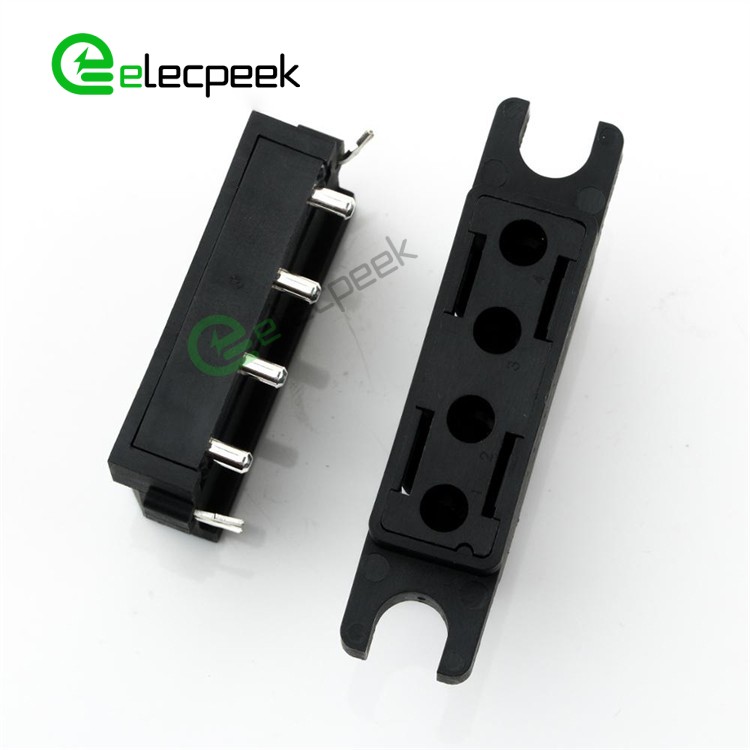

RHT-04B Power Drawer Connector High Current Heavy Load 4 Pin 35A

4 Pin 35A Straight 3000V High Current Heavy Load Power Drawer Connector

SKU: RHT-04B Tags: 4 Pin Right Angle Crimping(Y) Female Solder(H) Straight 35A Drawer Connectors PCB tail(B) 3000V Male Datasheet

Reliable Connection, Soft Insertion.
Removal, Low Insertion Force.
Low Contact Resistance.
High Load Current.
Excellent Performance.
Custom design flexibility.
Options for power contact spacing.
High strength housings

Description
Technical Data

The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength.

4 Pin 35A Straight 3000V High Current Heavy Load Power Drawer Connector Feature

Product Type
Gender:	Female, Male
Orientation:	Right Angle, Straight
Number Of Positions:	4 Pin
Mounting Type:	Panel Mount
Contact Termination:	Crimp
Shell Material:	PBT
Contact Material:	Copper, Copper Alloy
Contact Finish:	Gold Plating, Silver Plating

Electrical
Rated Current:	35A
Withstand Voltage:	3000V
Insulation Resistance:	≥1000MΩ
Contact Resistance:	≤1.0MΩ

Mechanical
Mating Cycles:	> 1000

Mating Cycles
Operating Temperature:	-55℃~+125℃
