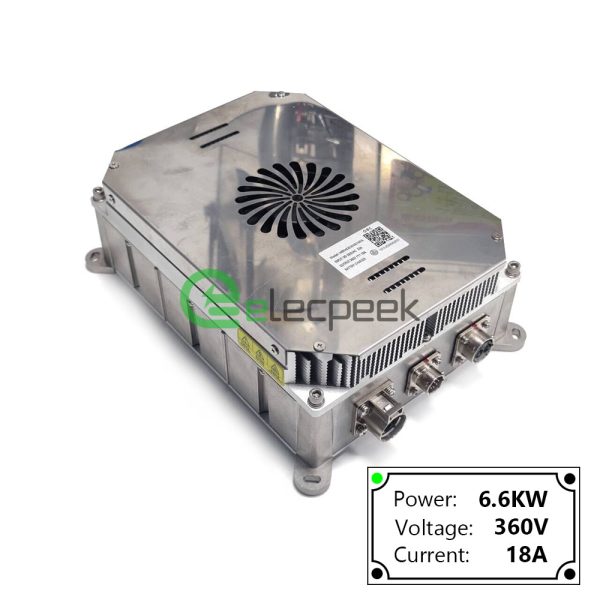

6.6KW 360V 18A High Voltage Fast and Slow Charging Integrated EV Charger

SKU: RHT-OBC-6.6KW-360V18A Tag: Datasheet

The RHT-OBC-6.6KW-360V18A is a high voltage EV charger with a power of 6.6KW and a voltage of 360V. It supports both fast and slow charging with a current of 18A. This charger is an original factory product, ensuring high quality and reliability. It is SEO friendly to the product name, features, and specifications.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    The 6.6KW Fast and Slow Charging Integrated Charger is a versatile electric vehicle (EV) charging solution designed to cater to both fast and slow charging needs, ensuring flexibility and convenience for users with varying charging preferences and time availability. This charger integrates advanced technology to provide efficient and safe charging capabilities across a wide range of EV models with different voltage requirements.

    6.6KW On-board Charger Specification

    6.6KW On-board Charger
    Input Voltage 24V 60V 80V 108V 144V
    Output voltage(V) 0-36V 0-76V 0-102V 0-136V 0-180V
    Output current(A) 0-150A 0-100A 0-75A 0-54A 0-42A
    Rated input Voltage 220VAC
    input voltage range 90-456VAC
    Rated Input Voltage Frequency 50Hz
    Input Frequency Range 45-65Hz
    Starting Impulse Current ≤32A
    Input Power Factor ≥0.99@220Vin,Pomax
    Output Rated Output Power 6.6KW
    Voltage Stabilization Accuracy ≤1%
    Ripple Coefficient of Voltage ≤1%
    Voltage Stabilization Accuracy ≤5%
    Output Response Time ≤5S

    6.6KW On-board Charger Drawing

    Pin Configuration

    SOCKET IMAGE SOCKET AND PLUG MODEL PIN INSTRUCTION DIAMETER
    Socket Model
    FPT20N212A2PN
    Plug Model
    FPT60N212A2SN    		 A Output Positive 8.0
    B Output Negative 8.0
    Socket Model
    FPT20N21208PN
    Plug Model
    FPT60N21208SN    		 A CAN H 0.3
    B CAN L 0.3
    C 12V+(2A) 0.3
    D 12V-(2A) 0.3
    E CC 0.3
    F CP 0.3
    G 12V_BAT+ 0.3
    H 12V_BAT- 0.3
    Socket Model
    FPL20N216H3PN-4
    Plug Model
    FPL63N216H3SN-4    		 F Input L 4.0
    B Input N 4.0
    D PE 4.0

    Output Plug Options

    Input Plug Options

    Successful Projects

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY:1200PCS
    Item:20KW On-board Charger
    Location:Russelsheim,Germany



    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Application

    On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

    Electrical

    Rated Input Voltage

    220VAC
    Input Voltage

    90~456VAC
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤32A
    Input Power Factor

    ≥0.99(@220Vin, Pomax)
    Voltage Stabilization

    ≤1%
    Ripple Coefficient

    ≤1%
    Current Stabilization

    ≤5%
    Typical Efficiency

    ≥93%
    Humidity

    5%~95%
    Ip Grade

    lp67
    Communication

    CAN bus control
    Rated Input Voltage

    220VAC

    		 Input Voltage

    90~456VAC
    Input Frequency Range

    45~65Hz

    		 Starting Impulse Current

    ≤32A
    Input Power Factor

    ≥0.99(@220Vin, Pomax)

    		 Voltage Stabilization

    ≤1%
    Ripple Coefficient

    ≤1%

    		 Current Stabilization

    ≤5%
    Typical Efficiency

    ≥93%

    		 Humidity

    5%~95%
    Ip Grade

    lp67

    		 Communication

    CAN bus control

    Input Voltage Frequency

    50Hz
    Output Response Time

    ≤5S
    Cooling Method

    Forced air cooling
    Input Voltage Frequency

    50Hz

    		 Output Response Time

    ≤5S
    Cooling Method

    Forced air cooling

    Environmental

    Operating Temperature

    -40℃~55℃
    Storage Temperature

    -40℃~100℃
    Operating Temperature

    -40℃~55℃

    		 Storage Temperature

    -40℃~100℃
    Dimensions 30.6 × 19.4 × 11.3 cm
    Rated Input Voltage

    220VAC
    Input Voltage

    90~456VAC
    Input Voltage Frequency

    50Hz
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤32A
    Input Power Factor

    ≥0.99(@220Vin, Pomax)
    Voltage Stabilization

    ≤1%
    Ripple Coefficient

    ≤1%
    Current Stabilization

    ≤5%
    Output Response Time

    ≤5S
    Typical Efficiency

    ≥93%
    Operating Temperature

    -40℃~55℃
    Storage Temperature

    -40℃~100℃
    Humidity

    5%~95%
    Ip Grade

    lp67
    Cooling Method

    Forced air cooling
    Communication

    CAN bus control
