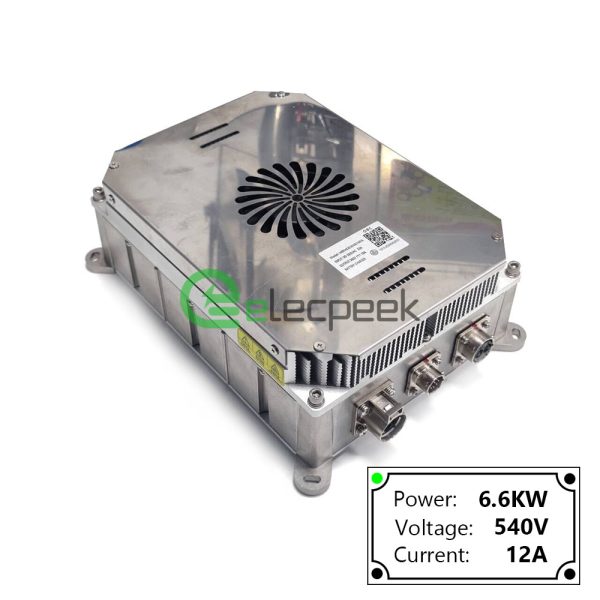

6.6KW 540V 12A Ultra High Voltage Fast and Slow Charging Integrated EV Charger

SKU: RHT-OBC-6.6KW-540V12A Tag: Alibaba Authorized

The RHT-OBC-6.6KW-540V12A is a 6.6KW, 540V, 12A Ultra High Voltage EV Charger that supports both fast and slow charging. It is an integrated charger, directly from the original manufacturer. This charger is perfect for those looking for a high-quality, reliable, and efficient charging solution for their electric vehicle.

Get a Quotation

The 6.6KW Fast and Slow Charging Integrated Charger is a versatile electric vehicle (EV) charging solution designed to cater to both fast and slow charging needs, ensuring flexibility and convenience for users with varying charging preferences and time availability. This charger integrates advanced technology to provide efficient and safe charging capabilities across a wide range of EV models with different voltage requirements.

6.6KW On-board Charger Specification

6.6KW On-board Charger
Input	Voltage	24V	60V	80V	108V	144V
	Output voltage(V)	0-36V	0-76V	0-102V	0-136V	0-180V
	Output current(A)	0-150A	0-100A	0-75A	0-54A	0-42A
	Rated input Voltage	220VAC
	input voltage range	90-456VAC
	Rated Input Voltage Frequency	50Hz
	Input Frequency Range	45-65Hz
	Starting Impulse Current	≤32A
	Input Power Factor	≥0.99@220Vin,Pomax
Output	Rated Output Power	6.6KW
	Voltage Stabilization Accuracy	≤1%
	Ripple Coefficient of Voltage	≤1%
	Voltage Stabilization Accuracy	≤5%
	Output Response Time	≤5S

No block ID is set

Pin Configuration

SOCKET IMAGE	SOCKET AND PLUG MODEL	PIN	INSTRUCTION	DIAMETER
	Socket Model FPT20N212A2PN Plug Model FPT60N212A2SN	A	Output Positive	8.0
	Socket Model FPT20N212A2PN Plug Model FPT60N212A2SN	B	Output Negative	8.0
	Socket Model FPT20N21208PN Plug Model FPT60N21208SN	A	CAN H	0.3
		B	CAN L	0.3
		C	12V+(2A)	0.3
		D	12V-(2A)	0.3
		E	CC	0.3
		F	CP	0.3
		G	12V_BAT+	0.3
		H	12V_BAT-	0.3
	Socket Model FPL20N216H3PN-4 Plug Model FPL63N216H3SN-4	F	Input L	4.0
		B	Input N	4.0
		D	PE	4.0

Output Plug Options

Input Plug Options

Successful Projects

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY:1200PCS
Item:20KW On-board Charger
Location:Russelsheim,Germany

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Application

On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

Electrical

Rated Input Voltage	220VAC
Input Voltage	90~456VAC
Input Frequency Range	45~65Hz
Starting Impulse Current	≤32A
Input Power Factor	≥0.99(@220Vin, Pomax)
Voltage Stabilization	≤1%
Ripple Coefficient	≤1%
Current Stabilization	≤5%
Typical Efficiency	≥93%
Humidity	5%~95%
Ip Grade	lp67
Communication	CAN bus control
Rated Input Voltage	220VAC	Input Voltage	90~456VAC
Input Frequency Range	45~65Hz	Starting Impulse Current	≤32A
Input Power Factor	≥0.99(@220Vin, Pomax)	Voltage Stabilization	≤1%
Ripple Coefficient	≤1%	Current Stabilization	≤5%
Typical Efficiency	≥93%	Humidity	5%~95%
Ip Grade	lp67	Communication	CAN bus control

Input Voltage Frequency	50Hz
Output Response Time	≤5S
Cooling Method	Forced air cooling
Input Voltage Frequency	50Hz	Output Response Time	≤5S
Cooling Method	Forced air cooling

Environmental

Operating Temperature	-40℃~55℃
Storage Temperature	-40℃~100℃
Operating Temperature	-40℃~55℃	Storage Temperature	-40℃~100℃

Dimensions	30.6 × 19.4 × 11.3 cm
Rated Input Voltage	220VAC
Input Voltage	90~456VAC
Input Voltage Frequency	50Hz
Input Frequency Range	45~65Hz
Starting Impulse Current	≤32A
Input Power Factor	≥0.99(@220Vin, Pomax)
Voltage Stabilization	≤1%
Ripple Coefficient	≤1%
Current Stabilization	≤5%
Output Response Time	≤5S
Typical Efficiency	≥93%
Operating Temperature	-40℃~55℃
Storage Temperature	-40℃~100℃
Humidity	5%~95%
Ip Grade	lp67
Cooling Method	Forced air cooling
Communication	CAN bus control

Elecpeek On Board Charger Product CatalogDownload
