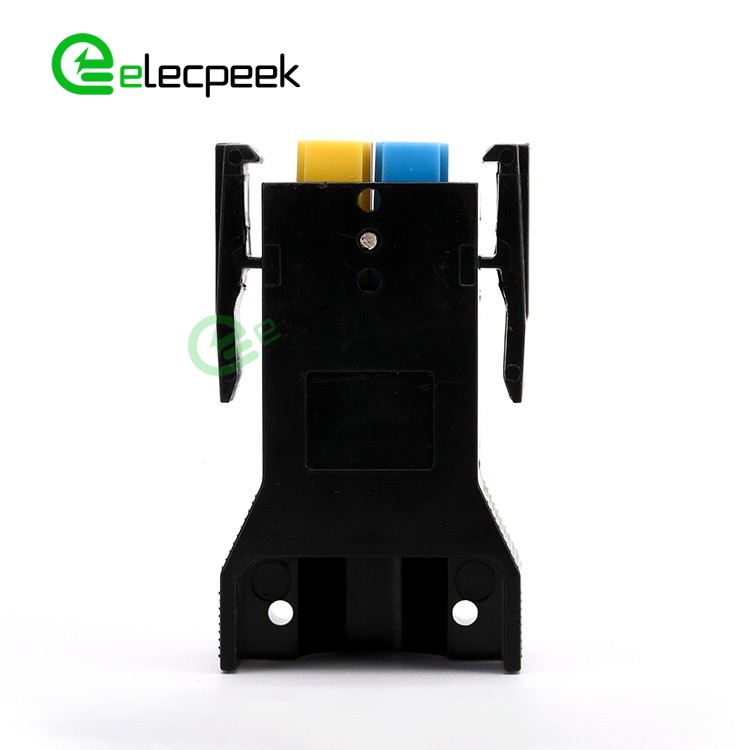

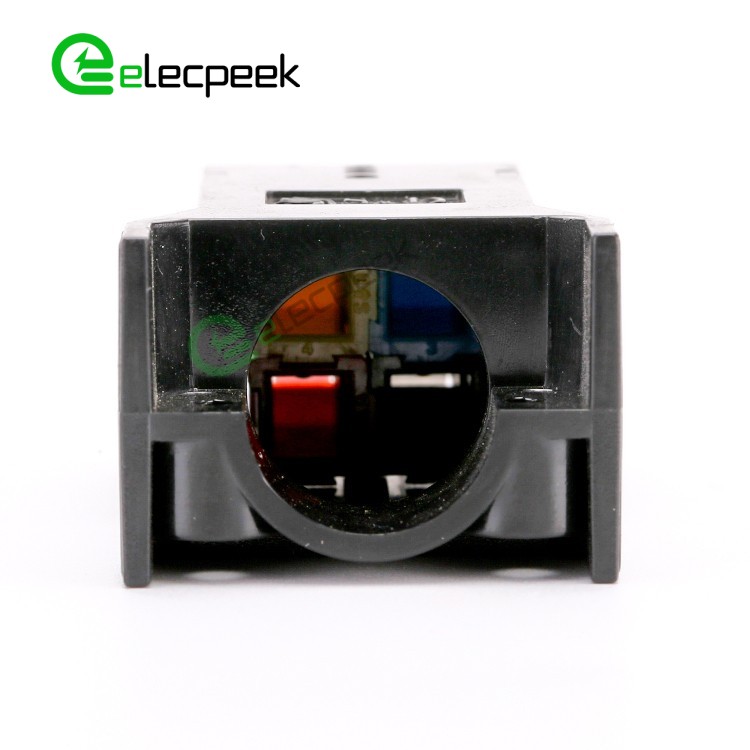

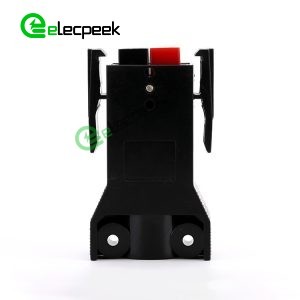

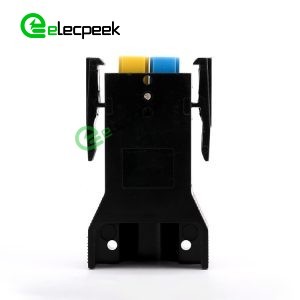

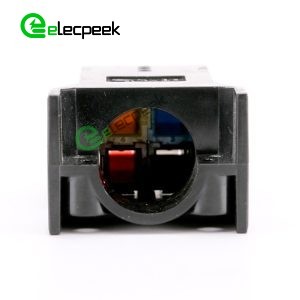

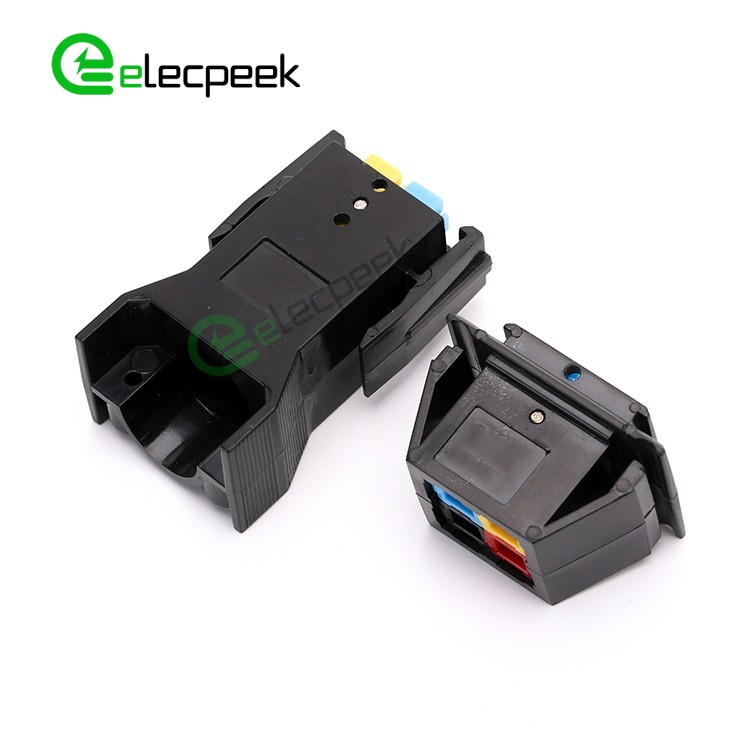

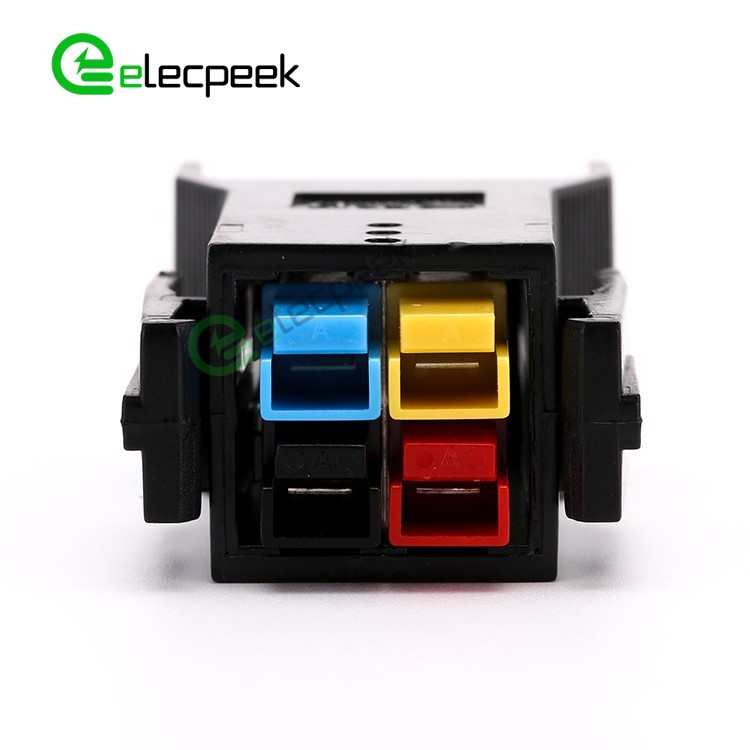

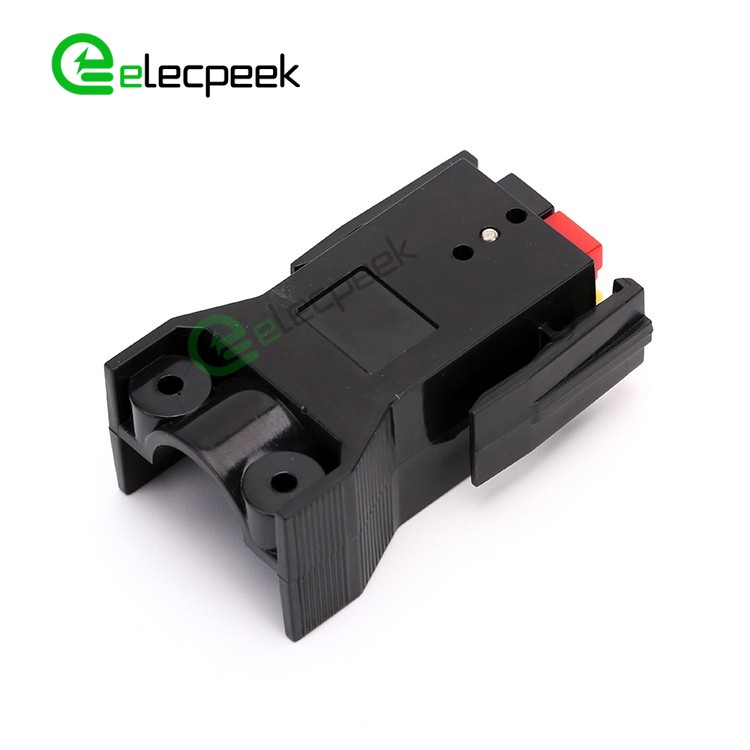

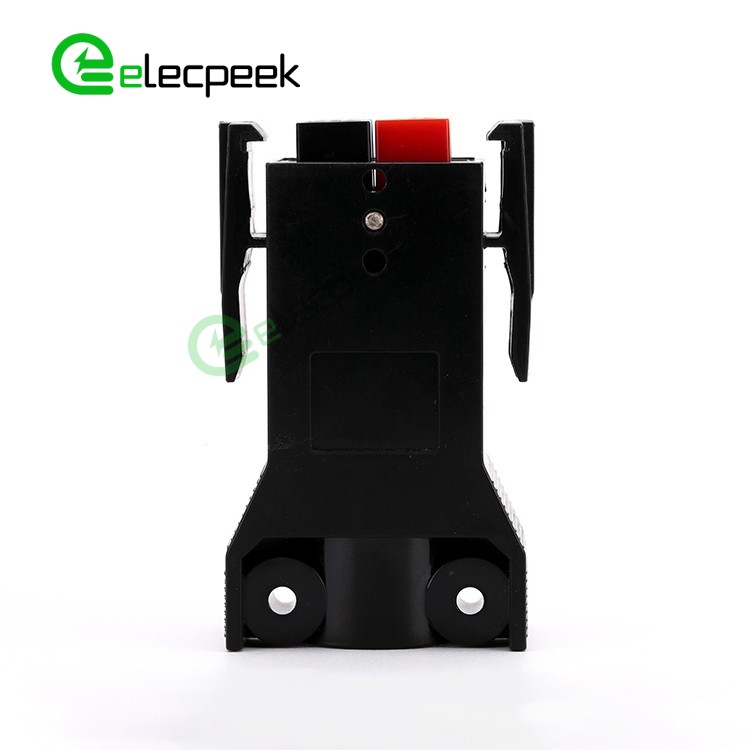

600V 4p Power Connector Kit 4 Way Forklift Battery Cable Connector 45A Long Buckle

SKU: RH-SGS0CAHL-BL Tags:
  • Rugged PC Case.
  • With Dovetail Pattern, Multi-pole Assembly.
  • Provides Fast Dial Function.
  • Automatic Cleaning of Contact Surfaces when Plugging and Unplugging.
  • Minimize Arcing During Insertion and Removal.
  • Stainless Steel Shrapnel to Ensure Stable Work.
  • Tin or Silver Plated Copper Ensures Lowest Contact Resistance.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    Designed for versatile, durable, and safe usage, our 4 Way Forklift Battery Power Cable Connectors are ideal for electric forklifts, material handling equipment, ground support vehicles, and golf carts.

    Built with impact-resistant polycarbonate, the connectors feature a rugged PC case and superior dielectric properties, ensuring both physical strength and electrical safety. The unique mechanical key prevents accidental mating of connectors of different colors. The Forklift Battery Connectors provide fast dial functionality and automatic cleaning of contact surfaces upon plugging and unplugging, minimizing arcing during these actions. Crafted with stainless steel shrapnel and tin or silver-plated copper, the connectors ensure low contact resistance and stable performance.

    Safety is paramount with fitted rubber boot covers for dust and moisture protection, and one-way connection features that eliminate the risk of reverse polarity. These heavy-duty components are efficient for low to medium current applications and can withstand over 10,000 connect/disconnect actions. Operating temperatures range from -20 to 125 degrees Celsius.

    1 Pin Forklift Battery Cable Connector 45A

    600V 4p Power Connector Kit 4 Way Forklift Battery Cable Connector 45A Long Buckle Feature

    Product Type
    Number Of Positions: 4 Pin
    Color: Black, Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow
    Contact Finish: Silver Plating
    Contact Material: T2
    Contact Termination : Crimp
    Mounting Type: Free Hanging
    Shell Material: PC
    Wire Gauge: 10AWG
    Electrical
    Rated Current: 45A
    Rated Voltage: 600V
    Contact Resistance: <500μΩ
    Insulation Resistance: 5000μΩ
    Operating Temperature: -20℃~+105℃
    Standards and Specifications
    Flammability: V0
    Mechanical
    Mating Cycles: ≥10000

    600V 4p Power Connector Kit 4 Way Forklift Battery Cable Connector 45A Long Buckle Drawing

    600V 4p Power Connector Kit 4 Way Forklift Battery Cable Connector 45A Long Buckle Applications

    Forklift Battery Cable Connector

    Weight 98 g
    Number of Positions

    4 Pin
    Current Rating

    45A
