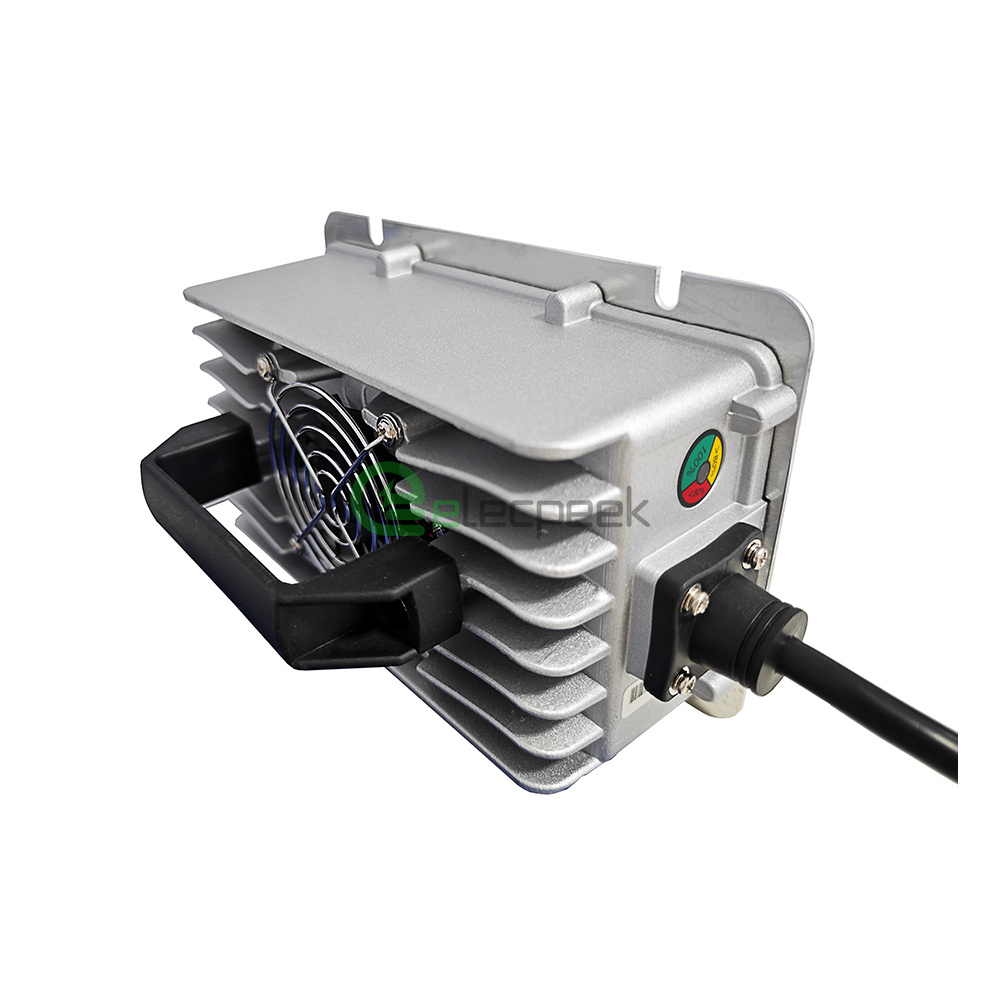

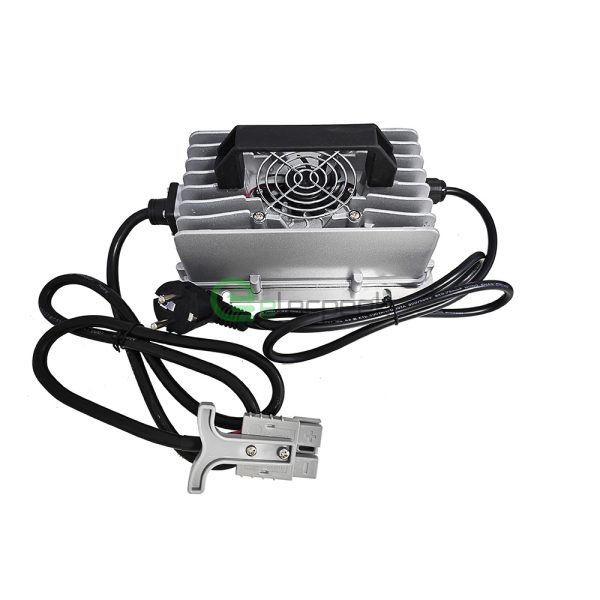

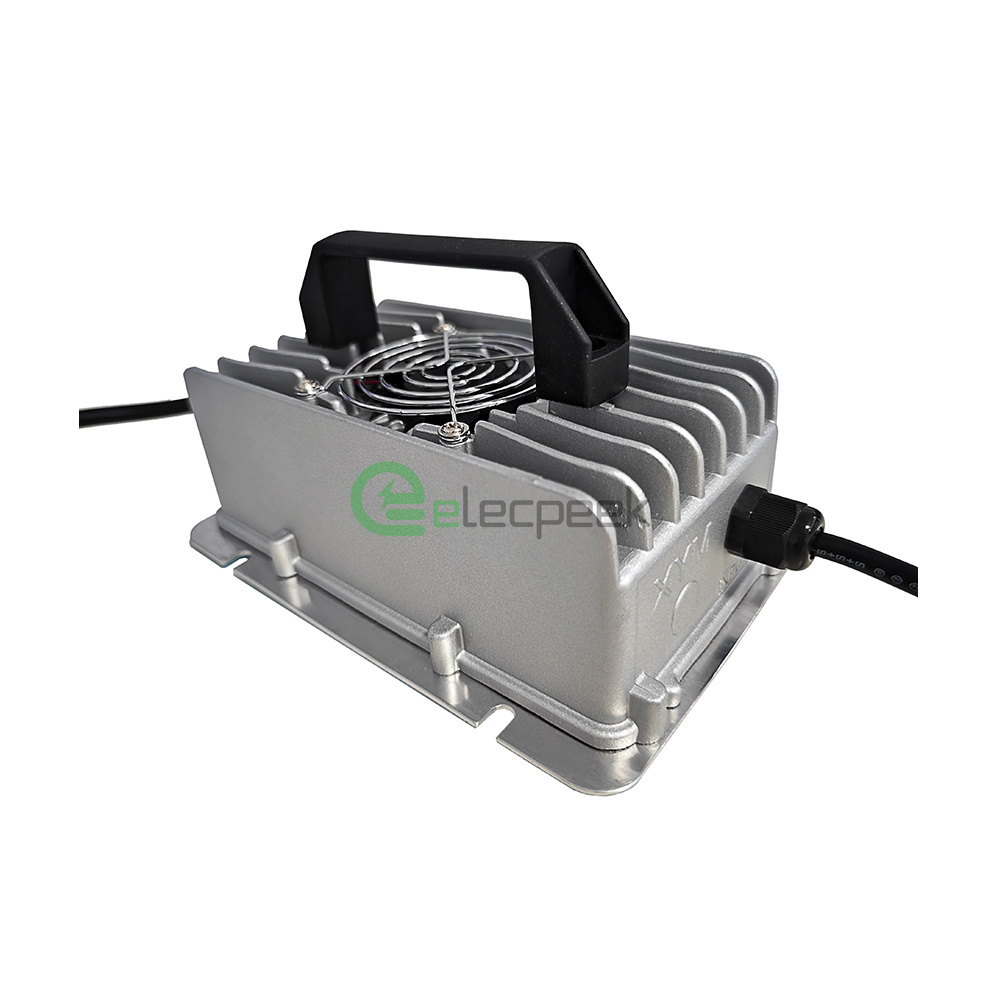

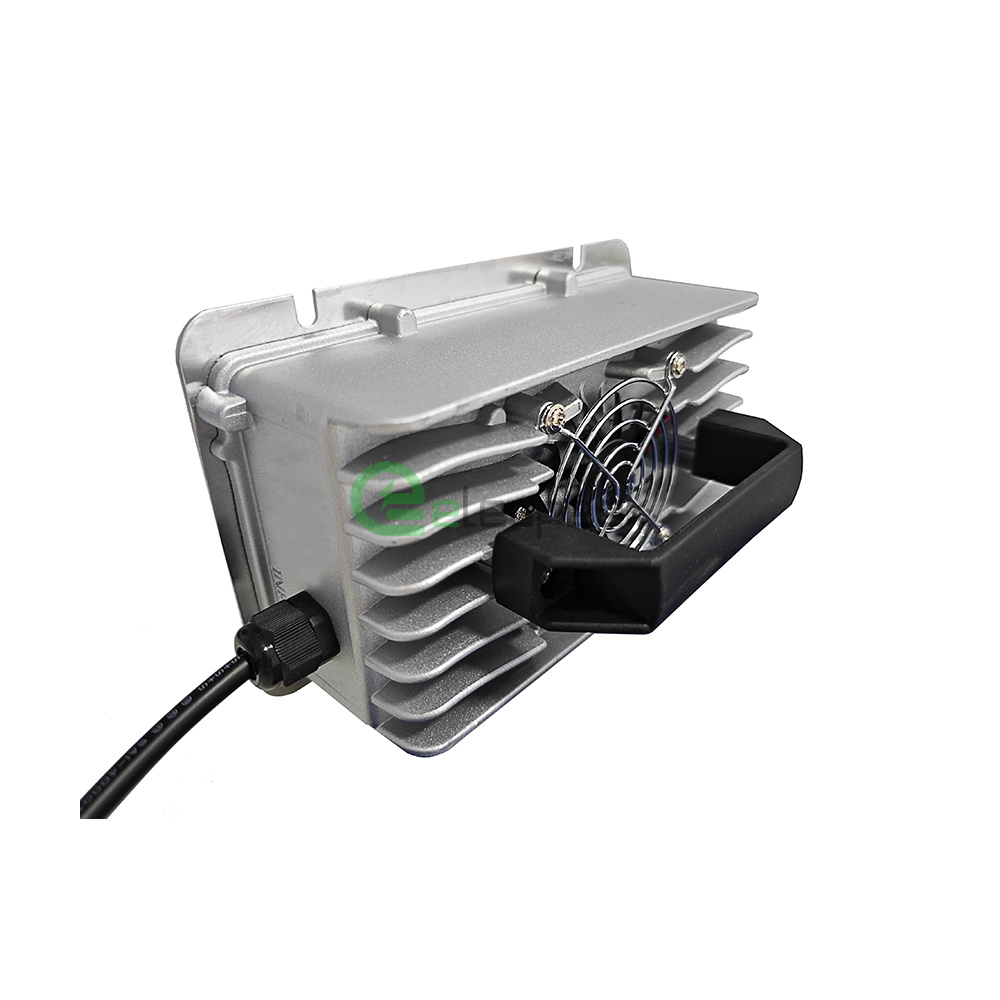

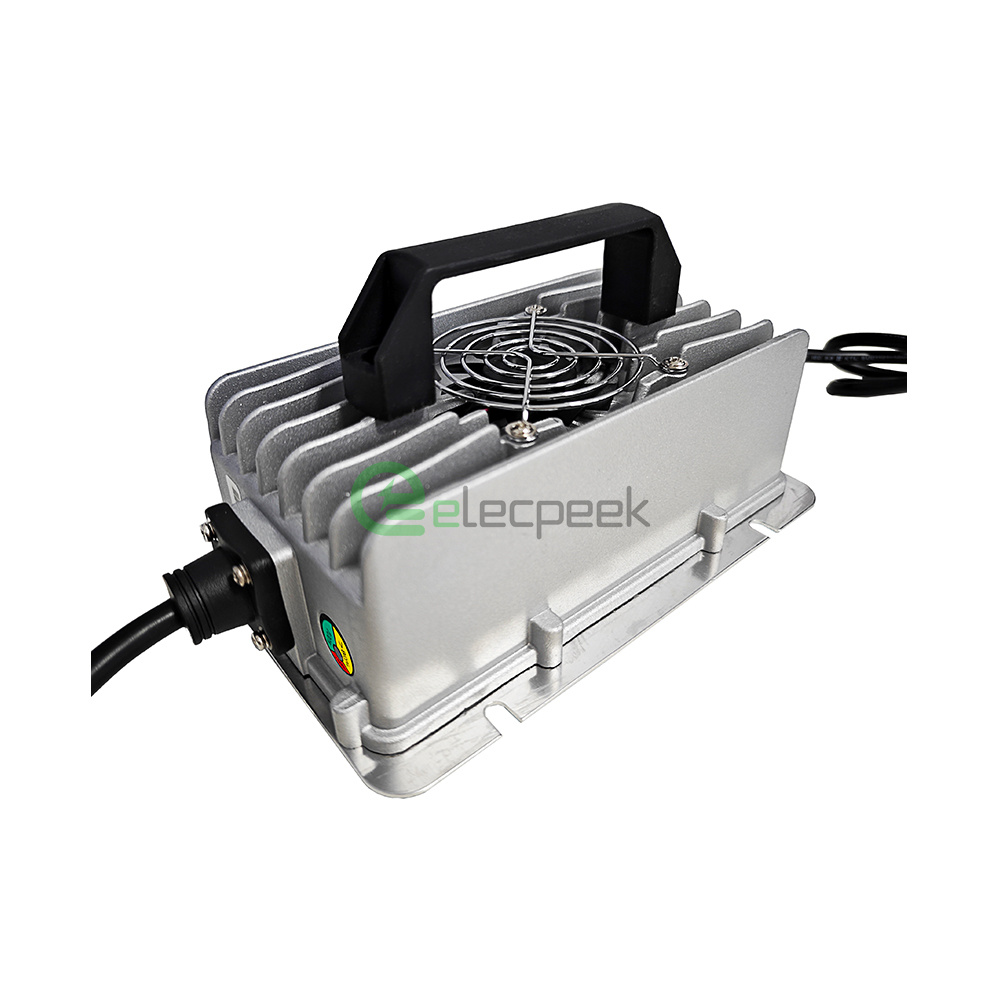

600W 12V 24V 36V 48V 60V Portable lithium battery Charger charger

SKU: RHT-POBC-600A Tag: Datasheet

High-performance 600W portable lithium battery charger supporting 12V, 24V, 36V, 48V, and 60V batteries.

  • Output Power: 600W
  • Supports 12V, 24V, 36V, 48V, and 60V battery
  • Portable and compact design

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    This portable charger is designed to deliver high-efficiency charging for a wide range of lithium battery voltages, ensuring rapid and safe power replenishment on the go. Its compact and lightweight design makes it an ideal companion for outdoor adventures, emergency power backup, or as a reliable charging station for your electric vehicles and devices.

    Application

    On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

    Max Power

    600W
    Nominal Voltage

    12V, 24V, 36V, 48V, 60V
    Cooling Method

    Air Cooling
    Protection Grade

    IP65
    Operation Temperature

    -30℃～65℃
    Certificate

    CE
    Max Power

    600W

    		 Nominal Voltage

    12V, 24V, 36V, 48V, 60V
    Cooling Method

    Air Cooling

    		 Protection Grade

    IP65
    Operation Temperature

    -30℃～65℃

    		 Certificate

    CE

    Electrical

    Input Voltage Range

    AC 185~270V
    Input Current

    ≤16A
    Frequency

    45~65Hz
    Power Factor

    ≥0.99
    Input Voltage Range

    AC 185~270V

    		 Input Current

    ≤16A
    Frequency

    45~65Hz

    		 Power Factor

    ≥0.99

    Environmental

    Storage Temperature

    -40℃～95℃
    Storage Temperature

    -40℃～95℃

    Protection

    Output Over Voltage

    Supported
    Over Current

    Supported
    Short Circuit

    Supported
    Polarity Reverse

    Supported
    Input Low Voltage

    Supported
    Input Over Voltage

    Supported
    Over Temperature

    Supported
    Output Over Voltage

    Supported

    		 Over Current

    Supported
    Short Circuit

    Supported

    		 Polarity Reverse

    Supported
    Input Low Voltage

    Supported

    		 Input Over Voltage

    Supported
    Over Temperature

    Supported

    Service

    Warranty

    1Year
    Warranty

    1Year
    Dimensions 19.3 × 12.4 × 6.7 cm
    Max Power

    600W
    Input Voltage Range

    AC 185~270V
    Input Current

    ≤16A
    Frequency

    45~65Hz
    Power Factor

    ≥0.99
    Nominal Voltage

    12V, 24V, 36V, 48V, 60V
    Cooling Method

    Air Cooling
    Protection Grade

    IP65
    Operation Temperature

    -30℃～65℃
    Storage Temperature

    -40℃～95℃
    Output Over Voltage

    Supported
    Over Current

    Supported
    Short Circuit

    Supported
    Polarity Reverse

    Supported
    Input Low Voltage

    Supported
    Input Over Voltage

    Supported
    Over Temperature

    Supported
    Certificate

    CE
    Warranty

    1Year
