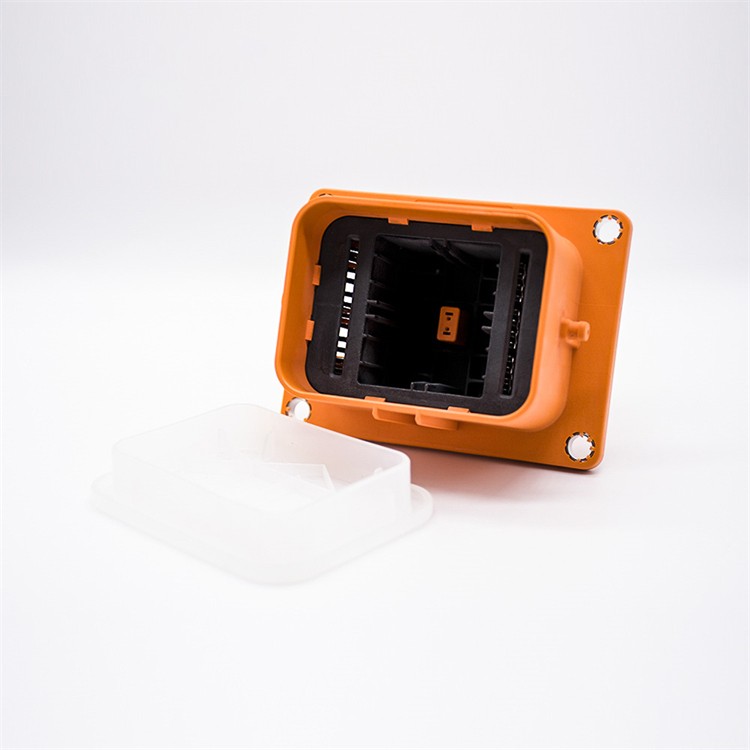

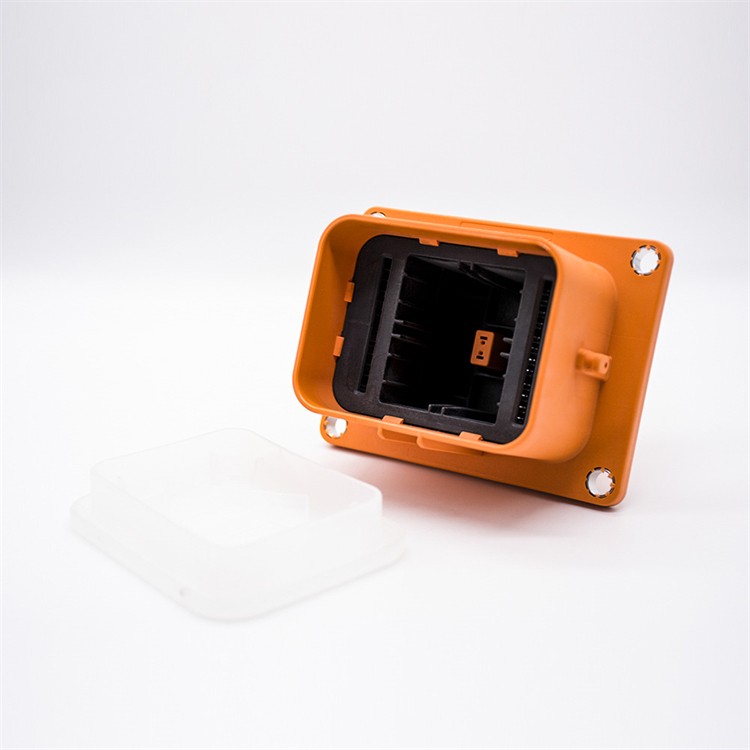

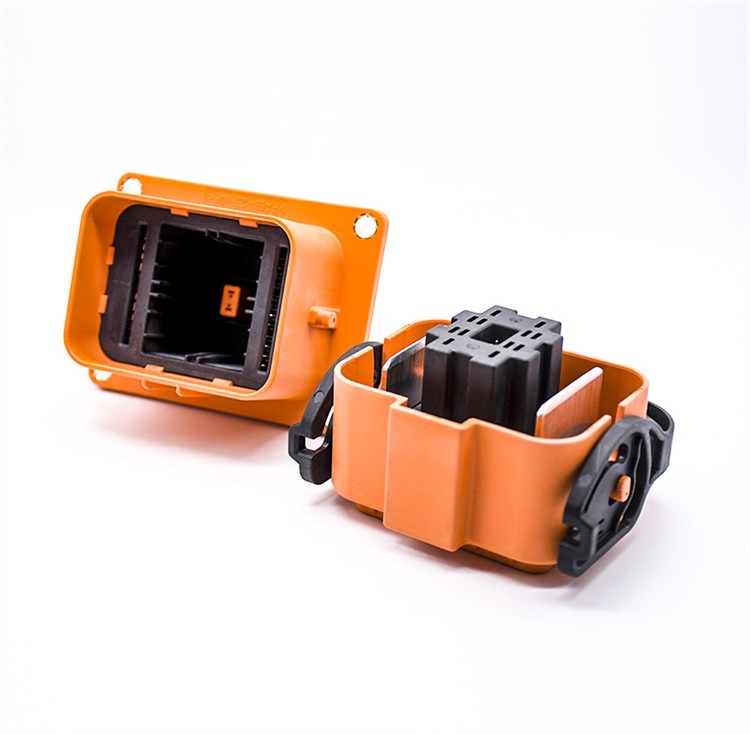

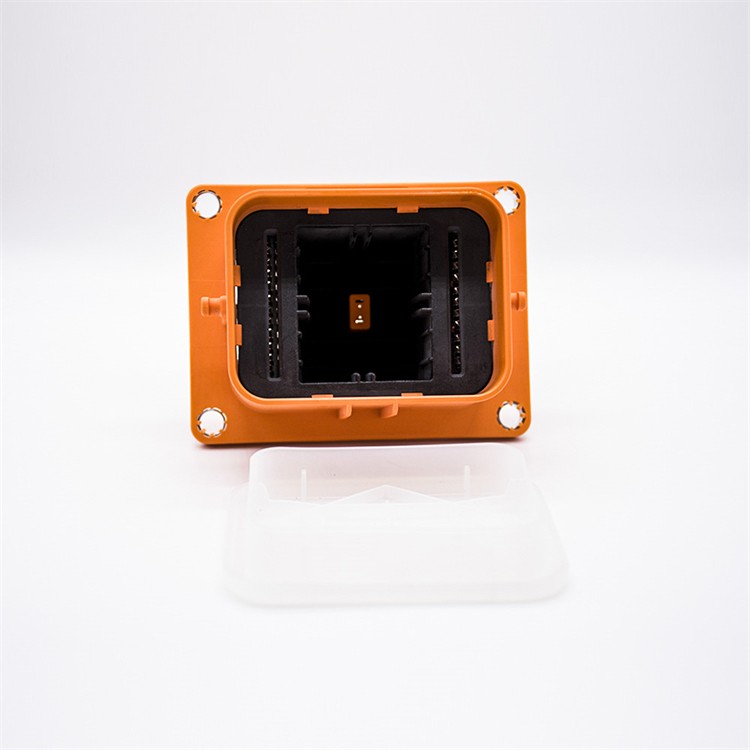

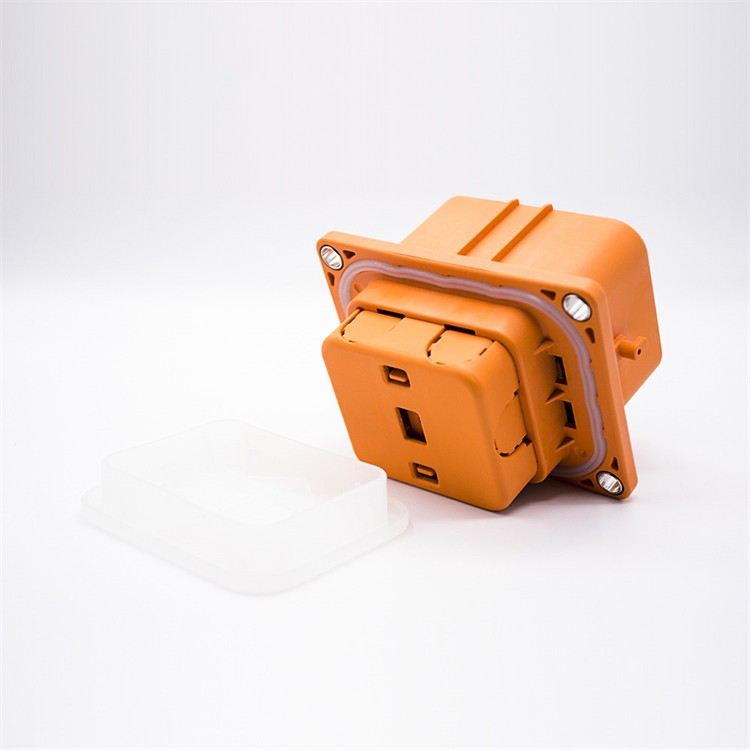

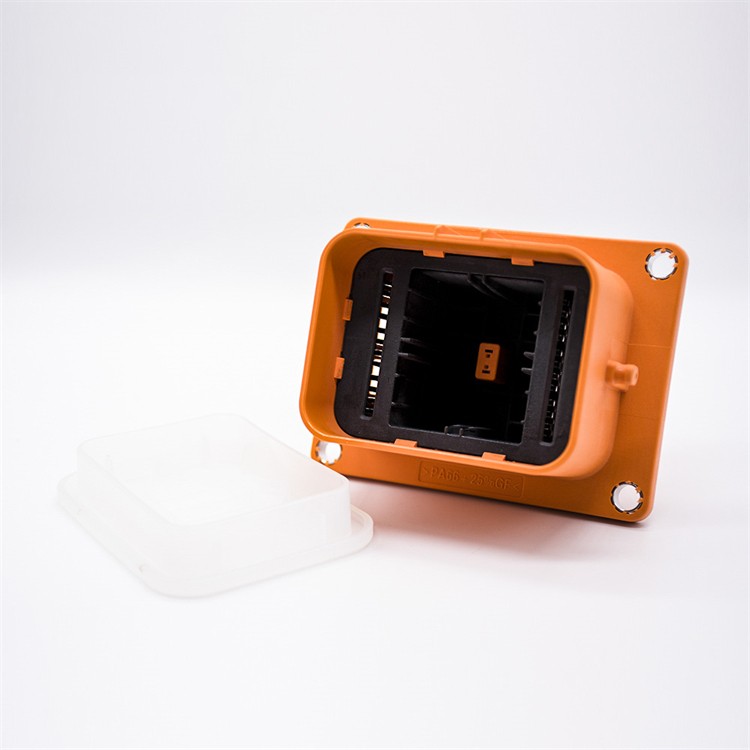

2 Pins 200A Mini MSD Connector EV Plug IP67 Waterproof

Tags: Datasheet

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    The Mini MSD Connector, short for Mini Manual Service Disconnect, is a compact and versatile tool designed for the manual disconnection of power in various applications. Its small size allows for easy installation in space-restricted areas, making it a preferred choice for industrial, automotive, and home appliance applications. Safety and ease of use are at the forefront of its design, allowing for quick disconnection in emergency situations or during routine maintenance. With its robust construction and compliance with industry standards, the Mini MSD Connector ensures reliable performance and offers a practical solution for power management needs.

    2 Pin Mini MSD Connector Manual Service Disconnect EV Socket Front Mount 400A Feature

    Product Type
    Connector Type: Socket
    Number Of Positions : 2 Pin
    Key: N
    Contact Termination: Crimp
    Mounting Type: Panel Mount
    Shell Material: Nylon
    Contact Material: Copper Alloy
    Contact Finish: Silver Plating
    Shielding: Shield
    Application: Automotive Electronics
    Mounting Feature: Flange
    Features: With Fuse
    Electrical
    Rated Current: 200A~400A
    Rated Voltage: 690VDC / 700VDC
    Electrical Protection: IP2XB
    Operating Temperature : -55℃~125℃
    Standards and Specifications
    Ingress Protection: IP67
    Flammability: UL94 V-0

    MSD Connector Drawing

    MSD Drawing

    Weight 150 g
    Weight 150 g
    Weight 150 g
    Connector Type

    Socket
    Number of Positions

    2 Pin
    Current Rating

    400A
