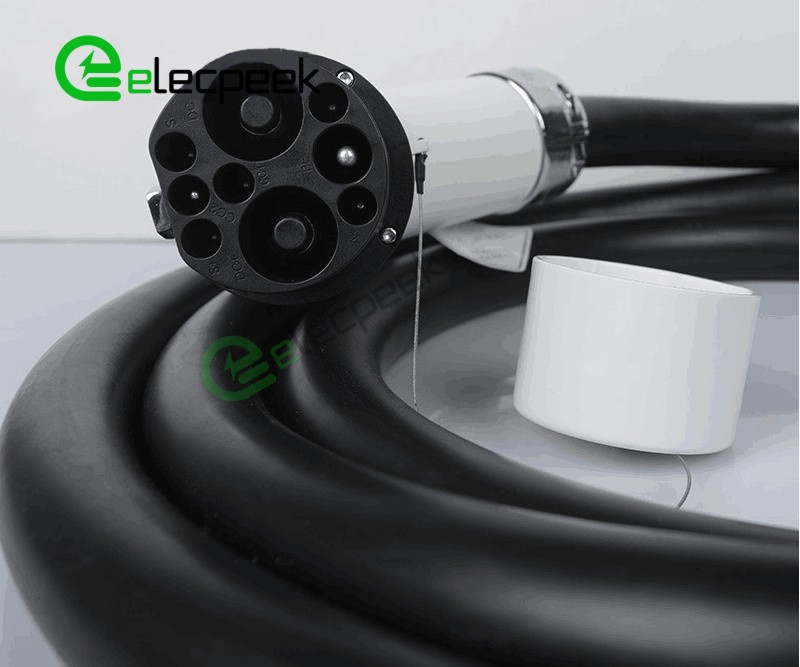

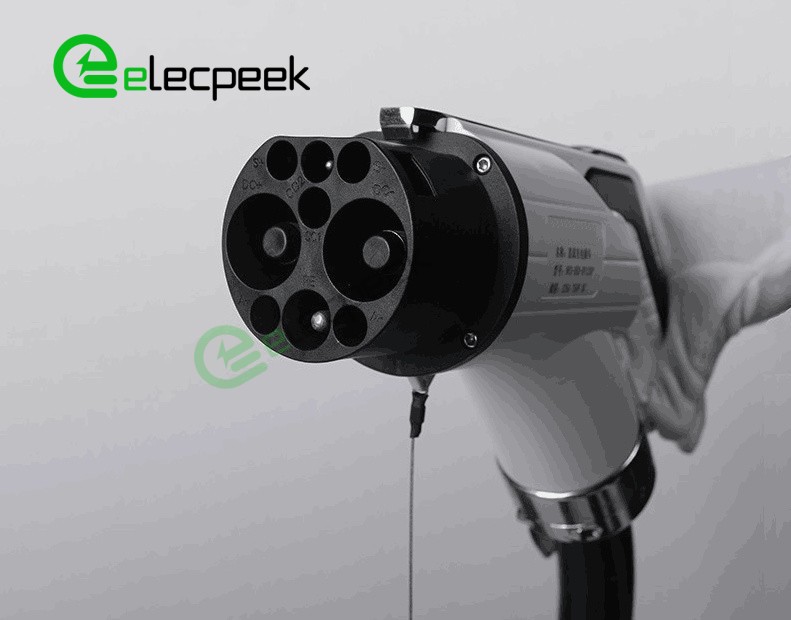

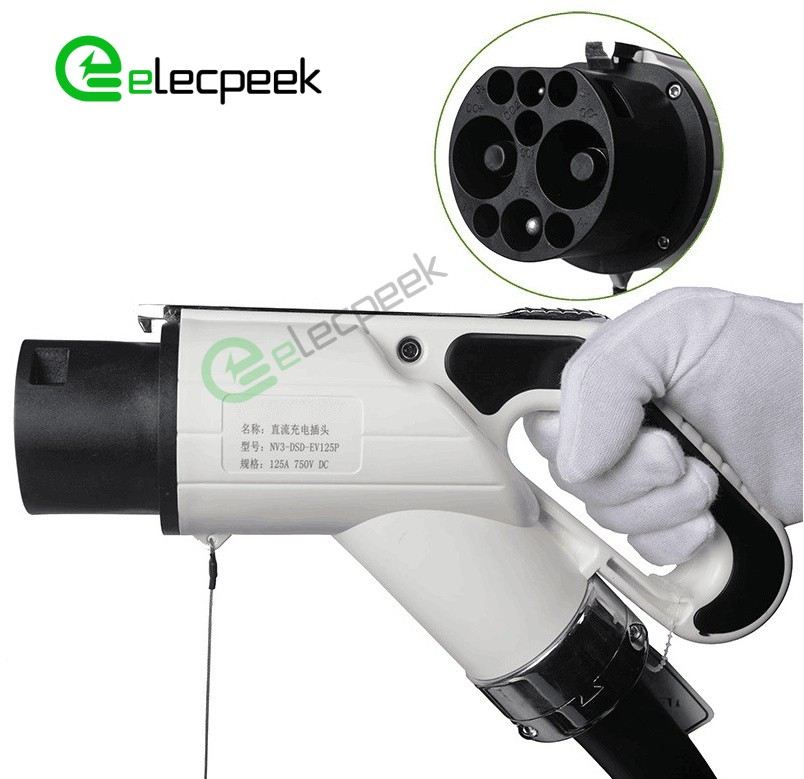

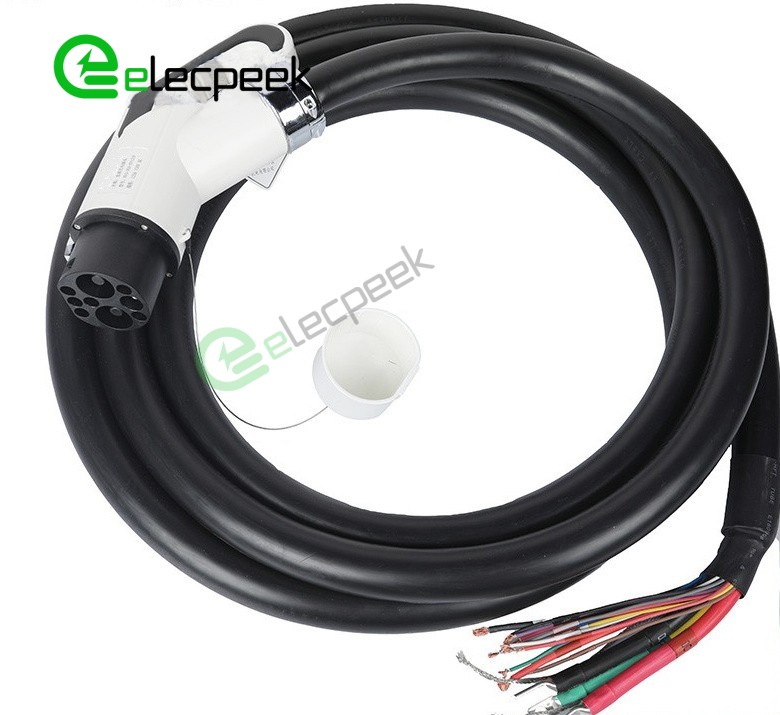

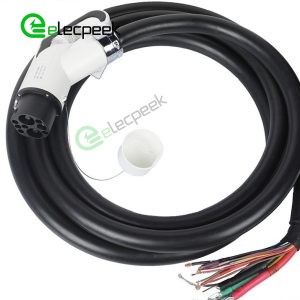

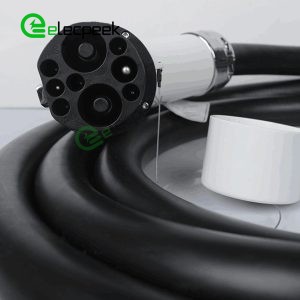

GB/T 20234.2-2015 DC Charging Plug 250A 750V Connector Single Phase EV Charger with 5M Cable For Vehicle End

SKU: NV3-RHT-EV250P-5C Tags: Datasheet
  • Copper Alloy Silver Plated.
  • High Durability, Corrosion Resistance, Oxidation Resistance.
  • Strong Waterproof Performance.
  • Can Afford 1m Drop and 2t Vehicle Run over Pressure.
  • Nice Appearance, Hand-held Ergonomic Design, Easy Plug.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    Renhotec is a manufacturer specializing in ev charging products. Additionally to the production, our company has design and r&d departments. Our main products are ev charging stations, ev cables and ev connectors. Along with the regular products we also offer product customization service upon the request in order to meet the local market preferences and needs.

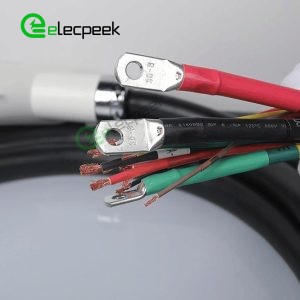

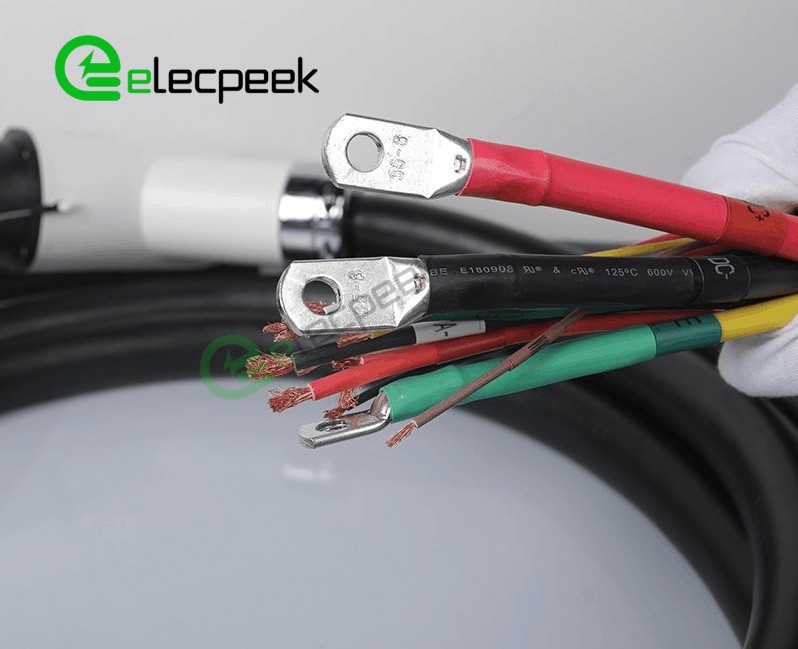

    EV charging cable

    Material：
    Case Material: Thermoplastic , Flame Retardant Grade Ul94 V-0
    Pin: Copper Alloy , Silver + Thermoplastic on the Top
    Electrical Performance
    Rated Current: 16A, 32A, 40A, 50A, 63A, 80A, 125A, 150A, 200A, 250A
    Operation Voltage: 110V, 220V, 240V, 250V, 415V, 600V, 750V, 1000V
    Insulation Resistance: ＞1000MΩ(DC500V)
    Terminal Temperature: ＜50K
    Withstand Voltage: 2000V
    Contact Resistance: 0.5MΩ MAX
    Mechanical Performance
    Mechanical Life: No-load Plug in / Pull Out＞10000 Times
    Coupled Insertion Force: ＞45N＜80N
    Environmental Performance
    Temperature Range: – 30℃~ +50℃
    Protection Degree: IP65
    Application
    Professional Charging Station Berth
    Parking Lots Parking Spaces Residential Parking Lot



    Weight 144 g
    Weight 144 g
    Weight 144 g
    Connector Type

    Cable
    Rated Type

    DC
    Current Rating

    250A
    Charging Standards

    GB/T 20234.2-2015
    Application

    Vehicle End
    Power Phase

    Single Phase
