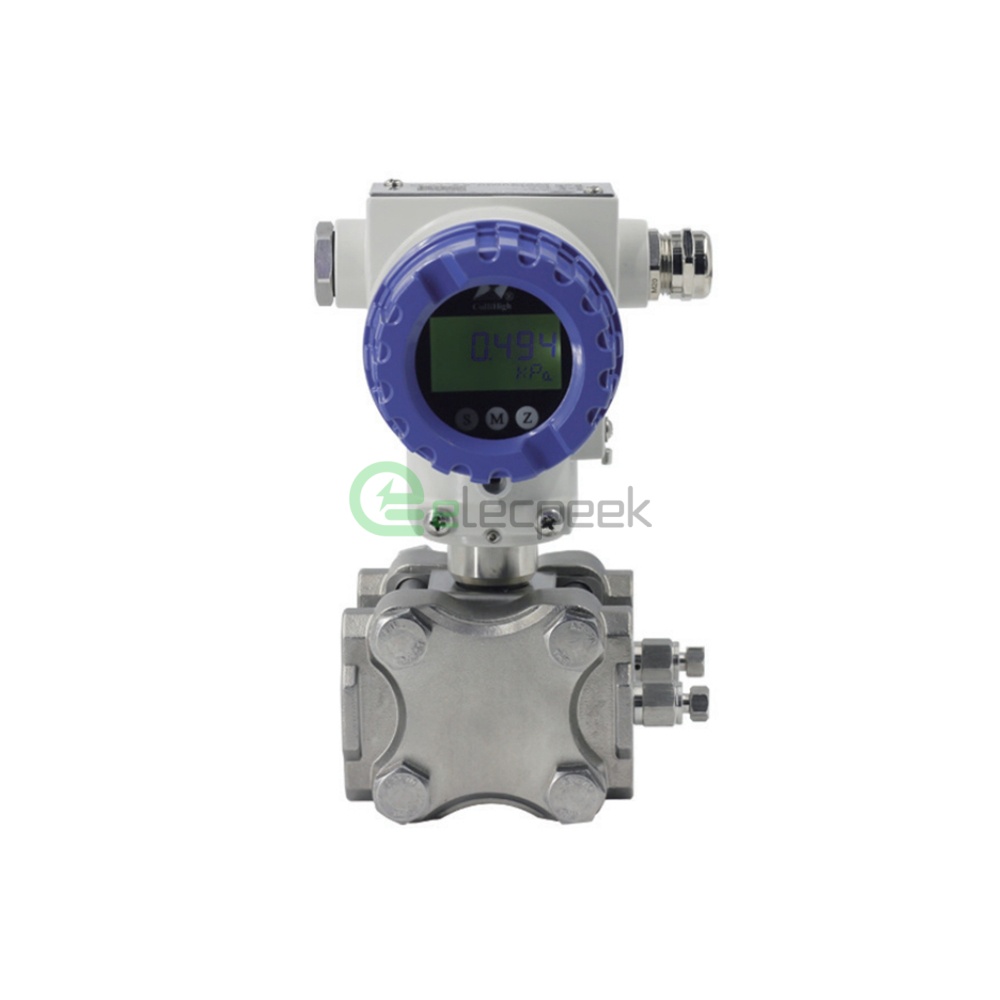

High Precision Intelligent Monocrystalline Silicon Differential Pressure Transmitter

SKU: EP-JYB-D3351

High precision intelligent monocrystalline silicon differential pressure transmitter for accurate pressure measurement. Featuring advanced technology and durable design.

Get a Quotation

Description
Technical Data

Measuring Range	0MPa~10MPa(minimum 200Pa)
Level of Accuracy	Level 0.05 (-0.1 MPa ~ 0 ~ 10MPa minimum 6kPa), Level 0.075 (-0.1 MPa ~ 0 ~ 10MPa minimum 2 kPa), Level 0.1 (-0.1 MPa ~ 0 ~ 10MPa minimum 500Pa)
Medium Temperature	-30℃~85℃(-40℃ can be customized)
Output	HART two-wire current 4 mA ~ 20mA, Network bus RS485, Two-wire current 4 mA ~ 20mA
Display	LCD display
Supply Voltage	(12V ~ 32V RS-485), (16.5V ~ 55V~ 4mA ~ 20mA+HART), DC 24V (10.5V ~ 55V~4mA ~ 20mA)
Damping Time	0S ~ 100S range adjustable
Years of Stability	±0.2% URL/5 years
Electrical Interface	Terminals
Process Connection	1/4-18NPT(F)
Diaphragm Material	optional Hastelloy C, Standard 316L stainless steel
H-shaped Plywood	optional 316L stainless steel, Standard 304 stainless steel
Housing Material	Cast aluminum housing
Fixed Installation	2'' pipe B1, B2, B3 bracket, matching carbon steel mounting components
EMC Level	Level 4
Protection Level	IP66
Measuring Range	0MPa~10MPa(minimum 200Pa)	Level of Accuracy	Level 0.05 (-0.1 MPa ~ 0 ~ 10MPa minimum 6kPa), Level 0.075 (-0.1 MPa ~ 0 ~ 10MPa minimum 2 kPa), Level 0.1 (-0.1 MPa ~ 0 ~ 10MPa minimum 500Pa)
Medium Temperature	-30℃~85℃(-40℃ can be customized)	Output	HART two-wire current 4 mA ~ 20mA, Network bus RS485, Two-wire current 4 mA ~ 20mA
Display	LCD display	Supply Voltage	(12V ~ 32V RS-485), (16.5V ~ 55V~ 4mA ~ 20mA+HART), DC 24V (10.5V ~ 55V~4mA ~ 20mA)
Damping Time	0S ~ 100S range adjustable	Years of Stability	±0.2% URL/5 years
Electrical Interface	Terminals	Process Connection	1/4-18NPT(F)
Diaphragm Material	optional Hastelloy C, Standard 316L stainless steel	H-shaped Plywood	optional 316L stainless steel, Standard 304 stainless steel
Housing Material	Cast aluminum housing	Fixed Installation	2'' pipe B1, B2, B3 bracket, matching carbon steel mounting components
EMC Level	Level 4	Protection Level	IP66
