Measuring Range |
0MPa~40MPa(minimum 10kPa)
|
Level of Accuracy |
Level 0.05 (0MPa ~ 10MPa, Level 0.075 (-0.1MPa ~0~ 40MPa, Level 0.1 (-0.1MPa ~0~ 40MPa, minimum 10kPa)
|
Medium Temperature |
-30℃~85℃(-40℃ can be customized)
|
Output Form |
Two-wire current 4 mA ~ 20mA HART two-wire current 4 mA ~ 20mA Network bus RS485
|

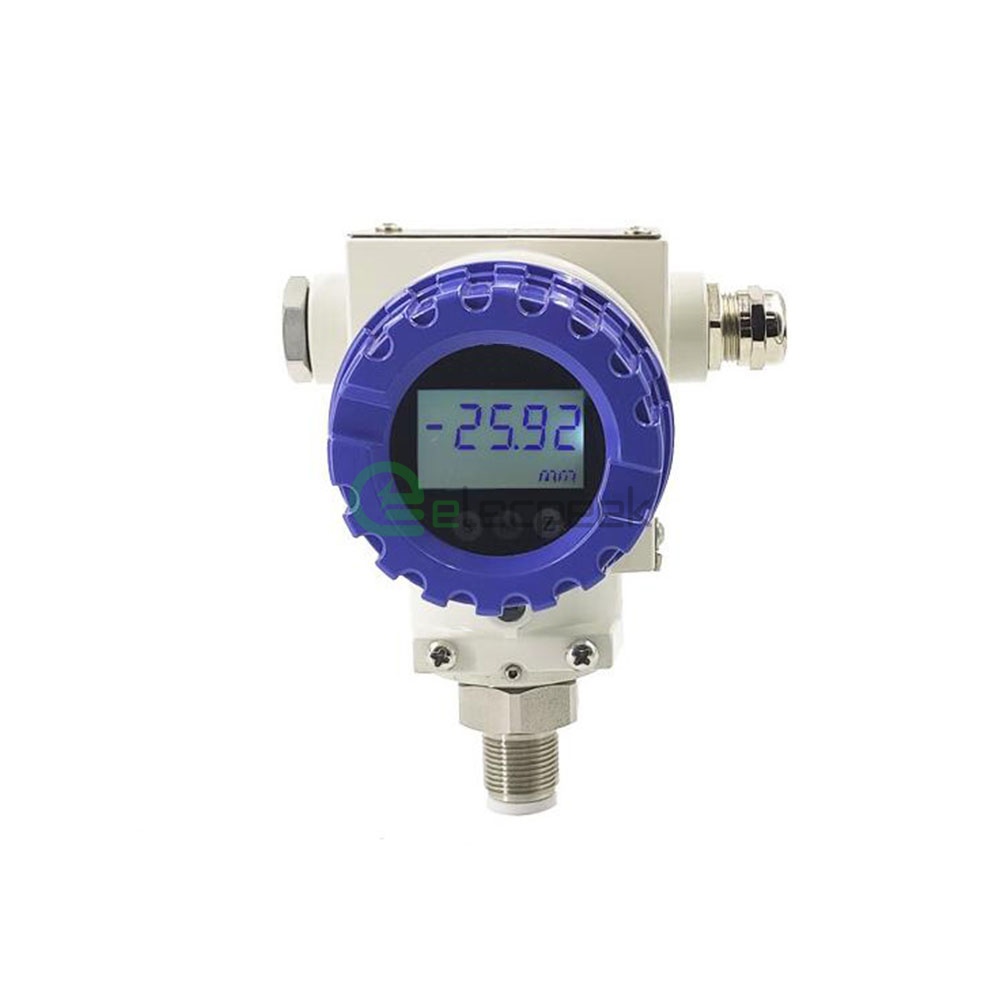

Display |
LCD display
|
Supply Voltage |
(16.5~55V 4mA~20mA+HART), 4mA ~ 20mA), DC24V(10.5V ~ 55V
|
Diaphragm Material |
optional Hastelloy C, Standard 316L stainless steel
|
Damping Time |
Adjustable range from 0 to 100S
|
Electrical Interface |
Terminals
|
Process Connection |
M20x1.5 thread 304 material, optional 316L stainless steel
|
Housing Material |
Cast aluminum housing
|
EMC Level |
Level 4
|
