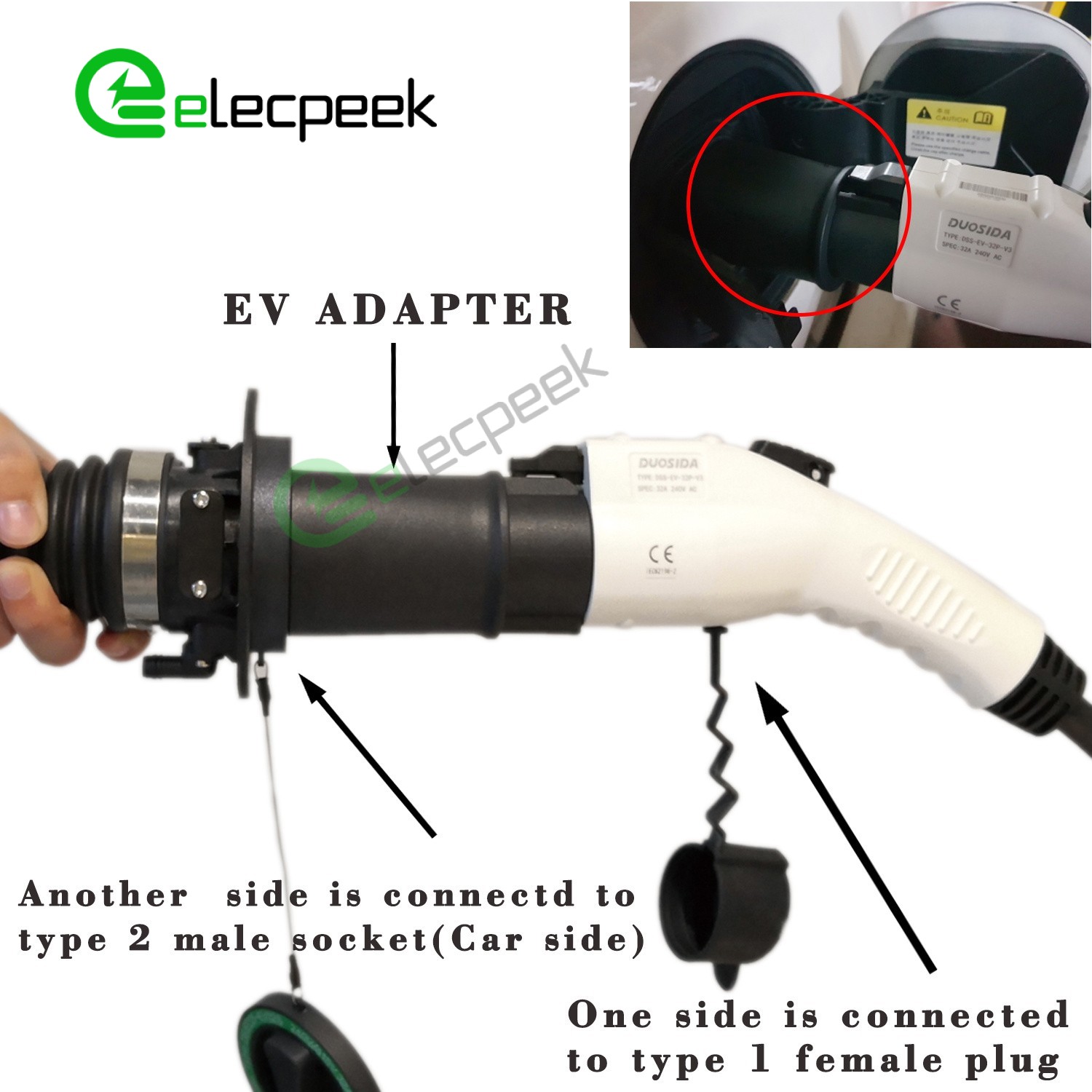

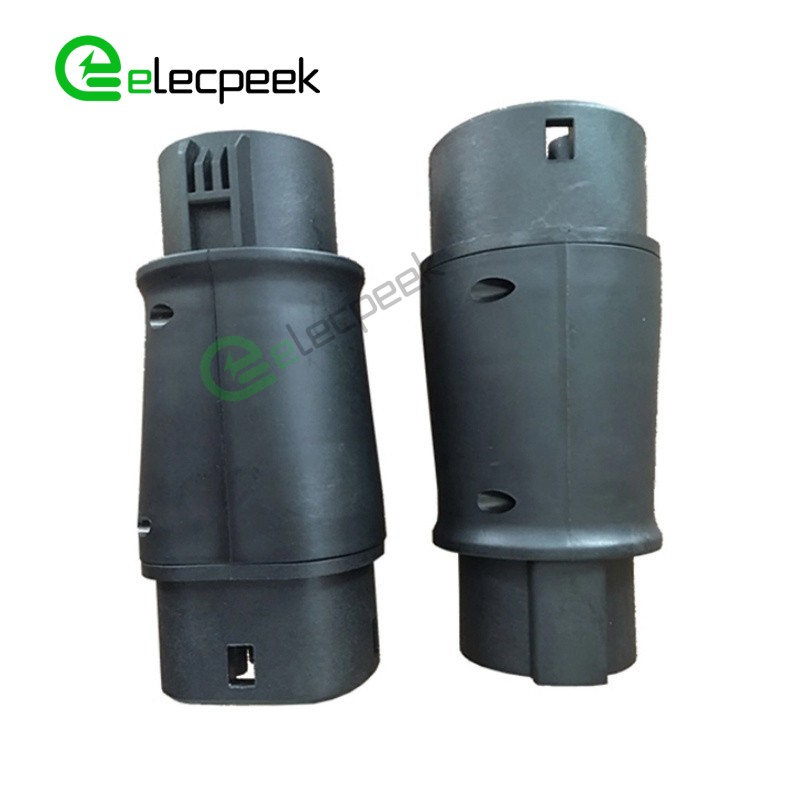

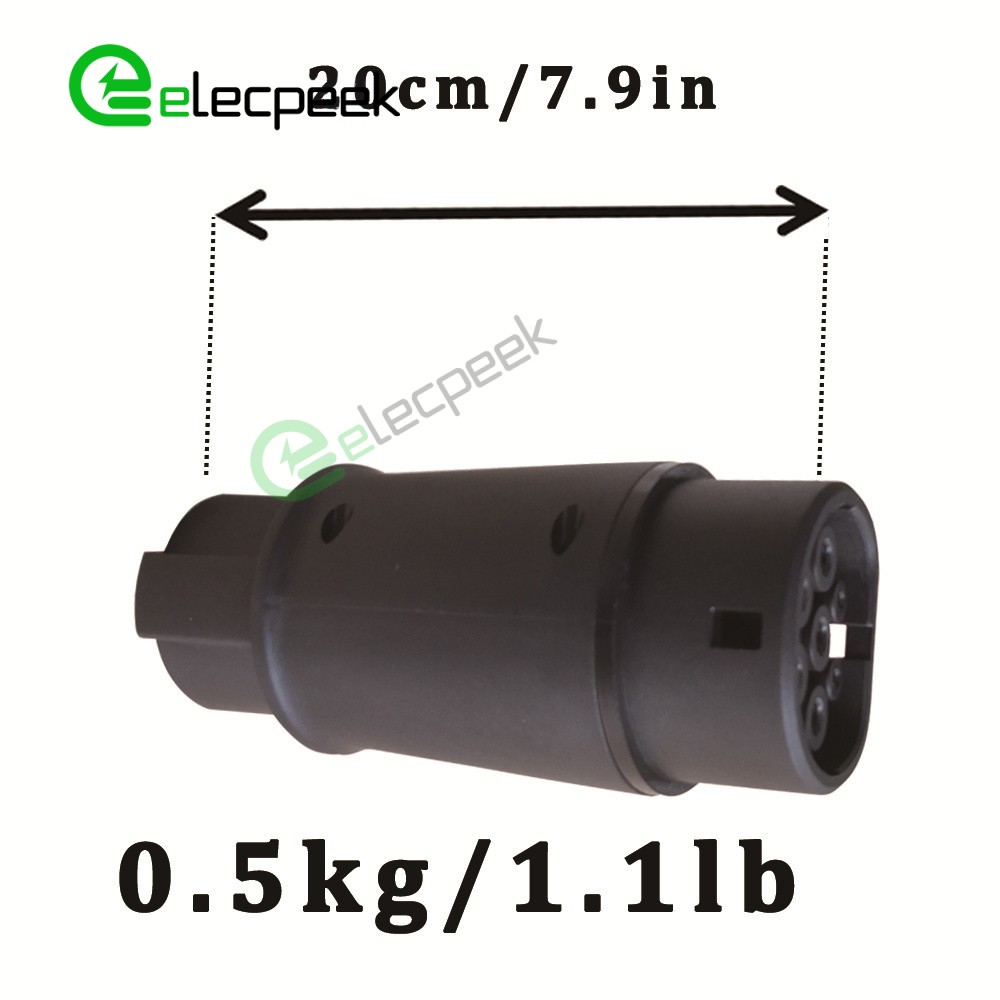

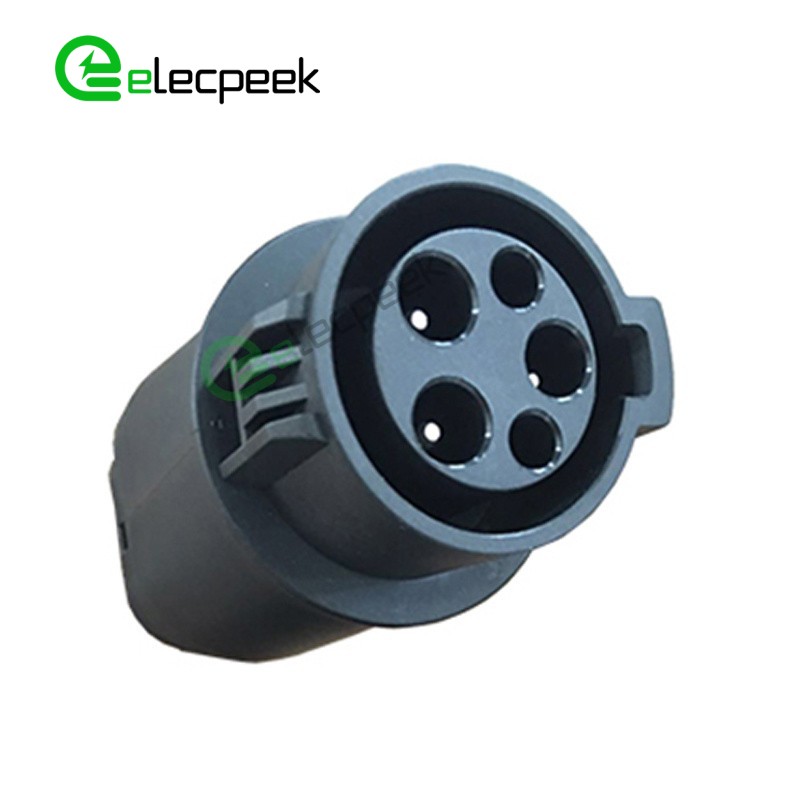

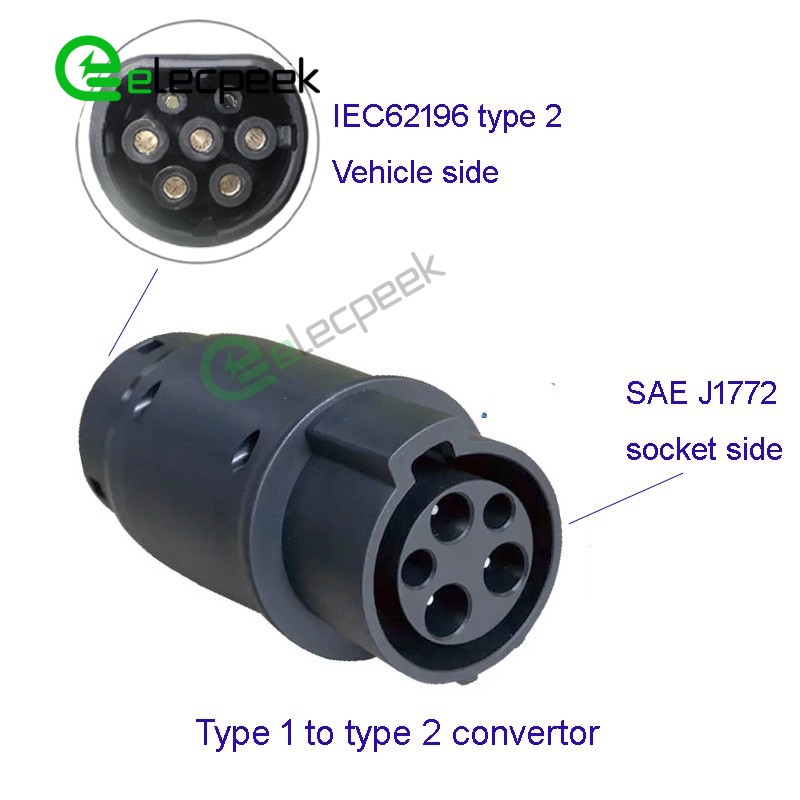

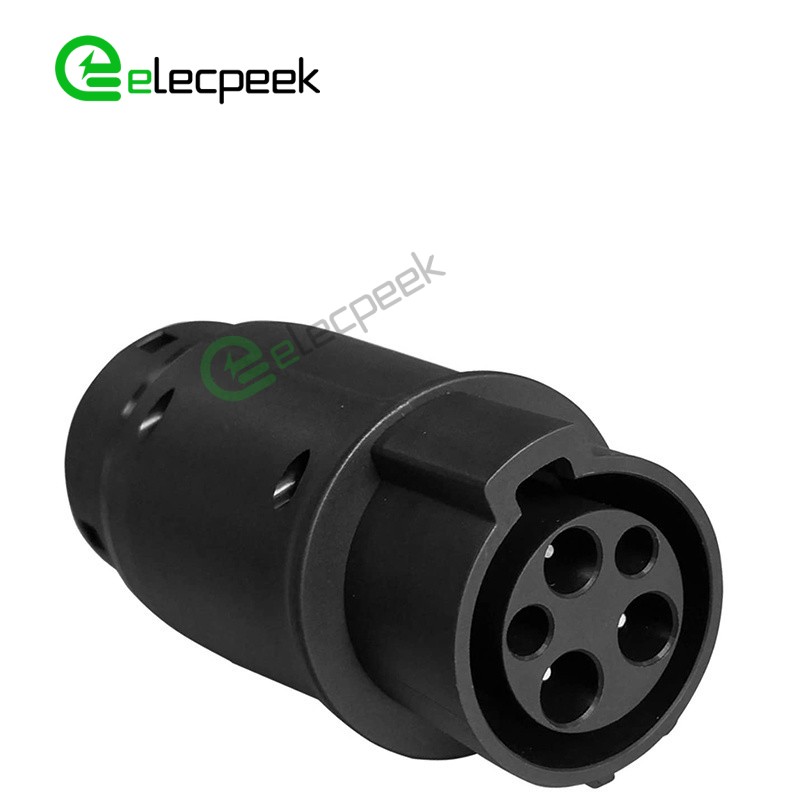

IEC 62196-3 Socket to SEA J1772 EV Charger Receptacle AC Charge 32A 250V Connector Adapter

IEC 62196-3 Socket to SEA J1772 EV Charger Receptacle AC Charge 32A 250V Connector Adapter

SKU: RHT-IEC-SAE-32A Tags: AC Adapter 250V 8KW IP65 32A Socket EV Charging Connector Adapter IEC 62196-3/ SAE J1772 Datasheet

Copper Alloy Silver Plated.
High Durability, Corrosion Resistance, Oxidation Resistance.
Strong Waterproof Performance.
Can Afford 1m Drop and 2t Vehicle Run over Pressure.
Nice Appearance, Hand-held Ergonomic Design, Easy Plug.

Description
Technical Data

Renhotec is a manufacturer specializing in ev charging products. Additionally to the production, our company has design and r&d departments. Our main products are ev charging stations, ev cables and ev connectors. Along with the regular products we also offer product customization service upon the request in order to meet the local market preferences and needs.

EV Charging Connector Adapter

Material：
Case Material:	Thermoplastic , Flame Retardant Grade Ul94 V-0
Pin:	Copper Alloy , Silver + Thermoplastic on the Top

Electrical Performance
Rated Current:	(AC)16A/32A/40A/60A
Operation Voltage:	250V AC
Insulation Resistance:	＞1000MΩ(DC500V)
Terminal Temperature:	＜50K
Withstand Voltage:	2000V
Contact Resistance:	0.5MΩ MAX

Mechanical Performance
Mechanical Life:	No-load Plug in / Pull Out＞10000 Times
Coupled Insertion Force:	＞45N＜80N

Environmental Performance
Temperature Range:	– 30℃~ +50℃
Protection Degree:	IP65

Application
Professional Charging Station	Berth
Parking Lots Parking Spaces	Residential Parking Lot
