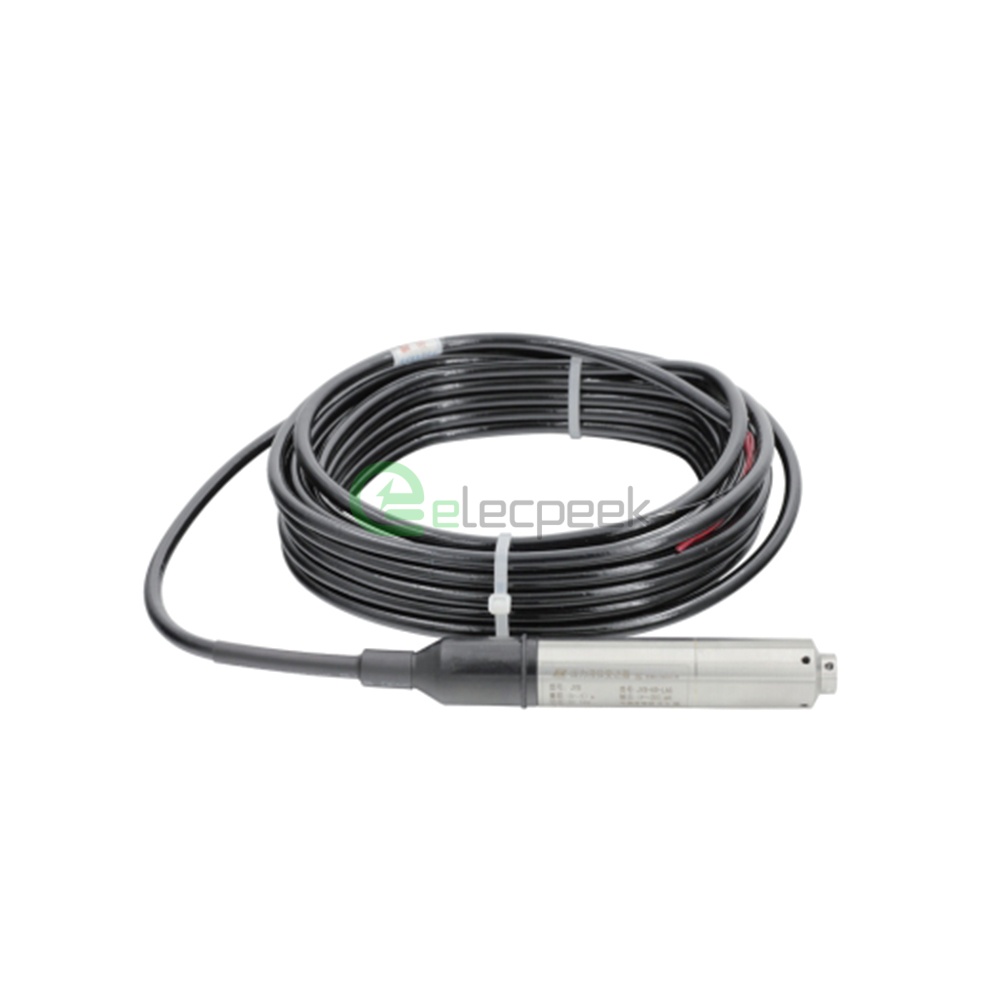

Immersed Flameproof Liquid Level Transmitter

SKU: EP-JYB-KG-L

The Immersed Flameproof Liquid Level Transmitter is a robust and reliable device designed for level measurement in hazardous environments. Its flameproof construction ensures safe operation in explosive atmospheres. This submersible transmitter provides accurate and continuous level monitoring for various liquids, making it ideal for oil & gas, chemical, and other industrial applications.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    Specification Details
    Series Level Transmitter
    Measuring Range Various Measuring Ranges Within 300m~1000m
    Output Form 4mA ～ 20mA, 0V ～ 5V, RS-485
    Load Capacity Current Output Type: ≤500Ω
    Nonlinear ±0.2％F.S
    Insulation Resistance ＞100MΩ
    Overload Pressure 2 Times Range
    Electrical Connections Stainless Steel Cable Connection
    EMC Level Level Three
    Protection Level IP68
    Supply Voltage DC 24V (12V～32V)
    Response Time ≤50ms
    Housing Material Stainless Steel/316 Stainless Steel

    Measuring Range

    0m ~ 300m (minimum range 0.5m)
    Level of Accuracy

    Level 0.2 (7m~300m), Level 0.5 (0.5m~300m)
    Medium Temperature

    -30℃~60℃
    Ambient Temperature

    -20℃~60℃
    Output Form

    4mA ~ 20mA 0V ~ 5V RS-485
    Supply Voltage

    DC 24V(12V~32V)
    Load Capacity

    Current output type: ≤500Ω (when powered by DC 24V)
    Nonlinear

    ±0.2%F.S
    Hysteresis and Repeatability

    ±0.1%F.S
    Years of Long-term Stability

    ±0.1%F.S
    Thermal Zero Point Drifts

    ±0.03%F.S
    Response Time

    ≤50ms
    Overload Pressure

    2 times range
    Electrical Connections

    Cable connection
    Housing Material

    Ordinary 304 stainless steel/316 stainless steel
    Measuring Medium

    Oil, water and other media compatible with 316 stainless steel
    Protection Level

    IP68
    Explosion-proof Signs

    Exdb IICT6 Gb
    Measuring Range

    0m ~ 300m (minimum range 0.5m)

    		 Level of Accuracy

    Level 0.2 (7m~300m), Level 0.5 (0.5m~300m)
    Medium Temperature

    -30℃~60℃

    		 Ambient Temperature

    -20℃~60℃
    Output Form

    4mA ~ 20mA 0V ~ 5V RS-485

    		 Supply Voltage

    DC 24V(12V~32V)
    Load Capacity

    Current output type: ≤500Ω (when powered by DC 24V)

    		 Nonlinear

    ±0.2%F.S
    Hysteresis and Repeatability

    ±0.1%F.S

    		 Years of Long-term Stability

    ±0.1%F.S
    Thermal Zero Point Drifts

    ±0.03%F.S

    		 Response Time

    ≤50ms
    Overload Pressure

    2 times range

    		 Electrical Connections

    Cable connection
    Housing Material

    Ordinary 304 stainless steel/316 stainless steel

    		 Measuring Medium

    Oil, water and other media compatible with 316 stainless steel
    Protection Level

    IP68

    		 Explosion-proof Signs

    Exdb IICT6 Gb

    Electrical

    Insulation Resistance

    >100MΩ
    Insulation Resistance

    >100MΩ
    Measuring Range

    0m ~ 300m (minimum range 0.5m)
    Level of Accuracy

    Level 0.2 (7m~300m), Level 0.5 (0.5m~300m)
    Medium Temperature

    -30℃~60℃
    Ambient Temperature

    -20℃~60℃
    Output Form

    4mA ~ 20mA 0V ~ 5V RS-485
    Supply Voltage

    DC 24V(12V~32V)
    Load Capacity

    Current output type: ≤500Ω (when powered by DC 24V)
    Insulation Resistance

    >100MΩ
    Nonlinear

    ±0.2%F.S
    Hysteresis and Repeatability

    ±0.1%F.S
    Years of Long-term Stability

    ±0.1%F.S
    Thermal Zero Point Drifts

    ±0.03%F.S
    Response Time

    ≤50ms
    Overload Pressure

    2 times range
    Electrical Connections

    Cable connection
    Housing Material

    Ordinary 304 stainless steel/316 stainless steel
    Measuring Medium

    Oil, water and other media compatible with 316 stainless steel
    Protection Level

    IP68
    Explosion-proof Signs

    Exdb IICT6 Gb
