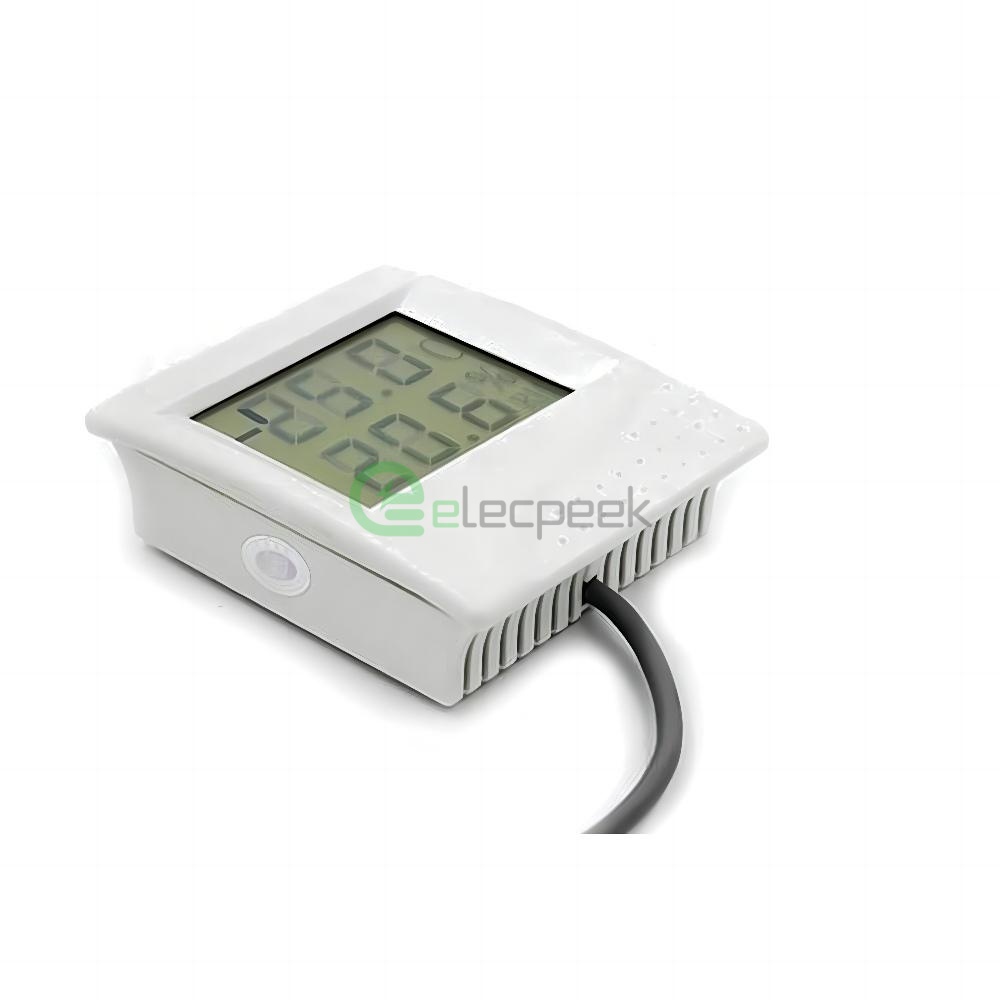

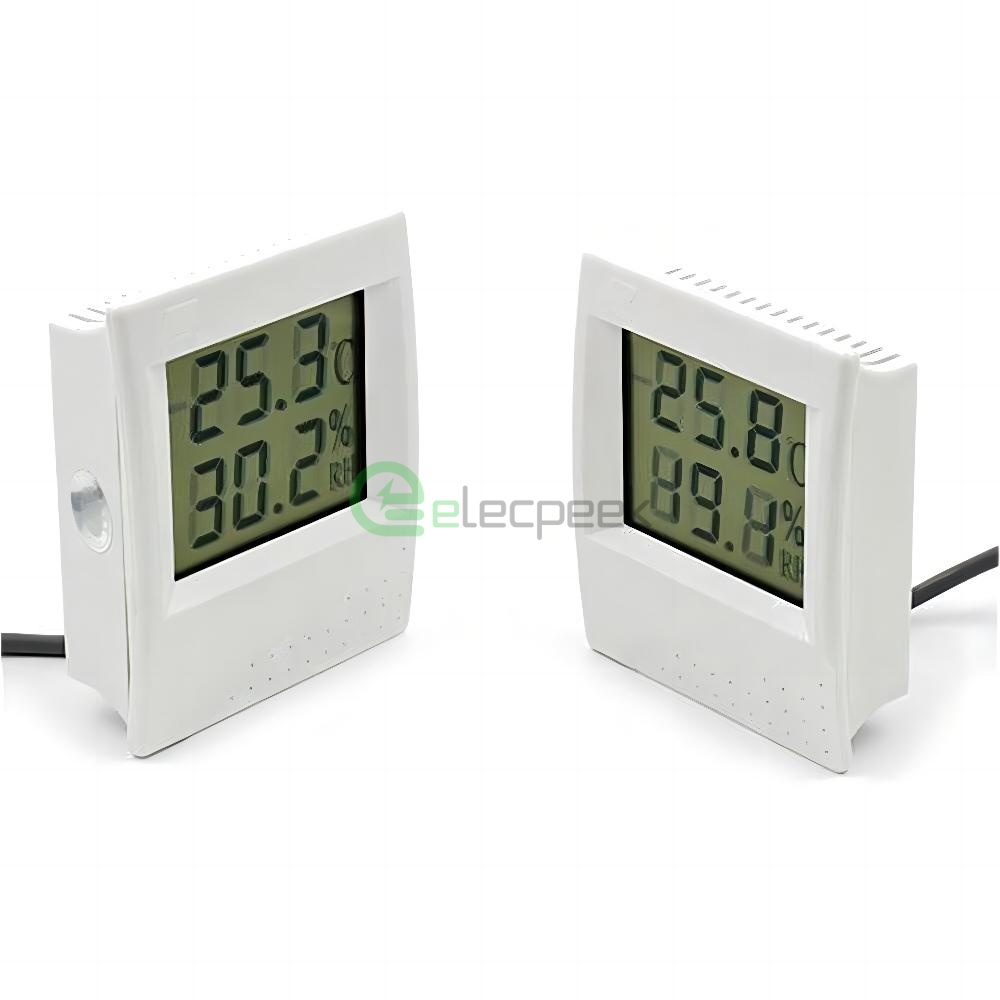

Large Screen Display Digital Temperature and Humidity Transmitter

SKU: EP-JWST-10

large screen digital temperature and humidity transmitter for accurate measurement. Ideal for indoor/outdoor use in industrial, commercial settings.

Get a Quotation

Description
Technical Data

Specification	Details
Series	Temperature and Humidity Transmitter
Network Output Type	RS485 / RS232
Voltage Output Type	5% RH ~ 95% RH, 25℃
Current Output Type	DC 24V (22V ~ 26V)
Voltage Output Type	DC 24V (12V ~ 24V)
Network Output Type	DC 24V (12V ~ 24V)
Response Time	Temperature ≤15s, Humidity ≤4s (1m/s wind speed)
Protection Level	IP65
Current Output Type	Three-wire System 4mA ~ 20mA
Voltage Output Type	0V ~ 5V / 0V ~ 10V
Network Output Type	RS485 / RS232

Measuring Range	Temperature: -10℃~60℃ Humidity: 0%RH ~ 95%RH
Accuracy	Temperature: ±0.5℃ (25℃) Humidity: ±3% RH (5% RH ~ 95% RH 25℃)
Power Consumption	≤1.2W
Display Resolution	Temperature 0.1℃ Humidity 0.1%RH
Circuit Working Environment	Temperature -10℃~60℃ Humidity 5%RH~95%RH
Output Form	Current output type: three-wire system 4mA ~ 20 mA Voltage output type: 0V ~ 5V/ 0V ~ 10V Network output type: RS485/RS232
Supply Voltage	Current output type: DC 24V (22V ~ 26V) Voltage output type: DC 24V (12V ~ 24V) Network output type: DC 24V (12V ~ 24V)
Load Capacity	Current output type: ≤500Ω Voltage, output type: output impedance ≤250Ω
Installation Method	86 box installation, gourd hole or screw wall fixing
Long-term Stability	Temperature ≤0.1℃/y Humidity ≤1%RH/y
Response Time	≤15s (1m/s wind speed)

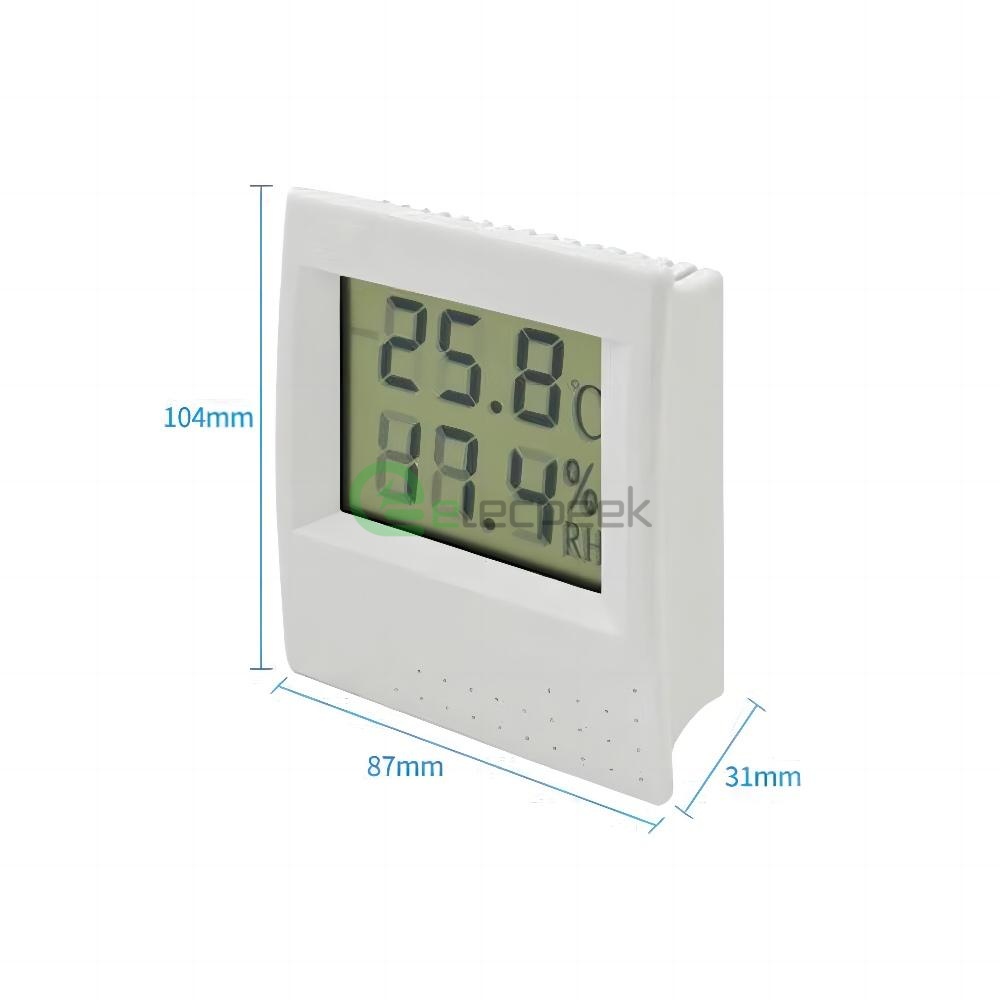

Shell	ABS white 104mm x 87mm x 31mm
Product Weight	≤ 100g
Measuring Range	Temperature: -10℃~60℃ Humidity: 0%RH ~ 95%RH	Accuracy	Temperature: ±0.5℃ (25℃) Humidity: ±3% RH (5% RH ~ 95% RH 25℃)
Power Consumption	≤1.2W	Display Resolution	Temperature 0.1℃ Humidity 0.1%RH
Circuit Working Environment	Temperature -10℃~60℃ Humidity 5%RH~95%RH	Output Form	Current output type: three-wire system 4mA ~ 20 mA Voltage output type: 0V ~ 5V/ 0V ~ 10V Network output type: RS485/RS232
Supply Voltage	Current output type: DC 24V (22V ~ 26V) Voltage output type: DC 24V (12V ~ 24V) Network output type: DC 24V (12V ~ 24V)	Load Capacity	Current output type: ≤500Ω Voltage, output type: output impedance ≤250Ω
Installation Method	86 box installation, gourd hole or screw wall fixing	Long-term Stability	Temperature ≤0.1℃/y Humidity ≤1%RH/y
Response Time	≤15s (1m/s wind speed)	Shell	ABS white 104mm x 87mm x 31mm
Product Weight	≤ 100g

Environmental

Operating Temperature	-10℃～60℃
Operating Temperature	-10℃～60℃

Measuring Range	Temperature: -10℃~60℃ Humidity: 0%RH ~ 95%RH
Accuracy	Temperature: ±0.5℃ (25℃) Humidity: ±3% RH (5% RH ~ 95% RH 25℃)
Power Consumption	≤1.2W
Display Resolution	Temperature 0.1℃ Humidity 0.1%RH
Circuit Working Environment	Temperature -10℃~60℃ Humidity 5%RH~95%RH
Operating Temperature	-10℃～60℃
Output Form	Current output type: three-wire system 4mA ~ 20 mA Voltage output type: 0V ~ 5V/ 0V ~ 10V Network output type: RS485/RS232
Supply Voltage	Current output type: DC 24V (22V ~ 26V) Voltage output type: DC 24V (12V ~ 24V) Network output type: DC 24V (12V ~ 24V)
Load Capacity	Current output type: ≤500Ω Voltage, output type: output impedance ≤250Ω
Installation Method	86 box installation, gourd hole or screw wall fixing
Long-term Stability	Temperature ≤0.1℃/y Humidity ≤1%RH/y
Response Time	≤15s (1m/s wind speed)
Shell	ABS white 104mm x 87mm x 31mm
Product Weight	≤ 100g
