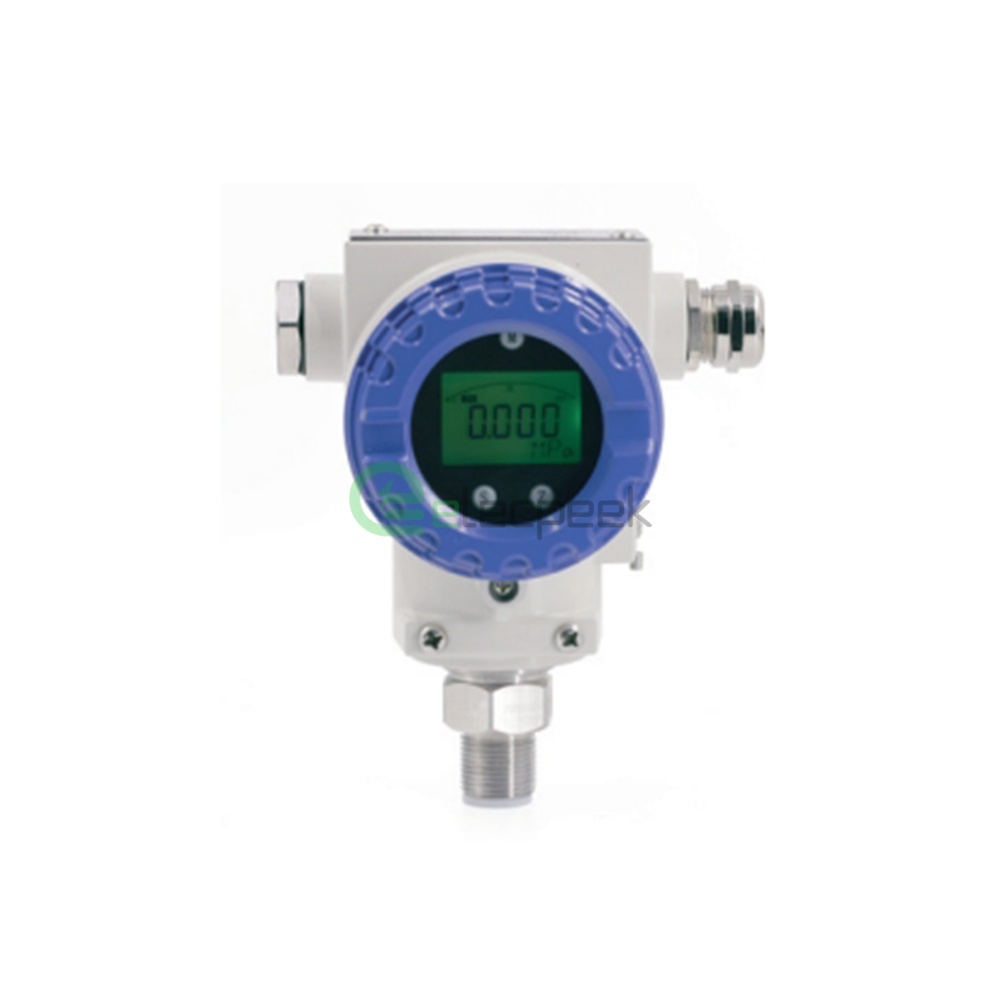

M20×1.5 External Thread/Dn25 Flange Connection Protective Explosion-Proof Pressure Transmitter Ip67

SKU: EP-JYB-KB-P

Protective explosion-proof pressure transmitter with M20×1.5 external thread and Dn25 flange connection, rated IP67 for water and dust ingress protection. Ideal for hazardous environments.

Get a Quotation

Description
Technical Data

Measuring Range	0MPa~100Mpa(minimum 5kPa)
Level of Accuracy	Level 0.2 (0MPa~5MPa minimum 70kPa), Level 0.5 (0MPa~100MPa minimum 5kPa)
Medium Temperature	-30℃~60℃
Ambient Temperature	-20℃~60℃
Output Form	4mA ~ 20mA, 4mA~20mA+HART with display
Process Interface	M20x1.5 or flange mounting
Display	LCD display
Supply Voltage	DC 24V(12V~32V)
Load Capacity	Current output type: ≤500Ω
Nonlinear	±0.2%F·S
Hysteresis and Repeatability	±0.1%F·S
Years of Long-term Stability	±0.1%F·S
Thermal Zero Point Drifts	±0.02%F·S
Response Time	≤50ms
Overload Pressure	2 times range
Electrical Connections	Terminals
Process Connection	M20x1.5 external thread/DN25 flange connection/others
Process Connection Materials	Ordinary 304 stainless steel/316 stainless steel
Housing Material	Cast aluminum housing
Measuring Medium	gas and other media compatible with 316 stainless steel, Oil, water
Explosion-proof Signs	equipped with FBE safety barrier, ExiaⅡCT6 Ga
Protection Level	IP67
