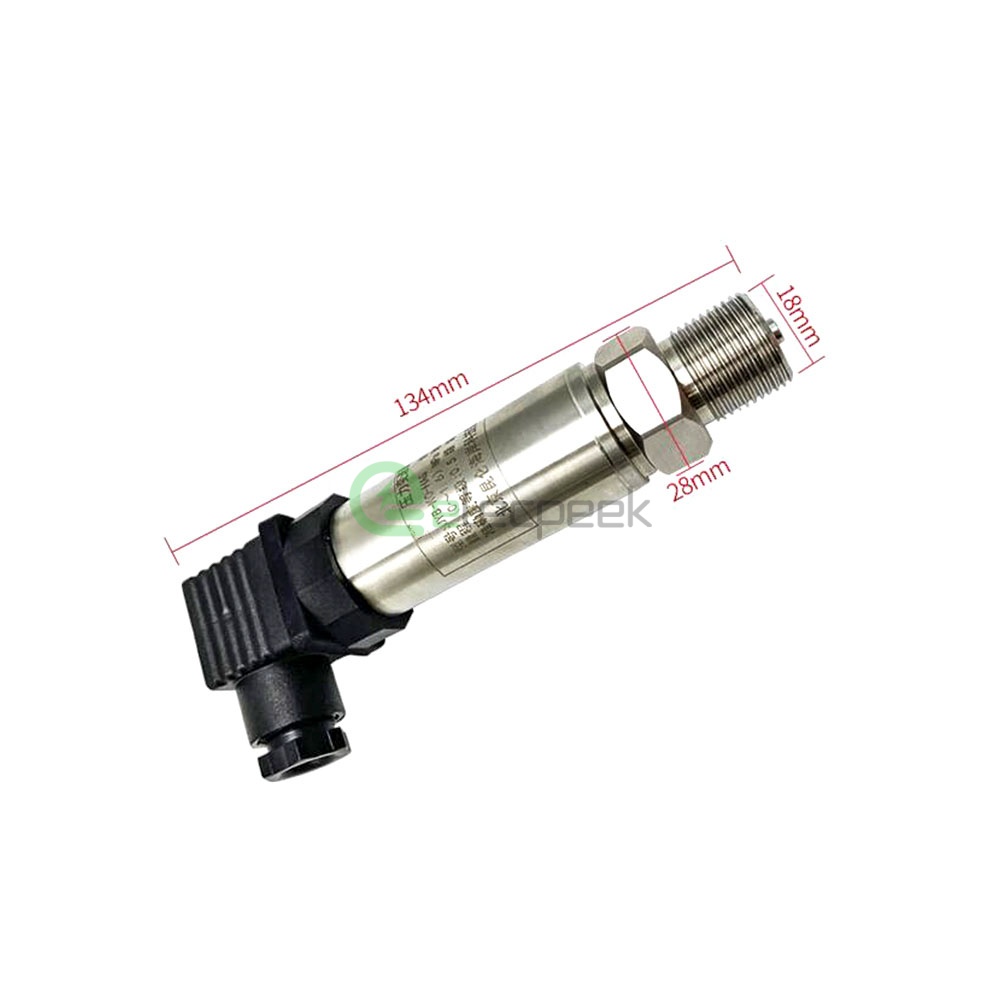

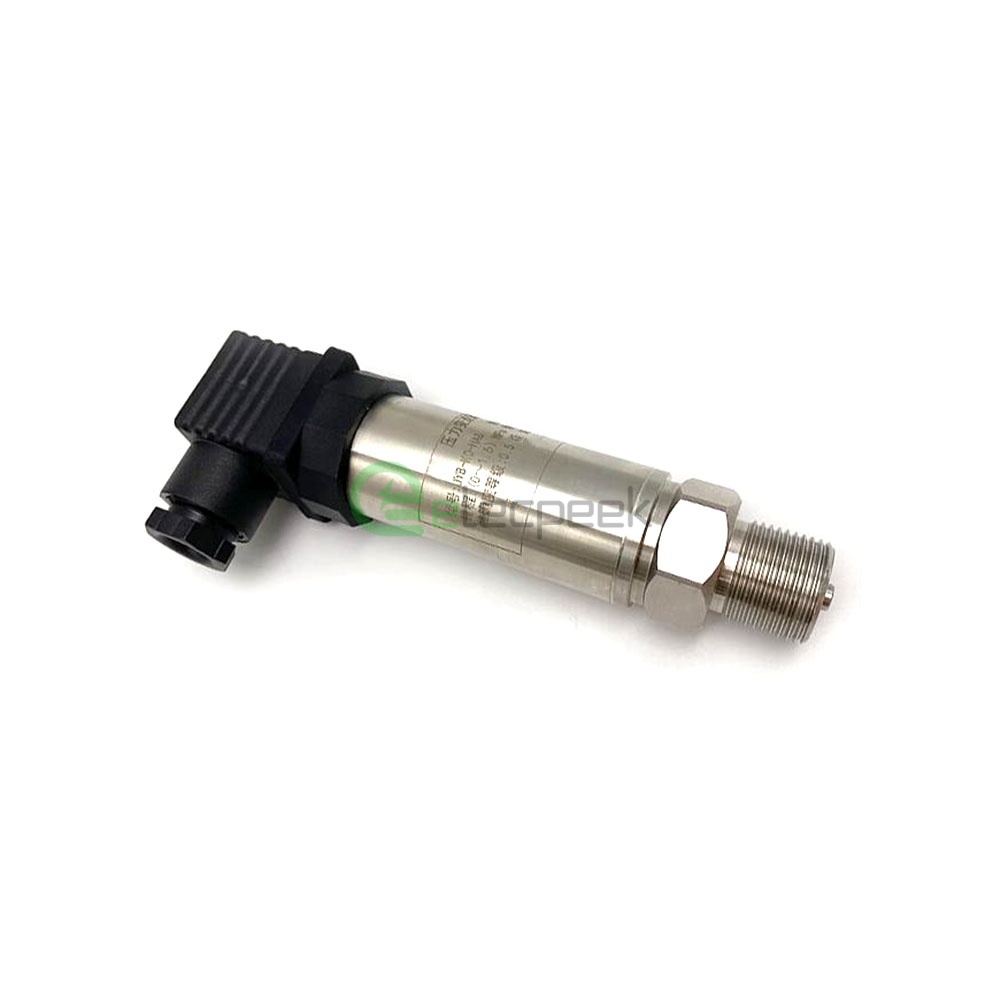

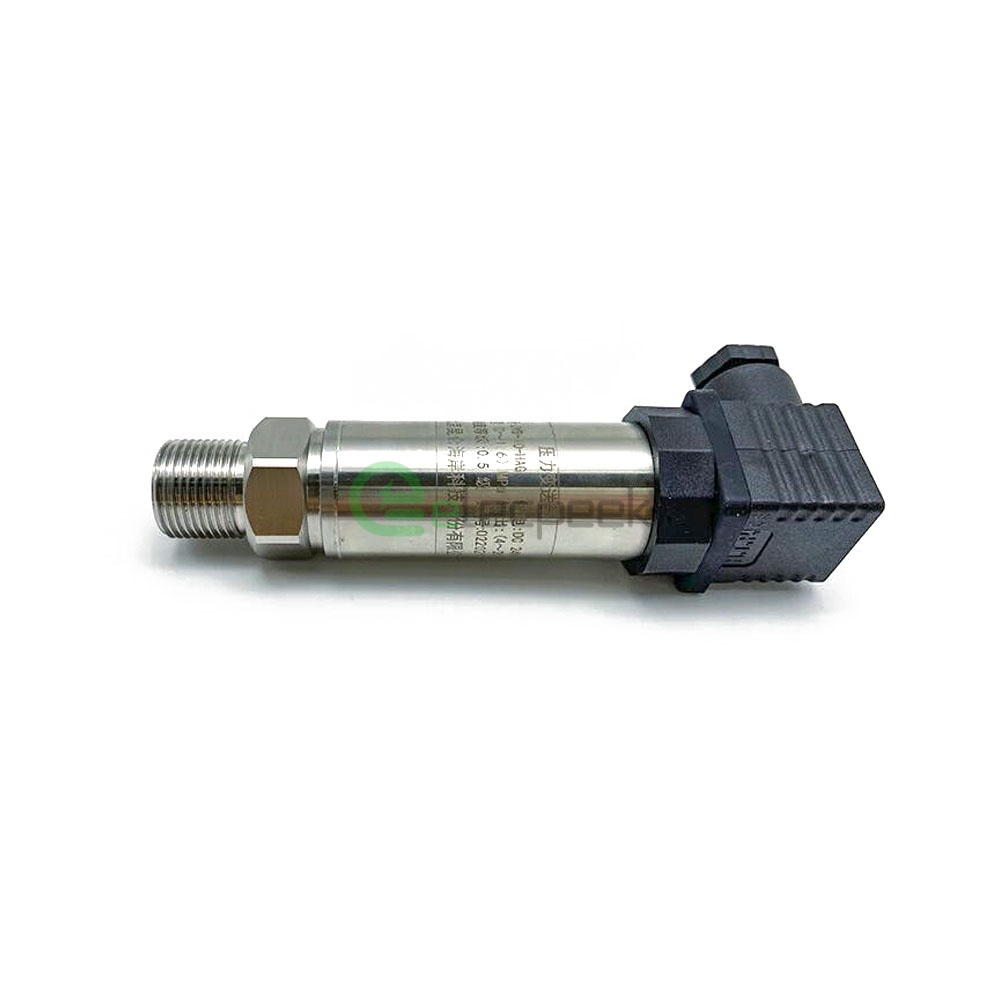

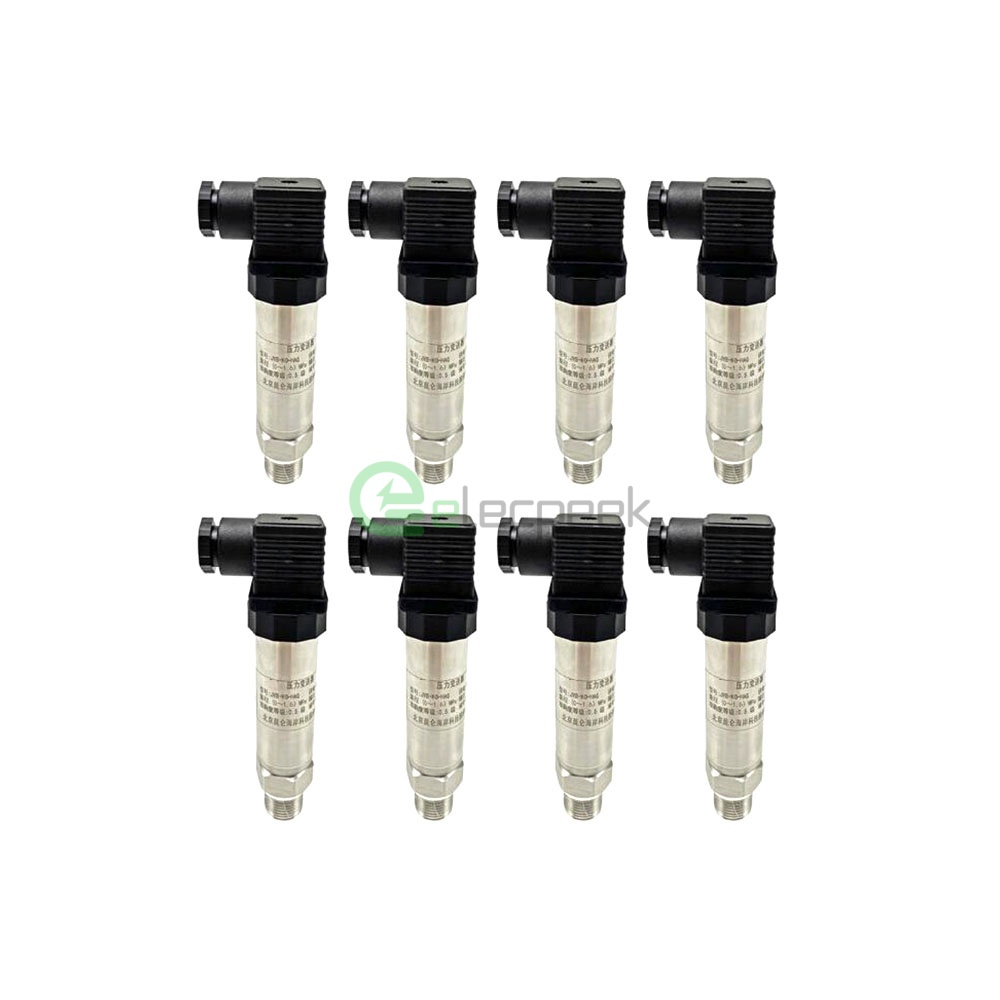

M20×1.5 External Thread Or Other Compact Pressure Transmitter Ip65

SKU: EP-JYB-KO-H

M20×1.5 External Thread Compact Pressure Transmitter – IP65 Rated for Durability. Accurate and reliable pressure measurement in a compact size. Ideal for harsh environments.

Get a Quotation

Description
Technical Data

Measuring Range	0MPa ~ 100MPa(minimum 5kPa)
Level of Accuracy	Level 0.1 (100kPa~5MPa), Level 0.2 (70kPa~35MPa), Level 0.5 (35MPa)
Medium Temperature	-30℃~85℃
Ambient Temperature	-20℃~85℃
Output Form	4mA ~ 20mA 0V~5V RS-485
Process Interface	M20x1.5 external thread or other
Supply Voltage	DC 24V(12V~32V)
Load Capacity	Current output type: ≤500Ω, Voltage output type: ≥3kΩ
Nonlinear	±0.2%F·S
Hysteresis and Repeatability	±0.1%F·S
Years of Long-term Stability	±0.1%F·S
Thermal Zero Point Drifts	±0.02%F·S
Response Time	≤50ms
Overload Pressure	2 times range
Electrical Connections	Horsmann joint
Housing Material	Ordinary 304 stainless steel/316 stainless steel
Measuring Medium	gas and other media compatible with 316 stainless steel, Oil, water
EMC Level	Level 3 (limited to A output)
Protection Level	IP65
