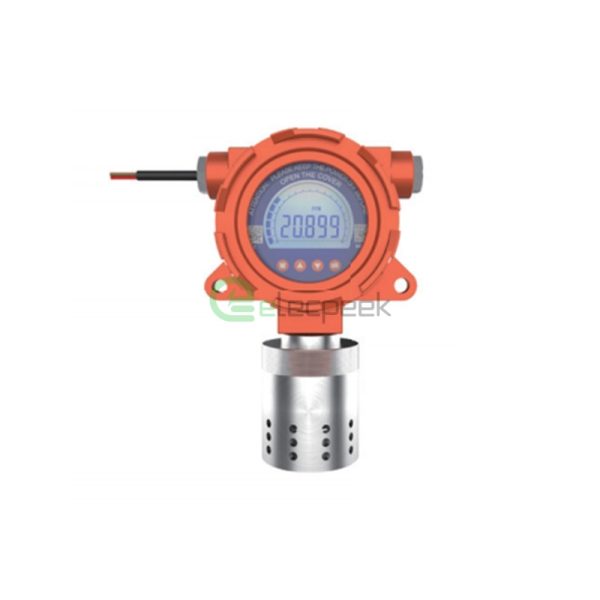

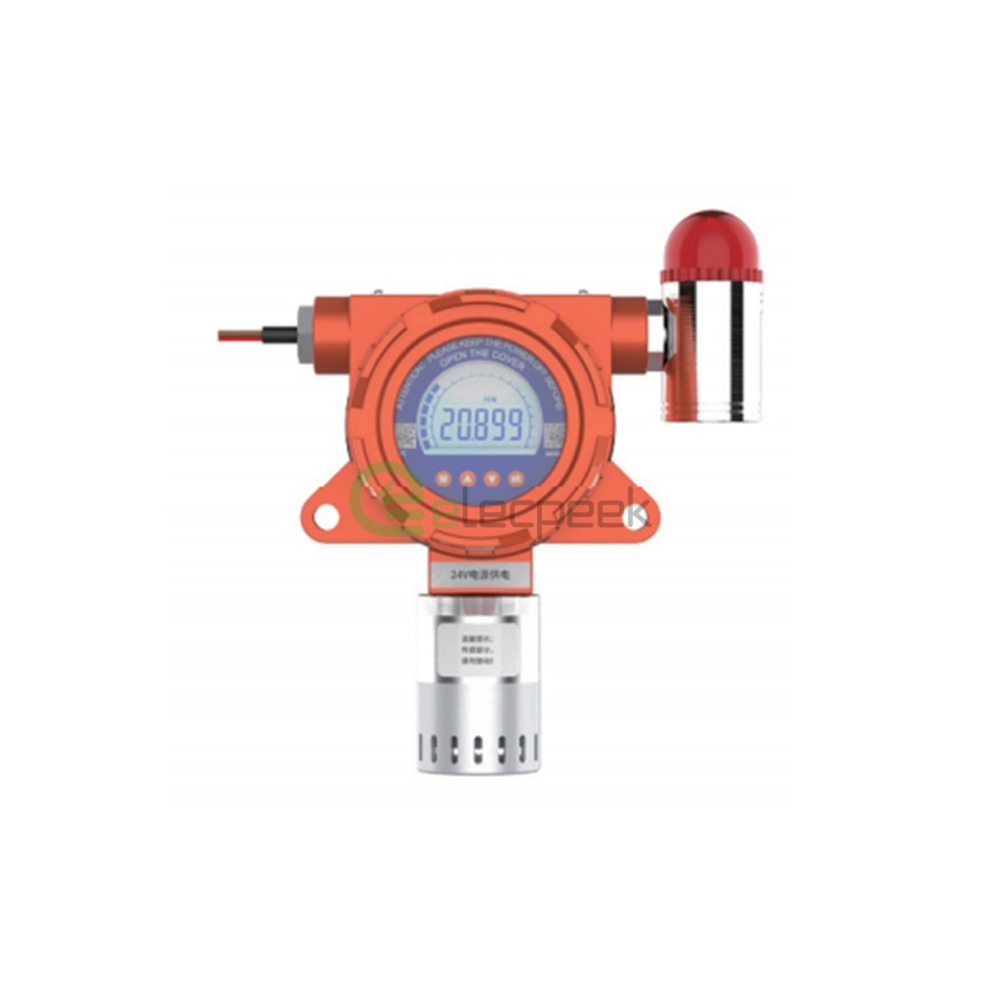

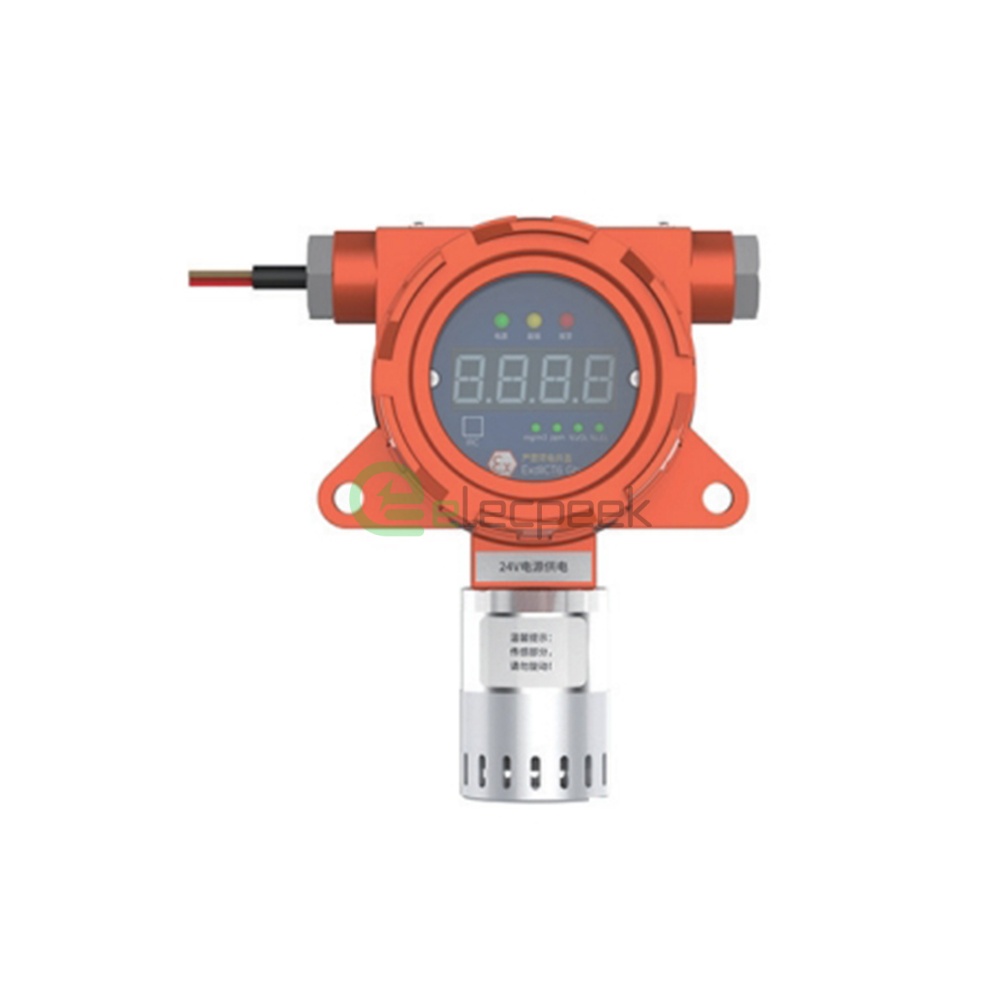

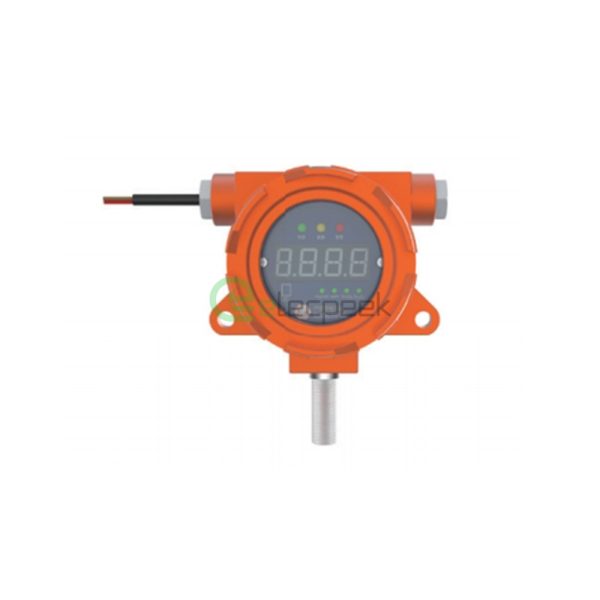

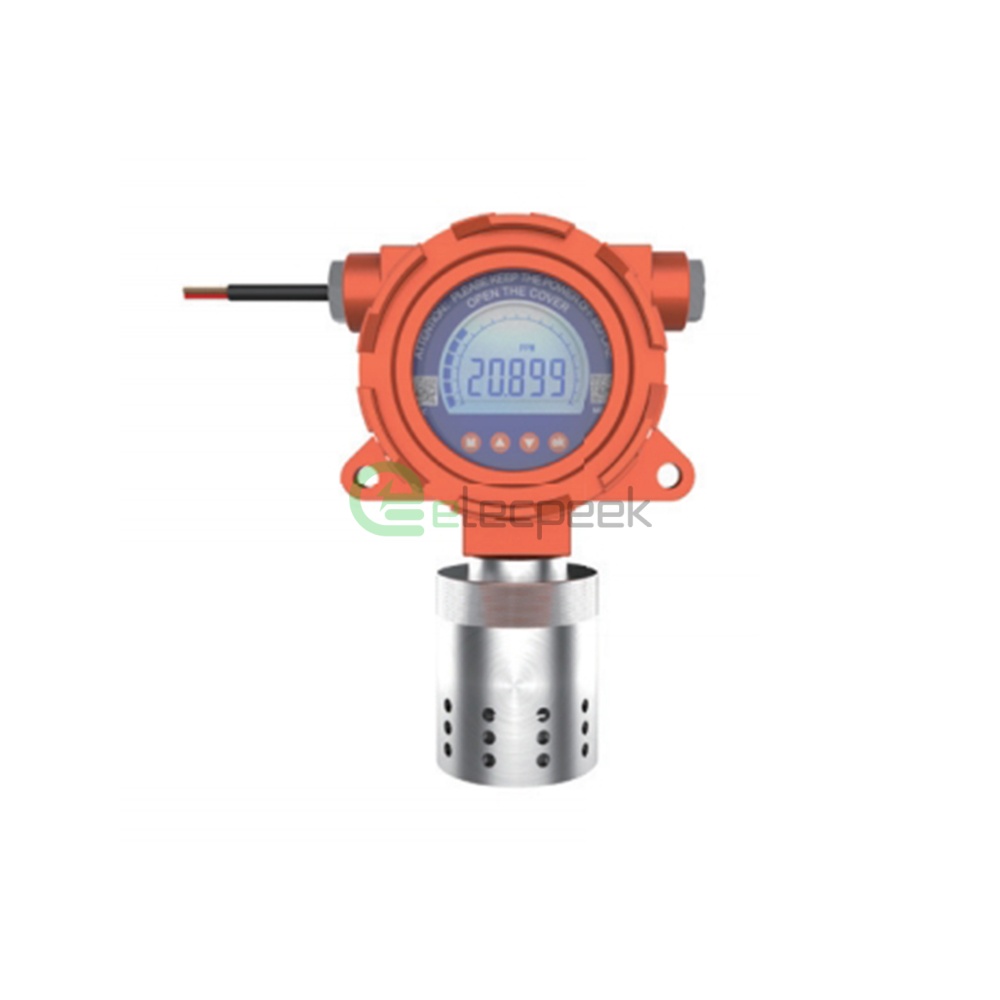

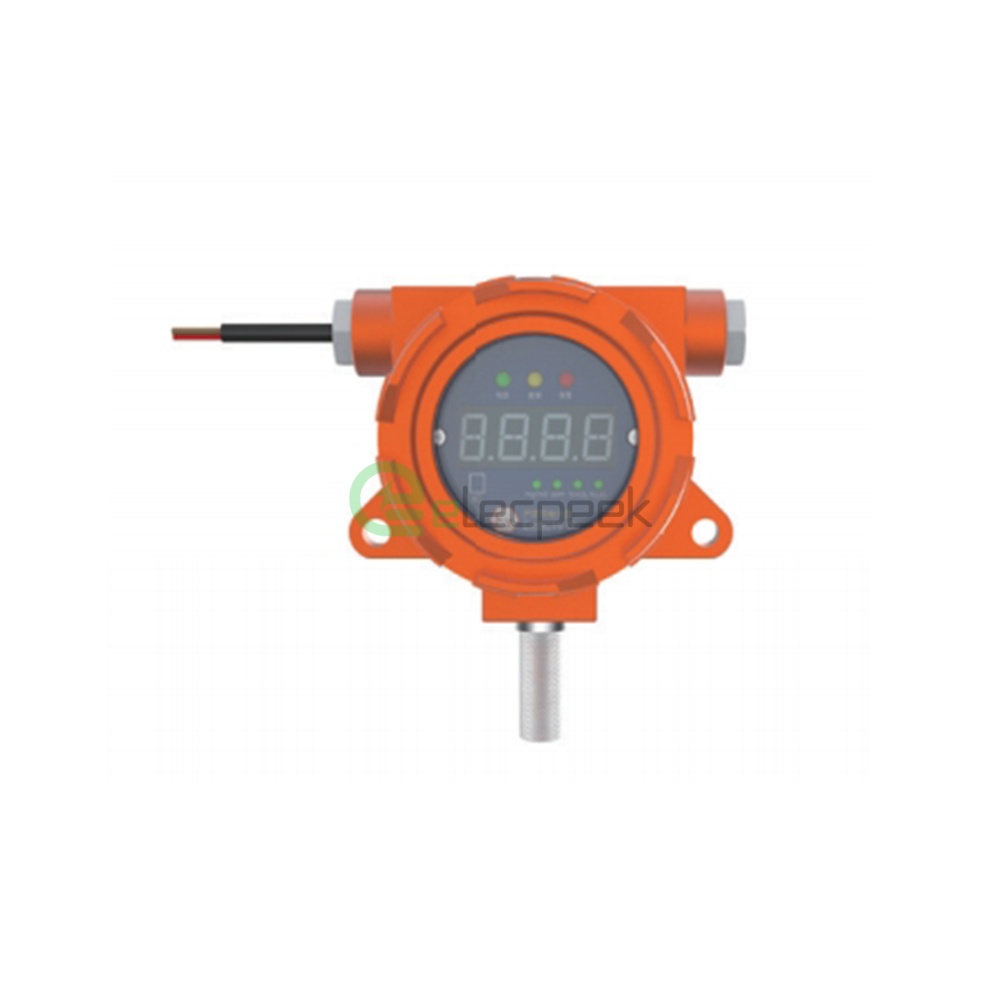

M45x1.5mm Fixed Gas Detector In Pipe Gallery Remote Control + Four-Button Operation Wall Mounted Pipe Type

SKU: EP-JQB-G

M45x1.5mm Fixed Gas Detector: Remote control pipe gallery model with four-button wall mounted design. Ideal for pipe-type gas detection. Enhance safety with accurate and reliable gas monitoring.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    Product Introduction

    Gas transmitters consist of an enclosure, sensor, and electronics that convert a signal from a gas sensor into an analog output signal. Electrical outputs for gas transmitters include analog current, analog voltage, and frequency. Analog current levels such as 4 – 20 mA are suitable for sending signals over long distances. Typically, a current is imposed on the output circuit proportional to the measurement. Feedback is used to provide the appropriate current regardless of line noise and impedance. Analog voltage outputs are simple, usually linear functions of the measurement. Frequency or modulated frequency outputs for gas transmitters include amplitude modulation (AM), frequency modulation (FM), sine waves, and pulse trains.

    Product Detail

    Detection Method

    Diffusion type, flow type, pipeline type
    Resolution

    O₂:0.1%Vol EX:1%LEL CO:1ppm H₂S:1ppm
    Accuracy

    ≤±3%
    Repeatability

    ≤±1%
    Zero Drift

    ≤±1% (F.S/year)
    Response Time

    ≤20 seconds (T90) T90 depends on sensor characteristics
    Recovery Time

    ≤20 seconds (T90-T10 depends on sensor characteristics)
    Explosion-proof Signs

    Exd II CT6 Gb(-40℃～60℃)
    Output Form

    220VAC 0.5A or 5VDC 0.5A
    The Main Material

    316 stainless steel, ADC12 aluminum alloy
    Installation Method

    pipeline type, Wall-mounted type
    Working Humidity

    ≤95%RH no condensation, humidity >90%RH condensation can be equipped with a filter
    Relative Humidity

    10%～95%RH
    Visible Distance

    ≥10 meters (5.0 vision)
    Direct Reading

    alarm value, Measured value
    Operation Method

    Remote control + four-button operation
    Operating Mode

    administrator mode, user mode
    Calibration

    Target point calibration function
    Power Supply

    12-35VDC
    Power Consumption

    conductivity sensor: P≤2.9W, Electrochemical sensor: P≤1.5W, Infrared sensor: P≤3.0W, Low power consumption catalytic, Ordinary catalytic sensor: P≤2.8W, PID sensor: P≤2.8W, sensor: P≤1.5W, Thermal
    Work Pressure

    0.02MPa～0.36MPa (zirconia principle oxygen sensor), 0.08MPa～0.6MPa (thermal conductivity principle sensor), 86KPa～106KPa (others)
    Alarm Mode

    Panel LED alarm
    Alarm Point Setting

    can be set by yourself
    Protective Function

    automatic sensor protection, intermittent detection, Lightning protection, surge protection, wiring fault-tolerant
    Audible Alarm

    Optional sound and light alarm: alarm sound > 90 decibels
    Size

    180mm*140mm*92mm (height*width*thickness)
    Weight

    About 1.6Kg
    Implementation Standards

    GB15322.1-2003
    Certified Product

    GB3836.1-2010
    Standard Accessories

    GB3836.2-2010
    Quality Assurance

    GB3836.4-2010
    Protection Level

    SIL certification (SIL SIL3); ISO9001
    Detection Method

    Diffusion type, flow type, pipeline type

    		 Resolution

    O₂:0.1%Vol EX:1%LEL CO:1ppm H₂S:1ppm
    Accuracy

    ≤±3%

    		 Repeatability

    ≤±1%
    Zero Drift

    ≤±1% (F.S/year)

    		 Response Time

    ≤20 seconds (T90) T90 depends on sensor characteristics
    Recovery Time

    ≤20 seconds (T90-T10 depends on sensor characteristics)

    		 Explosion-proof Signs

    Exd II CT6 Gb(-40℃～60℃)
    Output Form

    220VAC 0.5A or 5VDC 0.5A

    		 The Main Material

    316 stainless steel, ADC12 aluminum alloy
    Installation Method

    pipeline type, Wall-mounted type

    		 Working Humidity

    ≤95%RH no condensation, humidity >90%RH condensation can be equipped with a filter
    Relative Humidity

    10%～95%RH

    		 Visible Distance

    ≥10 meters (5.0 vision)
    Direct Reading

    alarm value, Measured value

    		 Operation Method

    Remote control + four-button operation
    Operating Mode

    administrator mode, user mode

    		 Calibration

    Target point calibration function
    Power Supply

    12-35VDC

    		 Power Consumption

    conductivity sensor: P≤2.9W, Electrochemical sensor: P≤1.5W, Infrared sensor: P≤3.0W, Low power consumption catalytic, Ordinary catalytic sensor: P≤2.8W, PID sensor: P≤2.8W, sensor: P≤1.5W, Thermal
    Work Pressure

    0.02MPa～0.36MPa (zirconia principle oxygen sensor), 0.08MPa～0.6MPa (thermal conductivity principle sensor), 86KPa～106KPa (others)

    		 Alarm Mode

    Panel LED alarm
    Alarm Point Setting

    can be set by yourself

    		 Protective Function

    automatic sensor protection, intermittent detection, Lightning protection, surge protection, wiring fault-tolerant
    Audible Alarm

    Optional sound and light alarm: alarm sound > 90 decibels

    		 Size

    180mm*140mm*92mm (height*width*thickness)
    Weight

    About 1.6Kg

    		 Implementation Standards

    GB15322.1-2003
    Certified Product

    GB3836.1-2010

    		 Standard Accessories

    GB3836.2-2010
    Quality Assurance

    GB3836.4-2010

    		 Protection Level

    SIL certification (SIL SIL3); ISO9001

    Environmental

    Operating Temperature

    -20℃～50℃ (infrared/fluorescence gas sensor), -20℃～50℃ (pid principle sensor), -40℃～270℃ (special catalytic combustion), -40℃～50℃(electrochemistry), -40℃～70℃ (ordinary catalytic combustion principle sensor), -40℃～70℃ (thermal conductivity principle sensor), -40℃～750℃ (zirconia principle oxygen sensor)
    Operating Temperature

    -20℃～50℃ (infrared/fluorescence gas sensor), -20℃～50℃ (pid principle sensor), -40℃～270℃ (special catalytic combustion), -40℃～50℃(electrochemistry), -40℃～70℃ (ordinary catalytic combustion principle sensor), -40℃～70℃ (thermal conductivity principle sensor), -40℃～750℃ (zirconia principle oxygen sensor)
    Detection Method

    Diffusion type, flow type, pipeline type
    Resolution

    O₂:0.1%Vol EX:1%LEL CO:1ppm H₂S:1ppm
    Accuracy

    ≤±3%
    Repeatability

    ≤±1%
    Zero Drift

    ≤±1% (F.S/year)
    Response Time

    ≤20 seconds (T90) T90 depends on sensor characteristics
    Recovery Time

    ≤20 seconds (T90-T10 depends on sensor characteristics)
    Explosion-proof Signs

    Exd II CT6 Gb(-40℃～60℃)
    Output Form

    220VAC 0.5A or 5VDC 0.5A
    The Main Material

    316 stainless steel, ADC12 aluminum alloy
    Installation Method

    pipeline type, Wall-mounted type
    Operating Temperature

    -20℃～50℃ (infrared/fluorescence gas sensor), -20℃～50℃ (pid principle sensor), -40℃～270℃ (special catalytic combustion), -40℃～50℃(electrochemistry), -40℃～70℃ (ordinary catalytic combustion principle sensor), -40℃～70℃ (thermal conductivity principle sensor), -40℃～750℃ (zirconia principle oxygen sensor)
    Working Humidity

    ≤95%RH no condensation, humidity >90%RH condensation can be equipped with a filter
    Relative Humidity

    10%～95%RH
    Visible Distance

    ≥10 meters (5.0 vision)
    Direct Reading

    alarm value, Measured value
    Operation Method

    Remote control + four-button operation
    Operating Mode

    administrator mode, user mode
    Calibration

    Target point calibration function
    Power Supply

    12-35VDC
    Power Consumption

    conductivity sensor: P≤2.9W, Electrochemical sensor: P≤1.5W, Infrared sensor: P≤3.0W, Low power consumption catalytic, Ordinary catalytic sensor: P≤2.8W, PID sensor: P≤2.8W, sensor: P≤1.5W, Thermal
    Work Pressure

    0.02MPa～0.36MPa (zirconia principle oxygen sensor), 0.08MPa～0.6MPa (thermal conductivity principle sensor), 86KPa～106KPa (others)
    Alarm Mode

    Panel LED alarm
    Alarm Point Setting

    can be set by yourself
    Protective Function

    automatic sensor protection, intermittent detection, Lightning protection, surge protection, wiring fault-tolerant
    Audible Alarm

    Optional sound and light alarm: alarm sound > 90 decibels
    Size

    180mm*140mm*92mm (height*width*thickness)
    Weight

    About 1.6Kg
    Implementation Standards

    GB15322.1-2003
    Certified Product

    GB3836.1-2010
    Standard Accessories

    GB3836.2-2010
    Quality Assurance

    GB3836.4-2010
    Protection Level

    SIL certification (SIL SIL3); ISO9001
