Description

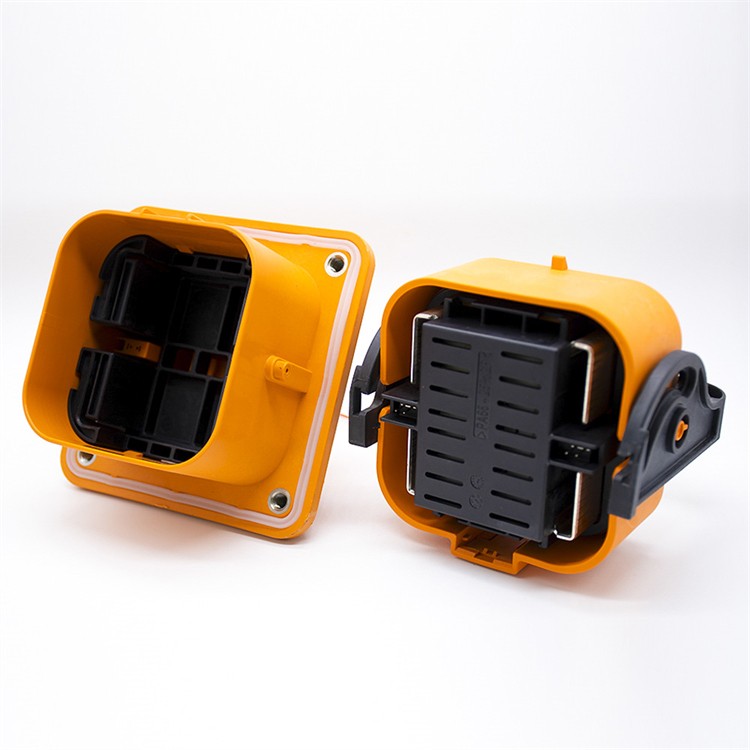

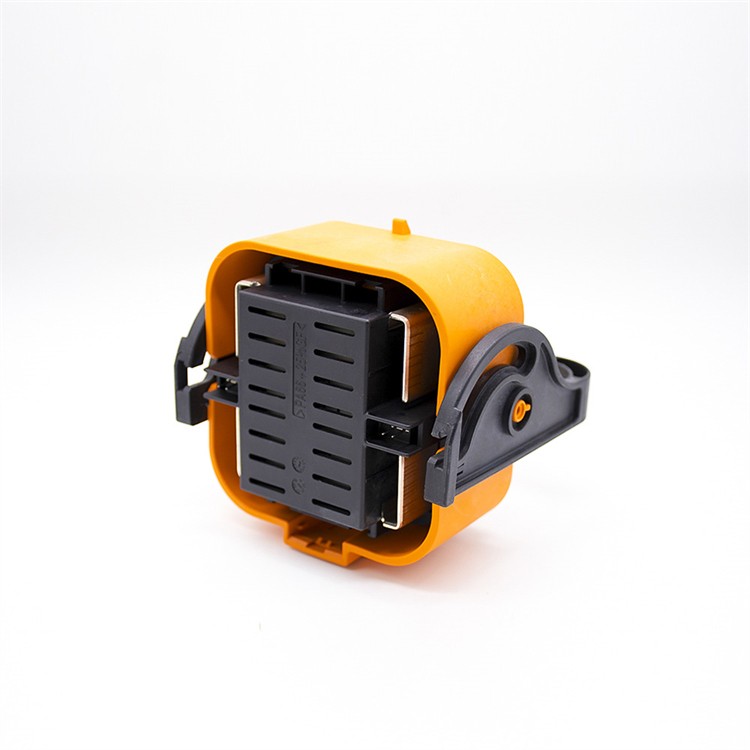

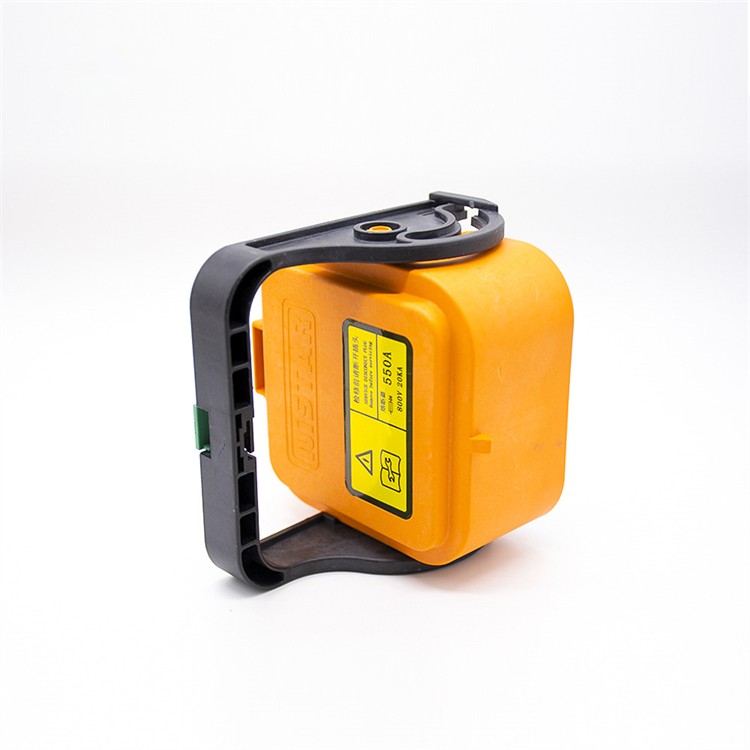

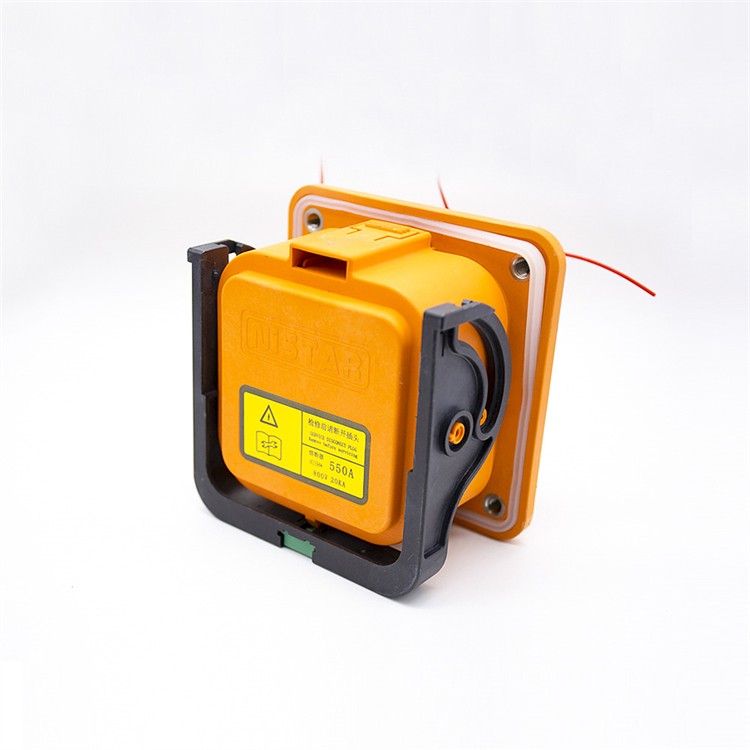

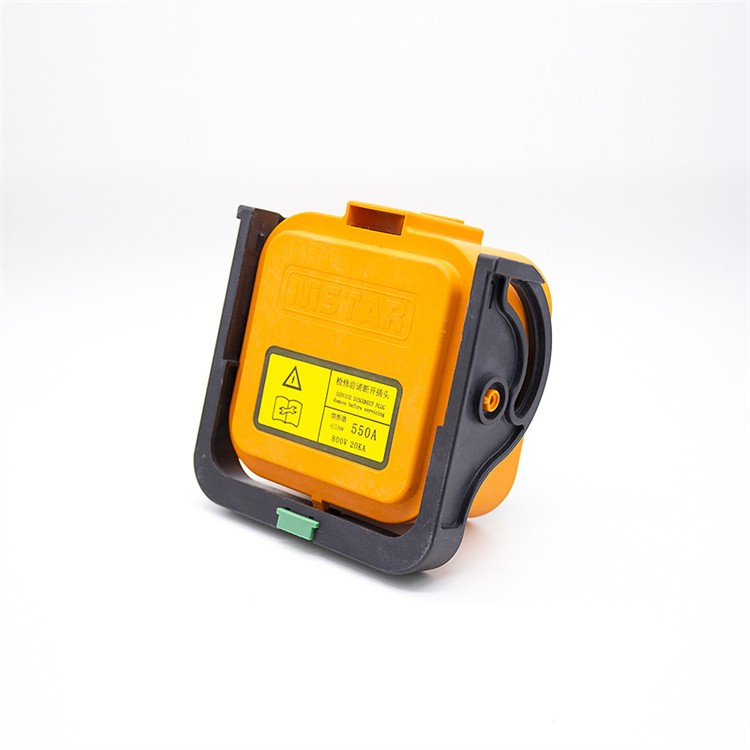

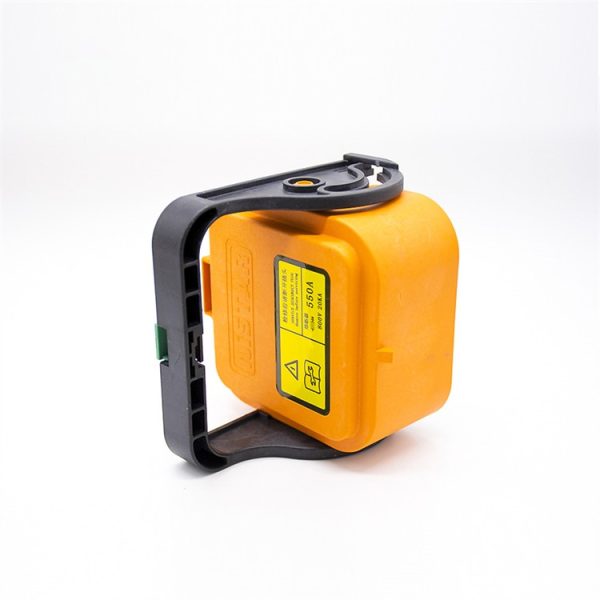

The MSD Connector is a specialized safety device with high-voltage interlock function designed for the high-voltage boxes or battery boxes of electric vehicles. Primarily used to protect against excessive current and allow quick disconnection of high-voltage circuits, it’s an essential tool for technicians working on or repairing electric vehicles.
Key Features
- Two-stage lever with HVIL time delay: Ensures safe and reliable power disconnection, minimizing the risk of electrical shock during maintenance or repair work.
- Integrated internal HVIL: Provides additional protection and peace of mind, preventing accidental contacts and reducing the potential for electrical hazards.

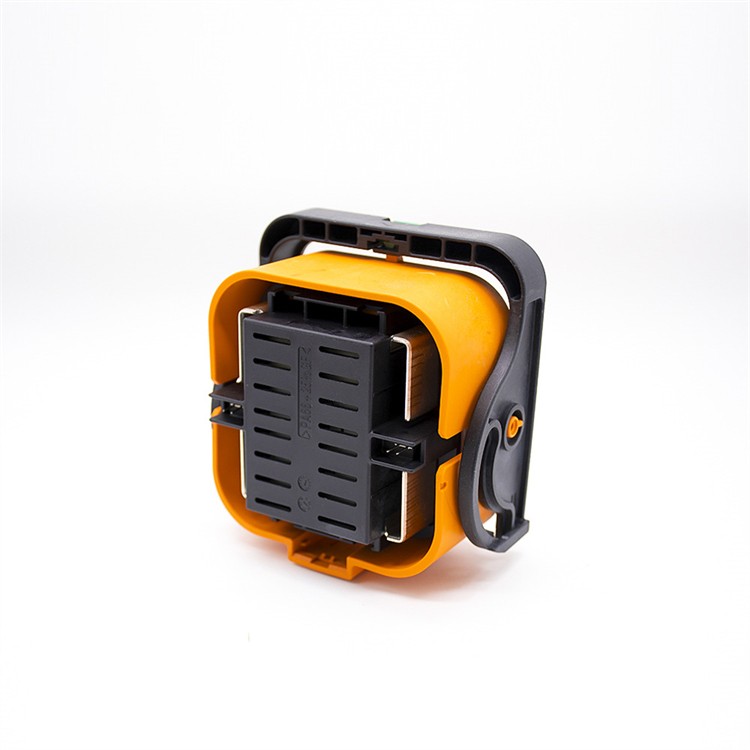

- Unique cooling structure: Our MSD Connector features an innovative cooling design that effectively dissipates heat, ensuring optimal performance and prolonging the lifespan of electrical components.
- Dual-channel design with lower temperature rise: Optimized electrical pathways and enhanced heat dissipation result in significantly lower temperature rise, reducing the risk of overheating and ensuring reliable operation.
- Easy and tool-free unmatting: No need for specialized tools or equipment to disconnect the MSD Connector, saving time and effort during service or maintenance tasks.

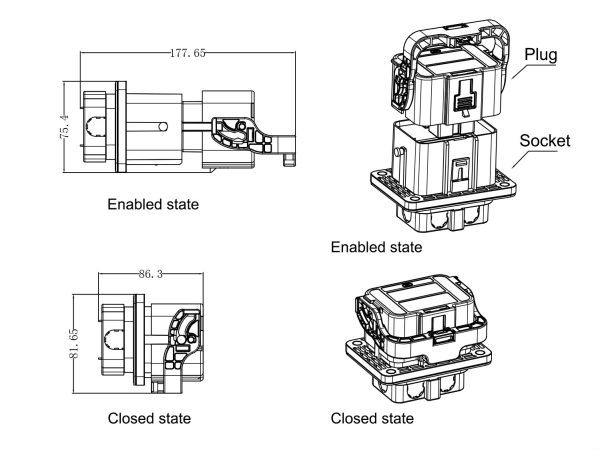

MSD Connector Drawing
Application
Motor drive unit of an elect
Q: How does the unique cooling structure of the MSD Connector benefit me?
A: The MSD Connector is designed with a unique cooling structure that ensures lower temperature rise during operation. This prevents overheating and increases the overall efficiency and performance of the device.
Q: Can you explain the dual-channel design of the MSD Connector?
A: The MSD Connector incorporates a dual-channel design, which enhances its reliability and safety. This design allows for better signal transmission and reduces the risk of electrical interference.
Q: Is it easy to disconnect the MSD Connector?
A: Yes, disconnecting the MSD Connector is extremely easy as it does not require any tools. This makes it convenient and hassle-free to unmate the connector whenever needed.
Q: Can the receptacle of the MSD Connector be placed in different positions?
A: Absolutely! The receptacle of the MSD Connector can be mounted either in the front or rear position, providing you with versatility and enabling easy integration into your setup.
