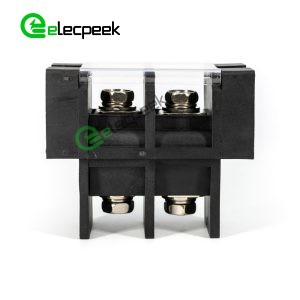

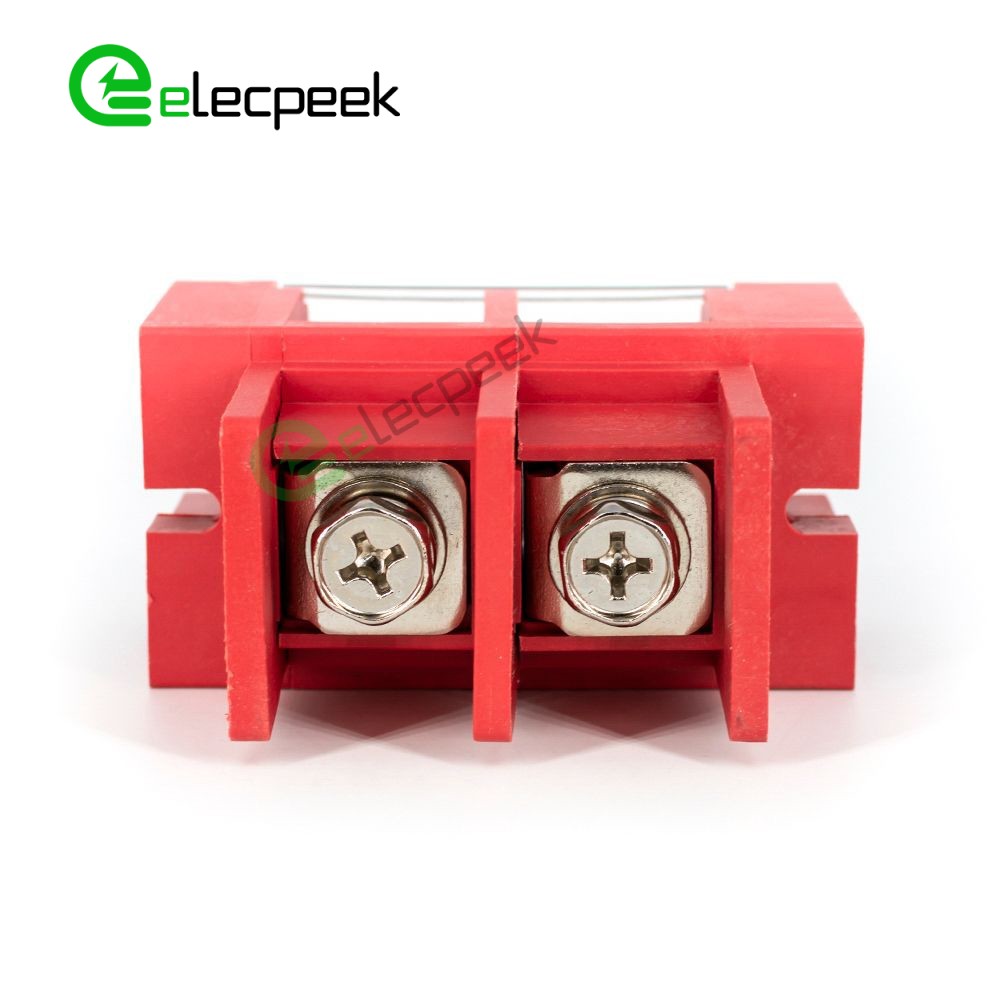

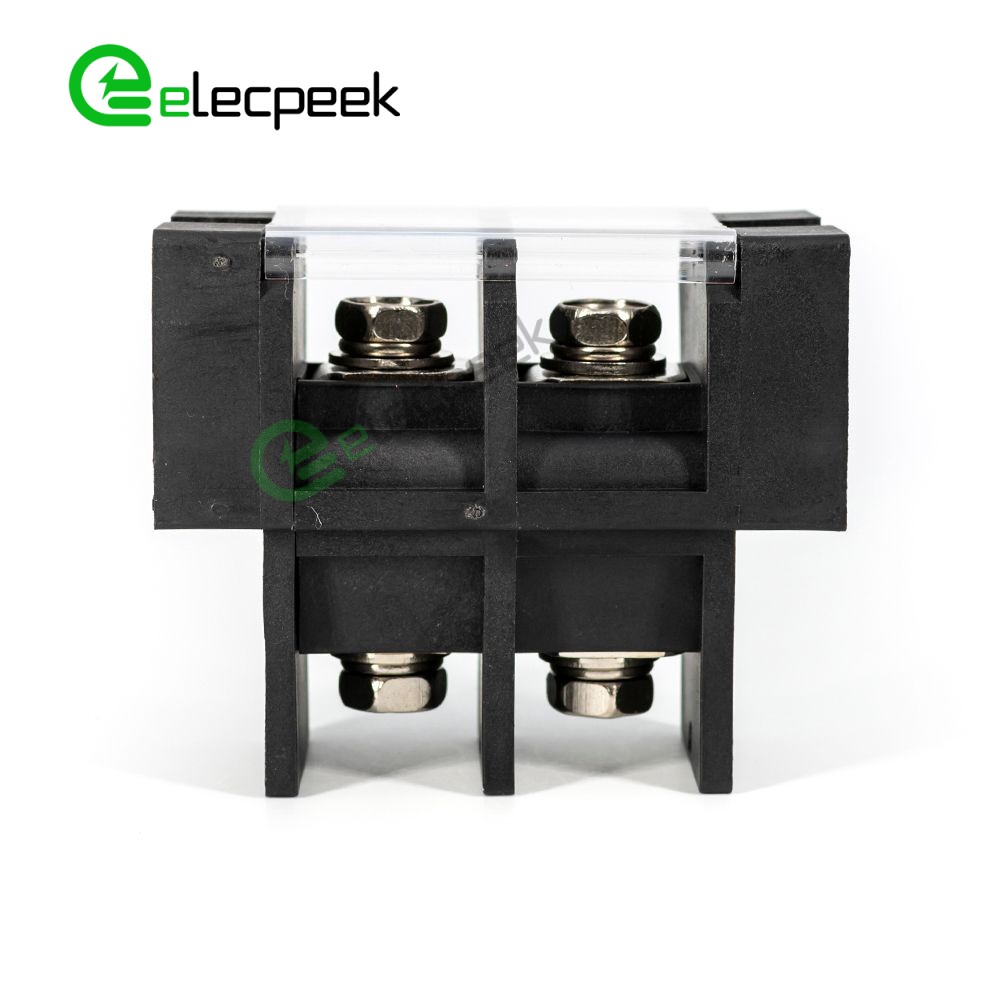

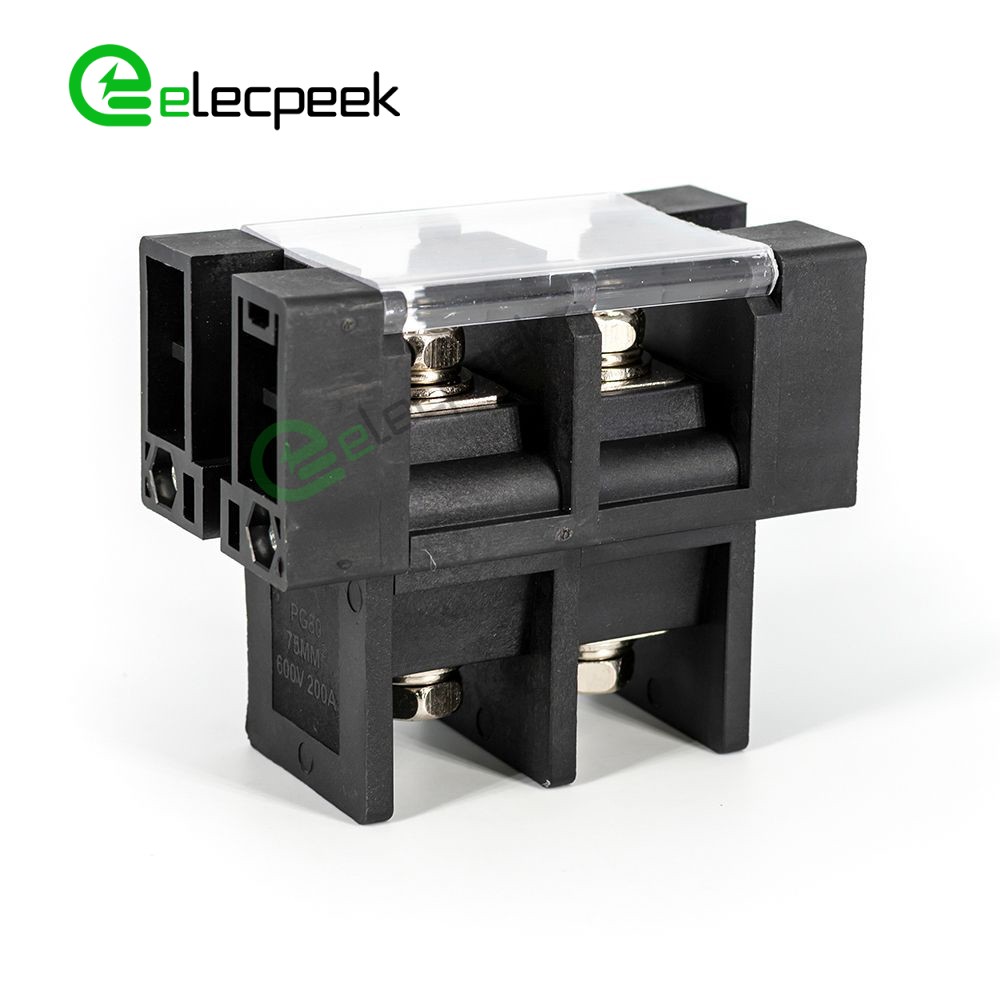

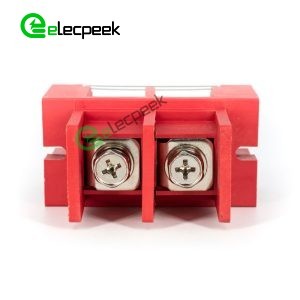

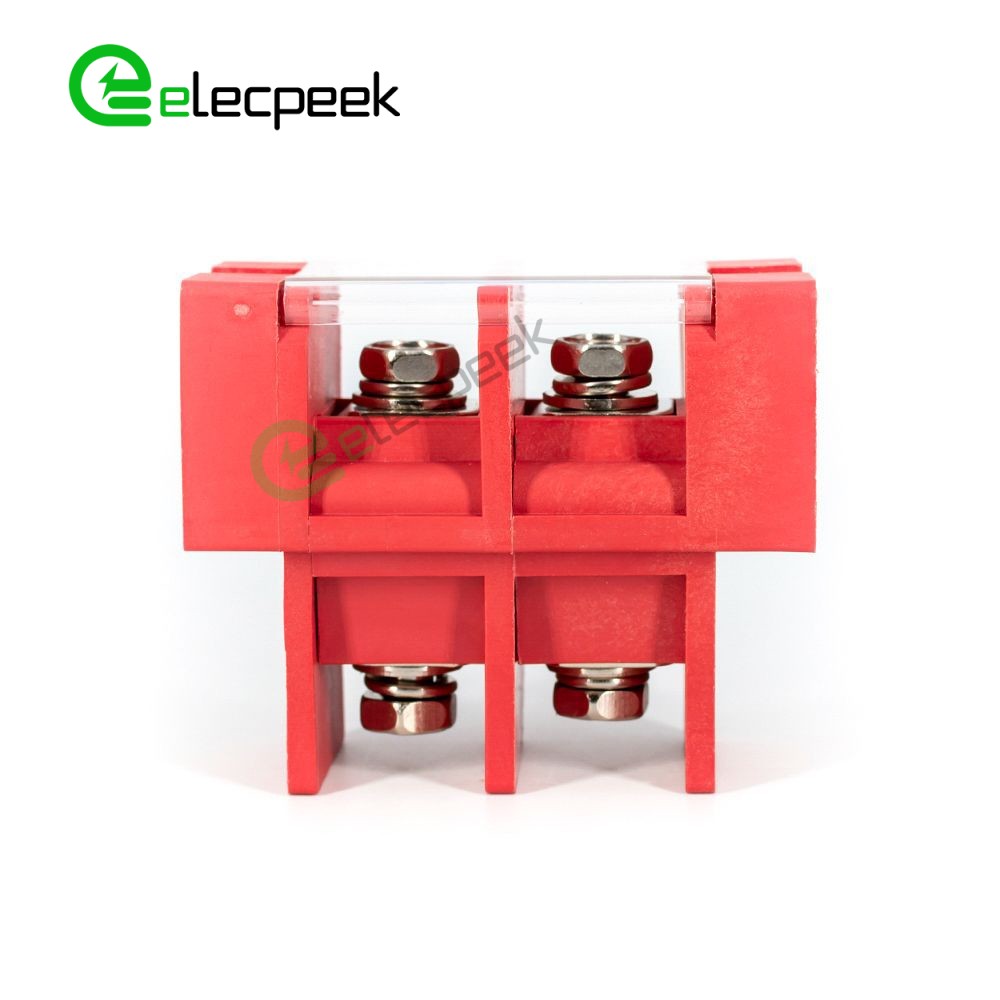

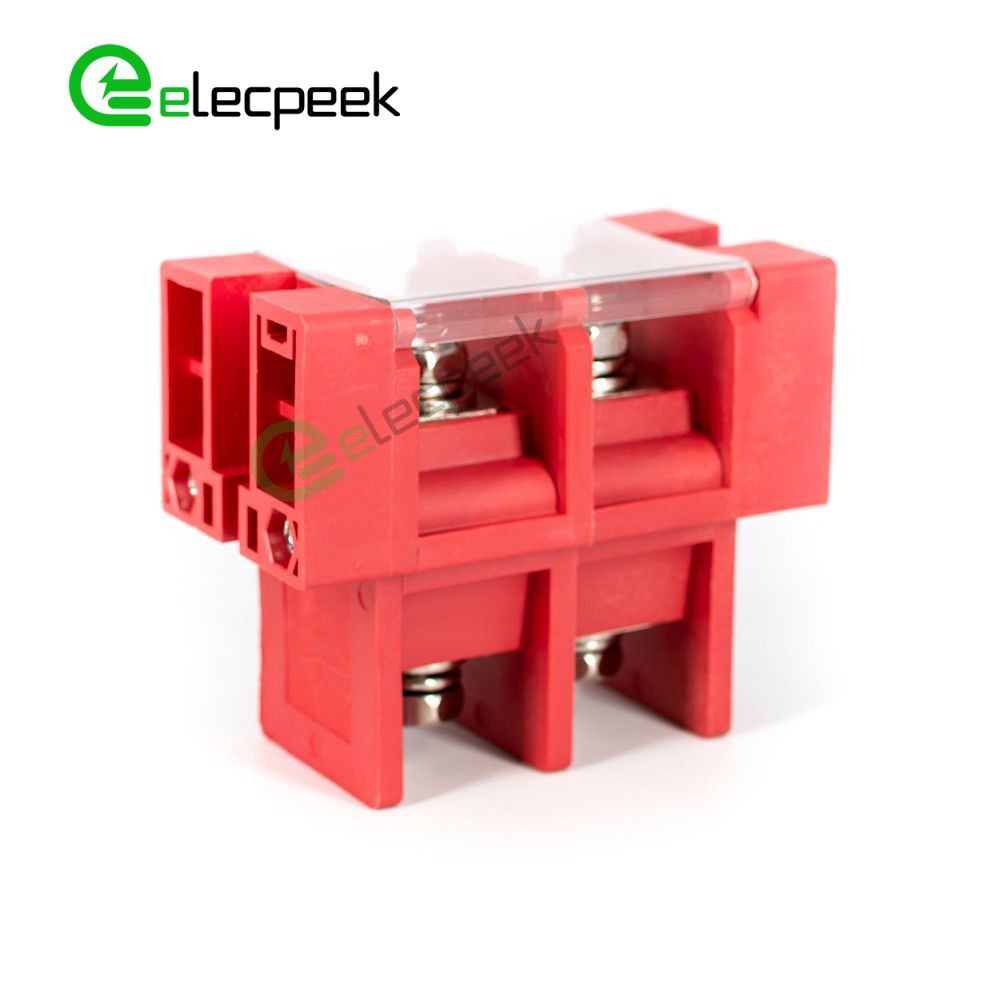

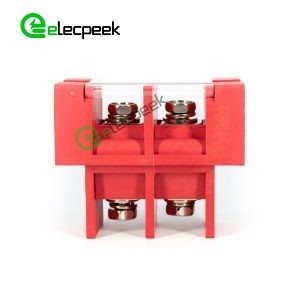

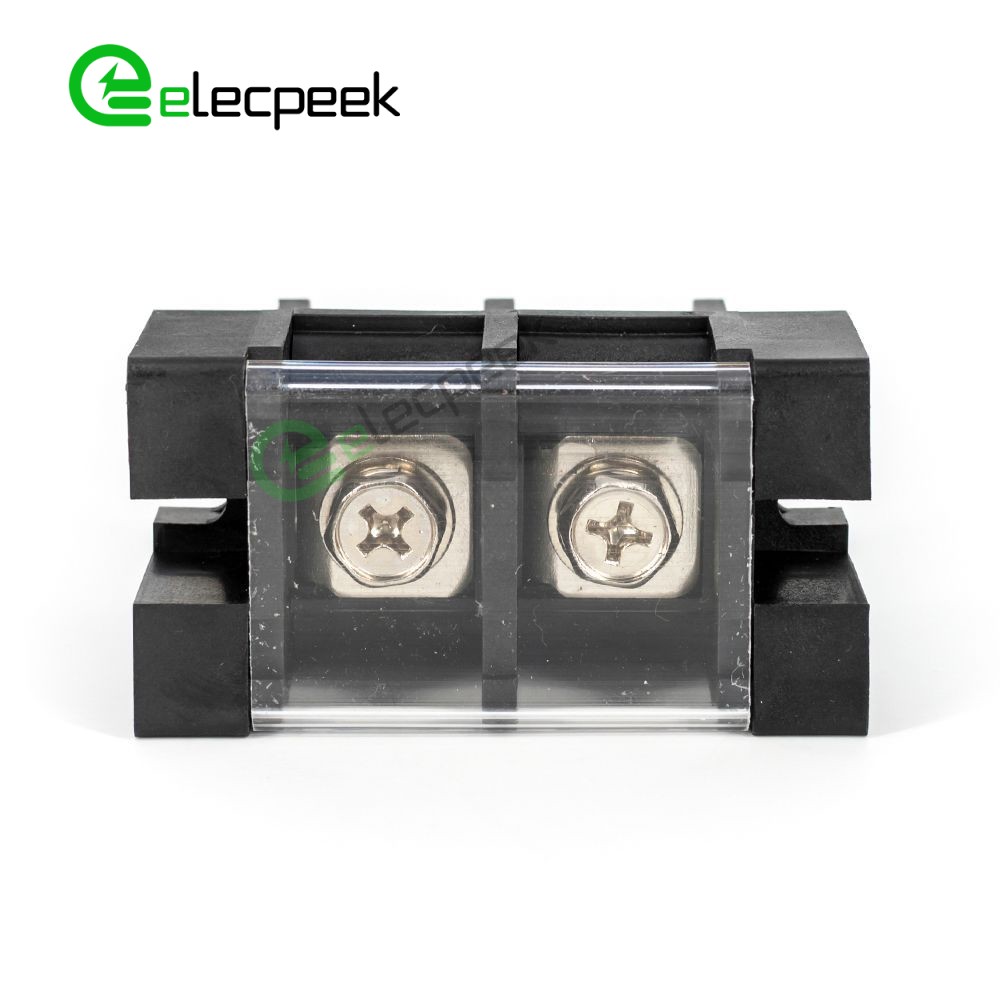

High Current Panel Feed Through Terminal Block 200A 2 Pin 600V 80mm2 UL94-V0

SKU: RHT-PG80-00-27.0-02P-C-200A Tags: Datasheet
  • Single In/Out, Two In One Out, Customizable
  • Three styles to choose from, consult customer service for details.
  • Pure Copper Thickened Conductor
  • Flame Retardant V0 Shell
  • Load Stability
  • Thickening Electroplating

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    The Panel Feed Through Terminal Block Connector is a versatile and dependable solution for seamless electrical connections. Crafted with a metal core enclosed in durable insulating plastic, this connector is optimized for both high current and high voltage environments. It features a straight orientation with copper contact material, catering to various pitches and positions. Available in both red and black, the connector is resilient across a temperature range of -40°C to +105°C.

    Applications:
    Primarily used in PCB setups, power supplies including frequency converters, server sites, and electric lighting, this connector is equally pivotal in motor and industrial controls, rail transportation, communication systems, and safety infrastructure like security and medical equipment.

    Its compact yet flexible design ensures a safe, reliable, and effective connection across diverse industries and applications.

    100A High Current Feed Through Terminal Block 2 Pin 600V 38mm2 Panel Mount Feature

    Product Type
    Orientation: Straight
    Number Of Input Positions: 2
    Number Of Output Positions : 2
    Color: Black, Red
    Mounting Type: Panel Mount
    Docking Method: Thread
    Terminal Block Type : Bulkhead Terminal Block
    Top Termination: Screw with Fastening Plate
    Bottom Termination: Screw
    Terminal Material: Cooper
    Insulation Material: PBT
    Pitch: 27mm
    Wire Gauge: 80mm²
    Electrical
    Rated Current: 200A
    Rated Voltage: 600V
    Withstand Voltage Value: AC 3000V
    Insulation Resistance: DC 500V 1000MΩ or more
    Operating Temperature -40℃～105℃
    Standards and Specifications
    Relative Humidity: 5% to 95%
    Flammability: UL94-V0

    Panel Feed Through Terminal Block Drawing

    Weight 107 g
    Weight 107 g
    Weight 107 g
    Orientation

    Straight
    Number of Input Positions

    2
    Number of Output Positions

    2
    Color

    Red
    Mounting Type

    Panel Mount
    Docking Method

    Thread
    Terminal Block Type

    Bulkhead Terminal Block
    Top Termination

    Screw with Fastening Plate
    Bottom Termination

    Screw
    Terminal Material

    Cooper
    Insulator Material

    PBT
    Current Rating

    200A
    Voltage Rating

    600V
    Withstand Voltage Value

    AC 3000V
    Insulation Resistance

    DC 500V 1000MΩ or more
    Pitch

    27mm
    Wire Gauge

    80m㎡
    Working Temperature

    -40℃～105℃
    Relative Humidity

    5% to 95%
    Flammability Rating

    V0
