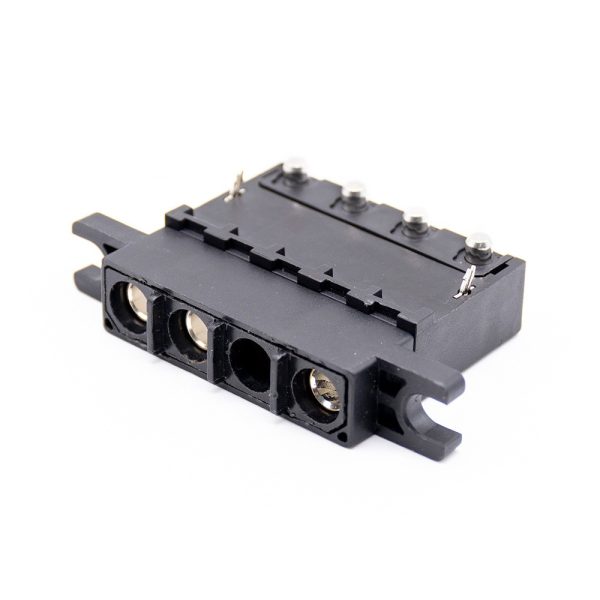

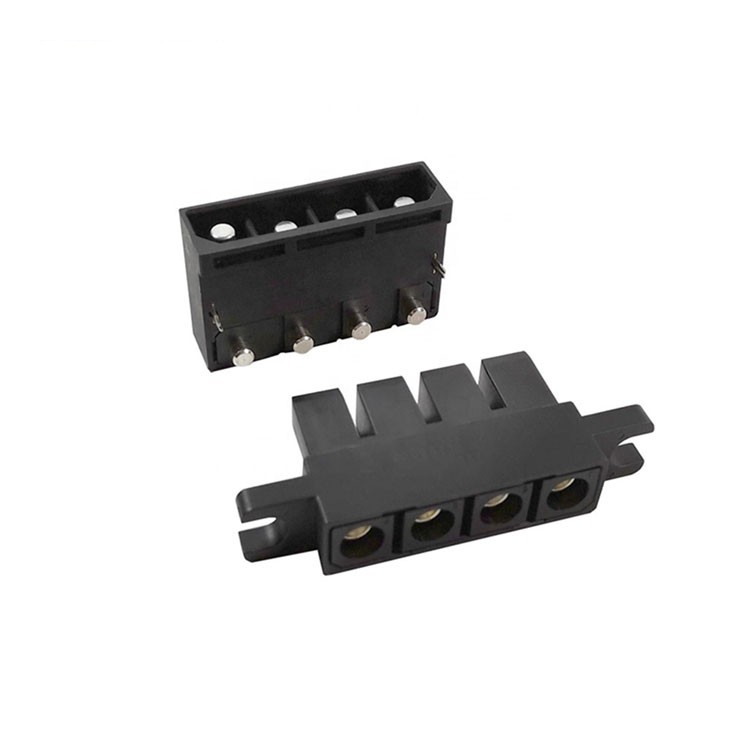

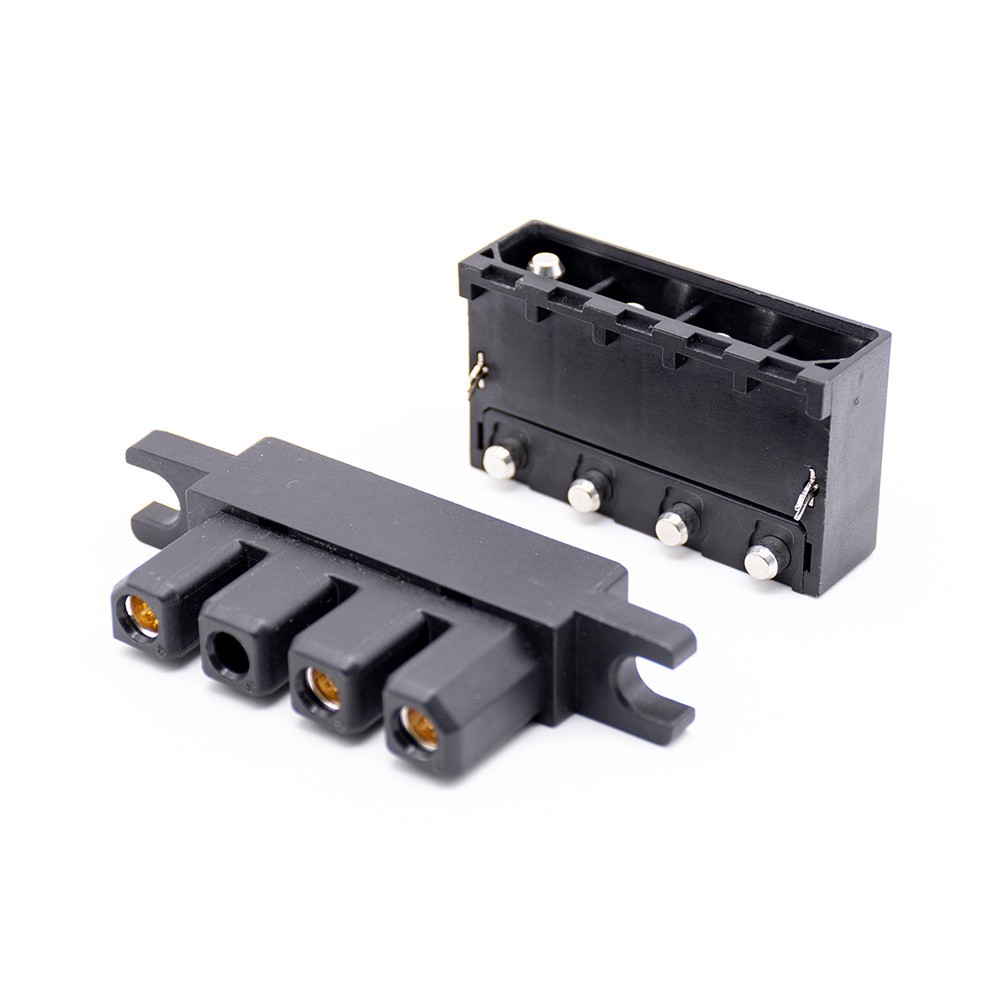

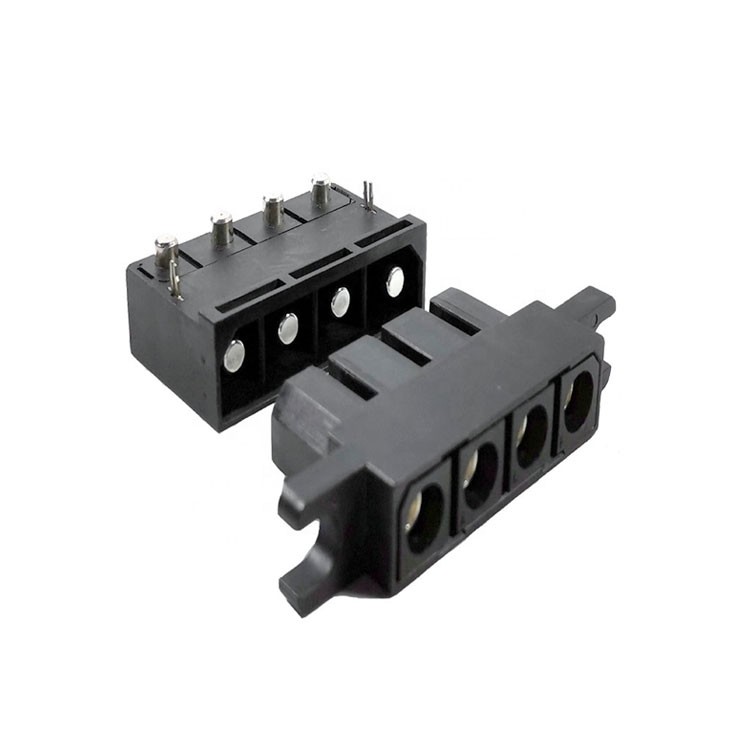

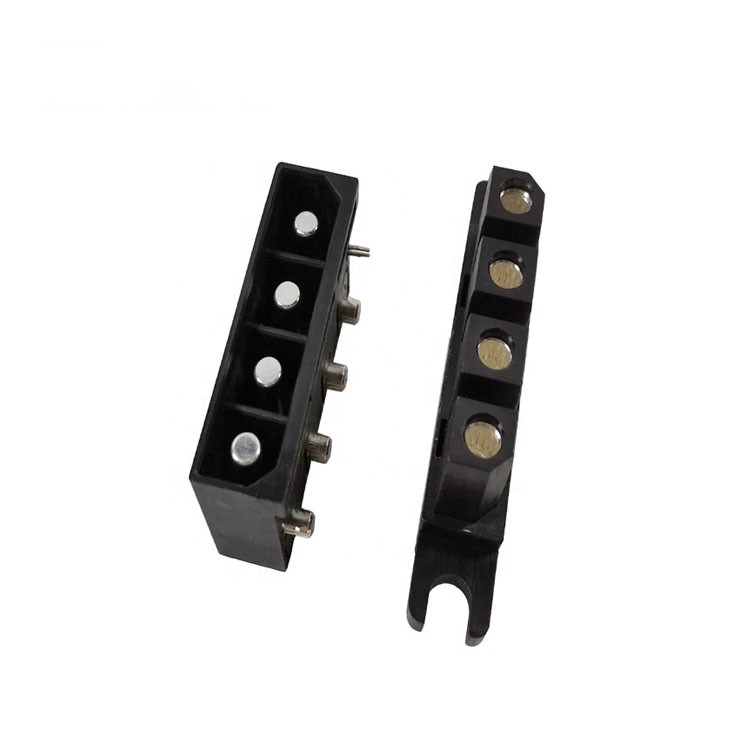

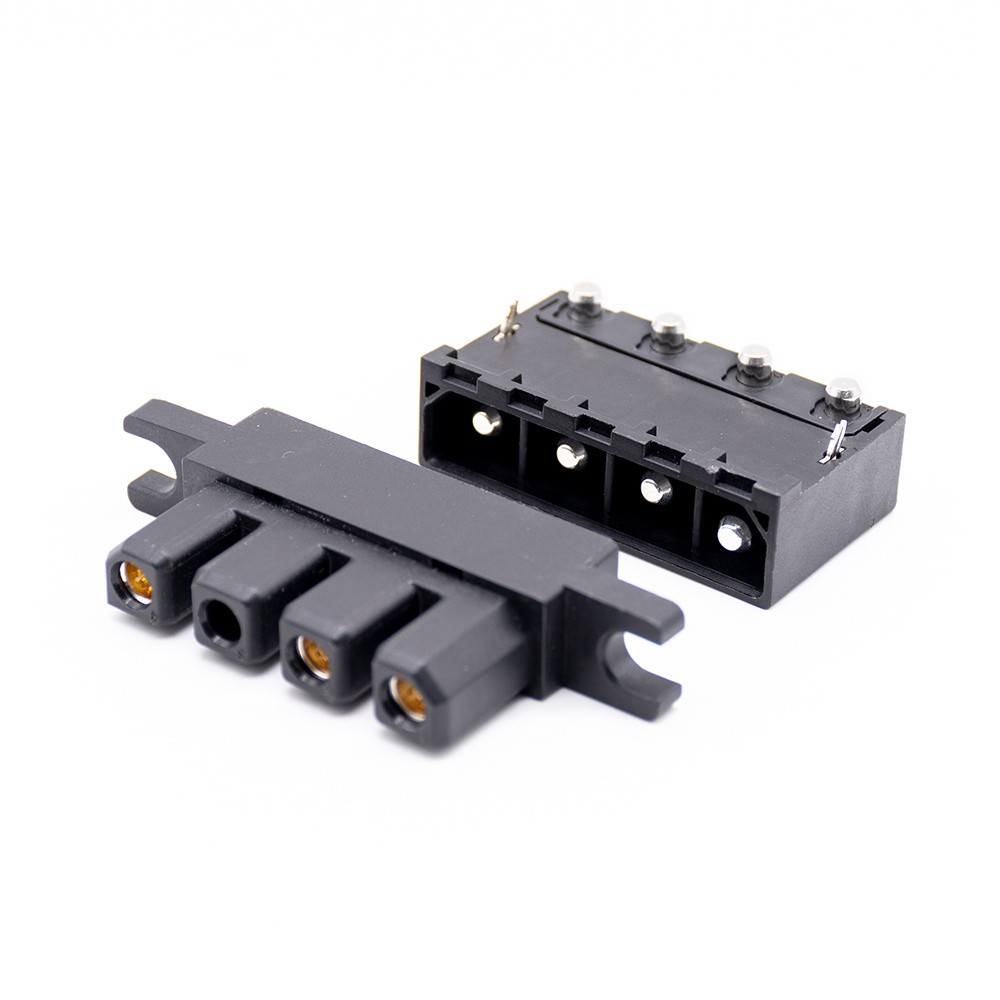

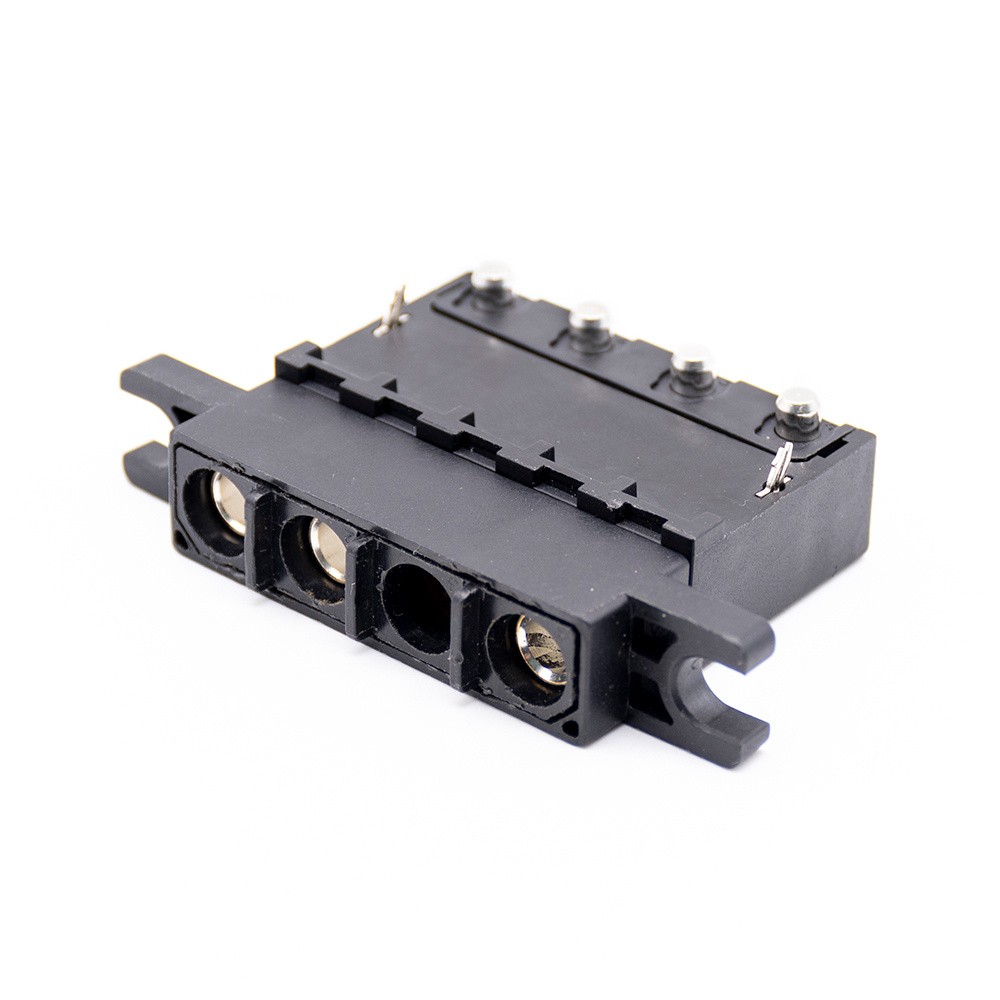

Power Drawer Connector High Current Heavy Load 4 Pin 85A Right Angle Male Female

  • Reliable Connection, Soft Insertion.
  • Removal, Low Insertion Force.
  • Low Contact Resistance.
  • High Load Current.
  • Excellent Performance.
  • Custom design flexibility.
  • Options for power contact spacing.
  • High strength housings

Get a Quotation



The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength.

Power Drawer Connector High Current Heavy Load 4 Pin 85A Right Angle Male Female Feature

Product Type
Gender: Female, Male
Orientation: Right Angle, Straight
Number Of Positions: 4 Pin
Mounting Type: Panel Mount
Contact Termination: Crimp, Solder
Shell Material: PBT
Contact Material: Copper, Copper Alloy
Contact Finish: Gold Plating, Silver Plating
Electrical
Rated Current: 85A
Withstand Voltage: 3000V
Insulation Resistance: ≥1000MΩ
Contact Resistance: ≤1.0MΩ
Mechanical
Mating Cycles: > 1000
Mating Cycles
Operating Temperature: -55℃~+125℃

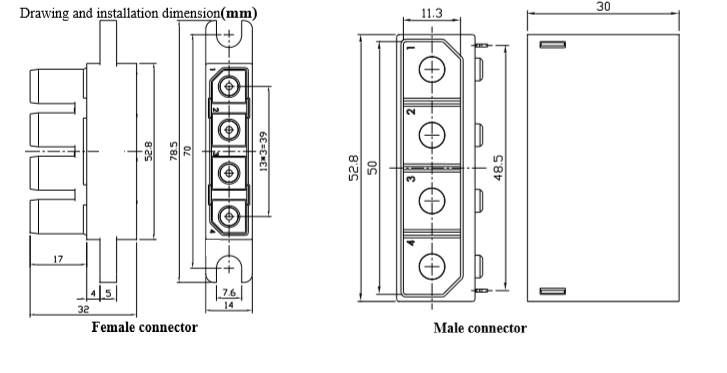

Power Drawer Connector High Current Heavy Load 4 Pin 85A Right Angle Male Female Drawing

Weight 52 g
Number of Positions

4 Pin

Mount Style

PCB Tail(B)

Current Rating

85A

Orientation

Right Angle

Gender

Male, Female
