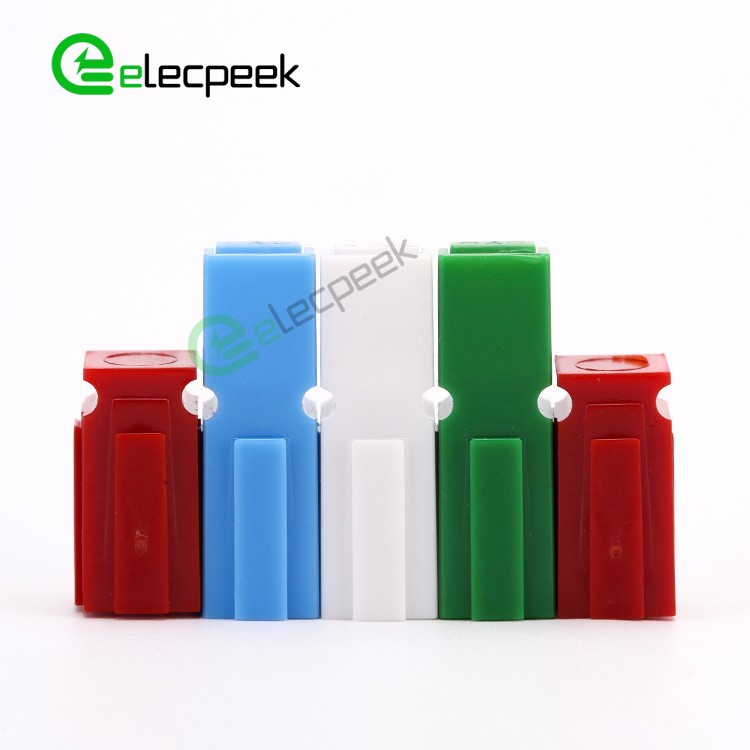

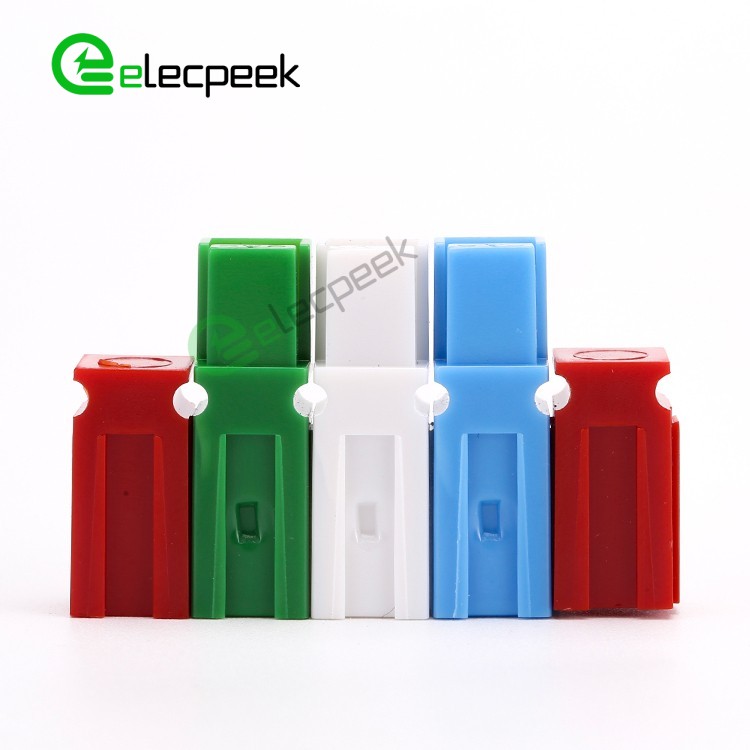

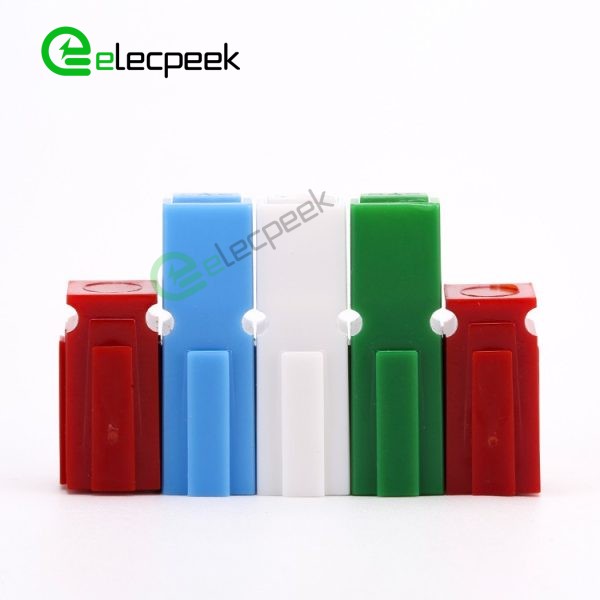

Designed for versatile, durable, and safe usage, our 1 Way Forklift Battery Power Cable Connectors are ideal for electric forklifts, material handling equipment, ground support vehicles, and golf carts.
Built with impact-resistant polycarbonate, the connectors feature a rugged PC case and superior dielectric properties, ensuring both physical strength and electrical safety. The unique mechanical key prevents accidental mating of connectors of different colors. The Forklift Battery Connectors provide fast dial functionality and automatic cleaning of contact surfaces upon plugging and unplugging, minimizing arcing during these actions. Crafted with stainless steel shrapnel and tin or silver-plated copper, the connectors ensure low contact resistance and stable performance.
Safety is paramount with fitted rubber boot covers for dust and moisture protection, and one-way connection features that eliminate the risk of reverse polarity. These heavy-duty components are efficient for low to medium current applications and can withstand over 10,000 connect/disconnect actions. Operating temperatures range from -20 to 125 degrees Celsius.
Red Plastic Housing 1 Way Forklift Battery Cable Connector 50A Feature
| Product Type |
|
| Number Of Positions: |
1 Pin |
| Color: |
Red |
| Contact Finish: |
Silver Plating |
| Contact Material: |
T2 |
| Contact Termination : |
Crimp |
| Mounting Type: |
Free Hanging |
| Shell Material: |
PC |
| Wire Gauge: |
10AWG |
|
|
| Electrical |
|
| Rated Current: |
50A |
| Rated Voltage: |
600V |
| Contact Resistance: |
<500μΩ |
| Insulation Resistance: |
5000μΩ |
| Operating Temperature: |
-20℃~+105℃ |
|
|
| Standards and Specifications |
|
| Flammability: |
V0 |
|
|
| Mechanical |
|
| Mating Cycles: |
≥10000 |
Red Plastic Housing 1 Way Forklift Battery Cable Connector 50A Drawing
