The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength.

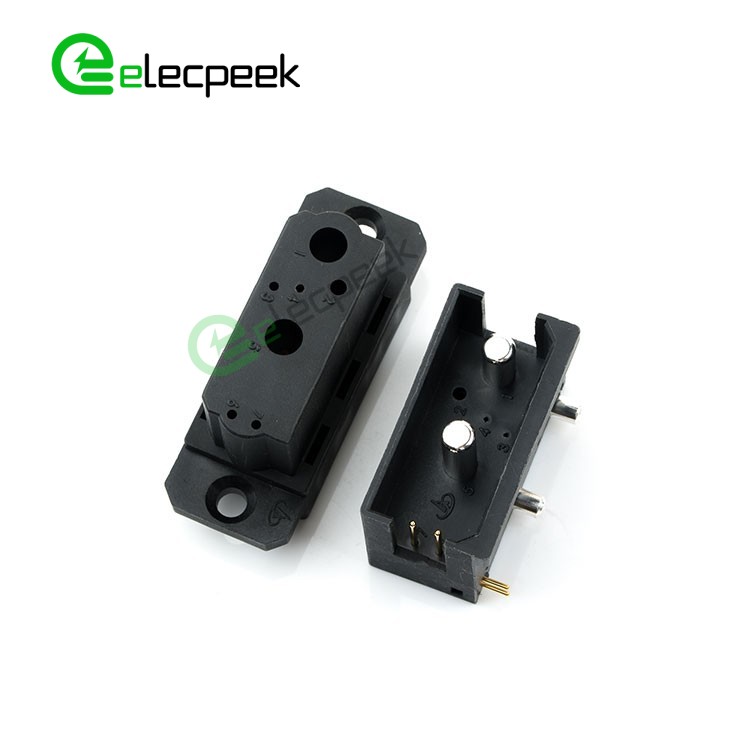

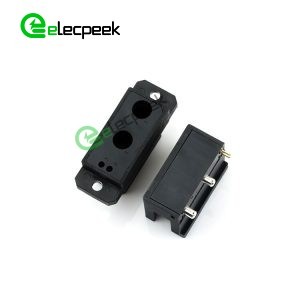

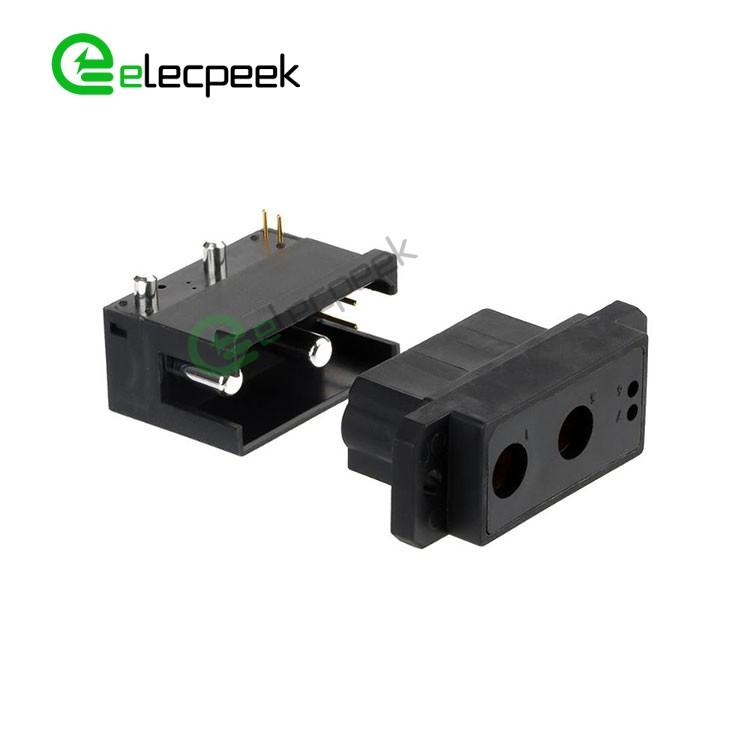

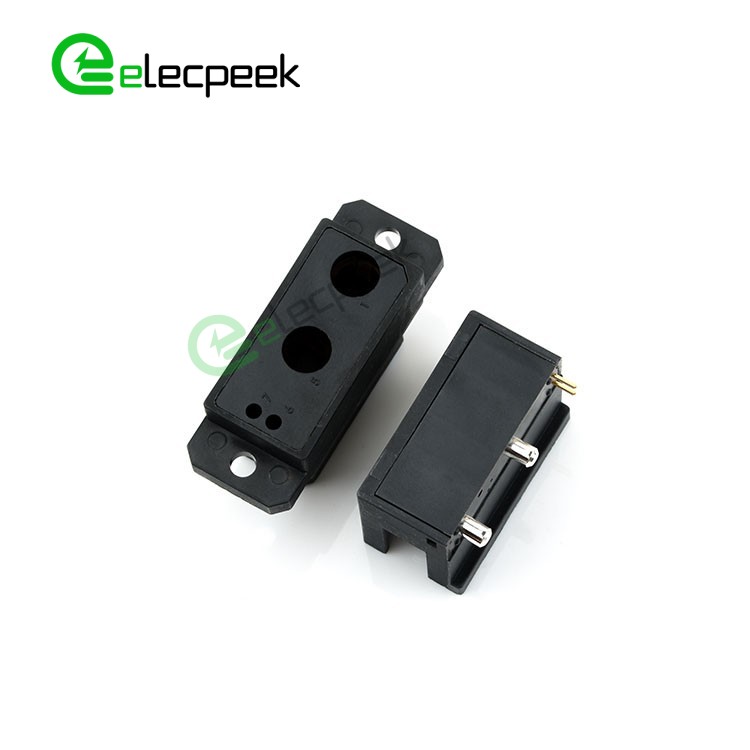

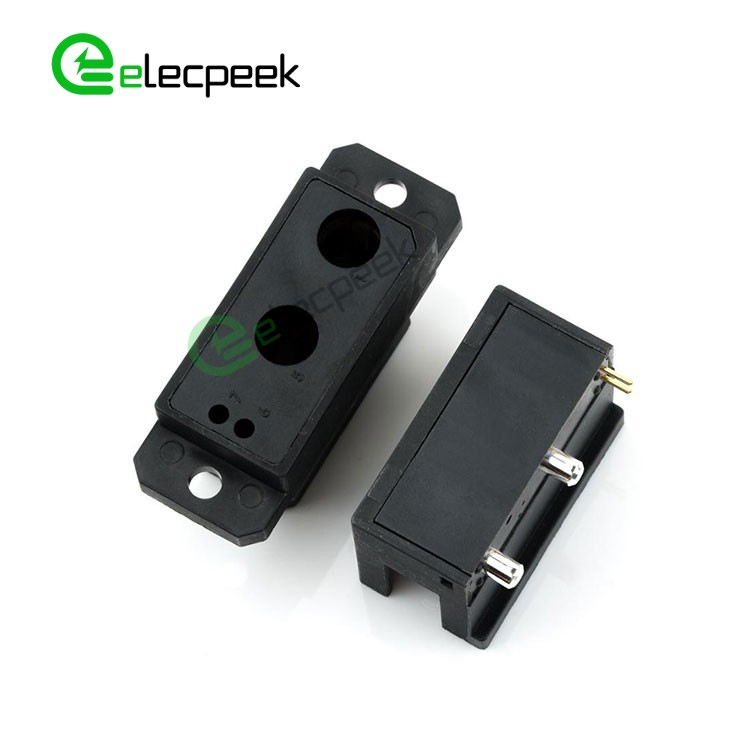

Right Angle 4 Pin Power Drawer Connector High Current Heavy Load 65A Feature
| Product Type |
|
| Gender: |
Female, Male |
| Orientation: |
Straight |
| Number Of Positions: |
4 Pin |
| Mounting Type: |
Panel Mount |
| Contact Termination: |
Crimp, Solder |
| Shell Material: |
PBT |
| Contact Material: |
Copper, Copper Alloy |
| Contact Finish: |
Gold Plating, Silver Plating |
| Contact Quantity: |
2Pin Power (Φ5.0: 65A)+2Pin Signal (20#:5A) |
|
|
| Electrical |
|
| Rated Current: |
65A |
| Withstand Voltage: |
3000V |
| Insulation Resistance: |
≥1000MΩ |
| Contact Resistance: |
≤1.0MΩ |
|
|
| Mechanical |
|
| Mating Cycles: |
> 1000 |
|
|
| Mating Cycles |
|
| Operating Temperature: |
-55℃~+125℃ |

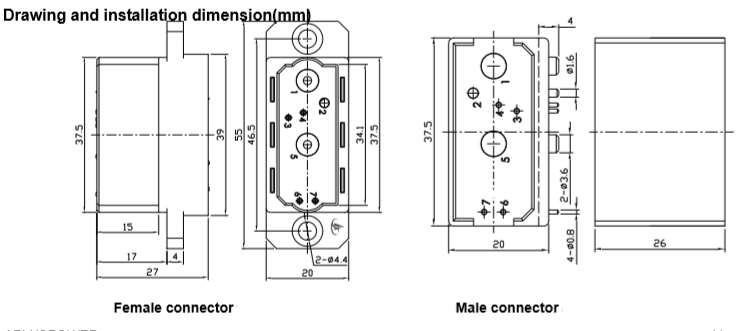

Right Angle 4 Pin Power Drawer Connector High Current Heavy Load 65A Drawing
