Right Angle Power Drawer Connector High Current Heavy Load 18 Pin 35A 1500V

SKU: RHT-18 Tags:
  • Reliable Connection, Soft Insertion.
  • Removal, Low Insertion Force.
  • Low Contact Resistance.
  • High Load Current.
  • Excellent Performance.

Get a Quotation

Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.




    The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength.

    Right Angle Power Drawer Connector High Current Heavy Load 18 Pin 35A 1500V Feature

    Product Type
    Gender: Female, Male
    Orientation: Right Angle, Straight
    Number Of Positions: 18 Pin
    Mounting Type: Panel Mount
    Contact Termination: Crimp, Solder, Solder Cup
    Shell Material: PBT
    Contact Material: Copper, Copper Alloy
    Contact Finish: Gold Plating, Silver Plating
    Contact Quantity: 7Pin Power (12#:35A)+11Pin Signal (22#:5A)
    Electrical
    Rated Current: 35A
    Withstand Voltage: 1500V
    Insulation Resistance: ≥1000MΩ
    Contact Resistance: ≤1.0MΩ
    Mechanical
    Mating Cycles: > 1000
    Mating Cycles
    Operating Temperature: -55℃~+125℃

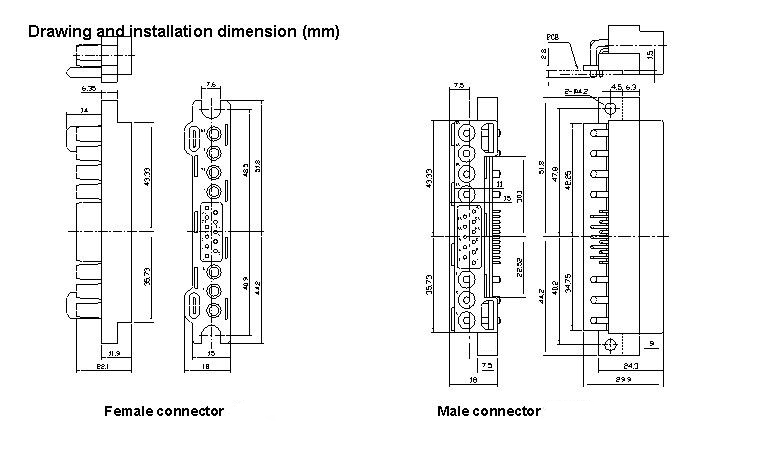

    Right Angle Power Drawer Connector High Current Heavy Load 18 Pin 35A 1500V Drawing

    Weight 68 g
    Weight 68 g
    Weight 68 g
    Number of Positions

    18 Pin
    Contact Quantity

    7Pin Power (12#:35A)+11Pin Signal (22#:5A)
    Mount Style

    PCB Tail(B)
    Current Rating

    35A
    Orientation

    Right Angle
    Gender

    Male, Female
