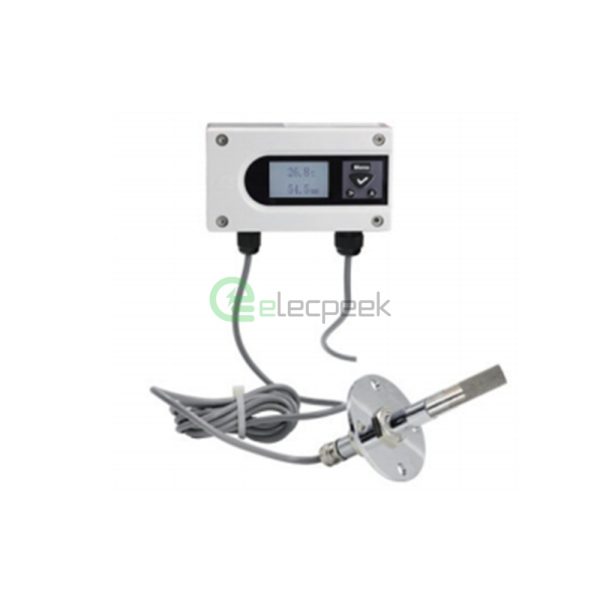

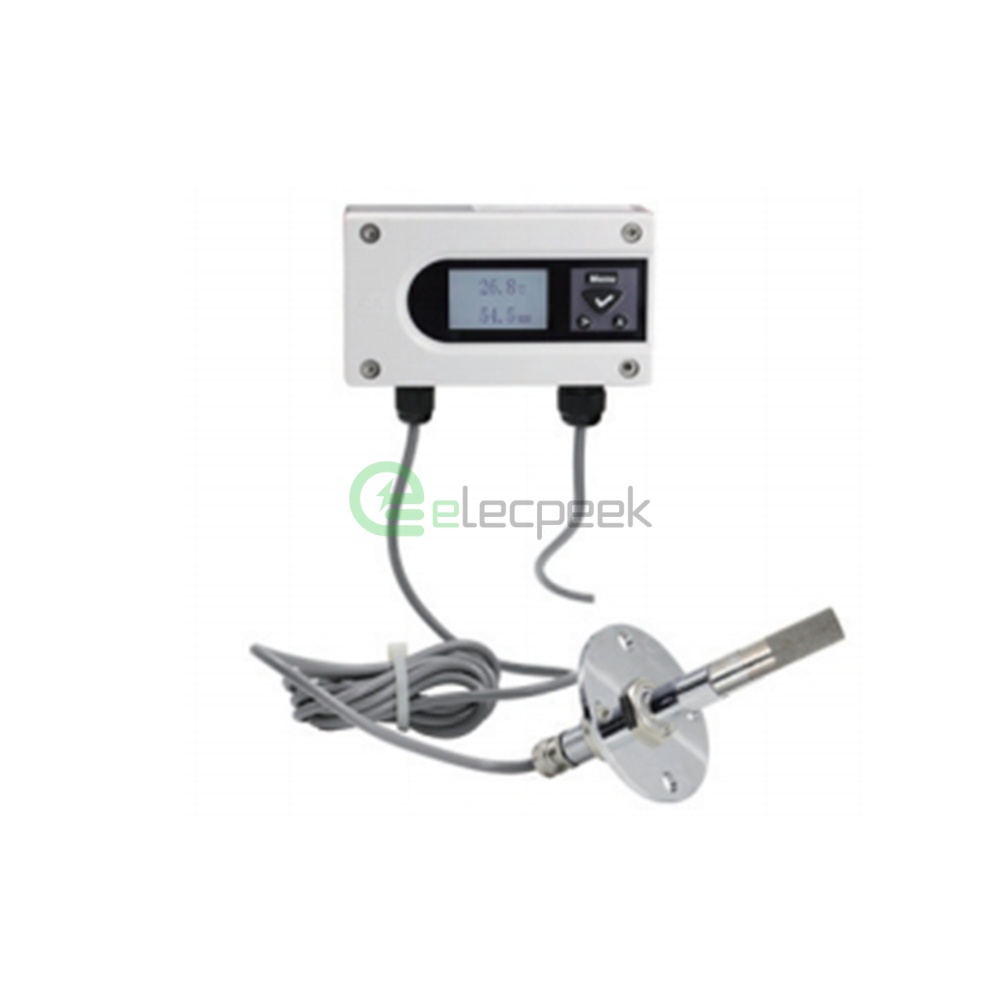

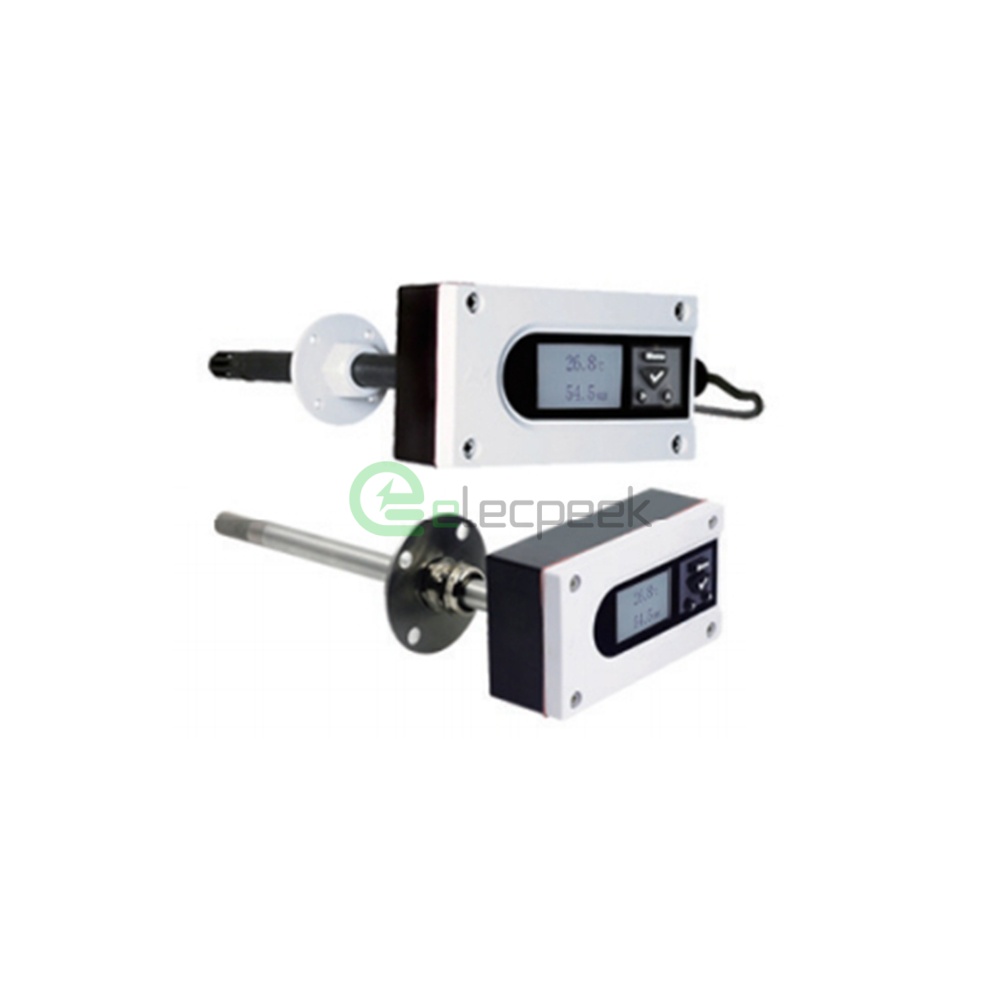

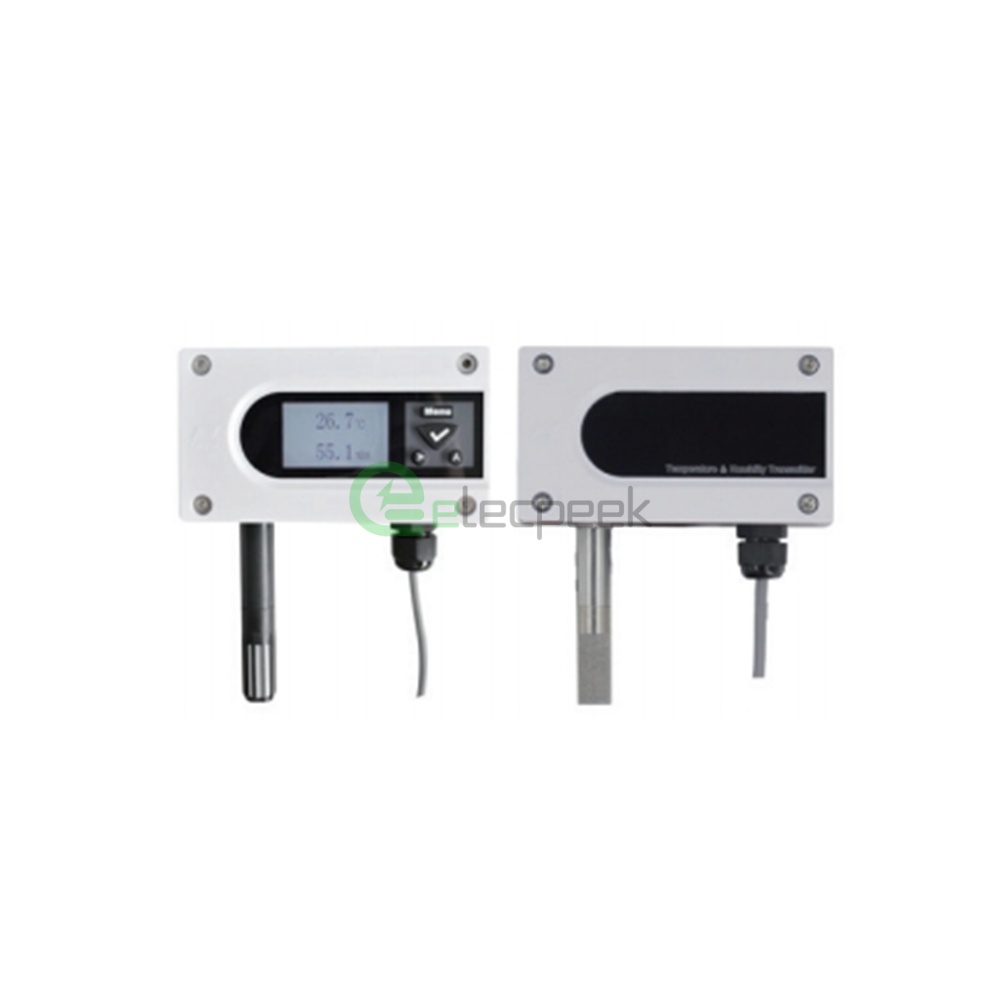

Wall mounted Pipe type Split type Typical High-Precision Temperature And Humidity Transmitter

SKU: EP-JWSX-5

High-precision wall-mounted pipe type transmitter for temperature and humidity measurement. Ideal for typical applications requiring accurate and reliable data.

Get a Quotation

Description
Technical Data

Products Detail

Measuring Range	Dew point: 50℃~100℃ (fixed range, Humidity: 0%RH~100%RH, no display, no this function), Temperature: -20℃~60℃ (wall-mounted type), Temperature: -40℃~120℃ (split type), Temperature: -40℃~80℃ (pipe type)
Accuracy	25℃), Humidity: ±2%RH (5%RH~95%RH, Temperature: ±0.3℃ (25℃) (5%RH~95%RH)
Supply Voltage	Current output type DC 24V (22V~26V), Network output type DC 24V (12V ~ 24V), Voltage output type DC 24V (12V ~ 24V)
Power Consumption	Current output ≤1.2W, Network output ≤0.48W, Voltage output ≤0.48W, With display increased 0.24W
Working Environment	Circuit operating temperature: -20℃~60℃ Humidity: 5% RH ~ 95% RH, Probe operating temperature: -40℃~120℃ Humidity: 0% RH ~ 100% RH (non-condensation)
Output Form	Current output type: three-wire system 4mA ~ 20mA, Network output type: RS485/RS232, Voltage output type: 0V ~ 5V/0V ~ 10V
LCD	dew point ℃, humidity %RH/temperature ℃, Temperature ℃
Display Resolution	0.1%RH 0.1℃
Load	current output ≤500Ω, Voltage output impedance ≤250Ω
Sensor Characteristics	≤0.1℃, ≤0.1℃; annual drift ≤1%RH, Repeatability ≤.5%RH
Installation Method	Pipe type flange or threaded, Split flange or threaded, wall-mounted fixed wall
Shell	ABS 125mmx70mmx41mm (excluding probe part)
Product Weight	ABS pipe type ≤210g, ABS wall-mounted type ≤10g, metal pipe type ≤500g, metal wall-mounted type ≤380g
Protection Level	IP66
