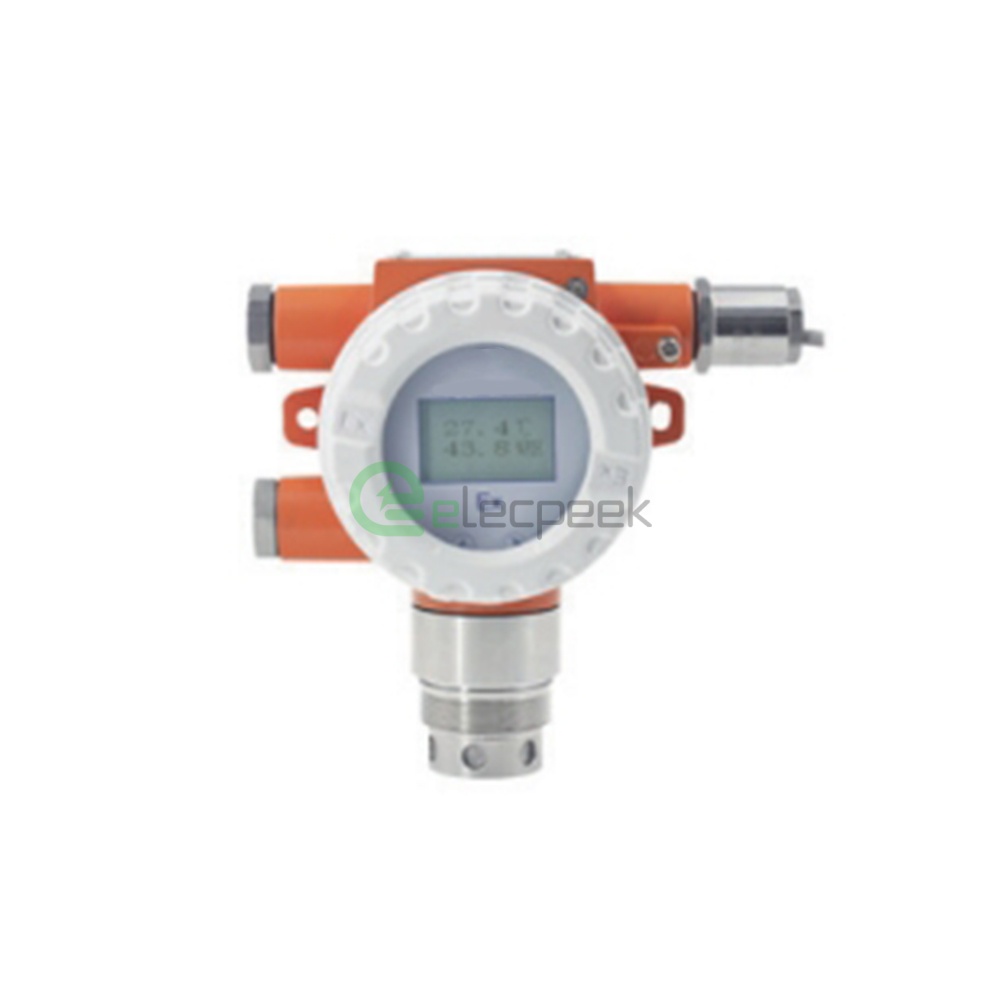

Wall mounted Pipeline Type Flame-proof Temperature and Humidity Transmitter

SKU: EP-JWSK-G

Wall-mounted flame-proof temperature and humidity transmitter for pipelines. Ideal for harsh environments, ensures accurate and reliable measurements.

Get a Quotation

Description
Technical Data

Measuring Range	Temperature:-40°C≤ Ta ≤ 60°C (Ex d IIC T6 Gb) -40°C≤ Ta ≤ 80°C (Ex d IIC T6 Gb) Humidity: 0°RH + 100°RH
Power Consumption	Current output: ≤1.2W, Network output: ≤0.48W, Voltage output: ≤0.48W, With display increase 0.12W
Accuracy	Grade A: Temperature ±0.5℃ (25℃) Humidity ±2% RH (5% RH ~ 95% RH 25℃), Grade B: Temperature ±0.5℃ (25℃) Humidity: ±3% RH (5% RH ~ 95% RH 25℃)
Working Environment	Circuit working environment Temperature: -40℃~65℃ /-40℃~85℃ Humidity: 5% RH ~ 95% RH, Probe working environment Temperature: -40℃~65℃ /-40℃~85℃ Humidity: 0% RH ~ 100% RH (non-condensation)
Output Form	Current output type 4mA~20mA, Network output type RS485/RS232, Voltage output type 0v~5v/0v~10v
Supply Voltage	Current output type: DC 24V (22V~26V), Network output type: DC 24V (22V~26V), Voltage output type: DC 24V (22V~26V)
Load Capacity	Current output type: ≤500Ω, Voltage output type: output impedance ≤250Ω
Long-term Stability	Humidity ≤1%RH/y, Temperature ≤0.1/y℃
Response Time	Humidity ≤4s (1m/s wind speed), Temperature ≤15s (1m/s wind speed)
Electrical Interface	G1/2
Installation Method	fixed wall
Shell	Cast aluminum housing
Explosion-proof Level	Exd II CT4 Gb(-40℃~80℃), Exdb IICT6 Gb(-40℃~60℃)
Product Weight	Display type: ≤1500g, No display type: ≤1230g
Protection Level	IP66 (without probe)
Measuring Range	Temperature:-40°C≤ Ta ≤ 60°C (Ex d IIC T6 Gb) -40°C≤ Ta ≤ 80°C (Ex d IIC T6 Gb) Humidity: 0°RH + 100°RH	Power Consumption	Current output: ≤1.2W, Network output: ≤0.48W, Voltage output: ≤0.48W, With display increase 0.12W
Accuracy	Grade A: Temperature ±0.5℃ (25℃) Humidity ±2% RH (5% RH ~ 95% RH 25℃), Grade B: Temperature ±0.5℃ (25℃) Humidity: ±3% RH (5% RH ~ 95% RH 25℃)	Working Environment	Circuit working environment Temperature: -40℃~65℃ /-40℃~85℃ Humidity: 5% RH ~ 95% RH, Probe working environment Temperature: -40℃~65℃ /-40℃~85℃ Humidity: 0% RH ~ 100% RH (non-condensation)
Output Form	Current output type 4mA~20mA, Network output type RS485/RS232, Voltage output type 0v~5v/0v~10v	Supply Voltage	Current output type: DC 24V (22V~26V), Network output type: DC 24V (22V~26V), Voltage output type: DC 24V (22V~26V)
Load Capacity	Current output type: ≤500Ω, Voltage output type: output impedance ≤250Ω	Long-term Stability	Humidity ≤1%RH/y, Temperature ≤0.1/y℃
Response Time	Humidity ≤4s (1m/s wind speed), Temperature ≤15s (1m/s wind speed)	Electrical Interface	G1/2
Installation Method	fixed wall	Shell	Cast aluminum housing
Explosion-proof Level	Exd II CT4 Gb(-40℃~80℃), Exdb IICT6 Gb(-40℃~60℃)	Product Weight	Display type: ≤1500g, No display type: ≤1230g
Protection Level	IP66 (without probe)
